Probst VZ1 Kerbstone laying clamp
Brand:
Capacity
100Kgs
(0.1tonne)
Description

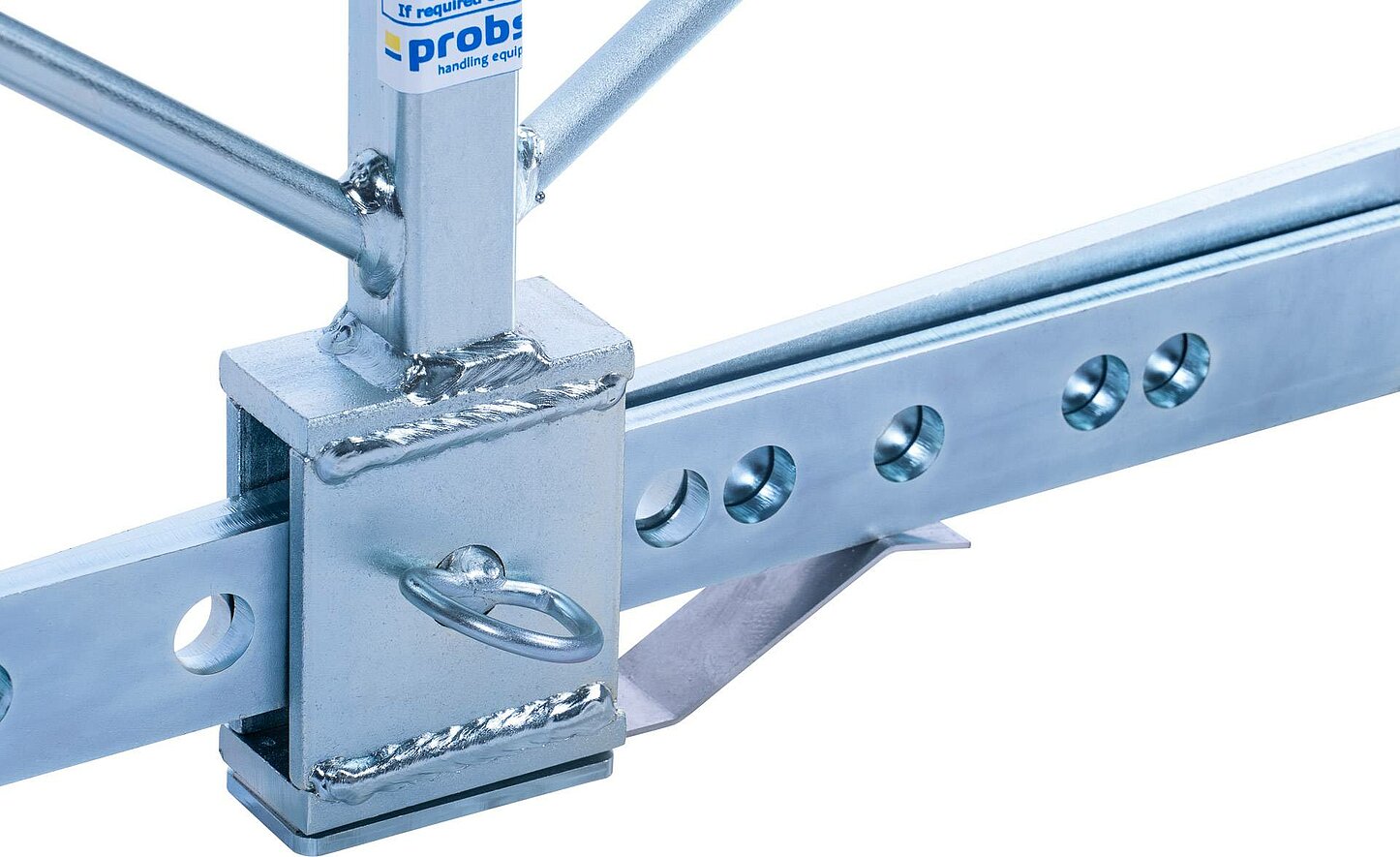

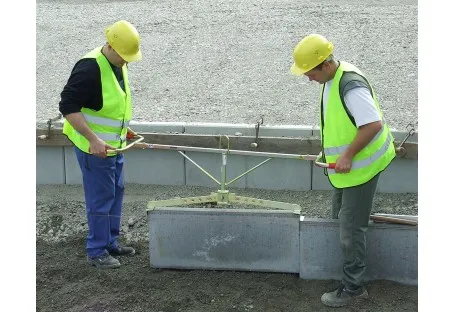

VZ1 Probst Kerbstone laying Clamp is a two-man laying clamp that is especially suitable for handling concrete kerbstones, by hand or via a digger/telehandler, etc. Designed with angular support on one side which helps in the final positioning against the kerbstone already in place - This enables extremely narrow joints and leaves a professional straight line of kerbstones
Add to cart
Add to quoteRelated products
Kerb Stone Sorting Clamp SC 1541
SC 1541
Eichinger Kerb Stone Sorting Clamp SC1541 - Two-person manual kerbstone laying clamp that makes light work of positioning concrete kerb stones tight together and straight.
£204.98 ex VAT
£245.98 inc VAT
Kerb Stone Handle KSH 1504
KSH 1504
Kerb Stone Handle KSH 1504 has been designed for use in pairs by two persons in order to lift and move kerb stones, edging blocks, and natural stone blocks easily and with less effort, thanks to its large variable jaw width.
£59.98 ex VAT
£71.98 inc VAT
Universal Kerb Handle UKH 1505
UKH 1505
The Eichinger Universal Kerb Handle UKH 1505 have been designed for use by two operatives to move various heavy kerb stones thanks to its large variable jaw width and rubber-lined jaws.
£149.98 ex VAT
£179.98 inc VAT
Probst BZ Kerb Handle
BZ
Probst BZ Kerb Stone Handle ideal for lifting and transporting Kerb Stones, Edging Stones, Concrete Gutters and paving materials. Can also be used with natural kerb stones and other landscaping elements.
£59.48 ex VAT
£71.38 inc VAT
Probst BVZ Universal Handle
BVZ
Probst BVZ Universal Handles with large adjustable opening range, ideal for most landscaping and gardening kerb stones and other concrete blocks, such as concrete railway sleepers.
£185.98 ex VAT
£223.18 inc VAT
Probst Kerb Stone Handle
BZ Basicline
Probst Basicline Kerb Stone Handles is ideal for lifting and transporting Kerb Stones, Edging Stones, Concrete Gutters and paving materials. Can also be used with natural kerb stones concrete fence panel posts and other landscaping elements.
£42.50 ex VAT
£51.00 inc VAT

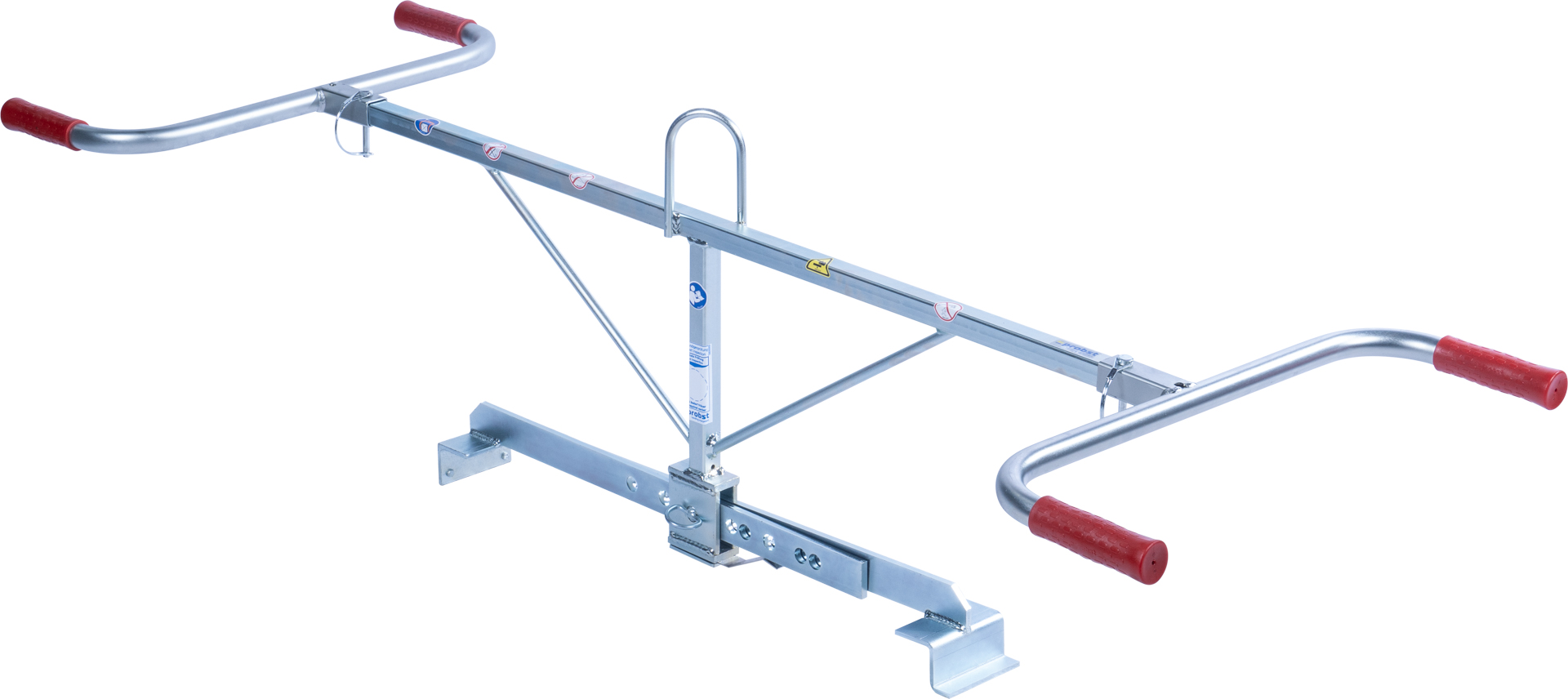

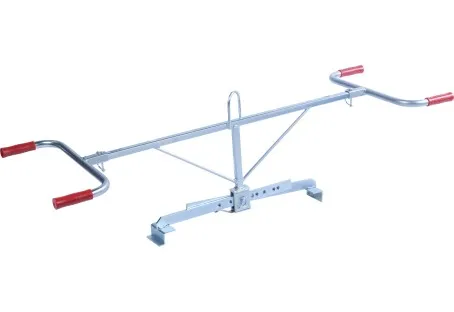

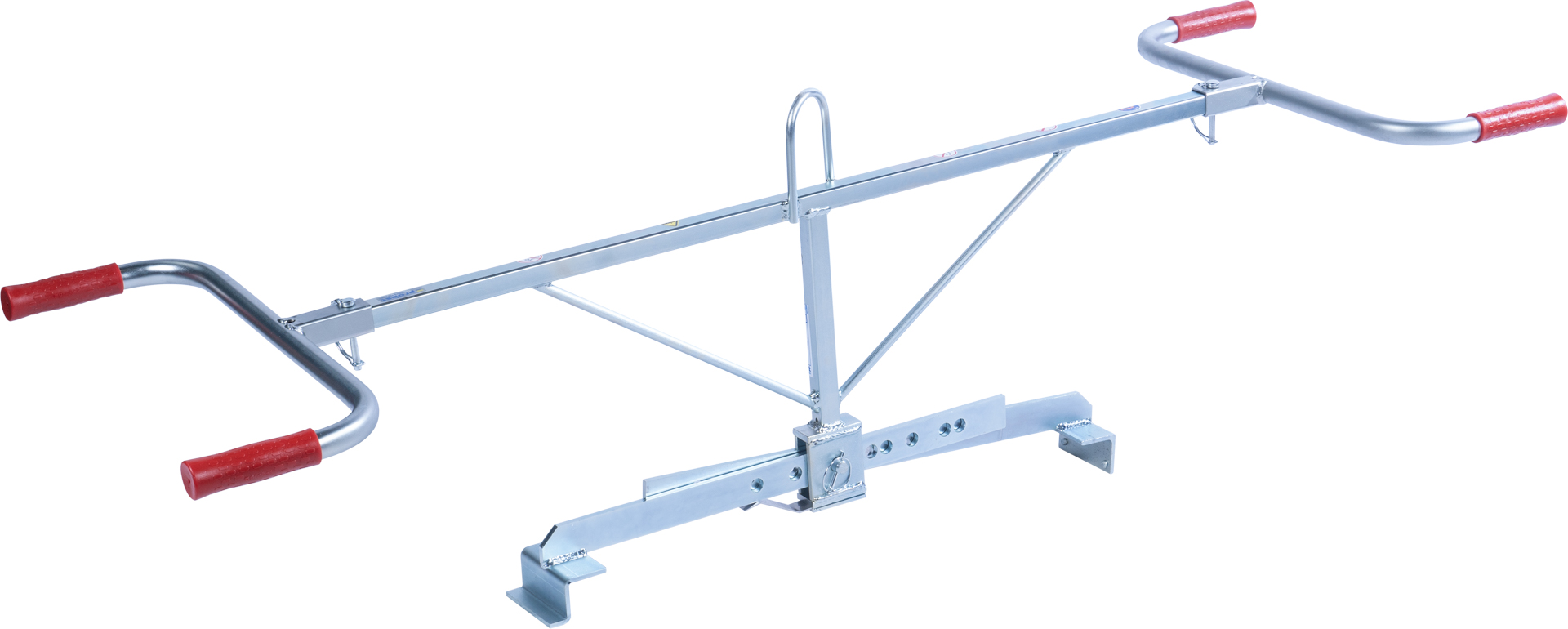

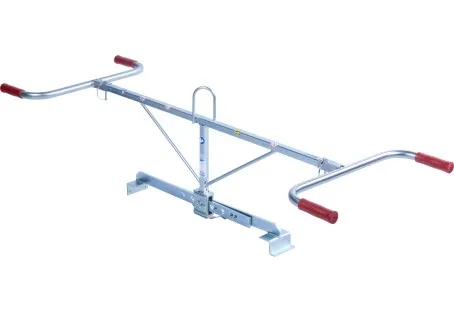

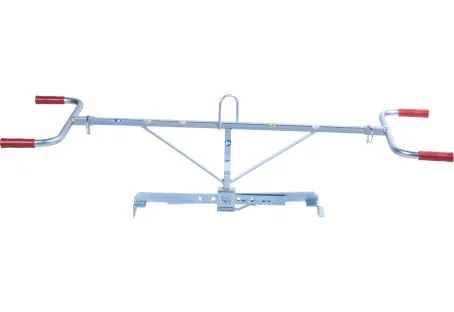

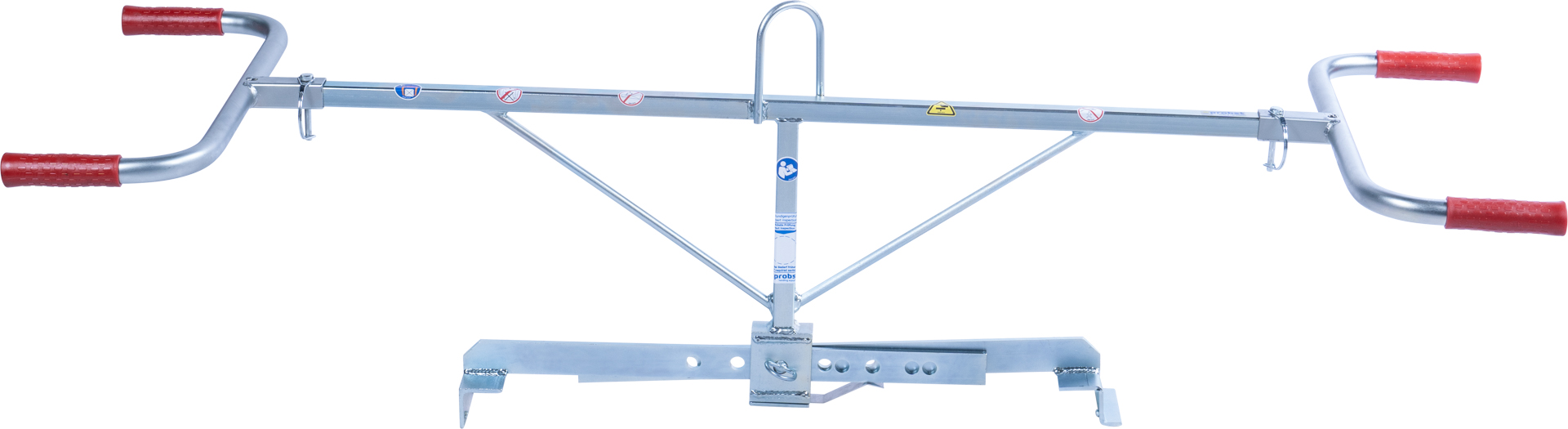

Probst VZ1 Laying Clamp VZ is a professional quality built two-man kerbstone lifting and laying clamp, especially suitable for handling concrete kerbstones, designed with angular support on one side which helps the operator, in the final positioning against the kerbstone already in place - This enables extremely narrow joints and leaves a professional straight line of kerbstones. Laying Clamp VZ is easy to carry and lightweight in design, making it the perfect attachment for manual placement of both kerbstones and lightweight slabs.
This purpose-designed tool will speed up the laying process of roadside kerb stones. the Probst Laying Clamp VZ is also fitted with a central lifting eye for easy attachment of the kerbstone laying clamp to a site hoist, digger, and telehandlers, etc, making moving and laying kerbstones even easier.

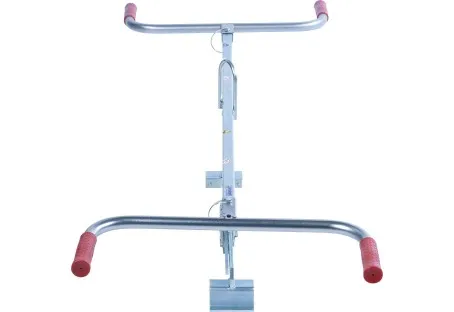

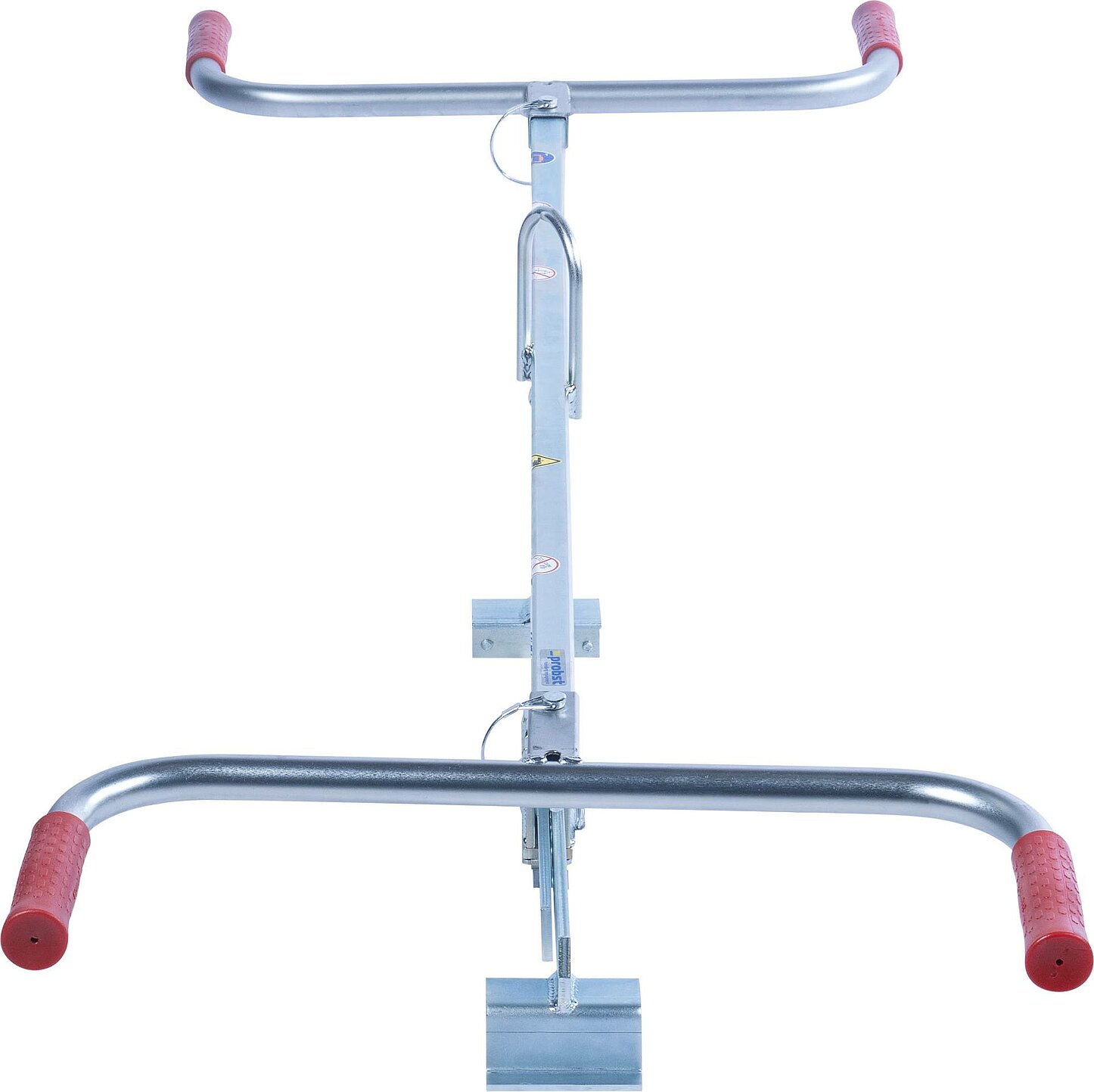

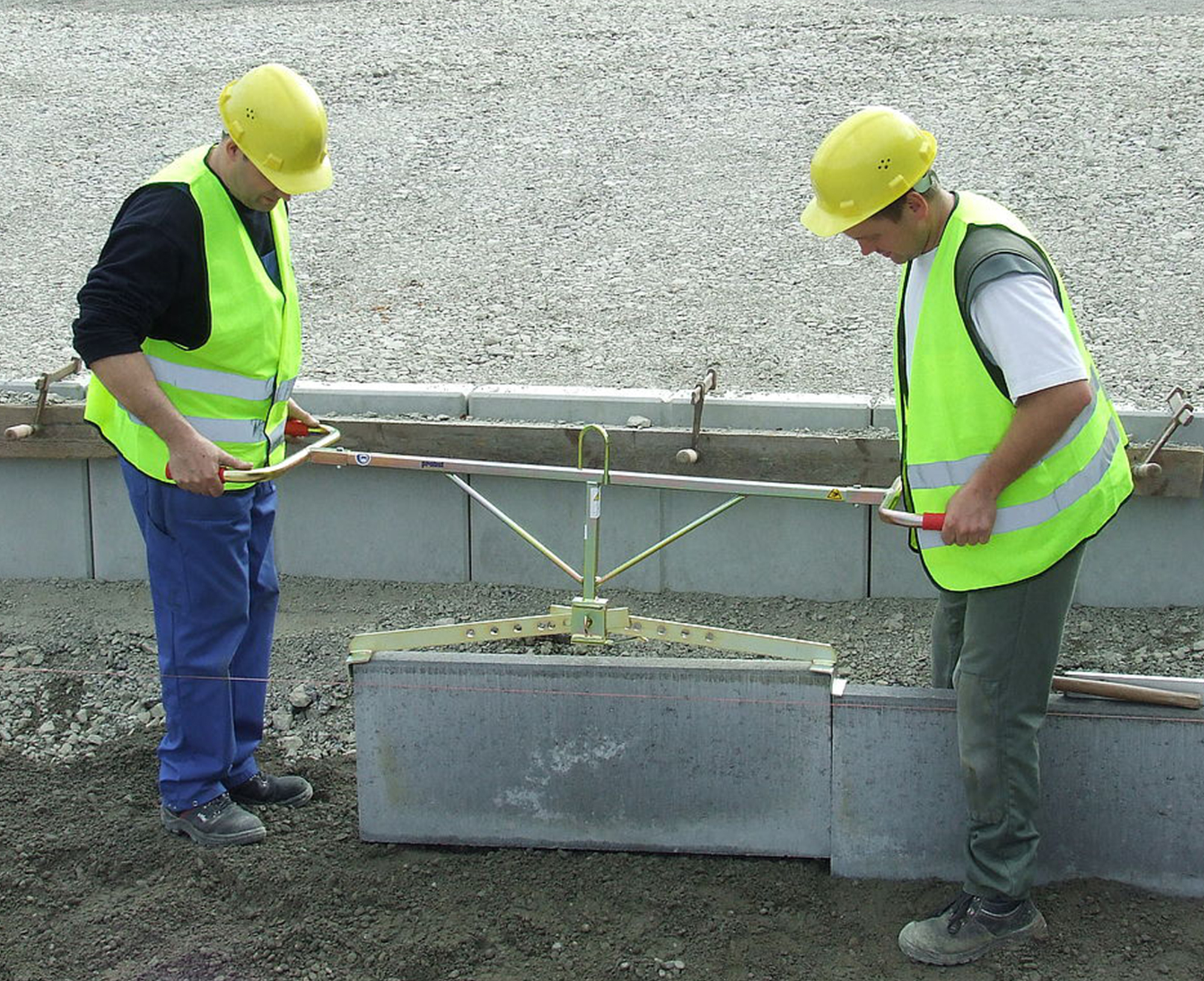

The VZ1 is designed to pick up kerbstone's lengthways - helps when laying out in tight spaces leaving no spaces between joints.

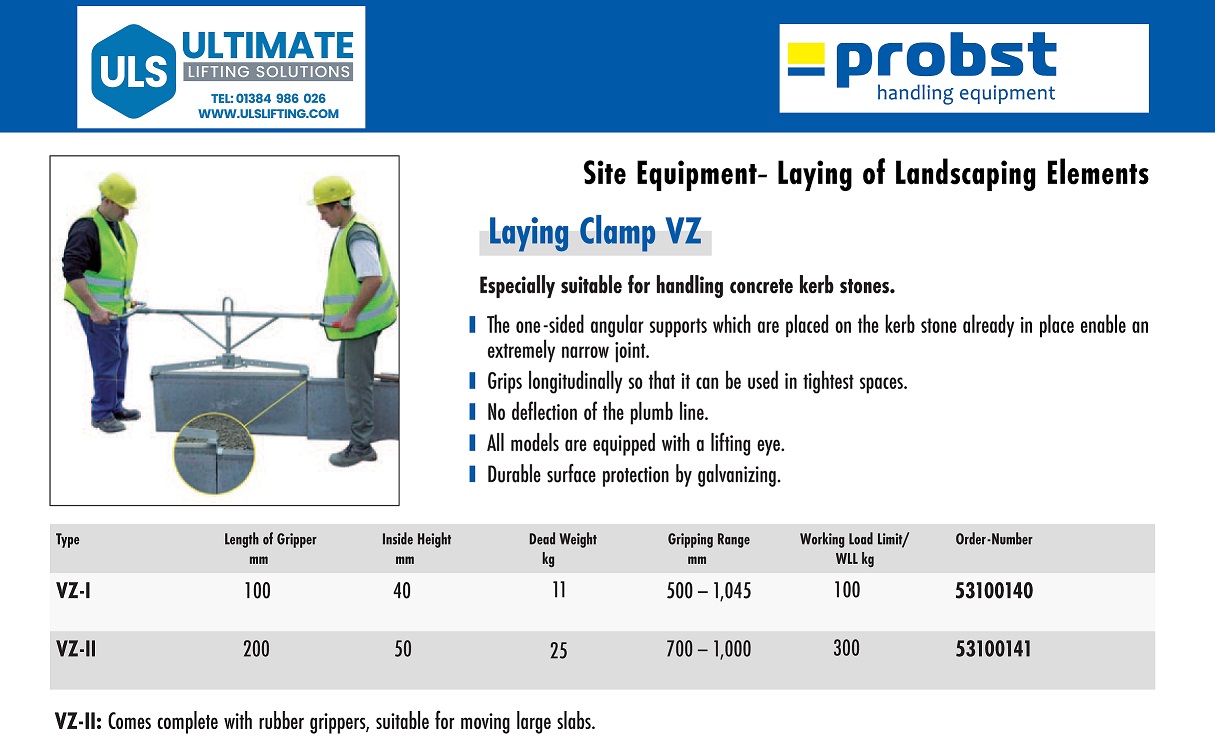

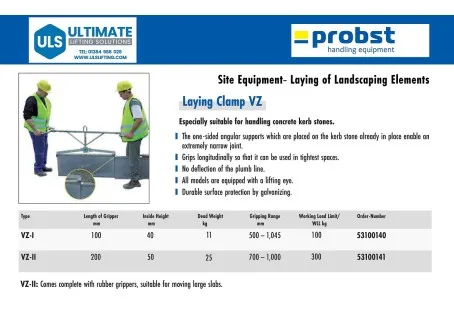

| Model | WLL / SWL | Probst Part No | Grab Range | Internal Depth | Weight |
| VZ-1 | 100 Kgs | 53100140 | 500 - 1045 mm | 40 mm | 11 Kgs |
The Probst VZ-1 kerbstone laying clamp is also fitted with a central Large Lifting eye - Suitable for attaching to other lifting equipment such as a snatch chain to then connect the kerbstone laying clamp to a digger or hoist etc.
Optional VZ-2 Laying Clamp 300Kgs Capacity - Probst Part Number 53100141
A larger 300Kg VZ-II version from Probst is also available. It is a lot larger than the standard VZI version and ideal for the manual or mechanical installation of larger slabs up to 300 kg.
| Model | WLL / SWL | Probst Part No | Grab Range | Internal Depth | Weight |
| VZ-11 | 300 Kgs | 53100141 | 700 - 1000 mm | 50 mm | 11 Kgs |
Probst Kerb Stone Laying Clamp - Probst Part Number 53100140
100Kgs Lifting Capacity.
Fitted with central Large Lifting eye - suitable for attaching to other lifting equipment such as snatch chain.

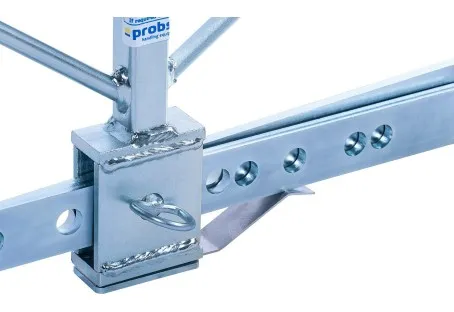

Grip longitudinally - to lay kerbstones in narrow or tight spaces.
No deflection of the plumb line.
Plastic hand grips are attached for operator comfort.
Fully galvanized finish - great protection for outside use.
| Model | WLL / SWL | Probst Part No | Grab Range | Internal Depth | Weight |
| VZ-1 | 100 Kgs | 53100140 | 500 - 1045 mm | 40 mm | 11 Kgs |
Optional VZ2 Laying Clamp 300Kgs Capacity - Probst Part Number 53100141
A larger 300Kg VZ-II version from Probst is also available. It is a lot larger than the standard VZI version and ideal for the manual or mechanical installation of larger slabs up to 300 kg.
| Model | WLL / SWL | Probst Part No | Grab Range | Internal Depth | Weight |
| VZ-11 | 300 Kgs | 53100141 | 700 - 1000 mm | 50 mm | 11 Kgs |
Probst - Making hard work easier !!!!
For over 60 years Probst has been manufacturing tools and equipment that have made everyday life on the construction site easier. Thanks to many important ergonomic and efficiency-enhancing innovations, Probst Material Handling today is the world market leader and defines the handling of construction materials on sites and in concrete plants.
The headquarters are in Erdmannhausen (Germany), the Competence Centre Robot Production is in Könitz (Germany), as well as at our five subsidiaries in Great Britain, France, Italy, Poland, and the USA, find the optimal solution for our customers every day. We are present worldwide with over 450 sales partners. Since 2020, the entire corporate group has been climate-neutral.
Whether in structural or civil engineering, whether in the garden or on the street: Probst products are at home on all construction sites. there machines and tools make life easier for everyone who works with paving stones, pipes, and other concrete products. WHY - Because they put efficiency and ergonomics first, and have become the world market leader in the field of gripping and laying technology through numerous innovations.
