Tigrip Self Weight Balance Crane Forks

Key notes for ordering:

Supplied tested and certified - Ready to use from the box

Estimated lead time:5 to 7 Days Delivery - Please call if required sooner

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

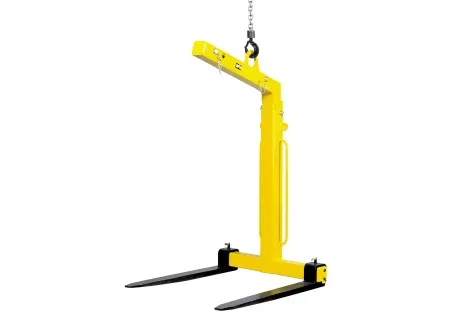

Tigrip Self Weight Balance Crane Forks

Brand:

Capacity

200Ks up to 5,000Kgs
0.2 tonne - 5 tonne

Description

The Camlok/Tigrip Self Weight Balancing Crane forks with adjustable tines and adjustable height mean these forks will give huge flexibility when required to move pallets or oversized packs of bricks/blocks around a builders yard or on-site, couple this with the self-weight balancing mechanism which automatically keeps the load level while in transport

£1,248.11 ex VAT

£1,497.73 inc VAT

Add to cart Add to quote

Related products

CY Self Balancing Crane Forks

CY

CY Self Balancing Crane Forks with adjustable fork tines & adjustable height - These crane forks give huge flexibility when required to move pallets or oversized packs of bricks/blocks around a builder's yard or on-site via overhead cranes etc.

£699.98 ex VAT

£839.98 inc VAT

Self Levelling Crane Fork CF 1056

CF 1056

Quality manufactured Self Balancing Crane Forks, offer total flexibility when lifting and transporting palletised materials around construction sites when used in conjunction with an overhead crane, Hiab or tower crane.

£1,098.98 ex VAT

£1,318.78 inc VAT

Telescopic Crane Fork CF1056T

CF 1056T

Telescopic Crane Fork CF1056T  is designed for moving blocks and bricks that are palletized on both standard and nonstandard pallets around a construction/building site when used with an overhead crane or Hiab.

£1,549.98 ex VAT

£1,859.98 inc VAT

Crane Pallet Fork Cage

IPF-BOS-CAGE

Quality manufactured Crane Pallet Fork Cage designed to be used with Self Balancing Crane Forks to aid the safe lifting of brick packs, blocks, and other building materials at height, whilst also providing safety for any potential collapsed loads during operation

£1,142.98 ex VAT

£1,371.58 inc VAT

Automatic Pallet Forks

IPF

The Automatic Pallet Forks effectively convert an overhead crane into a pallet-moving tool. There are many applications where fork trucks cannot be operated due to a lack of floor space for example high rise developments.

£1,294.94 ex VAT

£1,553.93 inc VAT

The Camlok/Tigrip Self Weight Balancing Crane forks with adjustable tines and adjustable height mean these forks will give huge flexibility when required to move pallets or oversized packs of bricks/blocks around a builder's yard or on-site. Couple this with the self-weight balancing mechanism which automatically keeps the load level while in transport.

The TKG-VHS range of crane forks is equipped with adjustable tines, adjustable mast height, and a self-weight balancing system. Crane forks with self-weight balancing* tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines. The self-weight balancing mechanism returns the lifting point to the unloaded position when the load is set down. For efficient operation of this mechanism, the load must be greater than 20% of the working load limit.

NB - The automatic balancing system requires a minimum load of at least 20% of your chosen crane fork working load limit WLL.

Model
WLL Range
Width Min/Max
Working Height
Fork Tine Length
Fork Tine Section
Weight
TKG1.0VHS
200 - 1,000Kgs
350 - 900mm
1,100 - 1,600mm
1,000mm
100 x 30mm
140Kgs
TKG2.0VHS
400 - 2,000Kgs400 - 900mm
1,300 - 2,000mm
1,000mm
120 x 40mm
220Kgs
TKG3.0VHS
600 - 3,000Kgs
450 - 900mm
1,300 - 2,000mm
1,000mm
120 x 50mm
280Kgs
TKG5.0VHS
1000 - 5,000Kgs
500 - 900mm
1,300 - 2,000mm
1,000mm
150 x 60mm
380Kgs
Please note these units are supplied already assembled on a wooden pallet.

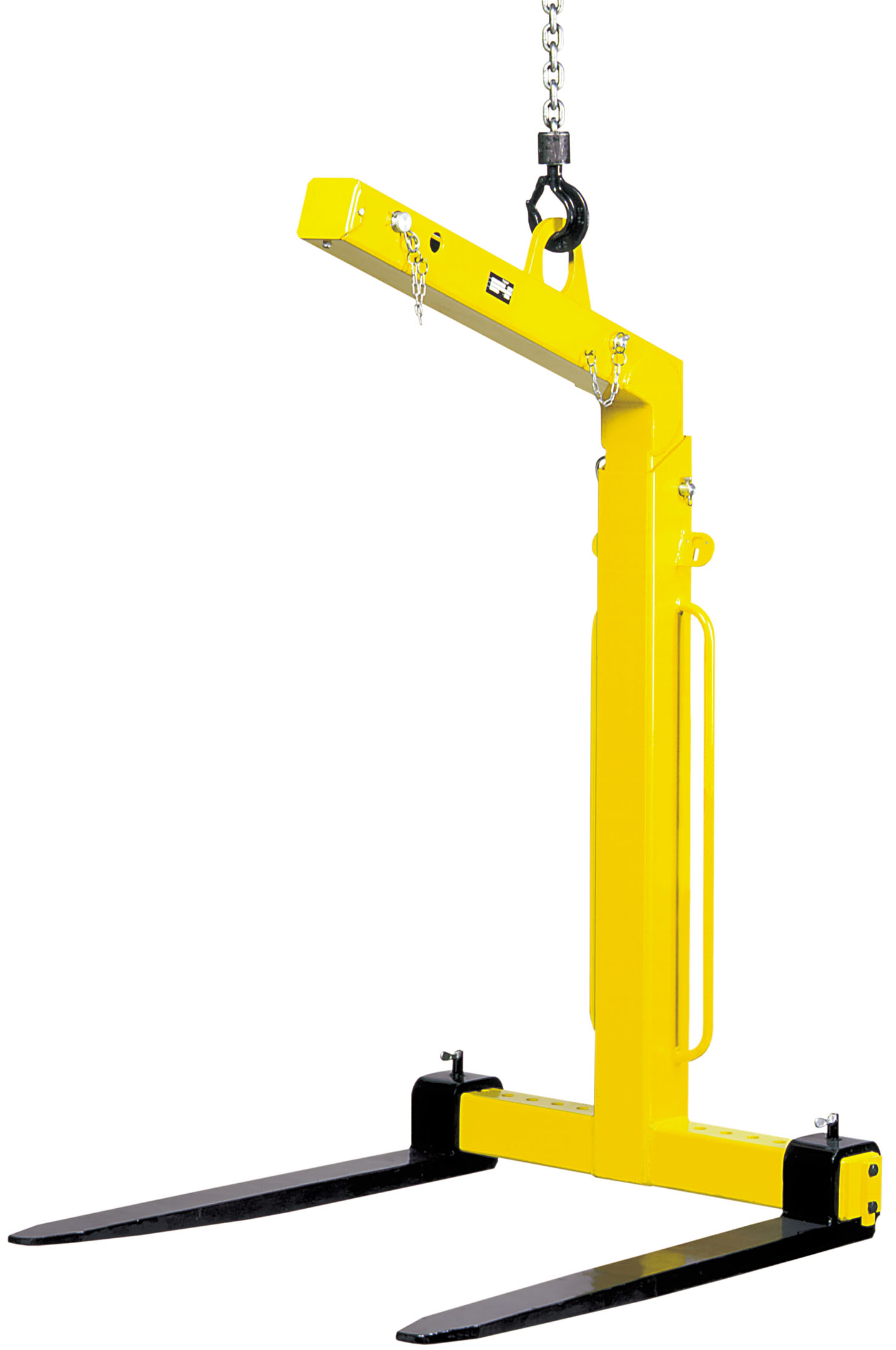

TKG-VHS SELF-WEIGHT BALANCE CRANE FORKS
200 - 5000KG
Crane forks with self-weight balancing

PRODUCT APPLICATIONS
The TKG-VHS range of crane forks is equipped with adjustable tines, adjustable mast height and a self-weight balancing system. Crane forks with self-weight balancing* tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines.

*NB: The automatic balancing system requires a minimum load of 20% of the crane fork working load limit.

Main Features
  • The factor of safety 4:1
  • Maintenance-free.
  • Highly visible safety colour.
  • For transporting rings or coils, simply push fork tines together
  • Easily adjustable tines for all pallet sizes.
  • Supplied with chain for securing the load.

Model
WLL Range
Width Min/Max
Working Height
Fork Tine Length
Fork Tine Section
Weight
TKG1.0VHS
200 - 1,000Kgs
350 - 900mm
1,100 - 1,600mm
1,000mm
100 x 30mm
140Kgs
TKG2.0VHS
400 - 2,000Kgs400 - 900mm
1,300 - 2,000mm
1,000mm
120 x 40mm
220Kgs
TKG3.0VHS
600 - 3,000Kgs
450 - 900mm
1,300 - 2,000mm
1,000mm
120 x 50mm
280Kgs
TKG5.0VHS
1000 - 5,000Kgs
500 - 900mm
1,300 - 2,000mm
1,000mm
150 x 60mm
380Kgs
Please note these units are supplied already assembled on a wooden pallet.
