CY Self Balancing Crane Forks

Key notes for ordering:
Supplied tested and certified - Ready to use from the box
Estimated lead time:1 - 2 Days
Please call us if you need this item sooner

& COLLECT

delivery

DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise

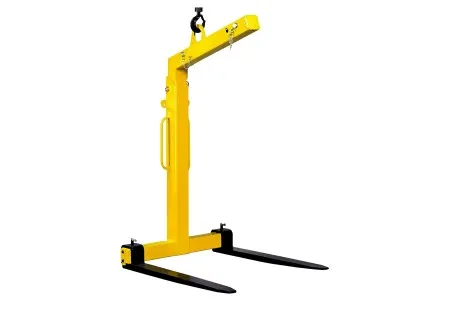

CY Self Balancing Crane Forks
Capacity
1000Kgs up to 5000Kgs
(1 tonne to 5 tonne)"
Description
Self Balancing Crane fork with adjustable fork tines & adjustable height - These crane forks give huge flexibility when required to move pallets or oversized packs of bricks/blocks around a builders yard or on-site via overhead cranes etc.
Related products

TKG
£1,248.11 ex VAT
£1,497.73 inc VAT

CF 1056
Quality manufactured Self Balancing Crane Forks, offer total flexibility when lifting and transporting palletised materials around construction sites when used in conjunction with an overhead crane, Hiab or tower crane.
£1,098.98 ex VAT
£1,318.78 inc VAT

CF 1056T
£1,549.98 ex VAT
£1,859.98 inc VAT
The CY Self Balancing Crane forks from Raptor products, have adjustable fork tines and adjustable height, which mean these crane forks give huge flexibility when required to move pallets or oversized packs of bricks/blocks around a builders yard or on-site via a crane. Adjust the fork width to accommodate the pallet size , also adjust height to suit taller crates or pallets. The advantages of the self balancing hydraulic piston means the fork unit will automatically keep the load level while being lifted as well as in transport.
NB - The automatic balancing system requires a minimum load of at least 20% of your chosen crane forks working load limit WLL - See below for Capacity working range.
Model | WLL Range | Width (Min/Max) | Working Height | Fork Length | Fork Tine Section | Weight |
CY10 | 200 - 1,000Kgs | 350 - 900mm | 1,100 - 1,600mm | 1,000mm | 100 x 30mm | 140Kgs |
CY20 | 400 - 2,000Kgs | 400 - 900mm | 1,300 - 2,000mm | 1,000mm | 120 x 40mm | 220Kgs |
CY30 | 600 - 3,000Kgs | 450 - 900mm | 1,300 - 2,000mm | 1,000mm | 120 x 50mm | 280Kgs |
CY50 | 1,000 - 5,000Kgs | 530 - 1,000mm | 1,300 - 2,000mm | 1,000mm | 150 x 60mm | 380Kgs |
Please note these units are supplied already assembled on a wooden pallet.
Crane forks with self weight balancing - Tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines. The self balancing mechanism returns the lifting point to the unloaded position when the load is set down. For efficient operation of this mechanism the load must be greater than 20% of the working load limit.
Raptor Self Balancing Crane Forks
Range - 200Kgs - 5000KG
Crane forks with self balancing Hydraulic Piston
*NB: The automatic balancing system requires a minimum load of 20% of the crane forks working load limit.
Main Features
Factor of safety 4 : 1
Maintenance free.
Highly visible safety colour.
For transporting rings or coils, simply push fork tines together
Easily adjustable tines for all pallet sizes.
Supplied with chain for securing the load.
NB - The automatic balancing system requires a minimum load of at least 20% of your chosen crane forks working load limit WLL
Model | WLL Range | Width (Min/Max) | Working Height | Fork Length | Fork Tine Section | Weight |
CY10 | 200 - 1,000Kgs | 350 - 900mm | 1,100 - 1,600mm | 1,000mm | 100 x 30mm | 140Kgs |
CY20 | 400 - 2,000Kgs | 400 - 900mm | 1,300 - 2,000mm | 1,000mm | 120 x 40mm | 220Kgs |
CY30 | 600 - 3,000Kgs | 450 - 900mm | 1,300 - 2,000mm | 1,000mm | 120 x 50mm | 280Kgs |
CY50 | 1,000 - 5,000Kgs | 530 - 1,000mm | 1,300 - 2,000mm | 1,000mm | 150 x 60mm | 380Kgs |
Please note these units are supplied already assembled on a wooden pallet"
