SW-W Pfaff Wall Mounted Wire Rope Winch (SG)

Key notes for ordering:

Supplied as winch only- wire rope to be bought separately. Tested and Certified

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

SW-W Pfaff Wall Mounted Wire Rope Winch (SG)

Brand:

Capacity

125Kgs up to 750Kgs
(0.125tonne - 0.75 tonne

Description

Pfaff SW-W Wall Mountable Wire Rope Winch are well-designed and very robust - suitable for industrial environments, and in construction, agricultural and wholesale applications.

£205.51 ex VAT

£246.61 inc VAT

Add to cart Add to quote

Related products

The Pfaff SW-W Wall Mountable Wire Rope Winches are well-designed and very robust - suitable for industrial environments for construction, agricultural and wholesale applications. The SW-W winches are intended for stationary installation and to be mounted to any suitable wall or vertical face.

They have a robust, well-designed body and handle and are fitted with smoothly running spur gear for high efficiency.
Model

Lifting Capacity 1st Rope Layer

Upper Rope Layer
Wire Rope Diameter
Lift Per Crank Rotation
Required Crank Pressure
Weight
SW-W 125
125Kgs
65Kgs
4mm
138mm
13daN
3Kgs
SW-W 300
300Kgs
220Kgs
5mm
68mm
15daN
10Kgs
SW-W 500
500Kgs
350Kgs
6mm
35mm
13daN
11Kgs
SW-W 750
750Kgs
550Kgs
7mm
35mm
20daN
11Kgs
Capacity: 125kg-750kg

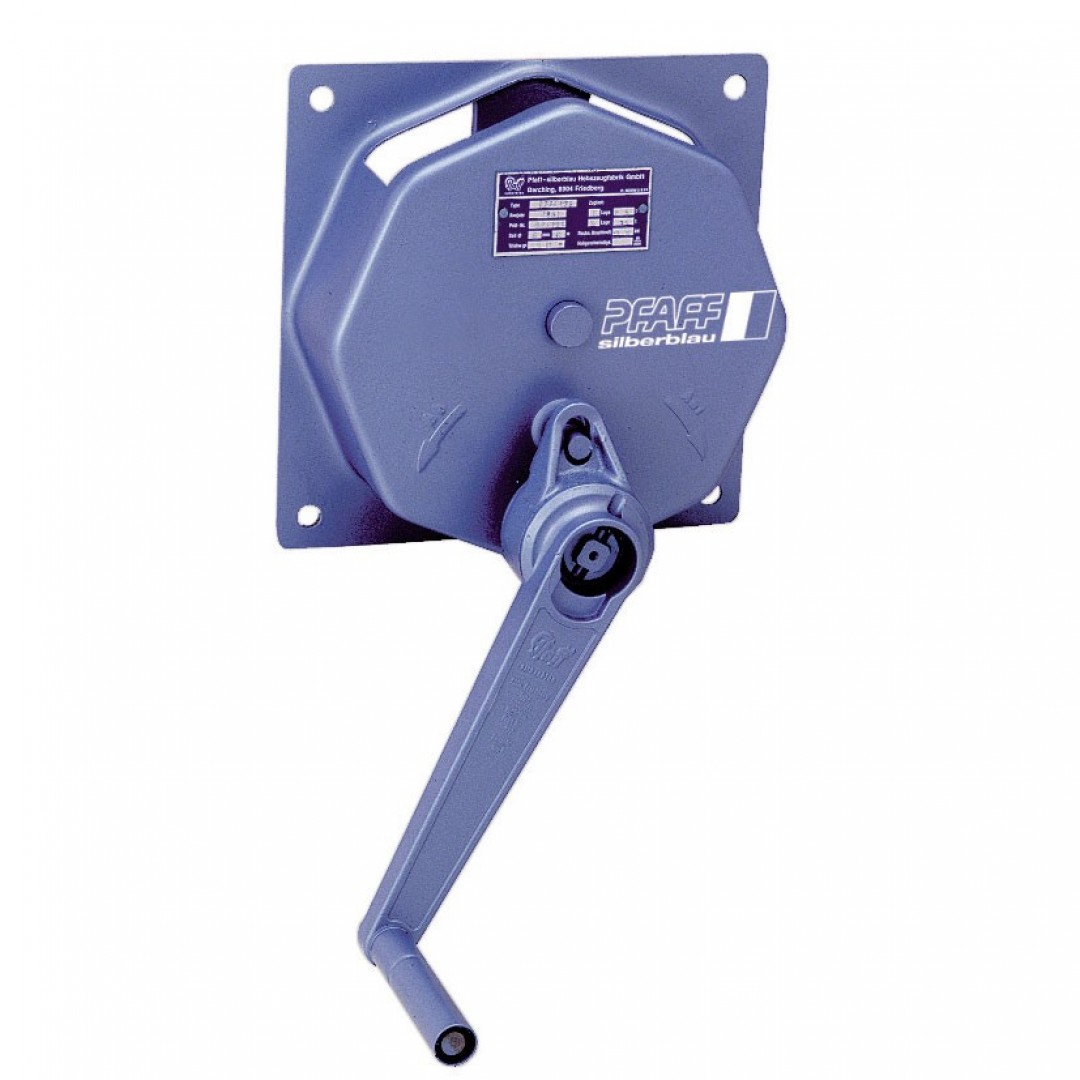

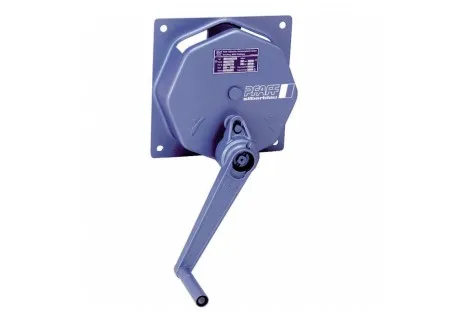

Externally Braked Safety Crank for 300-750kg units.
Smoothly running spur gear for high efficiency for 300 - 750Kg units
Direct drive for carrying loads on the 125Kg unit

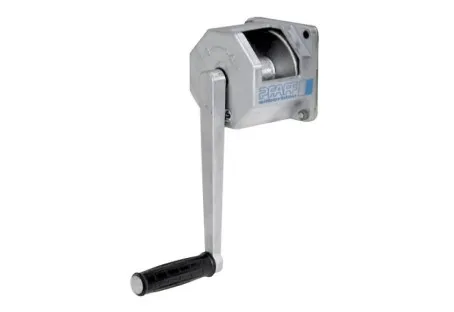

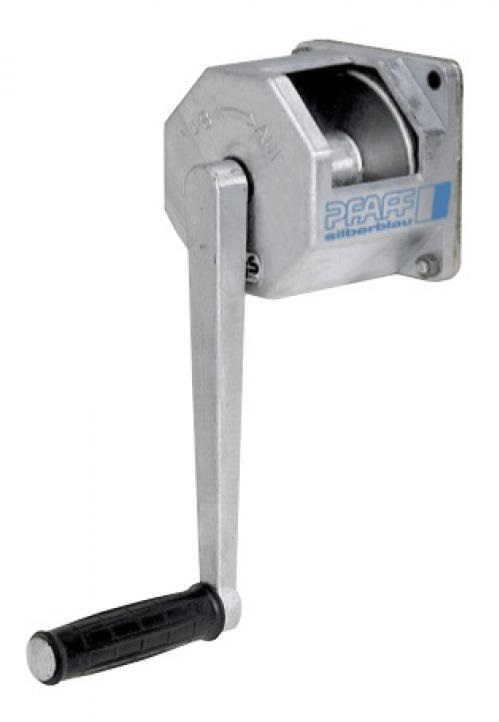

Removable Hand Crank on 125kg Unit.
Foldable Hand Crank version for 300 - 740Kg units
Aluminium body on 125Kg unit
Heavy Duty Steel for 300-750kg Units.
Wall Mountable

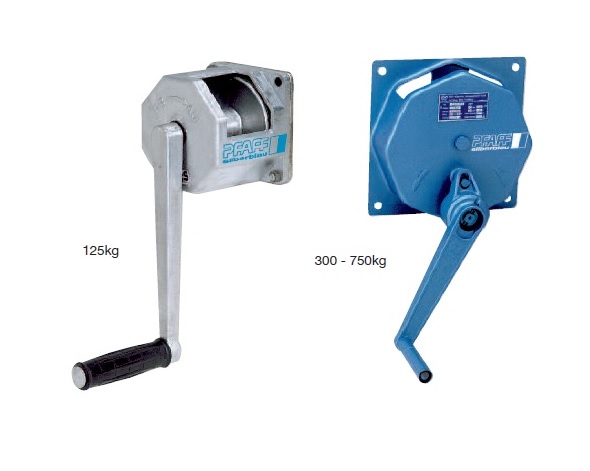

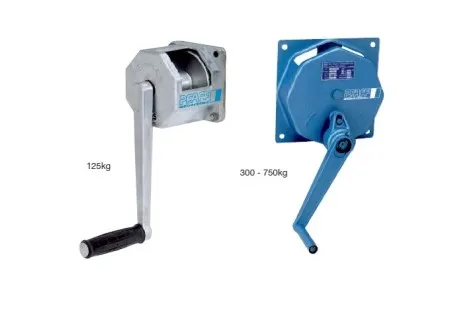

Silver Model- 125kg, Blue- 300-750kg

Model

Lifting Capacity 1st Rope Layer

Upper Rope Layer
Wire Rope Diameter
Lift Per Crank Rotation
Required Crank Pressure
Weight
SW-W 125
125Kgs
65Kgs
4mm
138mm
13daN
3Kgs
SW-W 300
300Kgs
220Kgs
5mm
68mm
15daN
10Kgs
SW-W 500
500Kgs
350Kgs
6mm
35mm
13daN
11Kgs
SW-W 750
750Kgs
550Kgs
7mm
35mm
20daN
11Kgs
