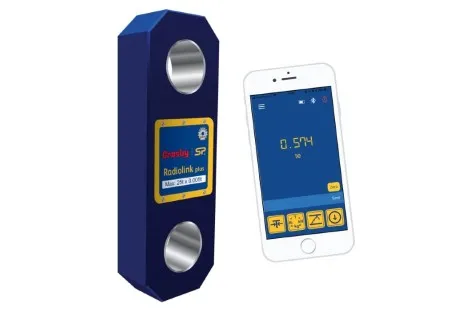

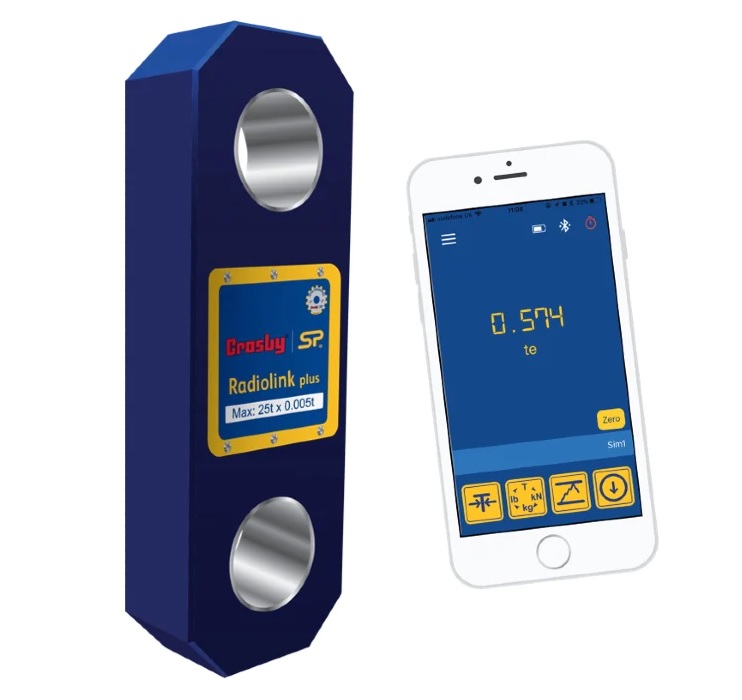

Crosby Straightpoint RLP Radiolink Plus Bluetooth Version is a Wireless Tension Load Cell designed to be used with the SW-HHP Insight Software or can be Bluetooth. The Radiolink BLE Loadcell is designed to be used with alloy Bow Shackles including the Crosby standard shackle range and will accurately measure force or weight, being Bluetooth allows the operator to stand at a safe distance from the load. from 1 tonne up to 500 tonnes and the entire range is DNV-GL approved. The versatile RLP BLE is supplied with the updated rate of 3Hz ideal for dynamic force measurement.
Two versions of the RLP are available:
- Bluetooth output and can be connected to any smartphone running our free HHP app on iOS or Android at ranges up to 100m or 328ft. (HHP App for iOS and Android and is free to download).
- Standard Long-range 2.4GHz version providing an industry-leading wireless range of 1000m or 3280ft to SP's SW-HHP handheld or software options. Please check our separate page
Constructed from high-quality aerospace-grade aluminium it features an advanced internal design structure. This design not only provides the product with an unrivalled strength-to-weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell's electronic components with IP67 or NEMA6 environmental protection even with the battery cover plate missing, making this industry-leading dynamometer even more suitable for use in the harshest environments.
The versatile RLP BLE Loadlink is supplied with an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz making it ideal for dynamic force measurement.
Decades of development into this product include many stand-out features such as SP's unique strain gauging method that helps compensate for wire rope torque when the Radiolink is loaded. The Radiolink plus tension load cell can also be used in combination with SP INSIGHT software high-speed wireless data logging software allowing for simultaneous control, display, and real-time data logging of up to 126 Straightpoint wireless load cells.
A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards, and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII) outputs.
Radiolink Plus Main Specification
|CP1T-BLE 2789005||1,000Kgs||0.5 Kgs||Kgs or Lbs||1.5Kgs|
|CP2T5-BLE 2789009||2,500Kgs||0.001 t||Kgs or Lbs||1.5Kgs|
|CP6T5-BLE 2789014||6,500Kgs||0.001 t||Kgs or Lbs||2.4Kgs|
|CP12T-BLE 2789003||12,000Kgs||0.002 t||Kgs or Lbs||3.7Kgs|
|CP25T-BLE 2789008||25,000Kgs||0.005 t||Kgs or Lbs||5.0Kgs|
|CP35T-BLE 2789011||35,000Kgs||0.005 t||Kgs or Lbs||8.6Kgs|
It is recommended that all units above be used with Crosby G2130 Safety Pin Shackles
|CP55T-BLE 2789013||55 tonne||0.01 t||Kgs or Lbs||13Kgs|
|CP75T-BLE 2789015||75 tonne||0.01 t||Kgs or Lbs||16Kgs|
|CP100T-BLE 2789002||100 tonne||0.05 t||Kgs or Lbs||34Kgs|
|CP150T-BLE 2789004||150 tonne||0.05 t||Kgs or Lbs||46Kgs|
|CP200T-BLE 2789006||200 tonne||0.10 t||Kgs or Lbs||82Kgs|
|CP250T-BLE 2789007||250 tonne||0.10 t||Kgs or Lbs||82Kgs|
|CP300T-BLE 2789010||300 tonne||0.10 t||Kgs or Lbs||118Kgs|
It is recommended that all units above be used with Crosby G2140 Safety Pin Shackles
|CP500T-BLE 2789012||500 tonne||0.10 t||Kgs or Lbs||193Kgs|
It is recommended that all units above be used with Crosby G2160 Safety Pin Shackles
All sizes above
Accuracy +/- 0.1% Full Scale
Operating Temperature -10c up to 50c
Range - 1000m or Blue Tooth 100m
Data Range - 3Hz - up to 2-00Hz can be ordered for dynamic load monitoring applications
Protection - IP67
The Straightpoint Radiolink Plus unit requires suitable shackles in order for it to work correctly - Straightpoint has Crosby as its parent company and therefore always suggests using Crosby shackles
Crosby G2130 Shackle
Crosby G2130-3.25t shackle for 1t and 2.5t dynamometers
Crosby G2130-6.5t shackle for 6.5t dynamometers
Crosby G2130-12t shackle for 12t dynamometers
Crosby G2130-25t shackle for 25t dynamometers
Crosby G2140 Shackle
Crosby G2140-55t shackle for 35t & 55t dynamometers
Crosby G2140-85t shackle for 75t dynamometers
Crosby G2140-120t shackle for 100t dynamometers
Crosby G2140-150t shackle for 150t dynamometers
Crosby G2140-200t shackle for 200t dynamometers
Crosby G2140-250t shackle for 250t dynamometers
Crosby G2140-300t shackle for 300t dynamometers
Crosby G2160 Shackle
Crosby G2160-600t shackle for 500t dynamometers+AC10.
FEATURES of Crosby Straightpoint RLP BLE Radiolink Plus Bluetooth Version
Proprietary 4.2 Bluetooth
Design validated by F.E.A.
2-year manufacturer warranty
DNV-GL Type Approval across the range
Complies with ASME B30.26
Supplied with a free HHP App for iOS and Android
Multiple weight unit measurement options (Te/Kg/lb/kN)
Peak Hold button
Zero and Gross monitoring options
Audible alarm alert for high/low values
User defined resolution setup
Connects to up to 8 smart devices simultaneously
Up to 100m or 328ft remote monitoring distance
Export measurement report
Accessories available for the handheld:
Wall or Cab Mount Bracket
SP Crosby Part Nos. SU3282 2789228
Rugged Rubber Boot
SP Crosby Part Nos. SU4045 2789232
Tandem Lifting and Lowering
Water Bag Load Testing
Loadcell Rental or Hire
Bollard Pull Testing
Heavy lift Projects
Research & Development Projects
Spreader Beam Load Monitoring
Measurement of vehicle towing loads
Ship-to-ship transfers (STS)
Single Point Mooring
WARRANTY & ASSURANCE
Design validated by F.E.A.
DNV-GL Type Approval
Complies with ASME B30.26
SUPPLIED WITH THE FOLLOWING AS STANDARD
SW-HHP handheld display
6 x AA Batteries
Calibration & proof test certificate
Multi-lingual user manual
Straightpoint Load Cell Wireless Accessories
Below are wireless accessories to complement Straightpoint's range of wireless dynamometer load cells. Wireless remote controls, alarms, PC software, and LED displays for load sensors to ensure safe, easy, and comfortable load cell force monitoring and measurement.
SW-OAM Wireless overload alarm module
The SW-OAM is a wireless relay module featuring audio and visual warning indicators. The unit’s two set point alarms can be triggered from a single or summed group of up to eight Straightpoint wireless load cells. The SW-OAM is ideal as a Wireless Overload Detection System.
SW-BS - Wireless Base Station - The SW-BS is ideal for integration with PLC, SCADA, DAQ, or other compatible third-party systems. The device can be configured to provide any of the following outputs as per configuration: 4-20mA, Relay setpoint, RS485 ASCII, or optional CANbus 2.0A & 2.0B
INSIGHT - Multiple wireless load cell controllers and centre of gravity software
INSIGHT software, supplied with an SW-D USB wireless dongle, allows connection of up to 126 Straightpoint wireless load cells simultaneously onto any Windows tablet or laptop.
SW-SD Wireless slave display
This 100mm (4”) scoreboard LED display is wireless and viewable for up to 150 ft. Perfect for installation on a crane gantry the unit operates on 110-240 VAC and displays an individual load or summed load for up to eight Straightpoint Wireless devices.
The Crosby Straightpoint RLP BLE Radiolink Plus c/w Wireless Handheld Display will be supplied with a certificate of calibration which is valid for one year. After this date, it is recommended the device be recalibrated by the manufacturer's approved calibration laboratories.
Contact Us at Ultimate Lifting Solutions for more information on calibration, as this service can be carried out by us, or contact us for any other LOLER inspection requirements.
The Crosby / Straightpoint Mission: To Make the Lifting Industry a Safer Place
Know the load facts:
- Capacities supplied: 1t – 2,000t +Custom made load cells
- Years business established: 42
- Number of worldwide partners: 80
- Worldwide SP products are sold in the USA, Canada, Latin America, Europe, the Middle East, Africa, Asia and the Pacific regions.
- Unrivalled lead times
- Excellent customer service and aftercare
Crosby/Straightpoint (SP) is an award-winning, UK & USA load cell manufacturing company specializing in the production and calibration of load monitoring equipment for the following applications:
Suspended load weighing
Compression force sensing
Wire Rope Tension Metering
In these Industries: construction; container weighing; extreme sports; heavy lift; line tensioning; logistics; marine; oil and gas; stage and event rigging; shipping; testing; towage and salvage; utilities; defence; and more.
The products that SP produces are developed using the latest cutting-edge technology and materials. By pushing the boundaries, we can continue the endeavour to further decrease risk and increase safety in heavy-load lift situations.
With over $1,000,000 of stock available, SP products give distributors a distinct advantage over competitors’ lead times
Range of products from 100kg beam load cells to 1,500t load shackles and beyond
Cutting-edge technology including unsurpassed wireless products
A huge range of accessories and data logging software packages available with most load cells
World-class after-sales and marketing support
Provision of complementary smart cell device apps (Android/IOS) to wirelessly monitor loads via a Bluetooth connection from up to 50m away (HHP and COLT apps)
