DSR S Pfaff Wire Rope Sheaves

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

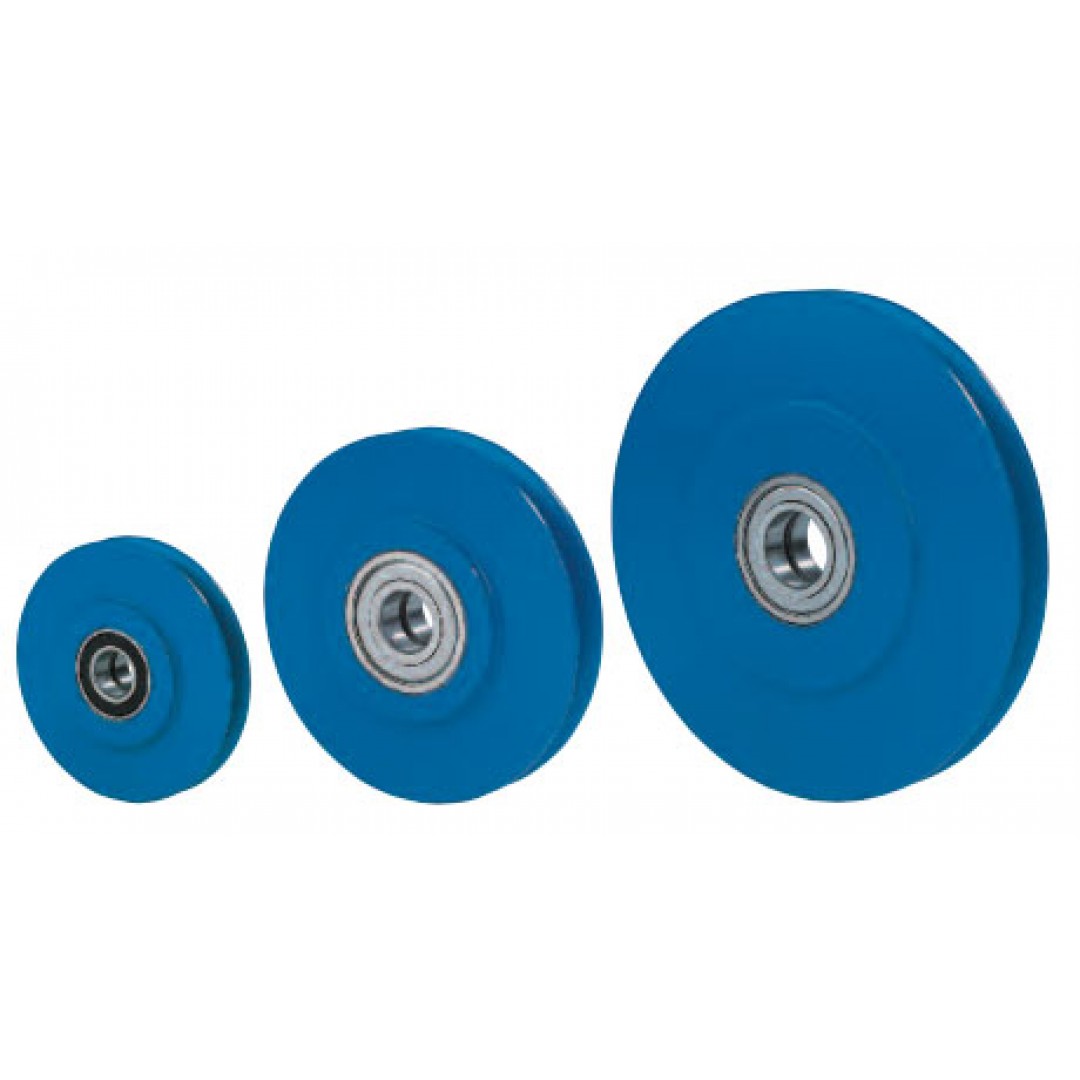

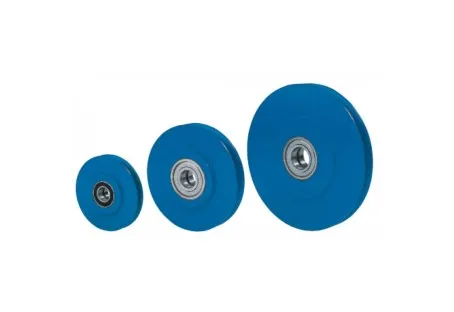

DSR S Pfaff Wire Rope Sheaves

Brand:

Capacity

To suit 5mm wire rope up to 18mm dia

Description

The DSR S Wire Rope Sheaves are available in a wide variety of pulley diameters, manufactured from high quality wear resistant steel. Supplied with bearings.

£75.60 ex VAT

£90.72 inc VAT

Related products

DSRB Pfaff Wire Rope Sheave Blocks

DSRB

Pfaff DSRB Wire Rope sheave blocks are suitable for both manual and electric driven wire rope winches. These dynamic all rounders with variable rope and sheave diameters and cable deflection op up to 180° can move loads of up to 8 tonne with ease and reliability.

£98.98 ex VAT

£118.78 inc VAT

The Pfaff DSR S Wire Rope Sheaves are available in a wide variety of sheave diameters from 145mm up to 490mm, manufactured from high-quality wear resistant steel. Supplied with bearings fitted as standard and will suit wire rope diameters from 5mm up to 18mm.

Main features of Pfaff DSR S Wire Rope pulleys
Wear resistant Rope Guide.
Made from high-quality steel.
Bearings fitted as standard.
Operating temperature -20 to 40 degree C.
Model
Rope Dia Manual Winch
Sheave Diameter
DSR S 145/5
5mm145mm
DSR S 145/6
6mm145mm
DSR S 185/8
8mm185mm
DSR S 270/10
10mm270mm
DSR S 270/12
12mm270mm
DSR S 325/14
14mm
325mm
DSR S 400/18
18mm
400mm

Other size options available upon request.
Main features of Pfaff DSR S Wire Rope pulleys

Wear resistant Rope Guide.
Made from high quality steel.
Bearings fitted as standard.
Operating temperature -20 to 40 degree C.

Model
Rope Dia Manual Winch
Sheave Diameter
DSR S 145/5
5mm145mm
DSR S 145/6
6mm145mm
DSR S 185/8
8mm185mm
DSR S 270/10
10mm270mm
DSR S 270/12
12mm270mm
DSR S 325/14
14mm
325mm
DSR S 400/18
18mm
400mm

Other size options available upon request.
