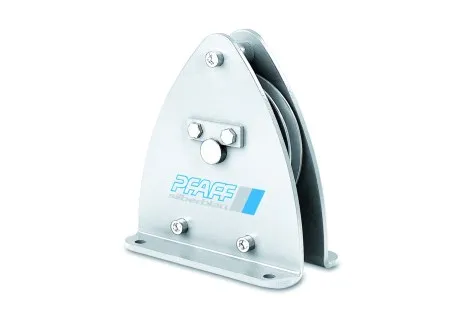

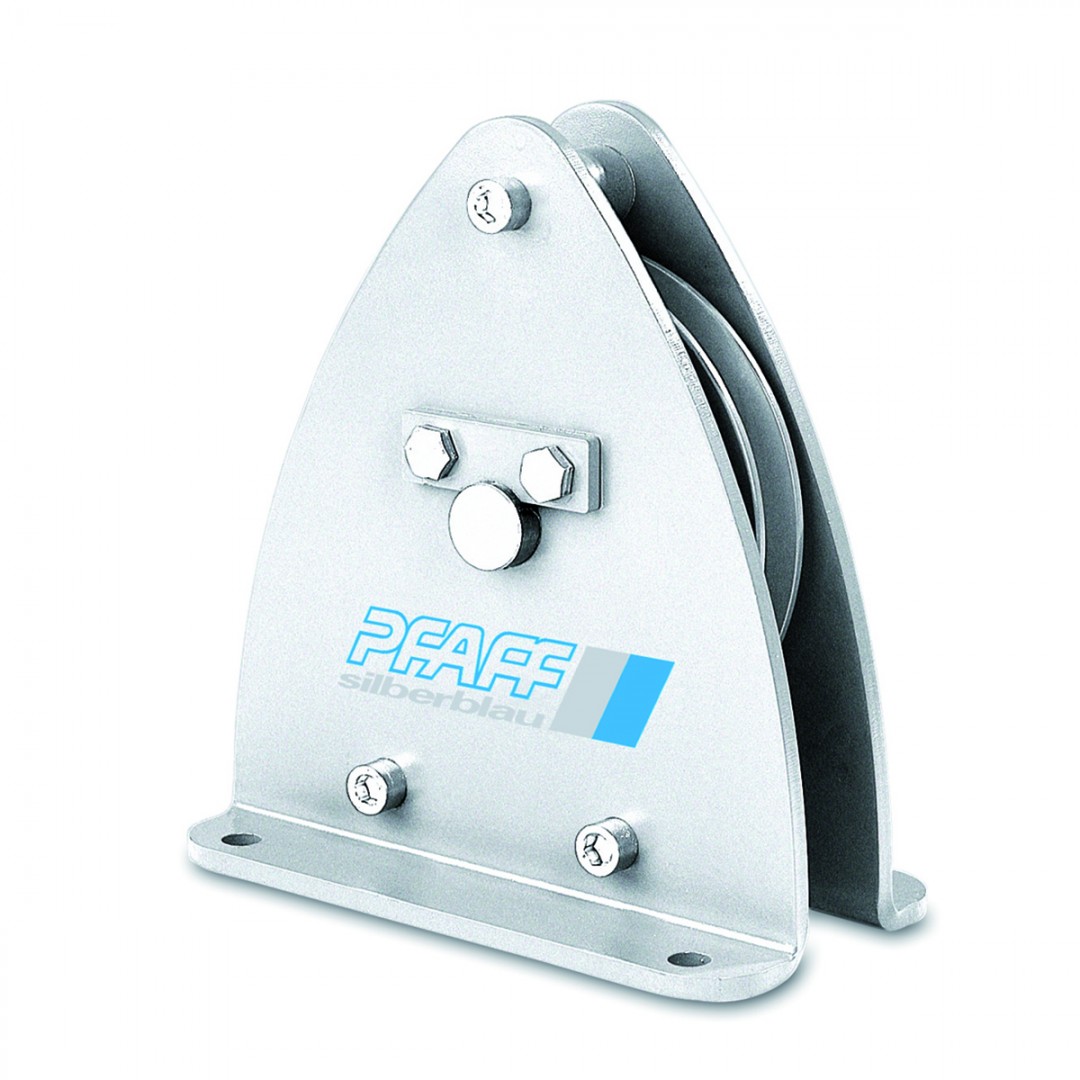

DSRB Pfaff Wire Rope Sheave Blocks

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

DSRB Pfaff Wire Rope Sheave Blocks

Brand:

Capacity

To suit 3mm wire rope up to 14mm dia

Description

Pfaff DSRB Wire Rope sheave blocks are suitable for both manual and electric driven wire rope winches. These dynamic all rounders with variable rope and sheave diameters and cable deflection op up to 180° can move loads of up to 8 tonne with ease and reliability.

£98.98 ex VAT

£118.78 inc VAT

Add to cart Add to quote

Related products

The DSRB Wire Rope sheave blocks are suitable for both manual and electric-driven wire rope winches. These dynamic all-rounders with variable rope and sheave diameters and cable deflection of up to 180° can move loads of up to 8 tonnes with ease and reliability. to suit from 3mm diameter wire rope up to 14mm, various sizes available.

Designed to be used with the BETA PROLINE and SILVERLINE winches, but can be utilized with most other brands - The main thing to consider is matching the wire rope diameter with a suitable sheave.

As with all Pfaff-manufactured items these sheave blocks have been designed and manufactured to the highest quality: With a sheave block for manual or powered operation, fully equipped with grease-filled sealed ball bearings as standard. A carefully coordinated system of application-specific cable diameters and matching turned precision cable groove ensures that the unit is also wear-free.
Model
Rope Dia Manual Winch
Rope Dia Elec Winch
Sheave Diameter
DSRB S 90/4
3 - 4mm
4mm
90mm
DSRB S 90/6
5 - 6mm
6mm
90mm
DSRB S 145/5
5mm
5mm
145mm
DSRB S 145/6
6mm
6mm
145mm
DSRB S 145/7
7mm
7mm
145mm
DSRB S 185/8
8mm
8mm
185mm
DSRB S 270/12
9 - 12mm
12mm
270mm
DSRB S 325/14
14mm
14mm
325mm
Other size options available upon request

Additional accessories
Cable Suspension Gear (1 to 4 Strand)
Wire Rope Sheave Blocks with Plastic Sheaves


Model
Rope Dia Manual Winch
Rope Dia Elec Winch
Sheave Diameter
DSRB S 90/4
3 - 4mm
4mm
90mm
DSRB S 90/6
5 - 6mm
6mm
90mm
DSRB S 145/5
5mm
5mm
145mm
DSRB S 145/6
6mm
6mm
145mm
DSRB S 145/7
7mm
7mm
145mm
DSRB S 185/8
8mm
8mm
185mm
DSRB S 270/12
9 - 12mm
12mm
270mm
DSRB S 325/14
14mm
14mm
325mm

Other size options available upon request

Additional accessories
Cable Suspension Gear (1 to 4 Strand)
Wire Rope Sheave Blocks with Plastic Sheaves
