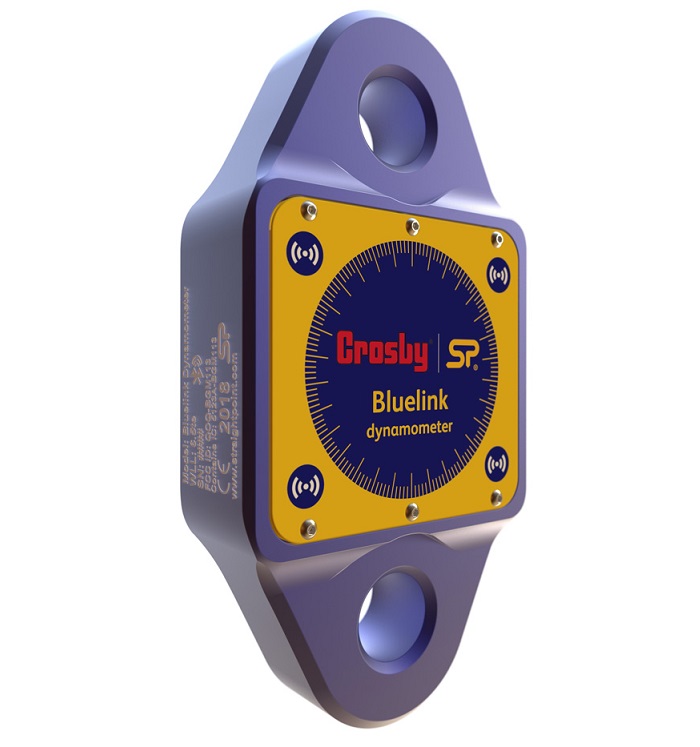

BlueLink Bluetooth Digital Dynamometer

Brand:

Capacity

6500Kgs
6.5 tonne

Description

Crosby Straightpoint BlueLink Bluetooth Digital Dynamometer is a compact and lightweight loadcell that has been designed to minimize headroom, standing at only 156mm (6.14") from eye to eye. Wireless Bluetooth allowing the User to stand at a safe distance from the load

£1,069.98 ex VAT

£1,283.98 inc VAT

Add to cart Add to quote

Related products

Crosby Straightpoint RLP Radiolink Plus c/w Wireless Handheld Display

RLP

Crosby Straightpoint RLP Radiolink Plus c/w Wireless Handheld Display is a Wireless Tension Load Cell capable of weighing and dynamic load monitoring from 1 tonne up to 500 tonnes.

£2,465.98 ex VAT

£2,959.18 inc VAT

Crosby Straightpoint RLP Radiolink Plus Bluetooth Version

RLP BLE

Crosby Straightpoint RLP Radiolink Plus Bluetooth Version is a Wireless Tension Load Cell designed to be used with the SW-HHP Insight Software or can be Bluetooth.

£1,560.68 ex VAT

£1,872.82 inc VAT

Wireless Compression Load Cell - LoadSafe Bluetooth

WNI

Crosby Straightpoint Wireless Compression Loadcell - Loadsafe with Bluetooth, available in capacities from 5 tonnes up to 1,000 tonnes capacity. These Bluetooth compression loadcells are ideal for recording the weight of a load or finding the centre of gravity

£1,702.98 ex VAT

£2,043.58 inc VAT

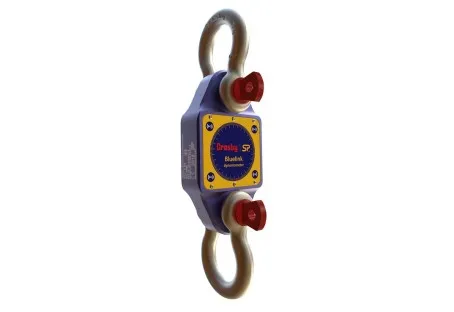

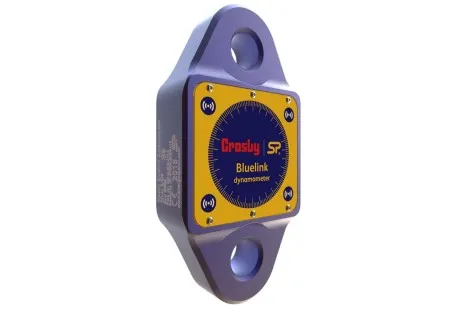

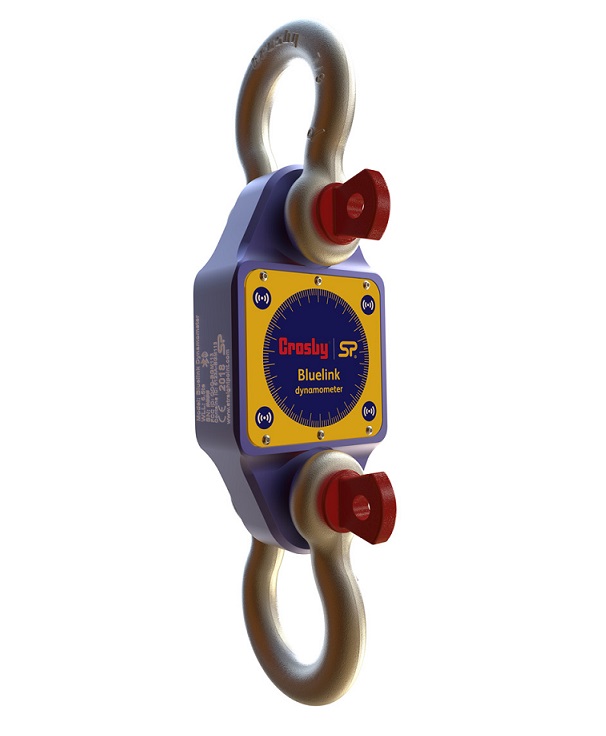

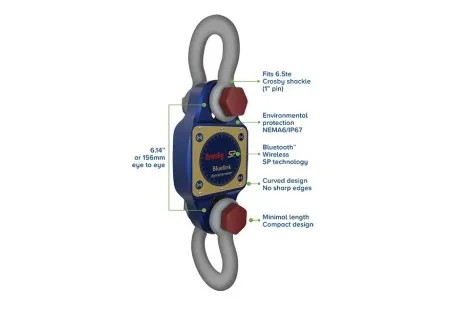

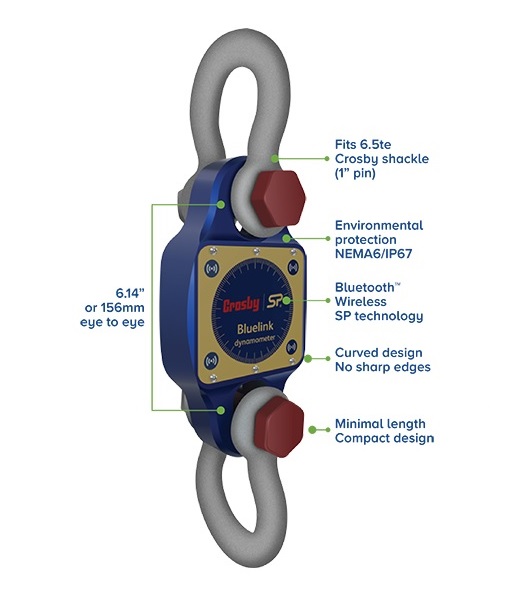

Crosby Straightpoint BlueLink Bluetooth Digital Dynamometer is a compact and lightweight loadcell that has been designed to minimize headroom, standing at only 156mm (6.14") from eye to eye, the rigging eyes are compatible with 6.5 Ton Alloy Bow shackles. The ‘BlueLink’, is the latest SP product to feature their proprietary Bluetooth wireless technology and was designed to replace outdated mechanical products still in the field, this 14,300lb (6500kg) Dynamometer.

The compact design provides BlueLink with an industry unrivalled strength-to-weight ratio amongst competitor models. The use of a separate internal sealed enclosure administers the load cell's electronic components with IP67 or NEMA6 environmental protection, even with the battery cover plate missing. All these features make it an industry-leading compact dynamometer, even more suitable for use in the harshest industrial or leisure environments.

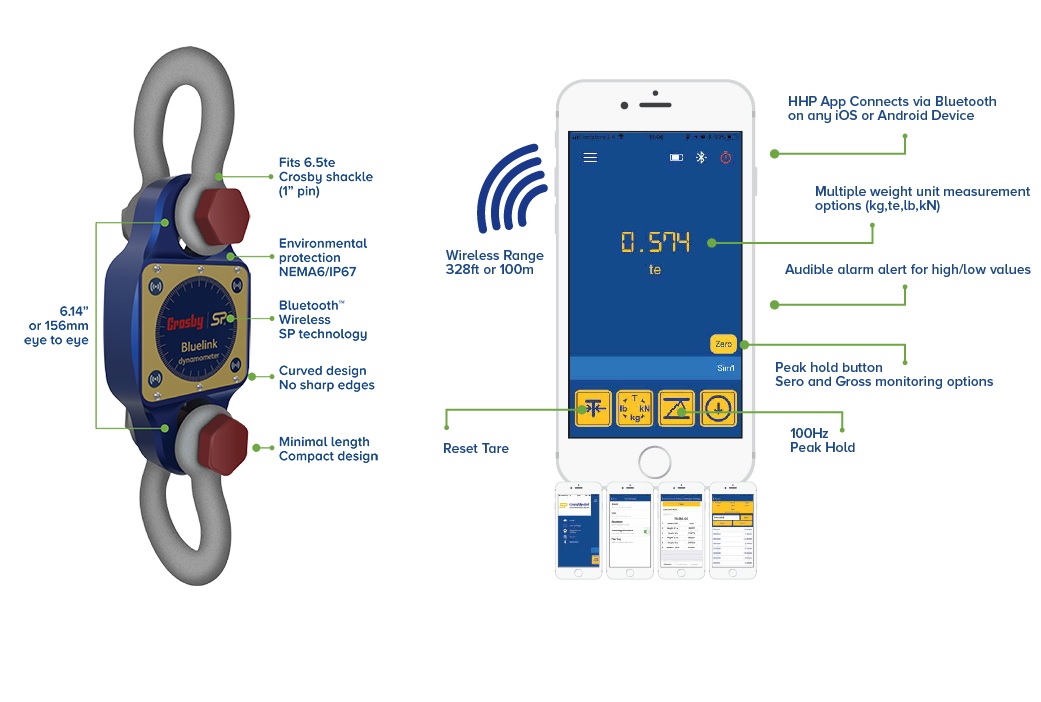

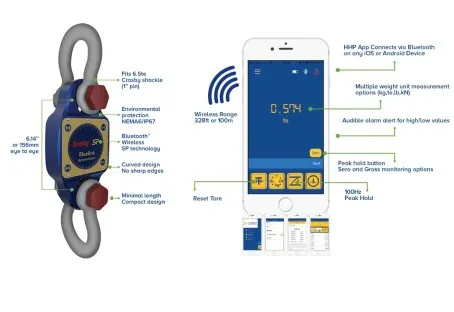

The Bluetooth signal effortlessly connects to any iOS or Android smartphone that has our free HHP INSIGHT APP installed, providing the operator with a wireless range of up to 328ft or 100m. This allows the user to stand in a safe position away from the load, with no requirement to read a load on the load cell itself. The app will also allow the operator to log data versus time, or on events such as over or underload. An adjustable alarm will alert the operator on their smartphone if any overload is occurring.

Constructed from high-quality aerospace-grade aluminium, which is then hard-anodized, it features an advanced internal design structure. This design provides the product with an unrivalled strength-to-weight ratio.


The BlueLink is powered by four standard AA alkaline batteries that provide in excess of 500 hours of transmission time. Its internal antennae ensure safe transmissions of loads to an accuracy of ±0.2% FS.

Radiolink BlueLink Bluetooth Digital Dynamometer

ModelCapacityResolutionBattery TypeBattery LifeAccuracySystem RangeData RangeProtectionWeight
BLD6T56,500Kgs1Kg4 x AA alkaline batteries
500hrs
±0.2% of full scale
100 metres or 328 feet
3Hz
IP67 or NEMA6
1.5Kg



FEATURES Radiolink BlueLink Bluetooth Digital Dynamometer

Bluetooth wireless connection to any iOS or Android device with SP HHP App

Wireless Range of 328ft/100m

Battery Life of 500hrs

Environmentally Sealed to IP67/NEMA6

90db Audible alarm alert for high/low values

Internal Antennae

Remote On-Off from HHP App

100 Hz Peak Hold

Push button Tare

Fatigue Rated


APPLICATIONS Radiolink BlueLink Bluetooth Digital Dynamometer

Small to medium crane lifts

Millwrighting - machinists - mechanics

Linesman - utilities

Freight and cargo weighing

Aircraft and marine vessel manufacturing/building

Cable/rope tensioning

Precision field testing of chain, rope, wire.

Multiple applications within construction, transportation and logistics, and material handling



WARRANTY & ASSURANCE

2 year warranty

Design validated by F.E.A.

Complies with ASME B30.26


SUPPLIED WITH THE FOLLOWING AS STANDARD

4 x AA Batteries

Calibration & proof test certificate

Multi-lingual user manual

Carry/transit case

RFID Tagged




The Crosby Straightpoint BlueLink Bluetooth Digital Dynamometer will be supplied with a certificate of calibration which is valid for one year. After this date, it is recommended the device be recalibrated by the manufacturer's approved calibration laboratories.

Contact Us at Ultimate Lifting Solutions for more information on calibration, as this service can be carried out by us, or contact us for any other LOLER inspection requirements.
The Crosby / Straightpoint Mission: To Make the Lifting Industry a Safer Place

Crosby Straightpoint (SP) is an award-winning, UK & USA load cell manufacturer specialising in the production and calibration of load monitoring equipment for the following applications:
Force measurement
Load monitoring
Suspended load weighing
Compression force sensing
Wire Rope Tension Metering

Flagship products include:
Radiolink plus tension dynamometer
Wireless Compression Load Cell
Clamp On Line Tension meter (COLT)
Wireless Running Line Dynamometer (TIMH) including the newly released CableSafe
Wireless Loadshackles
Wireless Loadpins
Exclusive range of supporting software
