Crosby Straightpoint Wireless Compression Loadcell - Loadsafe with Bluetooth, available in capacities from 5 tonnes up to 1,000 tonnes capacity. These Bluetooth compression loadcells are ideal for recording the weight of a load or finding the centre of gravity of larger equipment such as a transformer or machinery.
The Straightpoint LoadSafe Compression Loadcell eliminates the problem of troublesome and hard-to-maintain cables, large-scale projects can now be completed in a fraction of the time previously required. Multiple compression load cells can all connect wirelessly to INSIGHT via a USB dongle, their iOS or Android app (If Bluetooth), or their SW-HHP wireless handheld display.
Two versions of the WNI are available:
Bluetooth output and can be connected to any smartphone running our free HHP app on iOS or Android, at ranges up to 100m or 328ft.
Long-range 2.4GHz version providing industry-leading wireless range to Crosby Straightpoint’s SW-HHP handheld or INSIGHT.
Once connected to Straightpoint’s INSIGHT APP, the WNI load cell can be used to weigh and verify centre of gravity of large and heavy objects, which may not be evenly proportioned. The system will report the weight on each individual load cell, total weight, and C-of-G in an HTML report based on ISO19901.
Wireless Compression Load Cell - LoadSafe with Bluetooth Specification
Compression load cell additional technical data
Material of construction: 17-4PH H900 stainless steel. Aluminium jacket 6000 series
Finish: Stainless steel – polished. Jacket blue anodized to BS EN 12373-1:2001 Class 10.
MTBF to WLL: Typically, >50 million cycles
Elongation: Typically, <0.175mm / at WLL
N.B. Clearance of the box may vary from the images displayed depending on the capacity required.

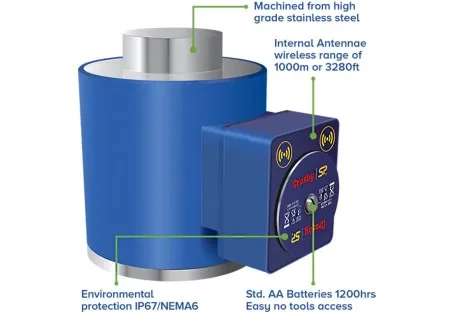

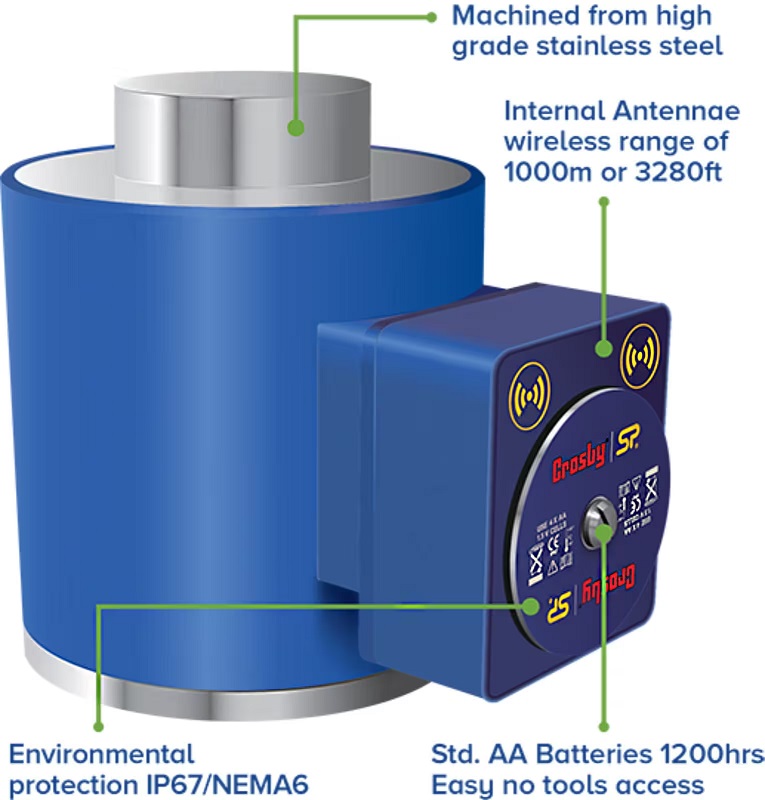

FEATURES of Wireless Compression Load Cell - LoadSafe with Bluetooth Specification
Proprietary 2.4 GHz Wireless or Bluetooth options
Accuracy of 0.1% FS
Environmentally sealed to IP67/NEMA 6
Stocked capacities up to 500t
Industry leading wireless range up to 1000m or 3280ft
ATEX & IECEx version for hazardous area zones 0, 1 & 2 available
Battery life of 1200hrs
APPLICATIONS of Wireless Compression Load Cell - LoadSafe Specification

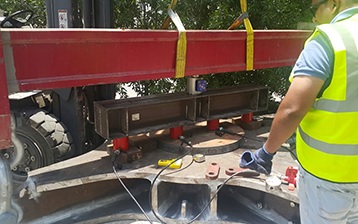

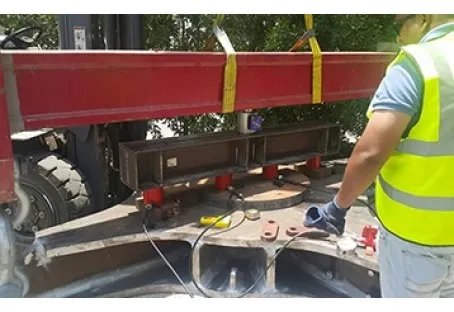

Centre of gravity weighing and calculating
Measurement of systems on and offshore such as jackets and modules
Steel fabrication shops
Portside weighing bonded containers
Structural monitoring with shoring props
Lifting bridges and other large installations
Heavy equipment moving companies
Used alongside Self-propelled modular trailer (SPMT)
WARRANTY & ASSURANCE
2 year warranty
Complies with ASME B30.26
Design validated by F.E.A.
SUPPLIED WITH THE FOLLOWING AS STANDARD
Proof test certificate
The Crosby / Straightpoint Mission: To Make the Lifting Industry a Safer Place
Know the load facts:
- Capacities supplied: 1t – 2,000t +Custom made load cells
- Years business established: 42
- Number of worldwide partners: 80
- Worldwide SP products are sold in the USA, Canada, Latin America, Europe, the Middle East, Africa, Asia and the Pacific regions.
- Unrivalled lead times
- Excellent customer service and aftercare
Crosby/Straightpoint (SP) is an award-winning, UK & USA load cell manufacturing company specializing in the production and calibration of load monitoring equipment for the following applications:
Suspended load weighing
Compression force sensing
Wire Rope Tension Metering
In these Industries: construction; container weighing; extreme sports; heavy lift; line tensioning; logistics; marine; oil and gas; stage and event rigging; shipping; testing; towage and salvage; utilities; defence; and more.
The products that SP produces are developed using the latest cutting-edge technology and materials. By pushing the boundaries, we can continue the endeavour to further decrease risk and increase safety in heavy-load lift situations.
With over $1,000,000 of stock available, SP products give distributors a distinct advantage over competitors’ lead times
Range of products from 100kg beam load cells to 1,500t load shackles and beyond
Cutting-edge technology including unsurpassed wireless products
A huge range of accessories and data logging software packages available with most load cells
World-class after-sales and marketing support
Provision of complementary smart cell device apps (Android/IOS) to wirelessly monitor loads via a Bluetooth connection from up to 50m away (HHP and COLT apps)
About SP USA & Europe - Crosby|Straightpoint - UK, Europe & USA
SP continues to lead in innovation by launching the first worldwide off-the-shelf wireless centre of gravity system and is the first load cell manufacturer to incorporate RFID tags in all its ‘link’ load cells as standard.
Innovative releases include ATEX & IECEx zones 0, 1, and 2 approved wireless dynamometers and running line dynamometers.
SP is the only manufacturer in the world with load monitoring/measuring products that are certificated to be used within hazardous gas environments found mainly within the gas, oil, and manufacturing industries.
Flagship products supplied by CROSBY STRAIGHTPOINT include:
Radiolink plus tension dynamometer
Wireless Compression Load Cell
Clamp On Line Tension meter (COLT)
Wireless Running Line Dynamometer (TIMH) including the newly released Cable Safe
Wireless Load shackles
Exclusive range of supporting software.
