Belle Maxipave Block Splitter
Estimated lead time:2-3 Day
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
Belle Maxipave Block Splitter
Description

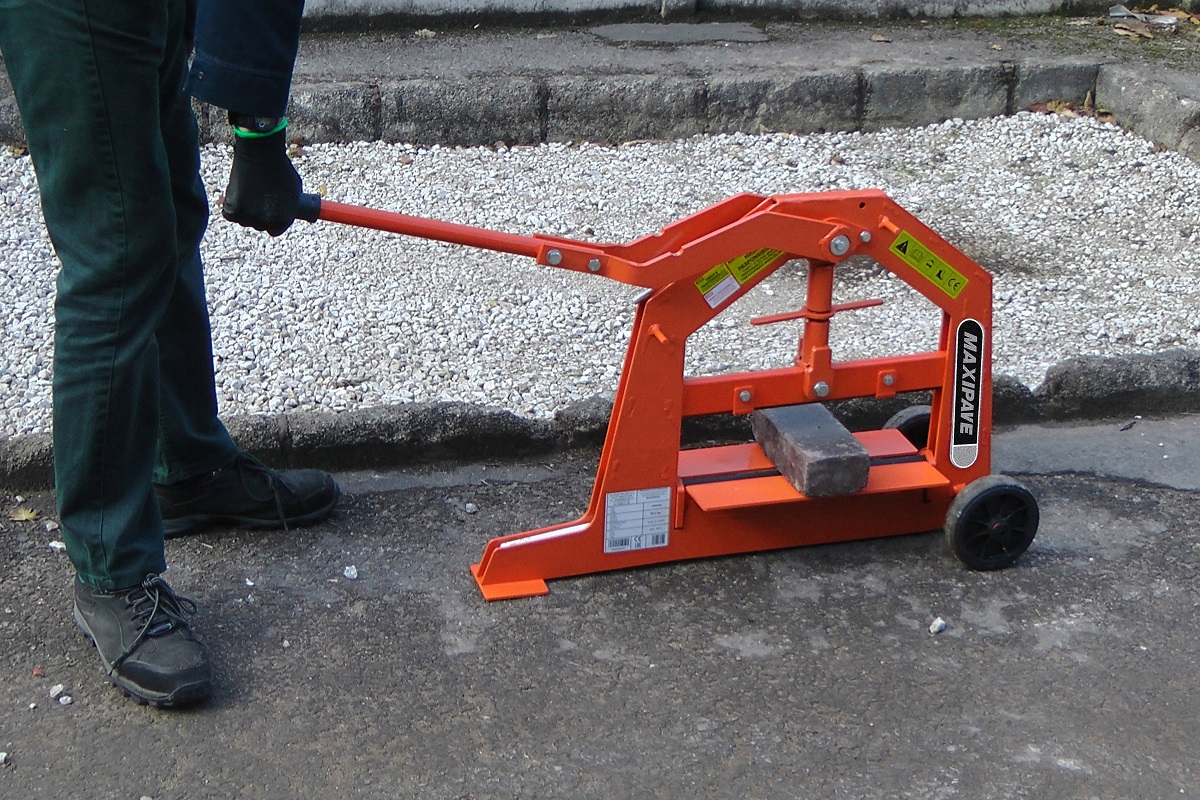

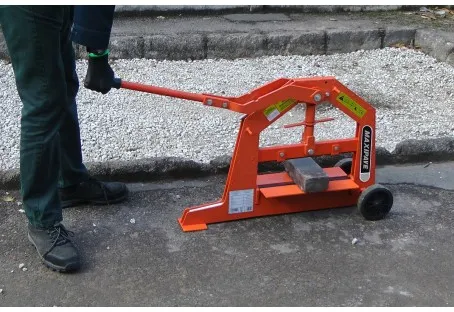

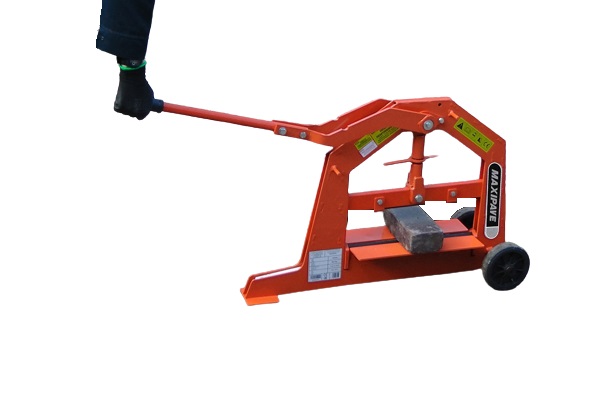

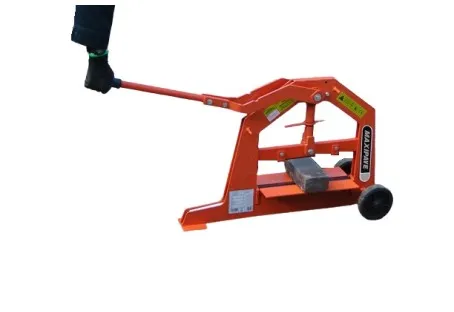

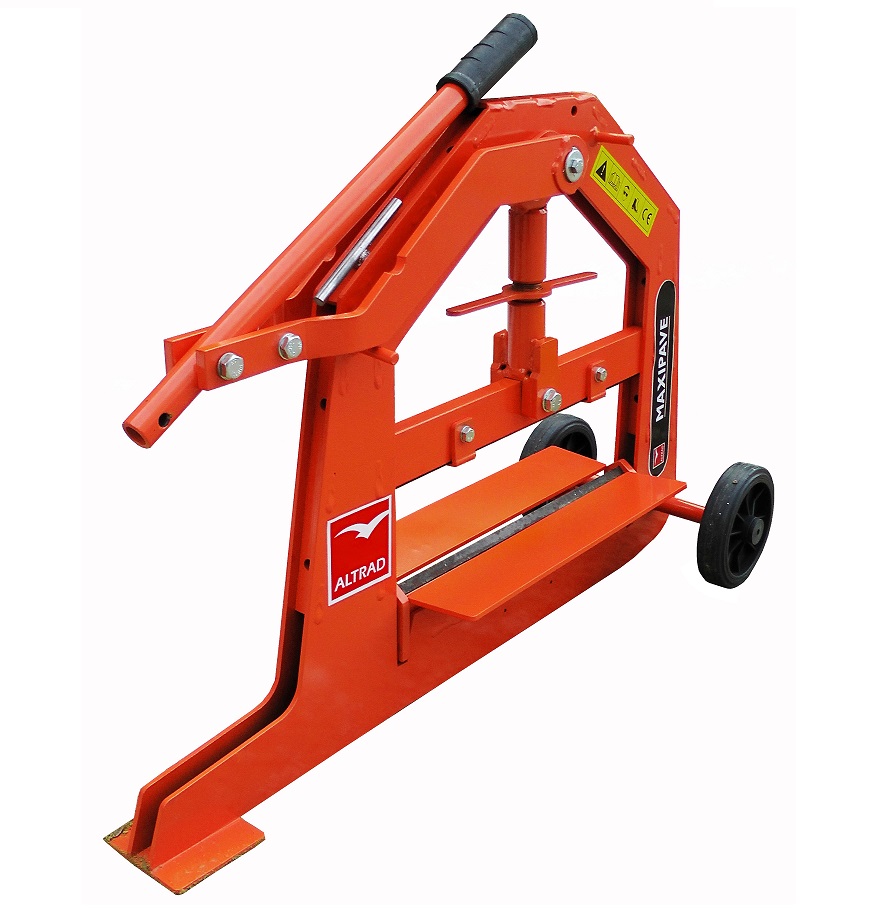

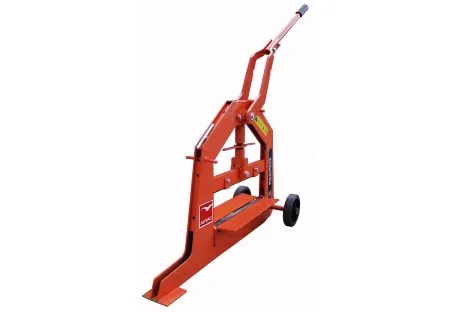

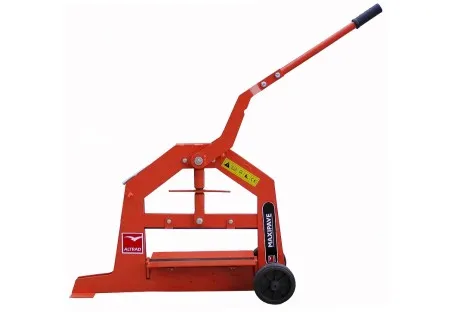

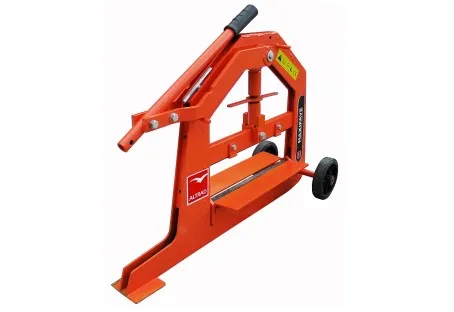

Belle Maxipave Block Splitter is a heavy-duty block splitter designed for cutting and splitting all common types of block paving. The foldable long-cutting handle can cut up to 120mm thick blocks at a maximum length of 400mm.
£479.37 ex VAT
£328.98 ex VAT
£394.78 inc VAT
Related products
STS-43
The Probst STS 43 Block Splitter/Cutter with extra long cutting blade to suit larger concrete blocks and similar products. This new Stone Splitter from Probst designed to give more splitting force with reduced effort, creating clean cuts on Concrete Block, Paving Blocks and similar products.
£536.00 ex VAT
£489.99 ex VAT
£587.99 inc VAT
STS-43-H
The Probst STS 43-H Stone and Block Splitter. fitted with a 430mm cutting blade and 300mm cutting height, ideal for concrete Blocks, kerbstones, limestones, and similar products. This new Stone Splitter from Probst has been designed to give more splitting force with reduced effort, creating clean cuts on Concrete Blocks, Paving Blocks, and similar products.
£624.98 ex VAT
£749.98 inc VAT
AL33D
The ALMI AL33D Block Splitter is world-renowned as one of the best block cutters available. supplied with two four-sided blades that help to create clean and accurate cuts to all paving materials. Easy to operate once cutting height is set. Professionals around the world work with ALMI block Splitters, why don't you start today?
£552.00 ex VAT
£409.98 ex VAT
£491.98 inc VAT
155.9.000
Belle Minipave Block Splitter is a compact, lightweight, and portable block splitter that is specifically designed for cutting and splitting standard 100mm x 200mm blocks. Making it the go-to block cutter for smaller jobs. The MINIPAVE from Belle is the first block splitter designed specifically for block paving.
£303.02 ex VAT
£208.98 ex VAT
£250.78 inc VAT

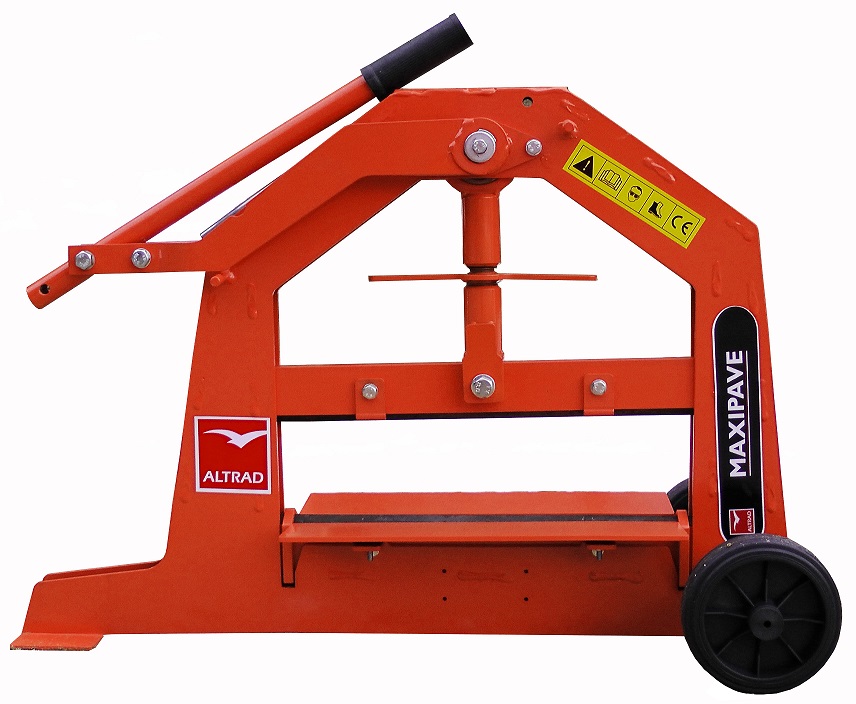

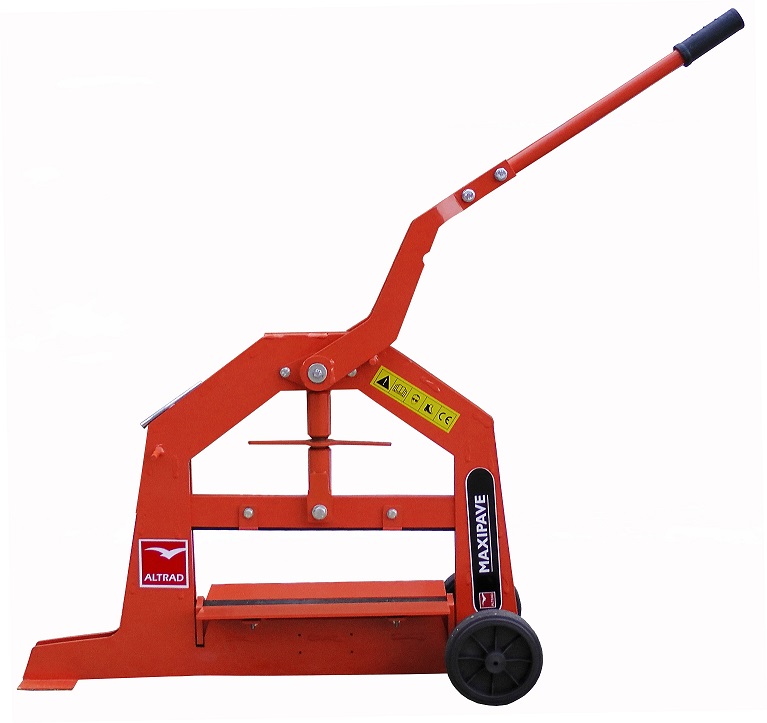

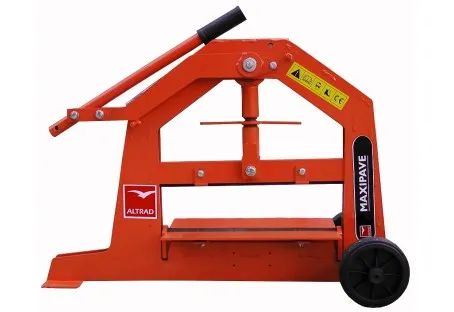

Belle Maxipave Block Splitter is classed as a heavy-duty block splitter designed for cutting and splitting all common types of block paving and similar products. Supplied with a foldable long cutting handle that makes it even easier to cut paving blocks up to 120mm thick at a maximum length of 400mm. The foldable handle compacts the overall size down, making it easier to store and transport.

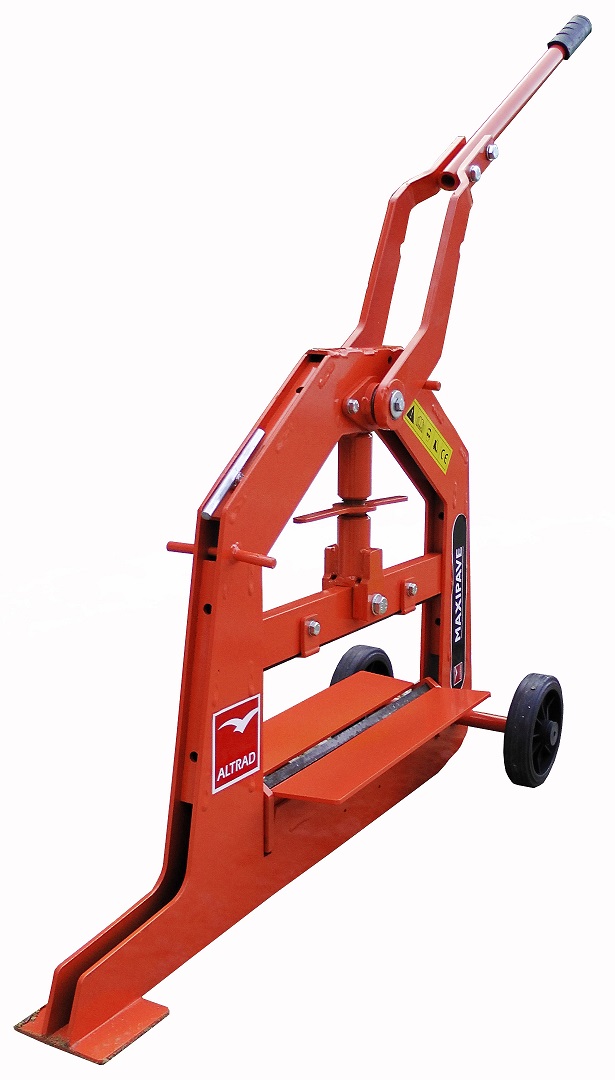

The Belle MBS08 Maxipave Block Splitter is supplied with two blades, so it can be used as soon as it arrives. The Maxipave Block Cutter is easy to adjust to the correct height via the single screw adjuster on the central large thread. A high-performance split is achieved via the impressive 4650 Kfg cutting force, this is primarily through the cam action and extra long handle supplied.
Technical Specification of the Altrad Belle Maxipave MBS08
Cutting Height 120mm
Cutting Length 400mm Max
Weight of only 35.5Kgs
Cutting Force 4650kfg / 45.6 kN
Suitable for - Pavers, Concrete Pavers
Advantages - Portable, Accurate cut, easy to adjust height.
Model | Belle Part No | Cutting Length | Max Cut Height | Width | Height | Length | Cut force | Weight |
Belle Maxipave Block Splitter | MBS08 | 400mm | 120mm | 315mm | 585mm | 1170mm | 4650kfg - 45.6kN | 35.5Kgs |
Altrad Belle Maxipave Block splitter c/w Blades. Part Number MBS08. EAN 5031403200099
Belle Maxipave Block Splitter Spare Blades.
Belle Maxipave Block Splitter is available from the Ultimate Lifting Solutions Belle Spare Parts section of the ulslifting.com website. The Belle Block Splitter replacement blade Part Number 976/99904 is four-sided in shape. two blades are needed in total, one for the top blade and one for the bottom blade. One blade can be changed independently on its own.
What is a Belle Block SPLITTER?
A block Splitter or commonly called a block cutter, stone cutter, stone splitter, or even guillotine is used to split or cut most small paving elements such as paving blocks, slabs, and stones. Once split the block will be left with a nice clean straight edge ready to be laid in position. the Maxipave is a heavy-duty manual splitter designed for block paving splitting, perfect for both large commercial projects and small domestic projects such as driveways and pathways. Has a cutting blade length of 400m and can cut block pavers up to 120mm thick.
Difference between using a Belle Block Splitter compared to a power saw.
The main difference between splitting paving blocks when using a block cutter over a power saw basically comes down to the amount of dust and noise created. A power saw will be noisy, not a good idea to use it first thing in the morning or if working late into the night, and the dust created is high if used properly some sort of dust suppression equipment should be used. If a manual block splitter is used, firstly the dust noise created by the split is very low in comparison, but the biggest difference is the amount of dust generated is very low and no dust suppression equipment will be required to comply with government guidelines when it comes to controlling dust when cutting paving materials. another point to consider when using a power saw is the constant changing of cutting discs and even the lifespan of a power tool will be a lot less than a quality block splitter such as the Belle Maxipave Block Splitter.
Which is better Block Cutter or Power Saw?
This argument amongst professionals has been discussed for many years and will continue for many years, and contractors are split 50%-50% - some prefer the manual block cutter while others will choose the Power saw. If using a power saw to cut through a block it is as simple as following a marked line set on the block, and a standard block will take anywhere between 15 seconds up to a minute to cut by a trained contractor. Using a block cutter will take a lot less time, probably only a few seconds, but it takes more skill to learn how to use a block cutter.
If you need more help with Belle Block Splitters, feel free to call Ultimate Lifting Solutions today at 01384 986 026 to discuss your requirements.
Further technical details on the Altrad Belle Maxipave MBS08
Technical Specification of the Altrad Belle Maxipave MBS08
Cutting Height 120mm
Cutting Length 400mm Max
Weight of only 35.5Kgs
Cutting Force 4650kfg / 45.6 kN
Suitable for - Pavers, Concrete Pavers
Advantages - Portable, Accurate cut, easy to adjust height.
Model | Belle Part No | Cutting Length | Max Cut Height | Width | Height | Length | Cut force | Weight |
Belle Maxipave Block Splitter | MBS08 | 400mm | 120mm | 315mm | 585mm | 1170mm | 4650kfg - 45.6kN | 35.5Kgs |
Altrad Belle Maxipave Block splitter c/w Blades. Part Number MBS08. EAN 5031403200099
Spare Blades are available to purchase singularly. Part Number 976/99904. EAN5031403350152
Altrad Belle - Altrad Belle is a long-established manufacturer of light site equipment for the Building and Construction markets and is based in the Derbyshire Peak District UK. The history of Belle dates back to the 1950s, starting with designing and manufacturing cement mixers, and the original Belle Mini mixer was created. In 2009 the company became part of the Altrad Group, with its headquarters in Montpellier, France.
