Belle Minipave Block Splitter

Estimated lead time:2-3 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Belle Minipave Block Splitter

Brand:

Description

Belle Minipave Block Splitter is a compact, lightweight, and portable block splitter that is specifically designed for cutting and splitting standard 100mm x 200mm blocks. Making it the go-to block cutter for smaller jobs. The MINIPAVE from Belle is the first block splitter designed specifically for block paving.

save£112.85

£303.02 ex VAT

£208.98 ex VAT

£250.78 inc VAT

Spare cutting blades available - Part Number 155.0.025

Related products

Probst STS-43 Stone Splitter

STS-43

The Probst STS 43 Block Splitter/Cutter with extra long cutting blade to suit larger concrete blocks and similar products. This new Stone Splitter from Probst designed to give more splitting force with reduced effort, creating clean cuts on Concrete Block, Paving Blocks and similar products.

£494.98 ex VAT

£593.98 inc VAT

Probst STS-43-H Large Stone Splitter

STS-43-H

The Probst STS 43-H Stone and Block Splitter. fitted with a 430mm cutting blade and 300mm cutting height, ideal for concrete Blocks, kerbstones, limestones, and similar products. This new Stone Splitter from Probst has been designed to give more splitting force with reduced effort, creating clean cuts on Concrete Blocks, Paving Blocks, and similar products.

£624.98 ex VAT

£749.98 inc VAT

ALMI AL33D Block Splitter

AL33D

The ALMI AL33D Block Splitter is world-renowned as one of the best block cutters available. supplied with two four-sided blades that help to create clean and accurate cuts to all paving materials. Easy to operate once cutting height is set. Professionals around the world work with ALMI block Splitters, why don't you start today?

£552.00 ex VAT

£409.98 ex VAT

£491.98 inc VAT

Belle Maxipave Block Splitter

MBS08

Belle Maxipave Block Splitter is a heavy-duty block splitter designed for cutting and splitting all common types of block paving. The foldable long-cutting handle can cut up to 120mm thick blocks at a maximum length of 400mm.

£479.37 ex VAT

£328.98 ex VAT

£394.78 inc VAT

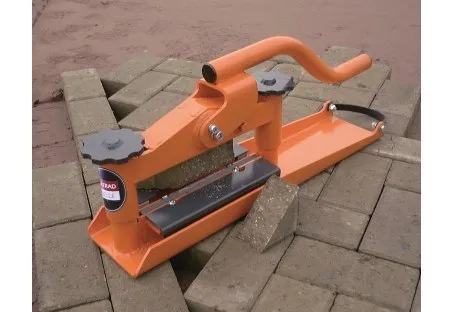

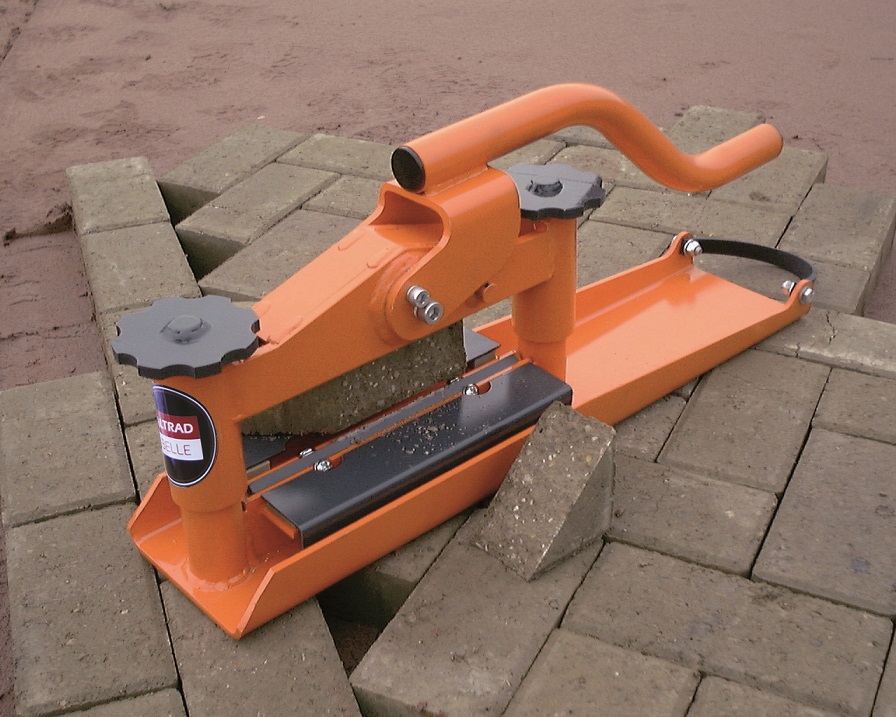

Belle Minipave Block Splitter is a compact, lightweight, and portable block splitter that is specifically designed for cutting and splitting standard 100mm x 200mm blocks. Making it the go-to block cutter for smaller jobs. The MINIPAVE from Belle is the first block splitter designed specifically for block paving and is the smallest, lightest product available for splitting standard 100 x 200mm paving blocks up to 87mm depth. It is ideal for domestic landscaping and small commercial projects where portability makes the operator's job quicker and easier.

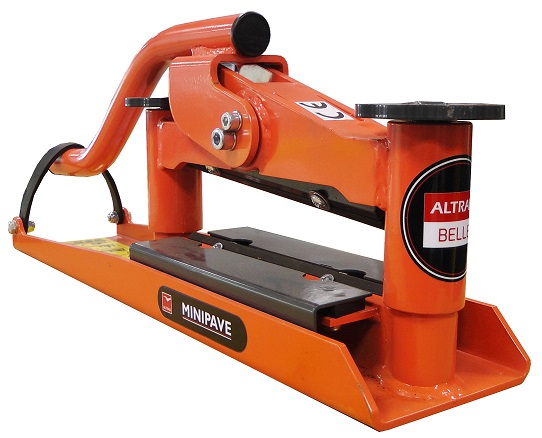

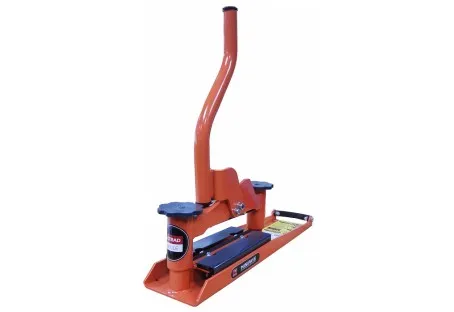

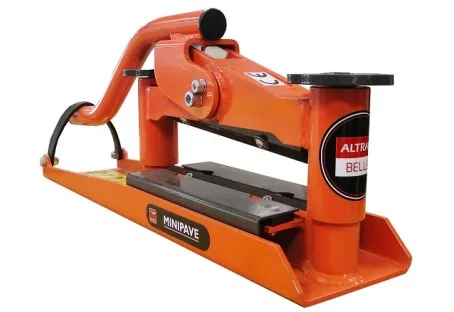

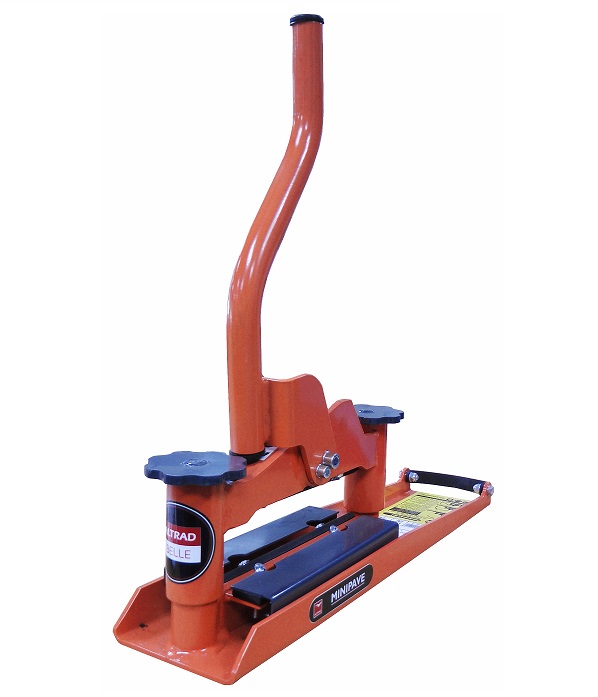

The Belle Minipave Block Splitter part number 155.9.000 is supplied with two blades that are square in design, The block cutter can be used as soon as it arrives. The Minipave Block Cutter is simple to use and works at floor level so the operator does not need to stand to cut the blocks. A very high cutting force is achieved due to the Cam action mechanism with composite bearing.


Technical Specification of the Altrad Belle Minipave 155.9.000

Cutting Height 47mm up to 87mm

Cutting Length 250mm Max

Weight of only 18Kgs

Suitable for - Pavers, Smaller Jobs.

Advantages - Portable, Accurate cut, easy to adjust height, lightweight, robust with maintenance-free operation.

ModelBelle Part NoCutting LengthCut HeightBlade TypeCam MovementAdjustment ScrewsCut forceWeight
Belle Minipave Block Splitter155.9.000250mm

Min47mm

Max 87mm

8mm Square Section

Block Clearance 3mm

Cutting 2mm

Fast Acting

Trapezoidal 40mm

3200kfg - 31.4kN35.5Kgs

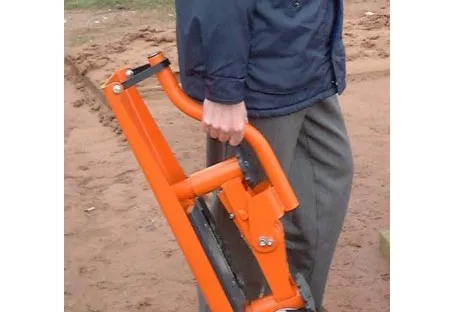

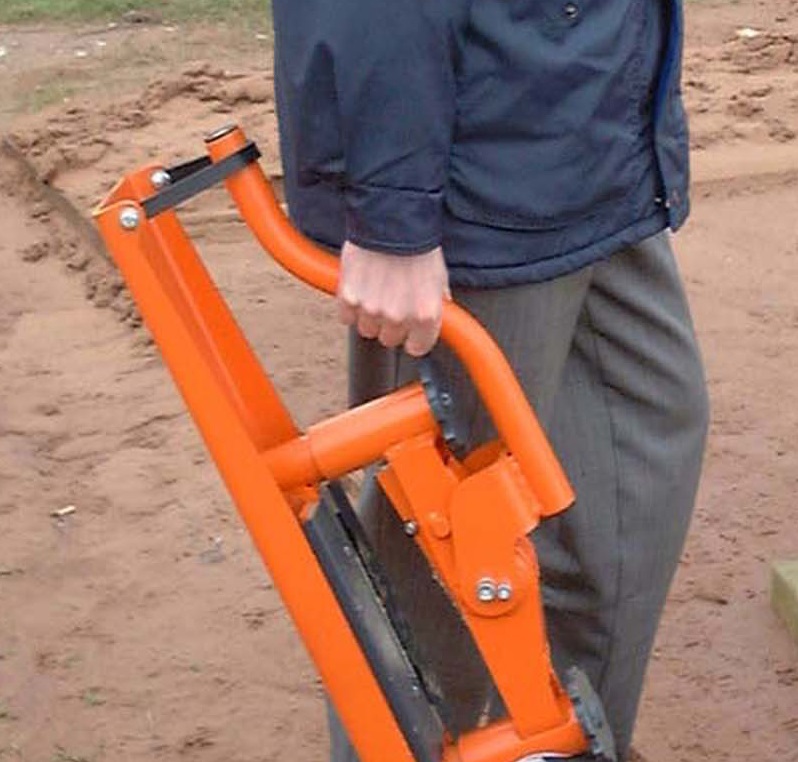

The Minipave compact block splitter is lightweight and can fit into any car with ease and is supplied with a folding handle that can be used to carry the block cutter around the site.


Altrad Belle Minipave Block splitter c/w two Blades. Part Number 155.9.000. EAN 5031403300010


Belle Minipave Block Splitter Spare Blades.

Belle Minipave Block Splitter is available from the Ultimate Lifting Solutions Belle Spare Parts section of the ulslifting.com website. The Belle Block Splitter replacement blade Part Number 155.0.025 is four-sided in shape. Two blades are needed in total, one for the top blade and one for the bottom blade. One blade can be changed independently on its own.


What is a Belle Block SPLITTER?

A block Splitter or commonly called a block cutter, stone cutter, stone splitter, or even guillotine is used to split or cut most small paving elements such as paving blocks, slabs, and stones. Once split the block will be left with a nice clean straight edge ready to be laid in position. the Minipave is a heavy-duty manual splitter designed for block paving splitting, perfect for both large commercial projects and small domestic projects such as driveways and pathways. Has a cutting blade length of 400m and can cut block pavers up to 120mm thick.


Difference between using a Belle Block Splitter compared to a power saw.

The main difference between splitting paving blocks when using a block cutter over a power saw basically comes down to the amount of dust and noise created. A power saw will be noisy, not a good idea to use it first thing in the morning or if working late into the night, and the dust created is high if used properly some sort of dust suppression equipment should be used. If a manual block splitter is used, firstly the dust noise created by the split is very low in comparison, but the biggest difference is the amount of dust generated is very low and no dust suppression equipment will be required to comply with government guidelines when it comes to controlling dust when cutting paving materials. another point to consider when using a power saw is the constant changing of cutting discs and even the lifespan of a power tool will be a lot less than a quality block splitter such as the Belle Minipave Block Splitter.


Which is better Block Cutter or Power Saw?

This argument amongst professionals has been discussed for many years and will continue for many years, and contractors are split 50%-50% - some prefer the manual block cutter while others will choose the Power saw. If using a power saw to cut through a block it is as simple as following a marked line set on the block, and a standard block will take anywhere between 15 seconds up to a minute to cut by a trained contractor. Using a block cutter will take a lot less time, probably only a few seconds, but it takes more skill to learn how to use a block cutter.

If you need more help with Belle Block Splitters, feel free to call Ultimate Lifting Solutions today at 01384 986 026 to discuss your requirements.



Further technical details on the Altrad Belle Minipave 155.9.00


Technical Specification of the Altrad Belle Minipave Compact Block Splitter

Cutting Height 47mm up to 87mm

Cutting Length 250mm Max

Weight of only 18Kgs

Suitable for - Pavers, Smaller Jobs.

Advantages - Portable, Accurate cut, easy to adjust height, lightweight, robust with maintenance-free operation.

ModelBelle Part NoCutting LengthCut HeightBlade TypeCam MovementAdjustment ScrewsCut forceWeight
Belle Minipave Block Splitter155.9.000250mm

Min47mm

Max 87mm

8mm Square Section

Block Clearance 3mm

Cutting 2mm

Fast Acting

Trapezoidal 40mm

3200kfg - 31.4kN35.5Kgs

Altrad Belle Minipave Block splitter c/w two Blades. Part Number 155.9.000. EAN 5031403300010


Belle Minipave Block Splitter Spare Blades.

Belle Minipave Block Splitter is available from the Ultimate Lifting Solutions Belle Spare Parts section of the ulslifting.com website. The Belle Block Splitter replacement blade Part Number 155.0.025 is four-sided in shape. Two blades are needed in total, one for the top blade and one for the bottom blade. One blade can be changed independently on its own.

Altrad Belle - Altrad Belle is a long-established manufacturer of light site equipment for the Building and Construction markets and is based in the Derbyshire Peak District UK. The history of Belle dates back to the 1950s, starting with designing and manufacturing cement mixers, and the original Belle Mini mixer was created. In 2009 the company became part of the Altrad Group, with its headquarters in Montpellier, France.
