Probst Adjustable Block Paver Cart VTK-V

Key notes for ordering:

New Stock available. order by Noon for Same day dispatch

Estimated lead time:1 - 2 Days Max

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

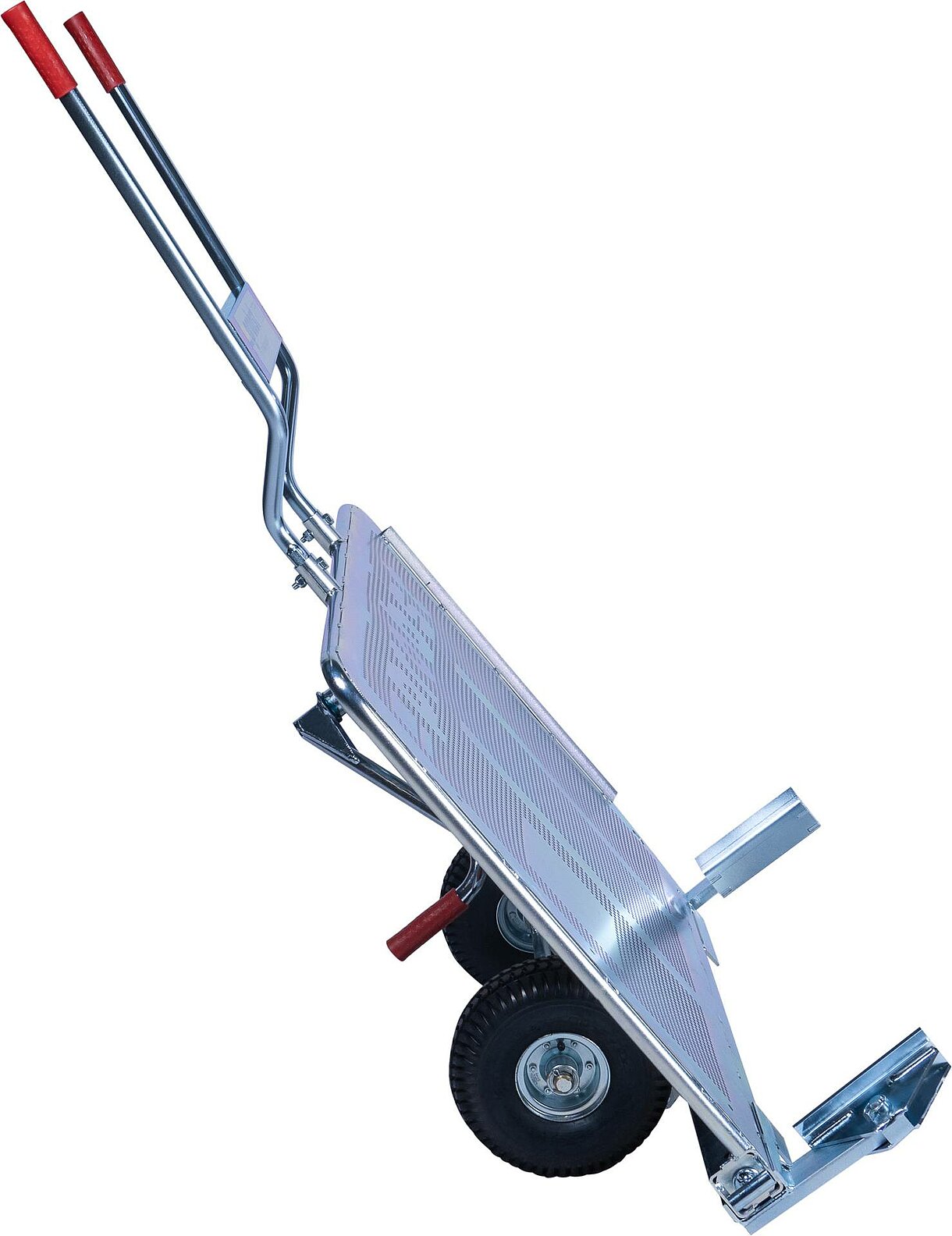

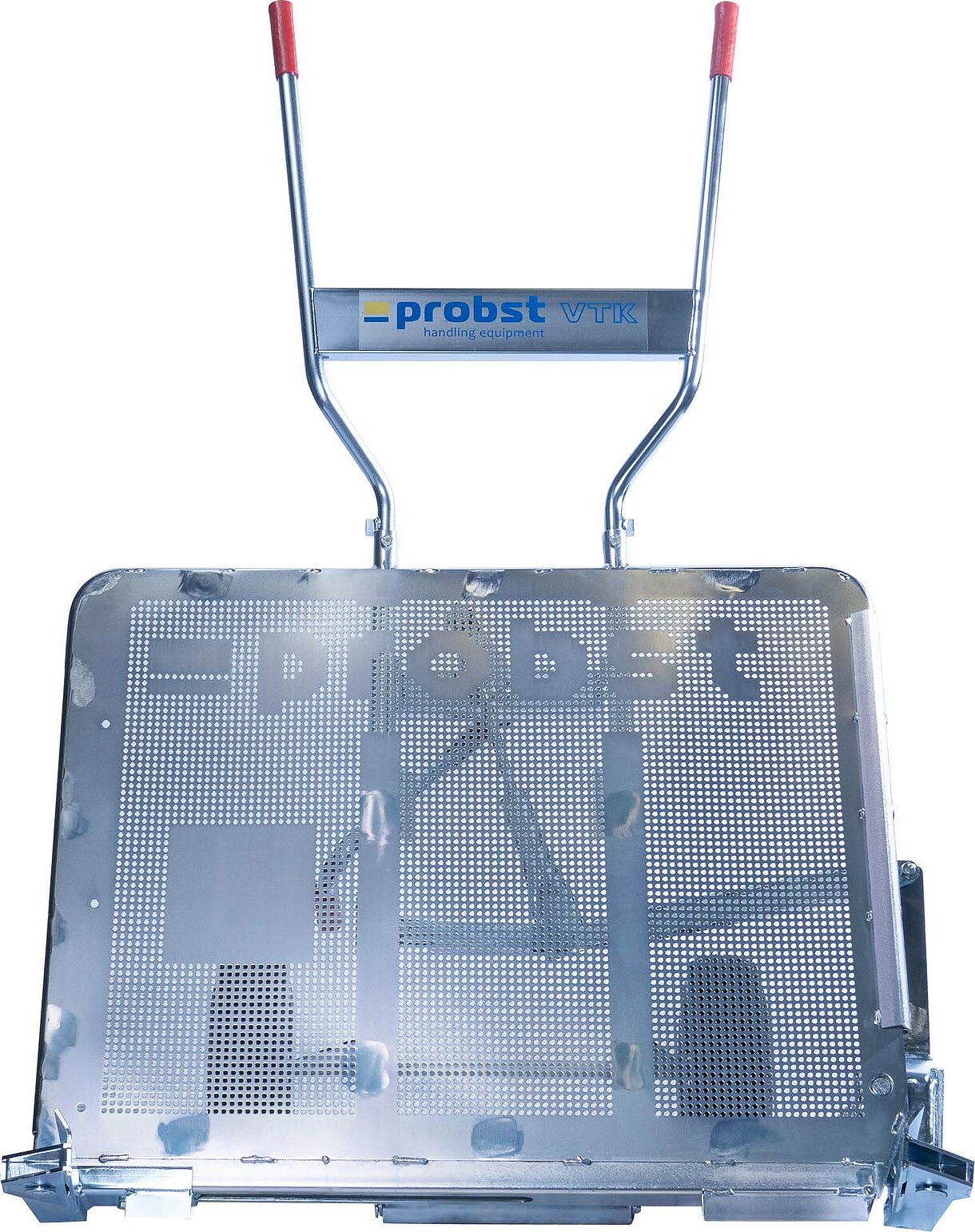

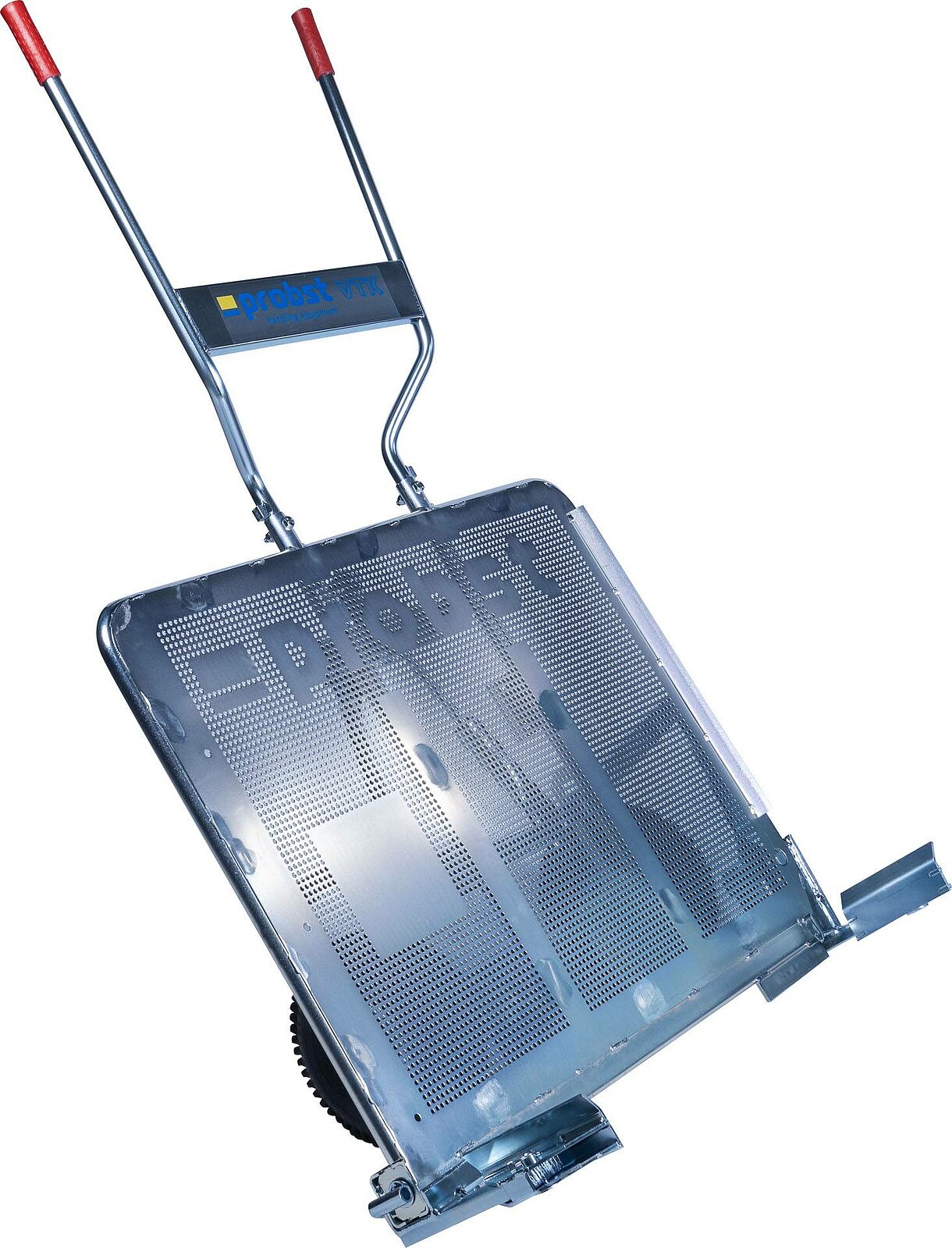

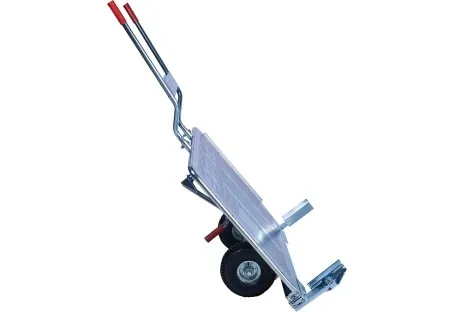

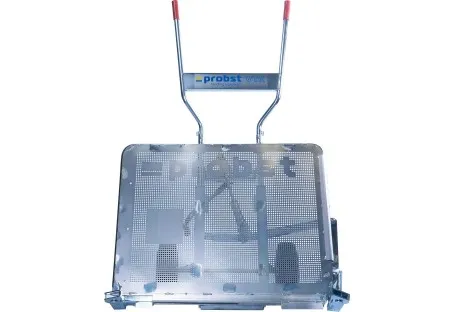

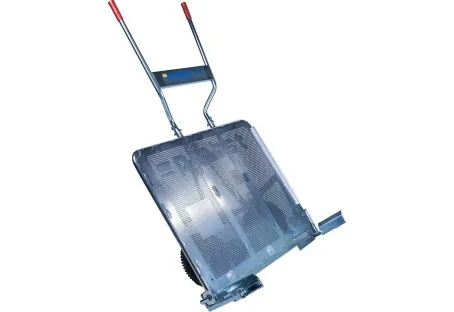

Probst Adjustable Block Paver Cart VTK-V

Brand:

Capacity

400 Kgs

Description

Probst Adjustable Paver Transport Cart VTK-V will grip and transport multiple layers of paving blocks, bricks, kerbstones, or slabs from the ground or from a pallet without the need for a ramp to the working (laying) area effortlessly and efficiently. Cuts out the old-fashioned way of filling up a wheelbarrow to transport those pavers.

save£118.82

£999.00 ex VAT

£899.98 ex VAT

£1,079.98 inc VAT

Access ramp and rear supporting wheel available

Related products

Brick & Block Barrow BB 1104

BB 1104

The BB1104 Brick, Block and Paver barrow has been designed to increase efficiency around the modern-day construction site by allowing multiple amounts of bricks, blocks kerbstones, and even small or large slabs and pavers to be transported at the same time

£798.98 ex VAT

£958.78 inc VAT

Probst Adjustable Block Paver Cart VTK-V will grip, lift and transport multiple layers of bricks, paver blocks, kerbstones, or slabs from the floor or pallet to the working area effortlessly. Gone are the days of old, when landscapers and block pavers had to load a wheelbarrow up of bricks and slabs before moving them to the laying area, this wheeled cart will lift a full layer of bricks within seconds, grip them securely, and then safely unload them where needed.

This quality German-manufactured block paver cart by Probst with its durable galvanized finish has been designed to make every landscaper and block paving team's working day easier, as a full stack of block paving blocks, kerbstones, and slabs can be easily loaded from the delivered pallet pack without the need of a ramp and transported to the working area. The paver transport Cart VTK-V can be adjusted from 550mm to 1050mm Max to suit the blocks or slabs to be lifted, and the gripping width can be altered without the need for extra tools.

The Paver transporter cart is compact and narrow in design (only 1150mm wide) making it perfect for tight pathways or smaller building sites and the long handles give a favorable load distribution position that ensures optimal operation and ease on the back and body of the operator. Once the Probst Block cart is loaded up, blocks can easily be transported from the pallet to near the working area.

ModelProbst Part NoWorking Load LimitClamping RangeLength of GrippersMax Height of Brick/Stone Weight
Adjustable Paver Cart VTK-V51100015400 Kgs550 - 1050 mm200mm900 mm68 Kgs

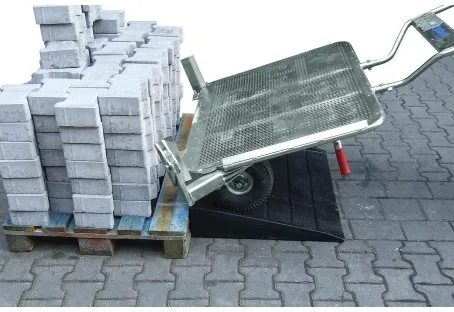

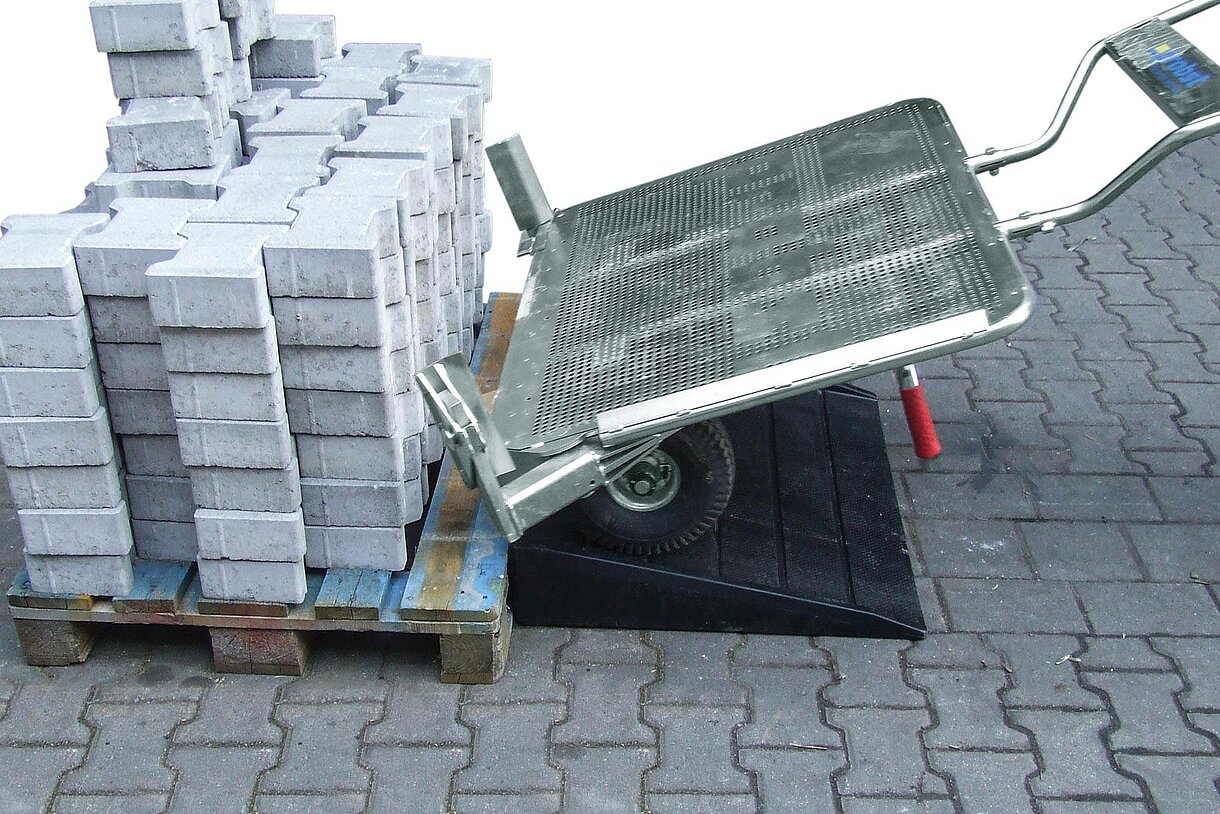

The Probst Access Ramp is also available on request for the Probst VTK-V Blockcart (makes picking up interlocking paving stones on a pallet easier)

The Probst Rear Supporting Wheel is available, (great for added balance/assistance on level ground).


Adjustable Paver Transport Cart VTK-V - Part Number 51100015 - Also known as the Probst VTK-V Blockcart or Probst VTK-V Adjustable Block Pallet Cart, Probst Adjustable Block Paver Cart VTK-V

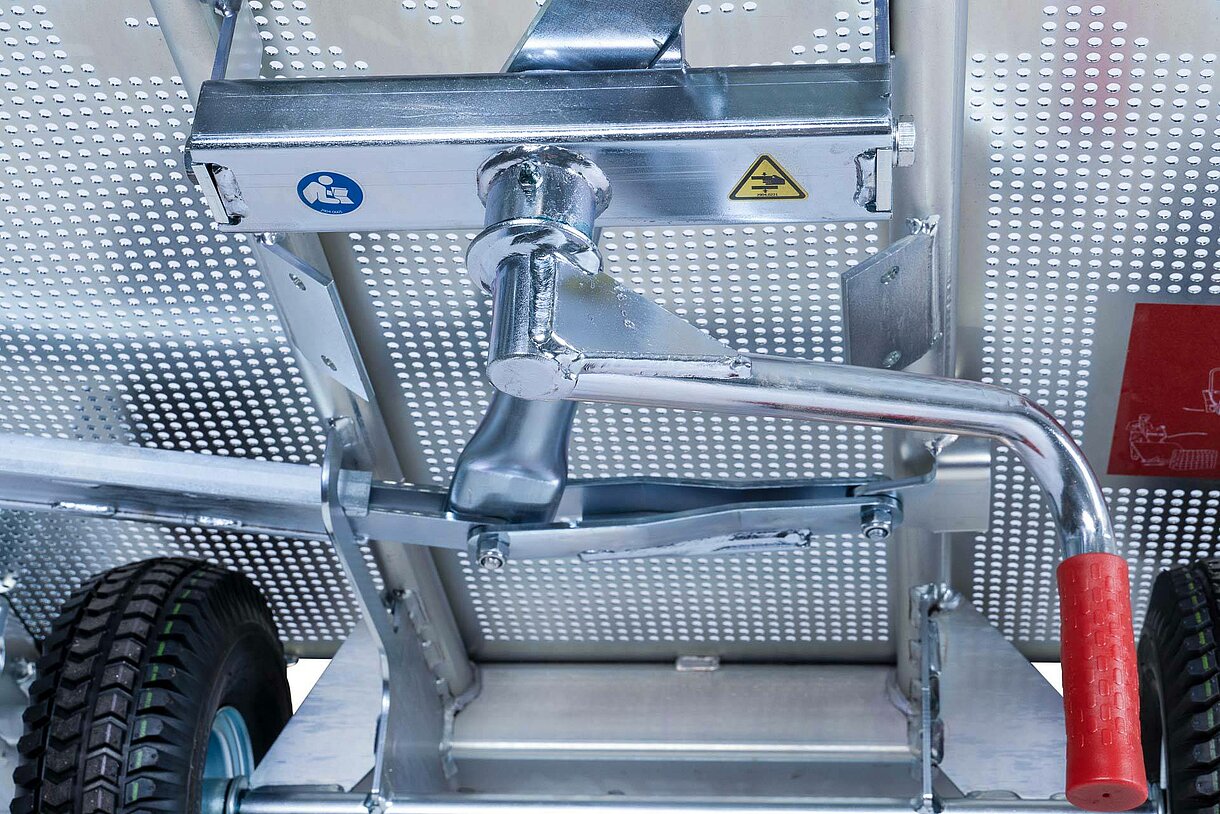

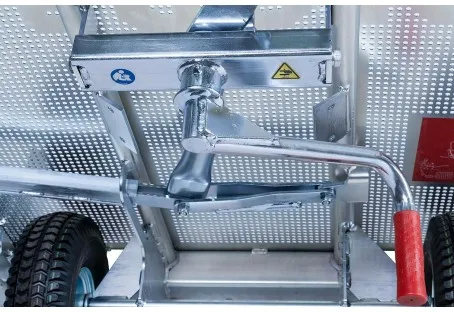

Clamping is done by operating a lever 90° (maximum pressure 15 kg).

Adjustable gripping width from 550 mm – 1,050 mm.

The minimum and maximum gripping widths can be altered using special grippers.


How To operate the Probst Adjustable Paver Transport Cart VTK-V from bricks already on the floor

Position the cart carefully next to the line of bricks to be lifted.

1. Move the VTK-V carefully to the load.

2. Bring the stop and the bottom plate in position by placing the VTK-V in the upright position.

3. Engage the lever up to the stop clockwise, so the load is getting clamped.

4. Take the VTK-V by the handles, bring it in a horizontal position and carefully transport the load to the place of destination.

5. At the place of destination, bring the VTK-V carefully to the upright position.

6. Rotate the lever counter-clockwise to release the load.

7. The VTK-V can now be moved away.

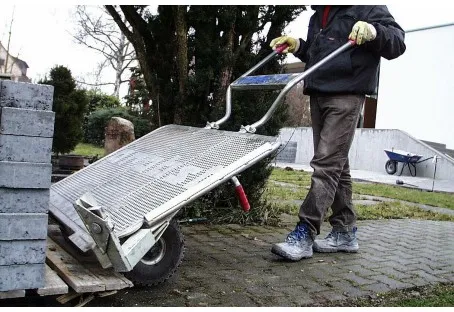

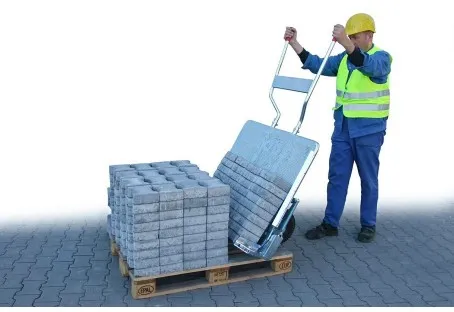

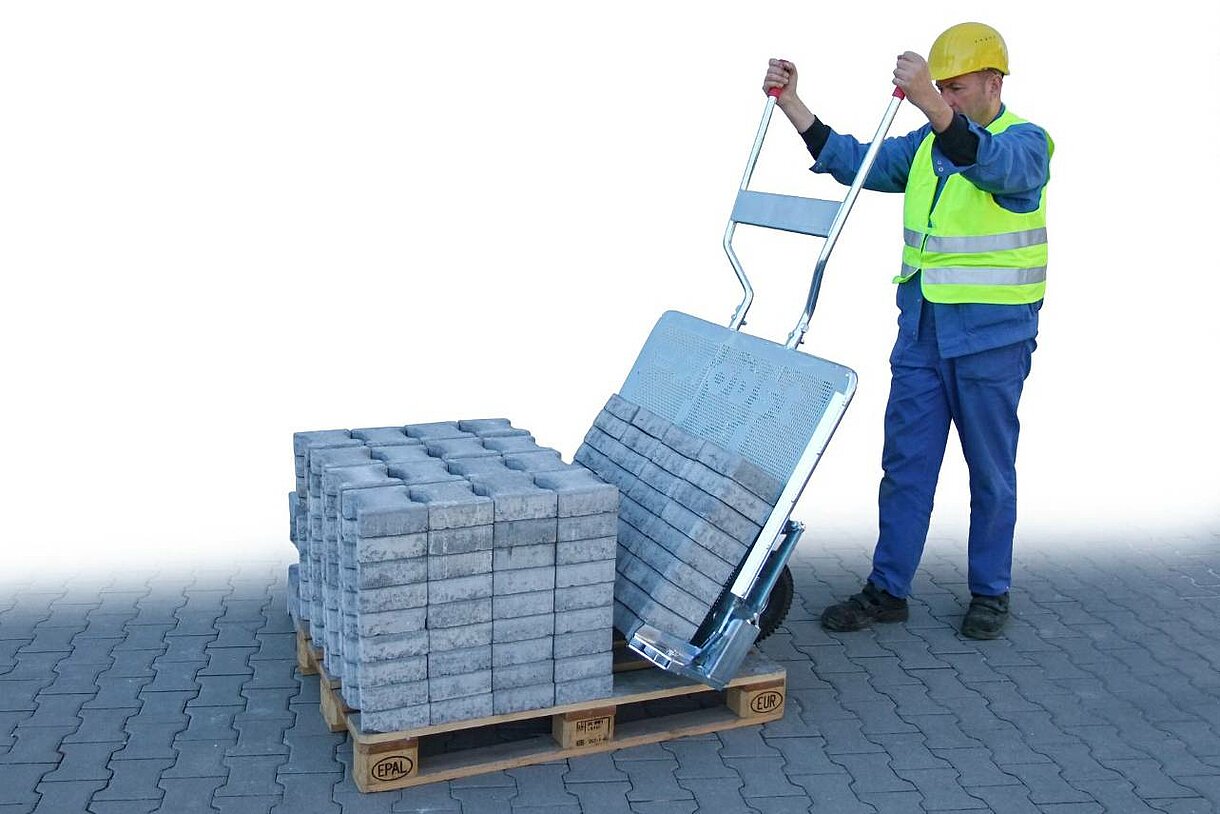

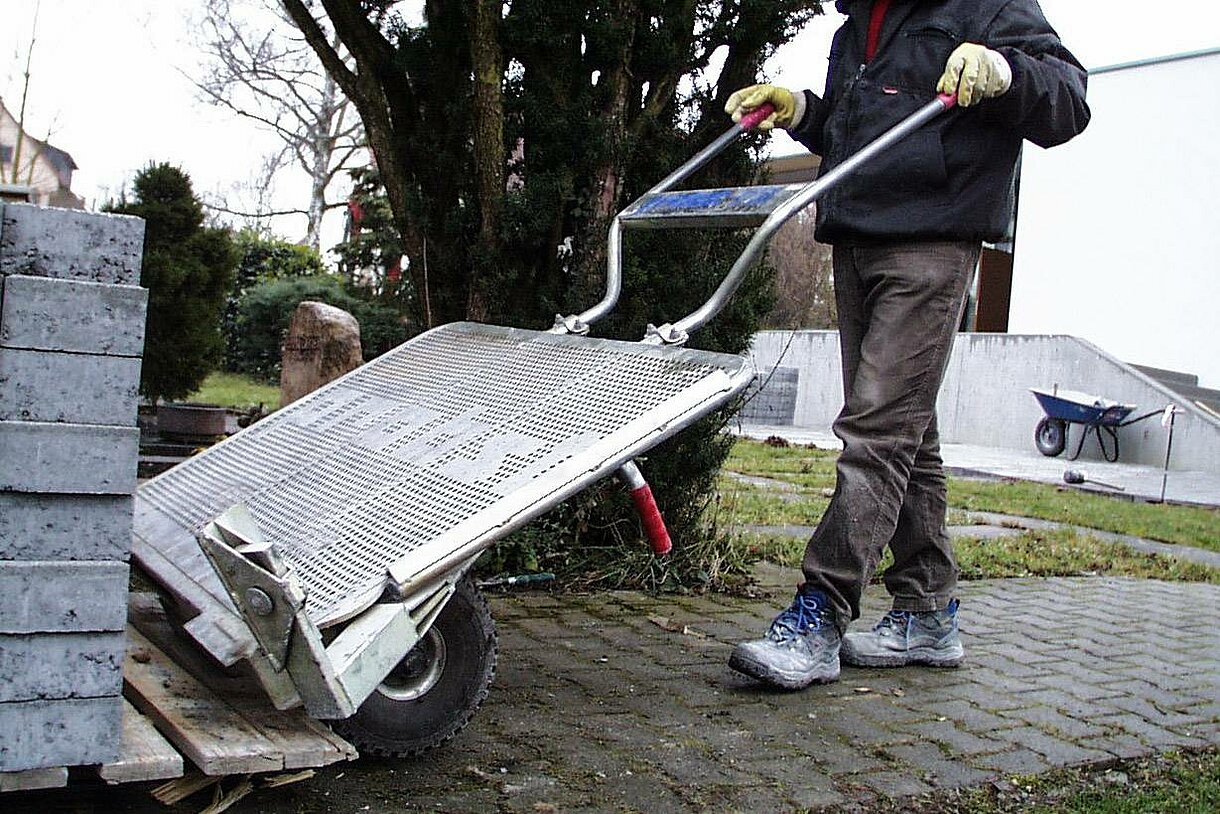

How To operate the Probst Adjustable Paver Transport Cart VTK-V from bricks from a pallet

1. Use the support roll to place the VTK-V on the pallet. Move the VTK-V carefully to the load.

2. Bring the stop and the bottom plate in position by placing the VTK-V in the upright position.

3. Engage the lever up to the stop clockwise, so the load is getting clamped.

4. Tilt the VTK-V towards yourself and pull it so the support roll is on the edge of the pallet. The wheels have to extend over the edge of the pallet.

5. Tilt the VTK-V further on until it stands on its wheels

6. At the place of destination, bring the VTK-V carefully to the upright position. Rotate the lever counter clockwise to release the load.

7. The VTK-V can now be moved away.

Further information on the Probst Adjustable Paver Transport Cart - Designed for the effortless transportation of bound or loose pavers, kerb stones, slabs, etc.

Probst Part Number 51100015


Key Features

An integral protection device prevents the overloading of the clamping mechanism.

A favourable load distribution and the light-weight-nature of the device ensure optimal operating.

Narrow /Slim design (1150mm) means it can be used on pathways and on the smallest building sites.

Blocks, stones and slabs can easily be loaded from the pallet without the need for a ramp.

Fully mechanical operation.

Probst VTK-V Blockcart can be adjusted smoothly and without the need for extra tools.

Durable galvanized surfaces to protect against the elements.


Clamping is done by operating a lever at 90° (maximum pressure required 15 kg).

Adjustable gripping width from 550mm – 1,050mm.

The minimum and maximum gripping widths can be altered using special grippers.

ModelProbst Part NoWorking Load LimitClamping RangeLength of GrippersMax Height of Brick/Stone Weight
Adjustable Paver Cart VTK-V51100015400 Kgs550 - 1050 mm200mm900 mm68 Kgs

Access Ramp is also available on request (makes picking up interlocking paving stones on a pallet easier) - Rear supporting wheel available, (great for added balance/assistance on level ground).


Adjustable Paver Transport Cart VTK-V. For the effortless transportation of bound or loose pavers, kerb stones, slabs, etc

Maintenance of the Probst Paver Transport Cart

To ensure the correct function, safety, and service life of the device the following points must be executed with in the maintenance interval.

Advisable notes - Only original spare parts, otherwise the warranty expires.


Initial inspection after 25 operating hours

Check or retighten all fixing screws (may only be carried out by a qualified person).

Inspection Every 50 operating hours

Retighten all fixing screws (make sure that the screws are retightened according to the valid tightening torques of the corresponding strength classes).

Check all existing safety elements (such as folding pins) for proper function and replace defective safety elements. → 1)

Check all joints, guides, pins and sprockets, and chains for proper function, readjust or replace if necessary.

Check gripper jaws (if present) for wear and clean, replace them if necessary.

All existing sliding guides, rack gears, and joints of moving parts or machine components must be greased/lubricated to reduce wear and for optimum movement sequences (recommended grease: Mobil Grease HXP 462).

Lubricate all grease nipples (if present) with a grease gun.

Inspection after a max 12 months - (shorten the inspection interval in case of harsh operating conditions)

Inspection of all suspension parts, as well as bolts and brackets.

Inspection for cracks, wear, corrosion, and functional safety by an expert.
