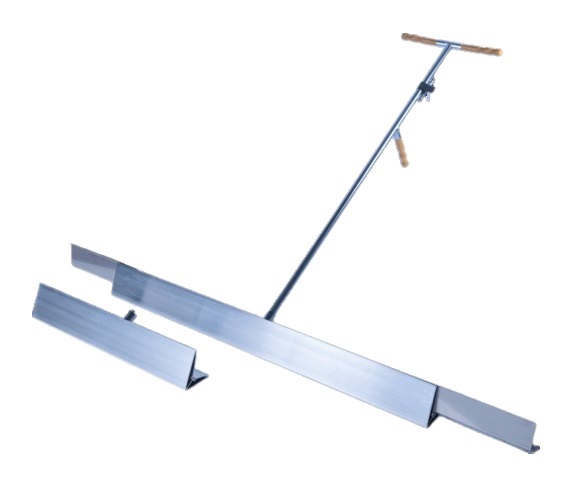

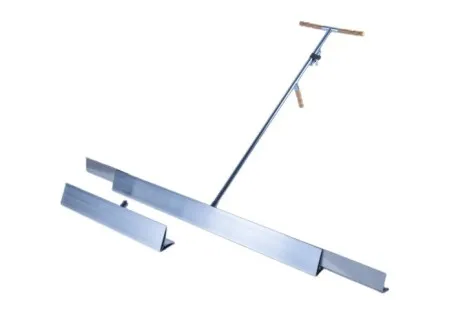

Probst EP-UNI Hand Screeding System

Further information on the EP-Uni Hand Screeding Sets that are commonly used for levelling screed and preparing the land ready to be block paved

Continuously adjustable telescopic elements.

This one system offers you one kit that can screed different working widths easily and exactly.

EP-UNI is adjustable to the required working width between 900 - 2.3m or 2.3m - 3.0m.

Supplied with two telescopic elements the basic Alu-profile width can be enlarged.

Including a special key for fast mounting of the telescopic elements and the roller units.

No flexing with the strong Alu profile, even at working widths up to a maximum 3 m!

Due to the special design, the profile does not leave the screeding rail even when working with large quantities of screeding material.

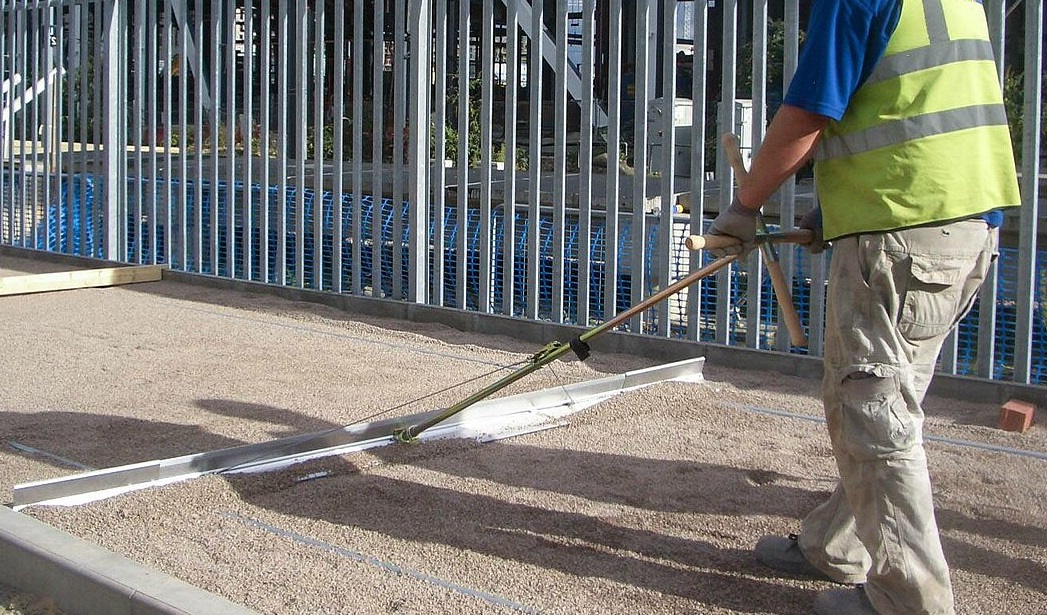

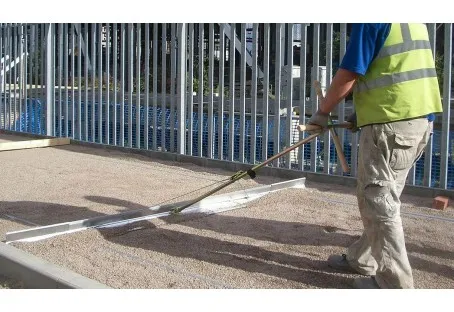

The handle of EP 230/300 is adjustable to the required angle-positioning and has a 3-dimensional handle gripping design.

The special design of the handle enables the operator to use their body weight to exert pulling force in every position of the EP profile.

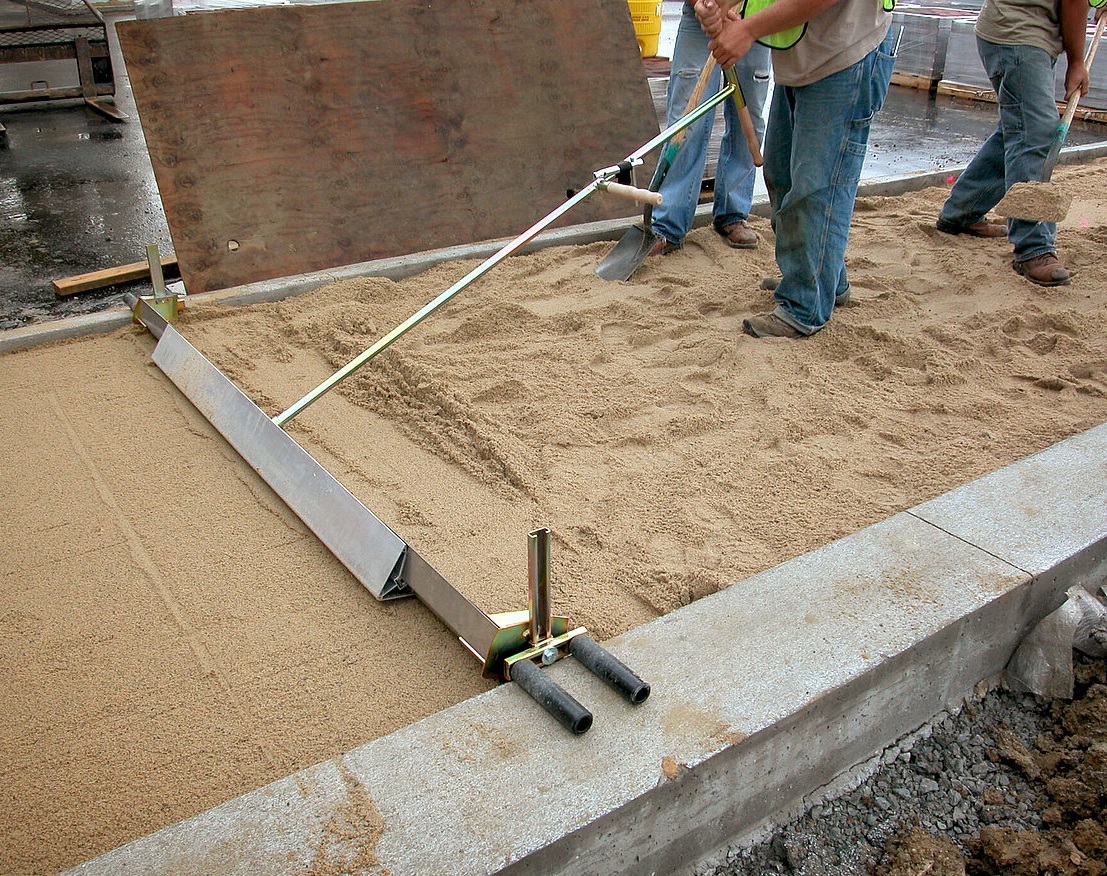

With the EP 90/230 the screeding material can be carried and filled exactly into the gaps left by the screeding rails, for example, water-pipes.

Handle removable for transport.

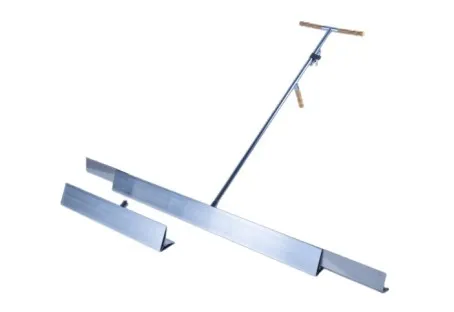

Included in Hand Screeding Kit

EP-UNI-set 90/230 - 51000040

2 x Alu-Profiles 900mm + 1,600mm

1 x Handle

2 x Telescopic extensions 350mm each long

EP-UNI-set 230/300 - 51000041

1 x Alu-Profile 2,300mm long

1 x Handle - Three-dimensional design

2 x Telescopic extensions 350mm each long

Optional Extra for the EP-UNI-set 230/300

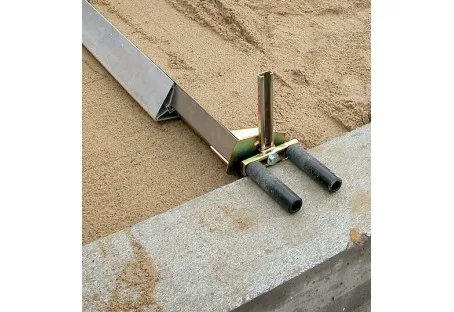

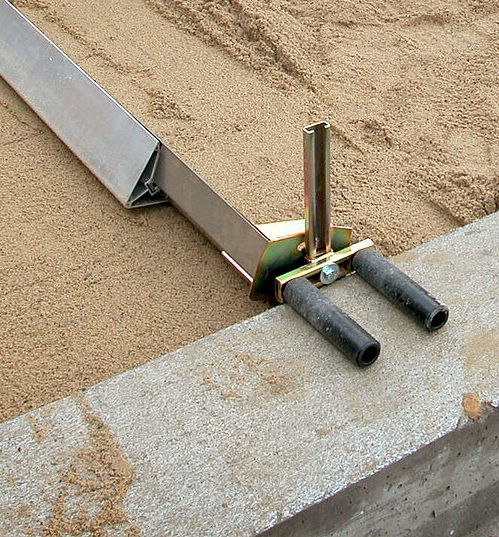

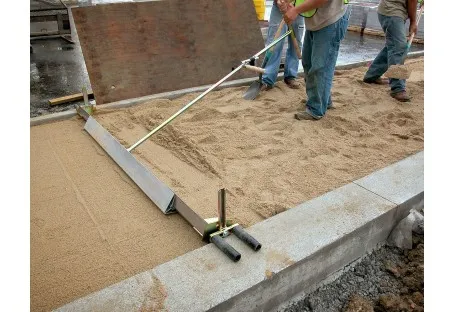

EP-UNI-RS - Probst Part Number 41000165 - Set of Roller Units

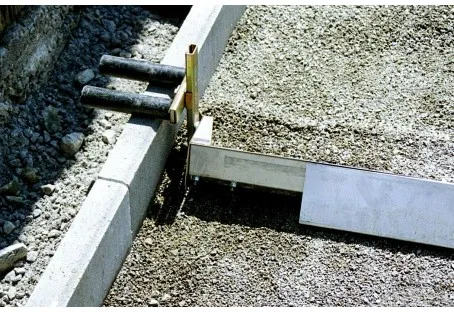

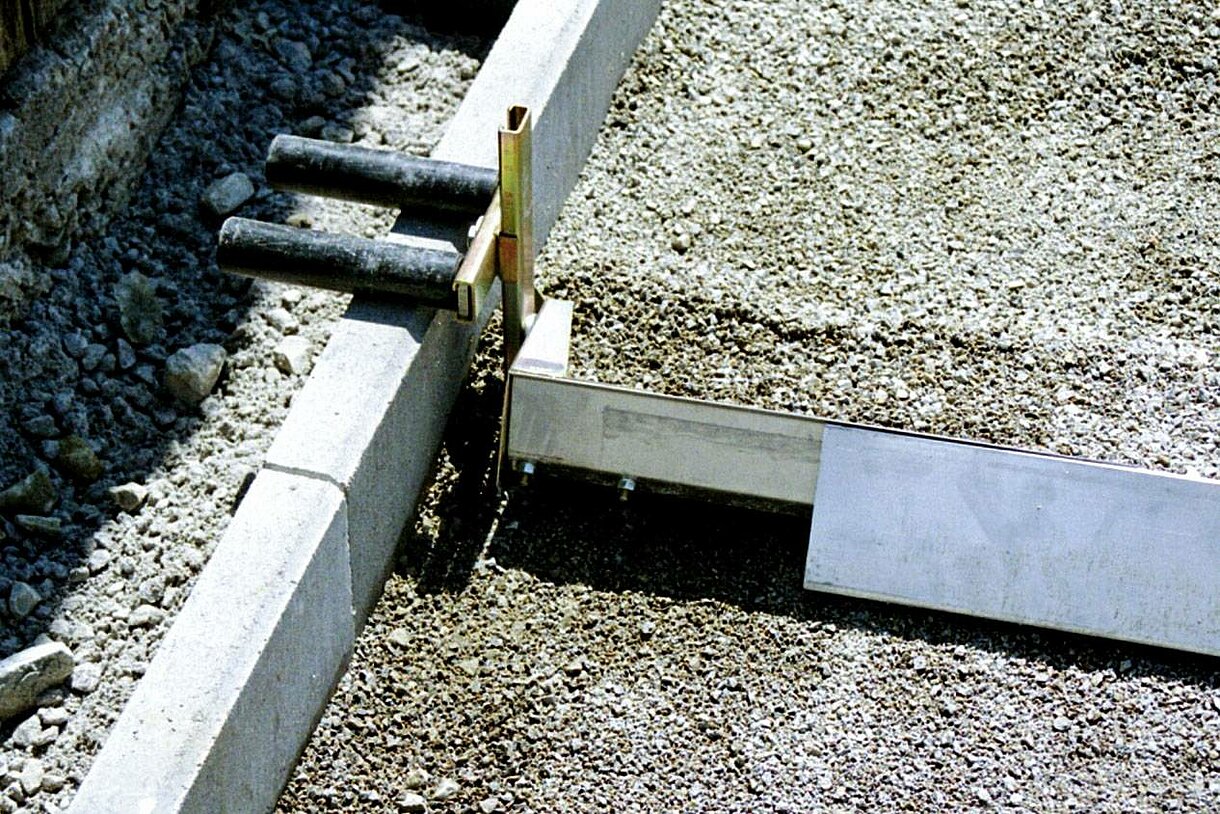

These optional height-adjustable roller units will take the working height from existing kerbstones, concrete pavers, or similar -This means no other rail gauges are necessary - A great time-saving accessory.

The EP-UNI-RS Rollers will suit both sizes of the Probst Easyplan Hand Screeding handles.

Screeding Rail Kits (2 lengths available 13m kit and 25m kit)

A lightweight set of screeding side rails when used in conjunction with the Probst EP-UNI Hand Block Paving Screeding System. The Screeding blade system will slide effortlessly and easily along the rails. The Hand system and rail set combination will aid the setting of a consistent and accurate level and width for all screeding materials. giving a perfectly level finish to the concrete blocks or slabs. These screeding poles are simple to use with a plug-in connection for fast and easy assembly. The Kit supplied consists of various lengths of non-corroding galvanised finished Screeding rails

Two different Sets are available

AZL-EP SET-13 - Probst Part Number 5100089 - Screeding Rail Kit x 13m total length (Kit comprises 2 x 1.5m, 4 x 2.5m = Total of 13m)

AZL-EP SET-25- Probst Part Number 5100057 - Screeding Rail Kit x 25m total length (Kit comprises 2 x 1.5m, 4 x 2.5m, 4 x 3m Rails = Total of 25m)

Why use a Screeding rail kit with the screeding handle set?

When the AZL-EP Screeding Rail Kit is used with Probst Easyplan EP Screeding set - Allows for easy gliding of the aluminum screeding board over the screeding rails, which helps the screeding contractor with less physical exertion and force and again gives that consistent level ready for the laying off blocks or slabs.
