Probst TELEPLAN TP Hand Screeding System

Further Information on the Probst TELEPLAN TP Hand Screeding System

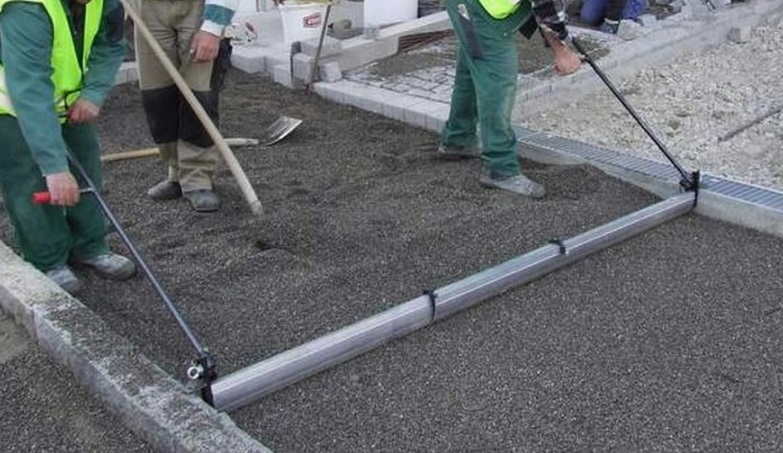

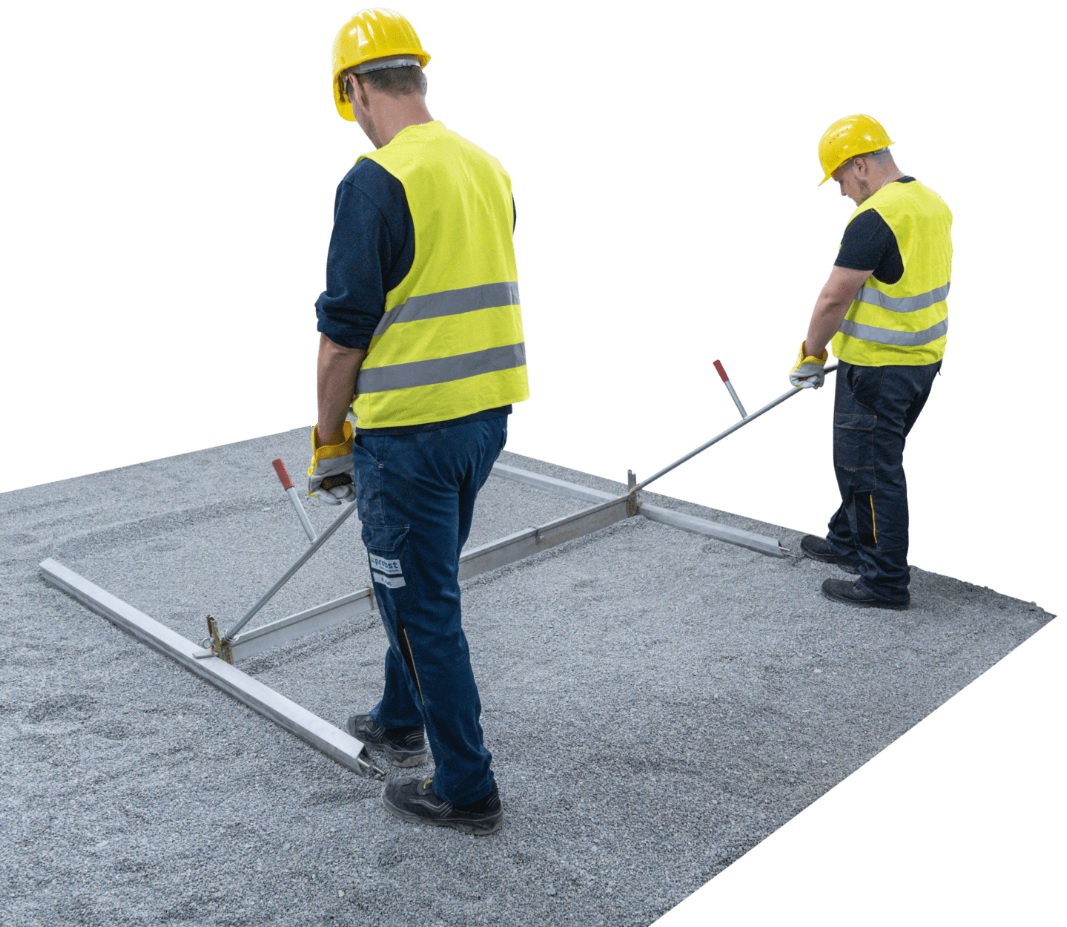

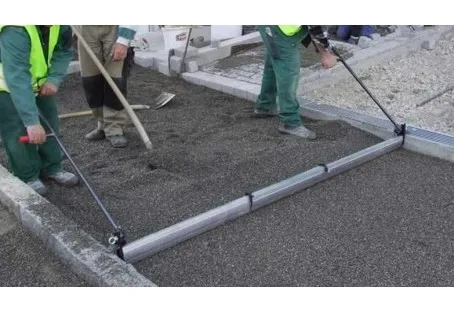

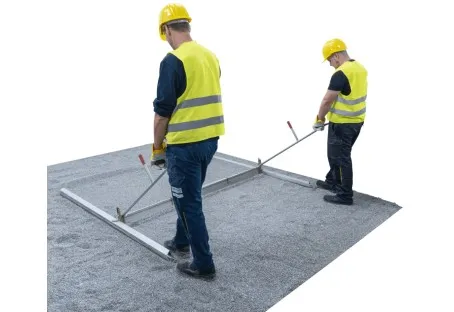

The Probst TELEPLAN TP Hand Screeding System is commonly used either as a traditional screeding board or as a two-person, stand-up screeding system for levelling screed areas and preparing the ground for block paving and slabbing.

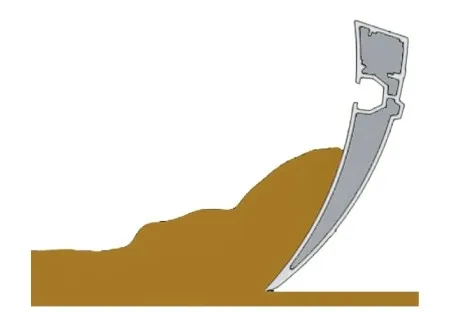

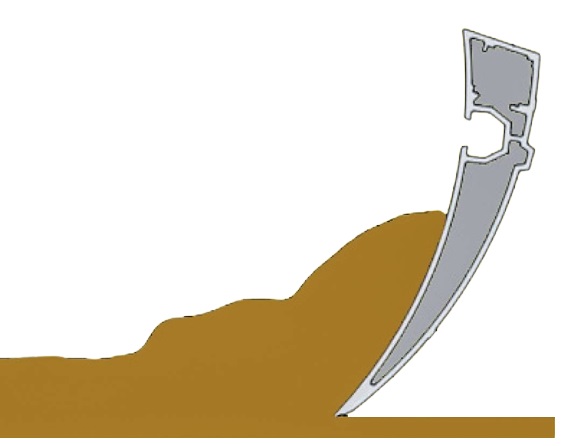

The TELEPLAN TP aluminum profile features a sickle shape, allowing it to cut into the bedding material without moving upward. There’s no need to exert force to push it down when pulling, which is especially beneficial when screeding compacted sand. This design also facilitates the movement of the screed bar, preventing it from being obstructed by lateral obstacles or boundaries.

The advantages of the TP profile are substantial in terms of energy efficiency, working speed, and the high-quality performance of the laying course.

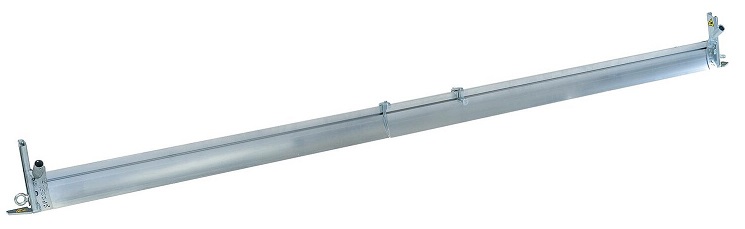

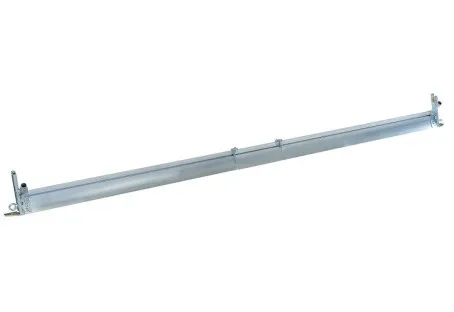

Two TP profiles can be connected to allow for telescopic adjustments in a simple and sturdy manner, enabling one tool to be used for various working widths. The connection between both profiles is secured by two fixed clamping units that cannot be lost.

Features of the Probst TELEPLAN TP Hand Screeding System:

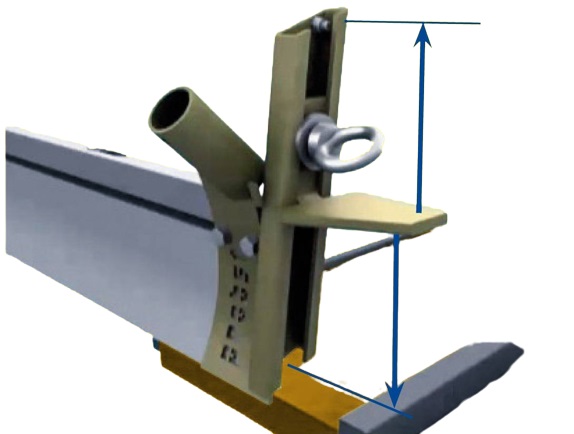

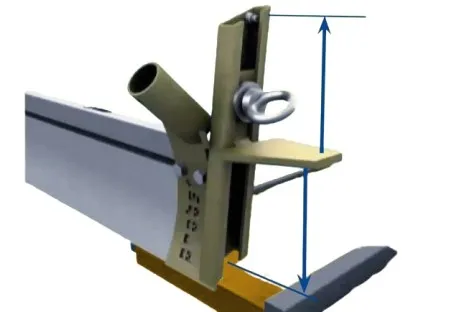

• a height-adjustable stop on both sides, with an adjustment range of 0 to 127 mm (0 to 5 inches), which can be removed quickly if needed.
• integrated fittings for additional pulling handles (TP-HG) are included in the side parts, along with HG-ERGO-DUO.

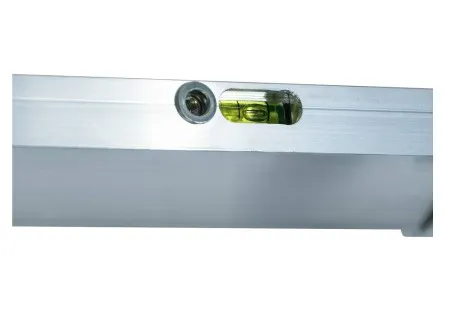

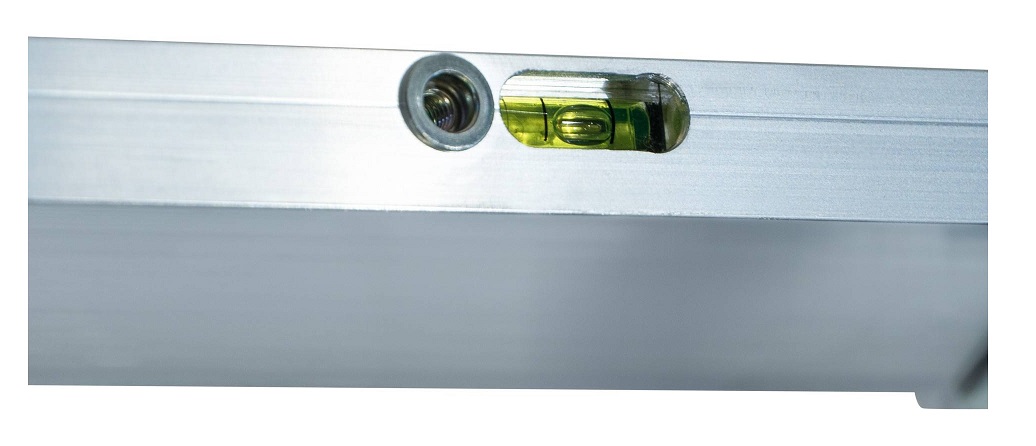

• a level indicator is incorporated within the TP profile.
• a lightweight aluminium hollow profile, which is extremely sturdy, made from high-tensile material, with a weight of just 1.3 kg per meter.
• a long lifespan.

Model	Probst Part No	Description	Adjustable Working Width	Weight
TP-60/100	51010006	Small Screeding System	600 - 1,000 mm	4 Kgs
TP-100/165	51010001	Medium Screeding System	1,000 - 1,650 mm	5 Kgs
TP-150/260	51010002	Large Screeding System	1,500 - 2,600 mm	6 Kgs
TP-200/350	51010003	Extra Large Screeding System	2,000 - 3,500 mm	8 Kgs

The aluminium sickle-shaped profile provides a rigid screed leveling tool featuring an integrated level indicator. Its robust design ensures that, even at the maximum width of 3.5 meters, there is no flex. The Teleplan handscreeding systems can be interconnected to achieve the desired width, allowing a single tool to be used for various working widths.

Accessories for the TELEPLAN Hand Screeding Systems

Model	Description	Part Number	Weight
HG-ERGO-DUO	2-Person Handle Set (2Pcs)	41010072	5Kgs
FP-TP	Bracket for Handle (2 Pcs)	41010075	2Kgs
TP/FP-RS	Set of Roller Units (2 Pcs)	41010080	3Kgs

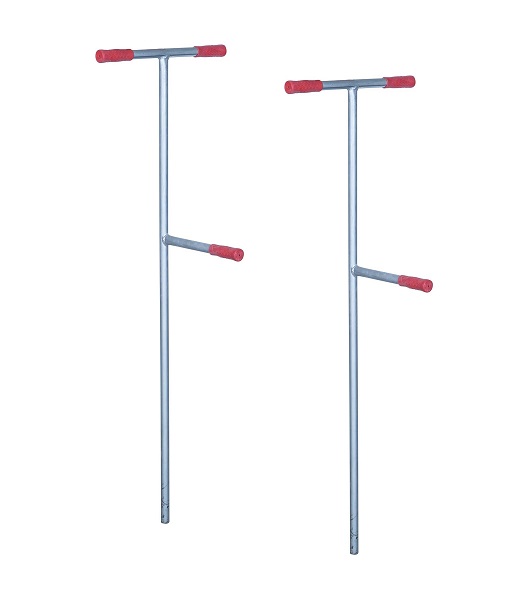

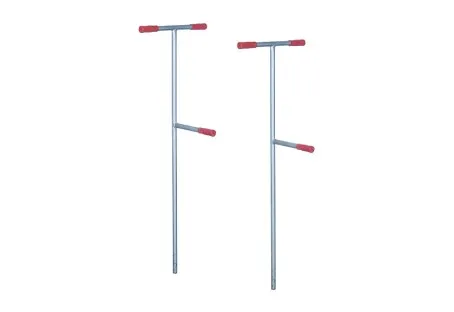

HG-ERGO-DUO

Probst Part Number: 41010072

Handles to Suit Teleplan and Fixplan

(Replaces the older version HG-TP: Probst Part Number 51010005 - Set of 2 Pulling Handles)

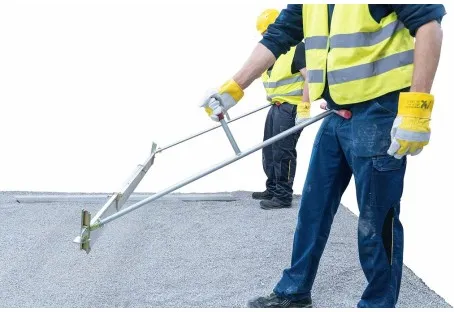

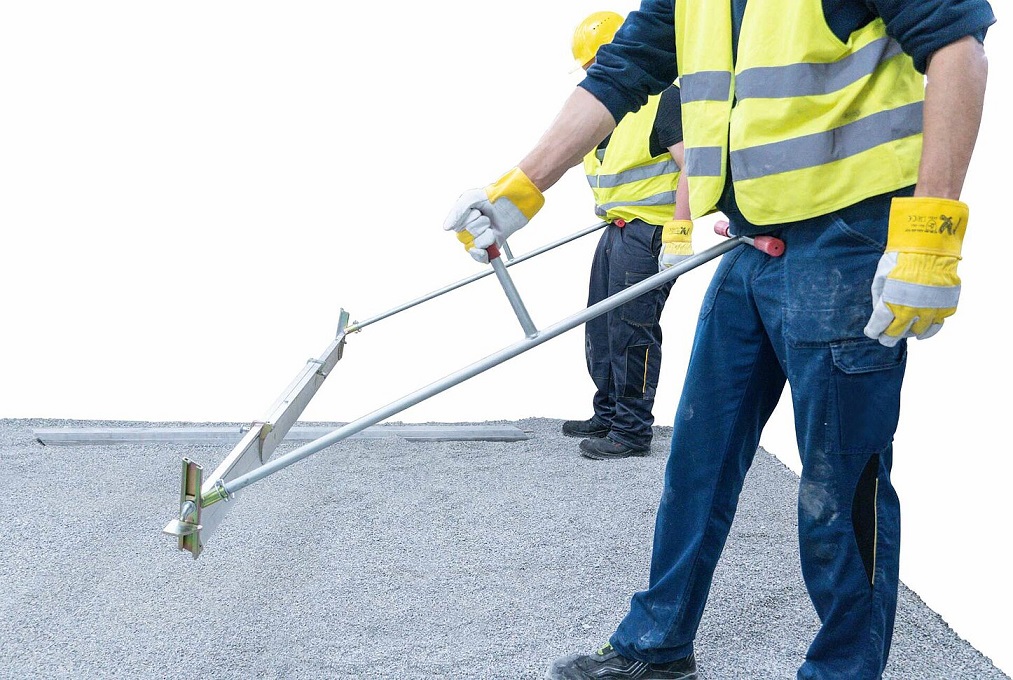

These optional handles can be fitted to each end of the screeding profile. The screeding system can now be used while standing, allowing for a more relaxed and ergonomically correct body position. This design prevents operators from kneeling in damp sand. The new design of the HG-ERGO-DUO has been enhanced to offer greater ergonomic benefits. A set of two handles is supplied to enable fatigue-free working in a standing position, and they can be attached to the side parts at any time via a plug-in fastener.

FP-TP

Probst Part Number: 41010075

Multi-Positional Handle Bracket

The Bracket for handles can be easily fixed in any position along the profile, even at overlapping sections, to secure the two HG ERGO DUO handles in place. This feature also enables just one person to screed larger working widths in an upright position quickly and effortlessly.

TP/FP-RS

Set of Roller Units for TELEPLAN

Probst Part Number: 41010080

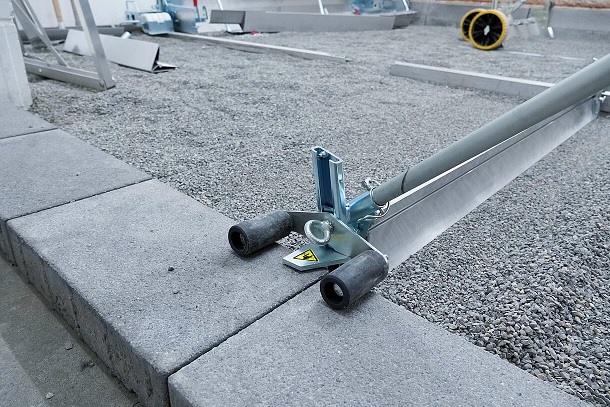

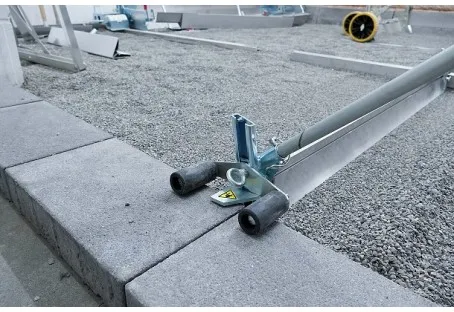

The Teleplan Roller Set is compatible with all Teleplan models and facilitates the smooth running of the screeding board when used off a kerb, against walls, or alongside raised borders. The roller sets are height-adjustable, ensuring a consistent and accurate level.

Optional Extra for the Teleplan TP Handscreeding Systems

Probst AZL Screeding Rail Kits

(Available in two lengths: 13m kit and 25m kit)

This lightweight set of screeding side rails is designed to be used in conjunction with the Probst EP-UNI Hand Block Paving Screeding System. The screeding blade system slides effortlessly along the rails, aiding in the setting of a consistent and accurate level and width for all screeding materials, resulting in a perfectly level finish for concrete blocks or slabs. These screeding poles are simple to use, featuring a plug-in connection for fast and easy assembly. The kit consists of various lengths of non-corroding, galvanised screeding rails.

Two different-sized sets are available

AZL-EP SET-13 - Probst Part Number 5100089 - Screeding Rail Kit x 13m total length (Kit comprises 2 x 1.5m, 4 x 2.5m = Total of 13m)

AZL-EP SET-25- Probst Part Number 5100057 - Screeding Rail Kit x 25m total length (Kit comprises 2 x 1.5m, 4 x 2.5m, 4 x 3m Rails = Total of 25m)

Model	Probst Part No	Description	length	Weight
AZL-EP13 Set	51000089	Screeding Rail Kit 26.9mm dia	2 x 1.5m. 4 x 2.5m Total Length 13m	20 Kgs
AZL-EP25 Set	51000057	Screeding Rail Kit 26.9mm dia	2 x 1.5m. 4 x 2.5m. 4 x 3m Total Length 25m	45 Kgs

Probst – Making Hard Work Easier!

For over 60 years, Probst has been manufacturing tools and equipment that simplify everyday life on construction sites. With numerous important ergonomic and efficiency-enhancing innovations, Probst Material Handling is now the world market leader, setting the standard for handling construction materials both on-site and in concrete plants.

Their headquarters are located in Erdmannhausen, Germany, with a Competence Centre for Robot Production in Könitz. Alongside five subsidiaries in Great Britain, France, Italy, Poland, and the USA, Probst strive to find optimal solutions for their customers every day. They also have a strong presence worldwide, supported by over 450 sales partners. Since 2020, the entire corporate group has been climate-neutral.

Whether in structural or civil engineering, in the garden, or on the street, Probst products are essential on all construction sites. Their machines and tools make life easier for everyone working with paving stones, pipes, and other concrete products.

Why? Because Probst prioritize efficiency and ergonomics, leading them to become the world market leader in gripping and laying technology through numerous innovations.

FAQs – Probst TELEPLAN TP Hand Screeding System

What is the TELEPLAN TP screeding system used for?

The TELEPLAN TP is a manual screeding tool designed for levelling bedding layers in preparation for block paving, slabs, and landscaping projects. It's ideal for working off kerbs or using alongside screeding rails.

How is the TELEPLAN TP Hand Screeding System different from other Probst screeding tools?

Unlike the Probst TAS-UNI, which is mechanically pulled across wide areas, the TELEPLAN is manually operated and features an integrated bubble level and adjustable width. It's compact, lightweight, and perfect for small-to-medium-sized jobs or confined spaces.

Can the TELEPLAN TP Hand Screeding System be used by one person or two people?

Yes. Smaller models like the TP-60/100 and TP-100/165 are ideal for solo use. Larger versions (TP-150/260 and TP-200/350) are better suited for two-person operation, especially when paired with the optional HG-ERGO-DUO handles for ergonomic upright screeding.

What is the purpose of the height-adjustable end brackets?

These allow you to set the screeding height precisely when working off kerbs or along screeding rails. They help maintain a consistent level across the entire screeded surface.

Can I use this system with screeding rails?

Yes. The TELEPLAN TP system is compatible with Probst AZL-EP Screeding Rail Kits, which improve accuracy and make screeding easier across wider areas.

Does the TELEPLAN TP Hand Screeding System come with pulling handles as standard?

No, handles are optional. For ergonomic screeding, we recommend adding the HG-ERGO-DUO Handle Set and FP-TP adjustable brackets.

What are the advantages of the sickle-shaped screeding head?

The curved aluminium profile cuts downward into the screeding material, helping to create a perfectly flat, profiled finish. This reduces the effort needed and ensures a smoother surface than flat screed bars or wooden planks.

What accessories are available?

A selection of optional accessories are available separately to expand the functionality of the TELEPLAN TP system, such as:

- Handle sets (HG-ERGO-DUO)

- Multi-positional brackets (FP-TP)

- Roller sets (TP/FP-RS) for running along edges or kerbs

- AZL-EP Screeding Rail Kits (13m & 25m)

Can TELEPLAN profiles be joined for longer screeding spans?

Yes. TELEPLAN bars are designed to connect, allowing one tool to adapt to various widths on site.
