Yale Handy Lever Hoist - 250Kg/500Kgs
Key notes for ordering:
Supplied tested with certification - Ready to use from the box.
Estimated lead time:1 Day
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise

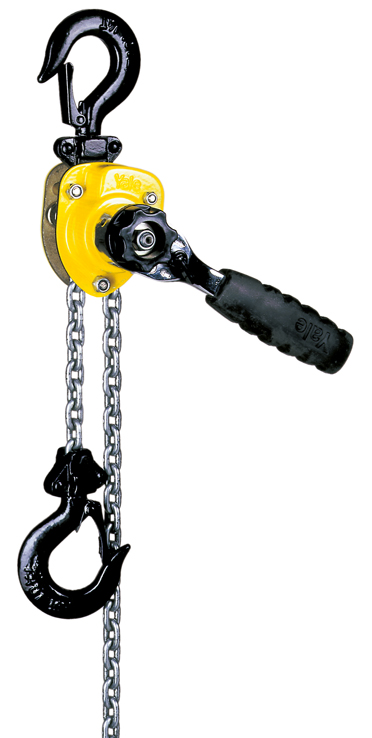

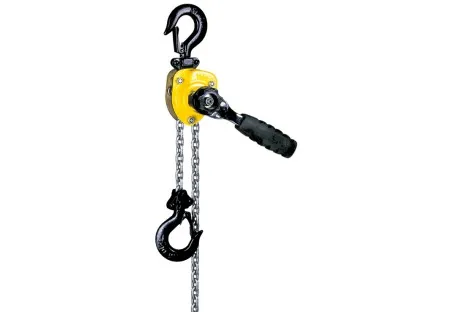

Yale Handy Lever Hoist - 250Kg/500Kgs
Brand:
Capacity
Two Models - 250Kgs & 500Kgs
(0.25 Tonne - 0.5 tonne)
Description
The Yale Handy Lever hoist is the smallest, lightest, and most compact lever hoist in the Yale range. Its small size means it fits easily in any size toolbox and is great for working in cramped and confined spaces - choose from either 250kgs or 500kgs and both fitted as standard with 1.5m of actual chain.
save£33.48
£117.88 ex VAT
£89.98 ex VAT
£107.98 inc VAT
The standard Height of lift is 1.5m - Any additional height of lift is available.
Add to cart
Add to quoteRelated products
Yale UNOplus Series A Lever Hoist
UNOplus-A
The Yale Uno Plus Series A Lever hoist is a newly improved design offering a versatile ratchet lever hoist designed for both pulling and lifting. Can also be used for lashing loads.
£198.14 ex VAT
£159.98 ex VAT
£191.98 inc VAT
The Yale Handy Lever hoist is the smallest, lightest, and most compact lever hoist in the Yale range. Its small size means it fits easily in any size toolbox and is great for working in cramped and confined spaces - choose from either 250kgs or 500kgs and both fitted as standard with 1.5m of actual chain - other lengths available.
Extreme low tare weight on both models - Due to the multitude of application possibilities, e.g. industry, trade, and service, this Ratchet Lever hoist really is indispensable. The extremely low tare weight and very compact design makes the Hoist easy to use, even in very confined working conditions. The standard free chaining device serves to quickly attach the load or to pull the chain through the Hoist in both directions.
| Model | Capacity WLL / SWL | Chain Dimensions | Lifting Height | Closed Height | Weight |
| Handy 250 | 250Kgs | 4mm x 12mm | 1.5m | 240mm | 2.2Kgs |
| Handy 500 | 500Kgs | 4mm x 12mm | 1.5m | 282mm | 2.8Kgs |
The standard Height of lift is 1.5m - Any additional height of lift is available.
Features of the Yale "HANDY" Lever Hoist
- The enclosed design protects the internal parts from contamination.

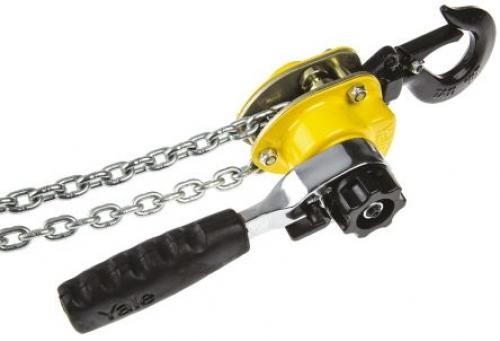

- The short-hand lever is fitted with an ergonomic rubber grip.
- All parts of the disc-type load brake are manufactured from high-quality materials and are corrosion protected.

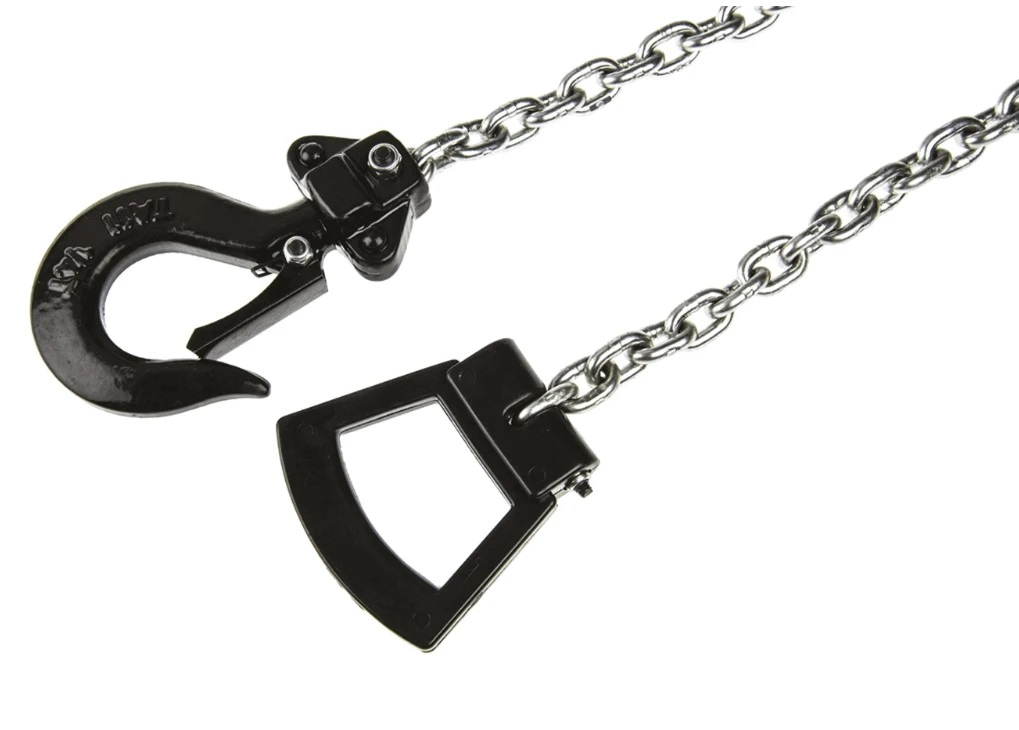

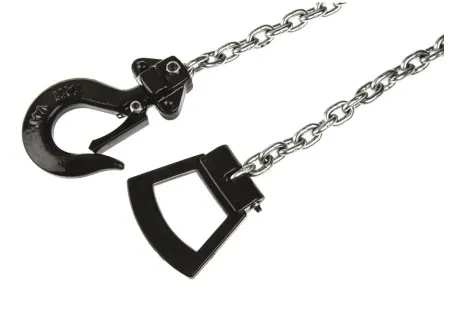

- Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
- Alloyed steel link chain with zinc-plated resp. yellow chromate finish, in accordance with national and international standards and regulations.
- Drop forged suspension and load hooks are made from non-aging, high-tensile steel and fitted with robust safety latches.
Features of the Yale "HANDY" Lever Hoist
- The enclosed design protects the internal parts from contamination.
- The short-hand lever is fitted with an ergonomic rubber grip.
- All parts of the disc-type load brake are manufactured from high-quality materials and are corrosion protected.
- Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
- Alloyed steel link chain with zinc-plated resp. yellow chromate finish, in accordance with national and international standards and regulations.
- Drop forged suspension and load hooks are made from non-aging, high-tensile steel and fitted with robust safety latches.
| Model | Capacity WLL / SWL. | Chain Dimensions | Lifting Height | Closed Height | Weight |
| Handy 250 | 250Kgs | 4mm x 12mm | 1.5m | 240mm | 2.2Kgs |
| Handy 500 | 500Kgs | 4mm x 12mm | 1.5m | 282mm | 2.8Kgs |
| Model | Lift Hight per One full rotation | Handle Pull at full WLL |
| Handy 250 | 80mm | 25daN |
| Handy 500 | 40mm | 25 daN |
INSPECTION BEFORE STARTING WORK
Before starting work, inspect the unit including the suspension, equipment, and supporting structure for visual defects, e. g. deformations, superficial cracks, wear, and corrosion marks. In addition, also test the brake and check that the hoist and the load are correctly attached.
Checking the brake function
Before starting work, always check the operation of the brake: To do this, lift, pull, or tension and lower or release a load over a short distance with the unit. When the hand lever is released, the load must be held in any position. This check is intended to ensure that even at temperatures below 0°C, the brake disks are not frozen. Repeat it at least twice, before starting further work.
The lever hoist is supplied fully tested and in good working order.
Supplied with operating instructions and relevant conformity certificate.
- According to national and international accident prevention and safety regulations hoisting equipment must be inspected:
- in accordance with the risk assessment of the operating company
- prior to the initial operation
- before the unit is put into service again following a shutdown
- after substantial changes
- however, at least once per year, by a competent person.
Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
The COLUMBUS McKinnon Industrial Products GmbH belongs to a global group of companies in the field of material handling. The range includes a wide pallet of hoists, crane systems, load handling equipment and weighing technology, Cable pullers, textile lifting equipment and lashing systems, material handling equipment, heavy load moving systems, and hydraulic tools sold under the Yale and Pfaff-Silber Blau brands.
The company is known for its market- and quality-oriented business and product policy. Strong product brands as well as Europe’s leading market position in the area of manual standard hoists characterize the COLUMBUS McKINNON Industrial GmbH.
CMCO MISSION & VISION
Our Mission
We provide expert, professional-grade solutions and products, building the trust of customers by solving their high-value problems.
Our Vision
To become the leading industrial technology company in safe and productive motion control.
Our Values
We are raising expectations by living the values through our daily behaviours. These values should be the foundation for everything we do and guide every aspect of how we work and do business with our customers, vendors, and each other. We have five values that support both the mission and vision of Columbus McKinnon.
