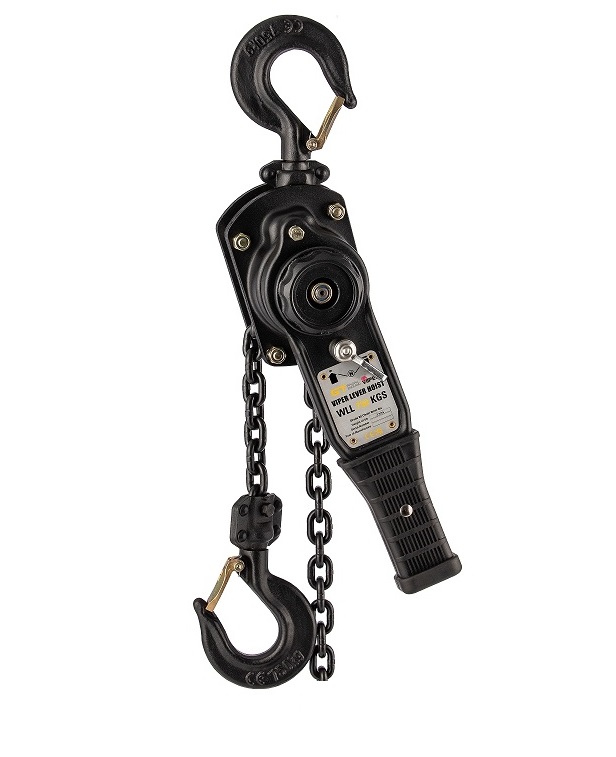

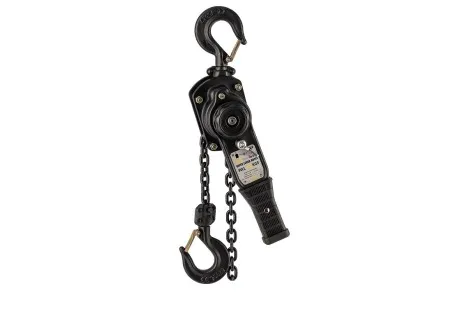

GT Viper Lever Hoist

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT

Next day
delivery

SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

GT Viper Lever Hoist

Brand:

Capacity

250Kgs up to 9000Kgs
(0.25 Tonne - 9 tonne)

Description

The GT Viper Lever Hoist can be considered lightweight in design yet manufactured to be a robust and very reliable ratchet hoist for industrial tasks. Therefore, offering a low-cost universal lifting device for everyday tasks

Model/Capacity:

Total Height of Lift:

£66.98 ex VAT

£80.38 inc VAT

Add to cart

Add to quote

Related products

Yale Handy Lever Hoist - 250Kg/500Kgs

Handy

The Yale Handy Lever Hoist - 250Kg/500Kgs are the smallest, lightest, and most compact Ratchet lever hoist in the Yale Hoist range. Its small size means it fits easily in any size toolbox and is great for working in cramped and confined spaces - choose from either 250kgs or 500kgs and both fitted as standard with 1.5m of actual chain.

£117.88 ex VAT

£89.98 ex VAT

£107.98 inc VAT

More info

Yale UNOplus Series A Lever Hoist

UNOplus-A

The Yale Uno Plus Series A Lever hoist is a newly improved design offering a versatile ratchet lever hoist designed for both pulling and lifting. Can also be used for lashing loads.

£198.14 ex VAT

£159.98 ex VAT

£191.98 inc VAT

More info

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

More info

Yale YC Standard Beam Clamp

Yale YC Standard Beam Clamps provide a quick and versatile rigging point to attach most hoisting equipment such as chain hoists, lever hoists, pulley blocks, etc to structural steelwork

£59.98 ex VAT

£71.98 inc VAT

More info

Ratchet Lever Hoist to EN13157

Xona Blue LH

The Xona Blue is a high quality rugged industrial performing lever hoist. Light weight in design with steel constructed body giving an impact resistant high strength lever hoist. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£88.88 ex VAT

£106.66 inc VAT

More info

Xona Black Lever Hoist to EN13157

Xona Black LH

The Xona Black is a high quality rugged industrial performing lever hoist. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt finish on the body of hoist, load chain and safety catches. Light weight in design with steel constructed body giving an impact resistant high strength lever hoist. Manufactured and tested to EN13157

£86.98 ex VAT

£104.38 inc VAT

More info

Description
Specifications
Maintenance and servicing
Brand benefits
Reviews (0)
Q & A

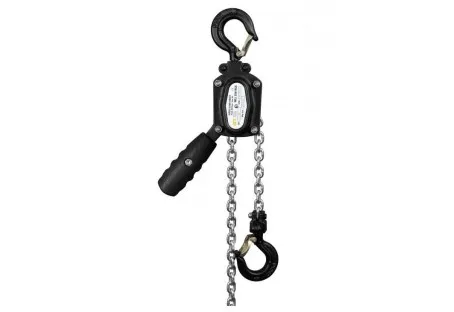

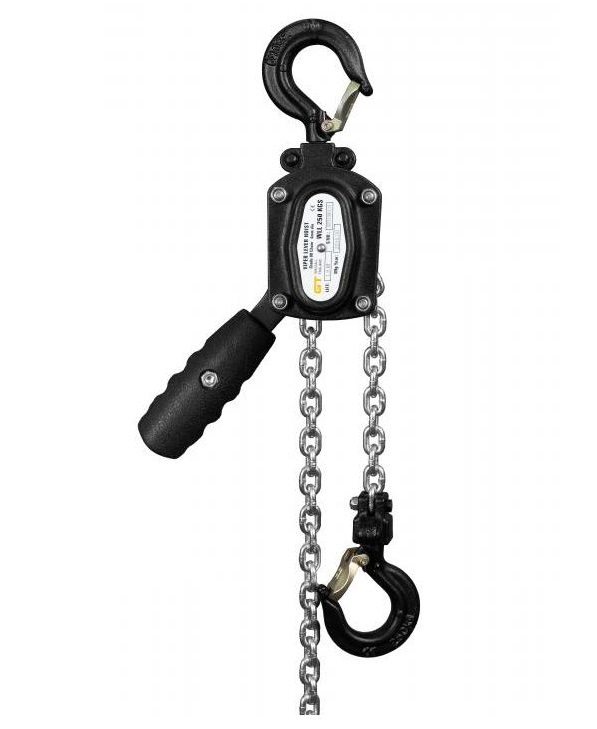

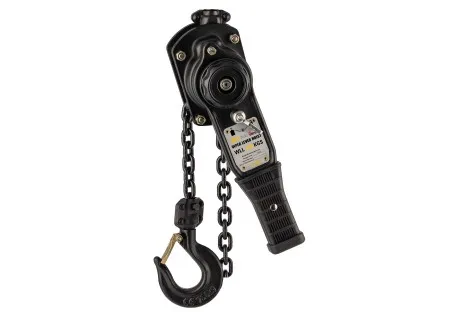

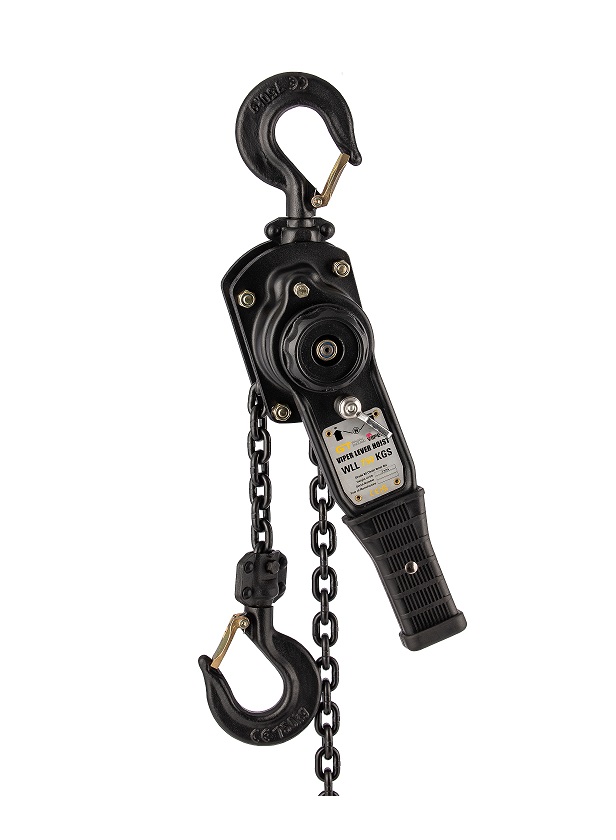

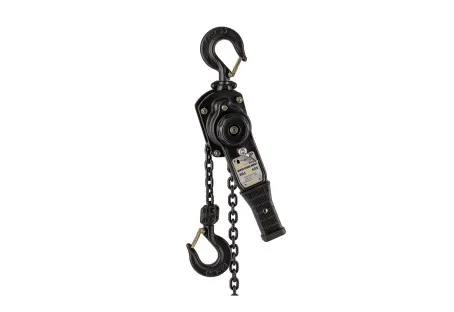

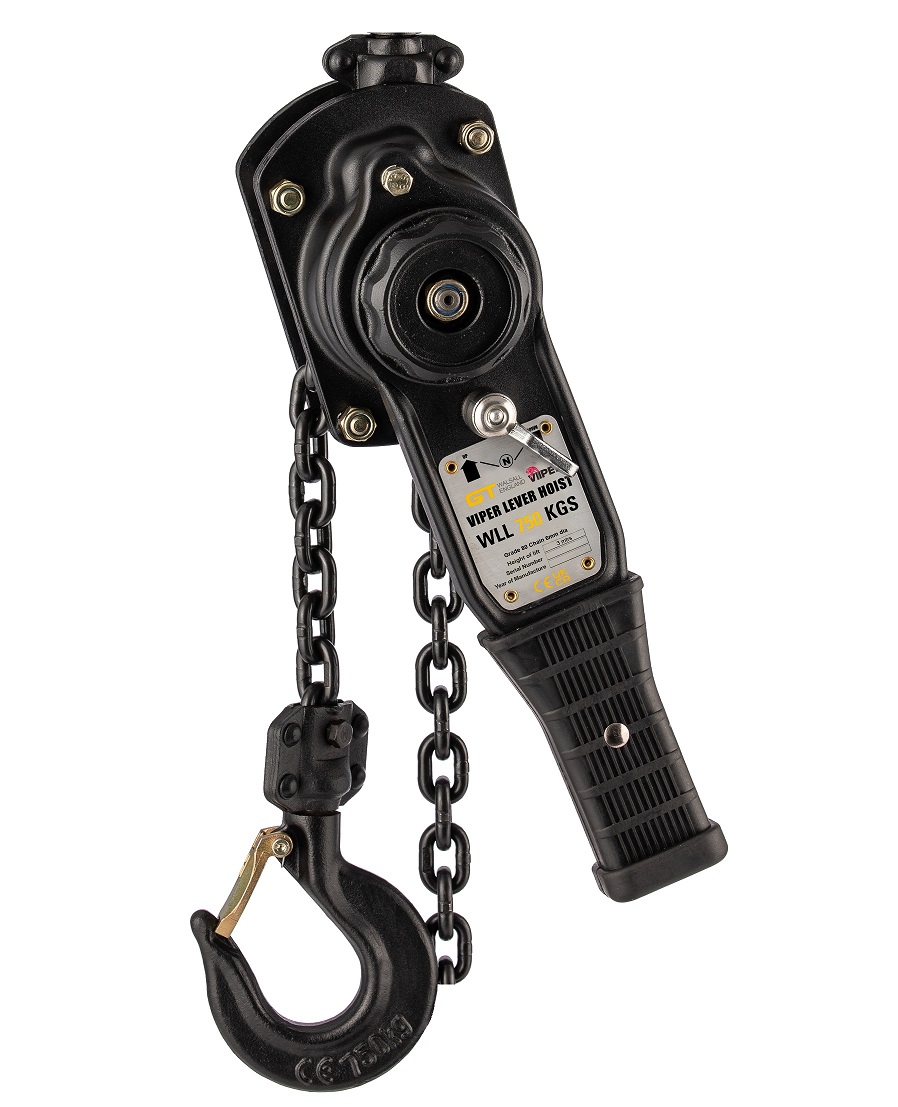

The GT Viper Lever Hoist can be considered lightweight in design but is manufactured to be a robust and very reliable ratchet hoist for industrial tasks. Manufactured with a high-grade steel body that protects the gear and brake system within the matt black finished housing. Supplied with a short ratchet arm lever which helps in compact areas, to aid the lifting process the GT Viper Lever Hoist special gear ratio allows for easy lift with minimum stress and maximum security.

Ratchet Lever hoists are a great universal everyday tool for any maintenance team or for use around the factory floor, as not only can they be used for lifting and lowering loads, but also used for tensioning and pulling together equipment, Lever hoists can also be used for lashing down tasks as well. Therefore the Viper Lever hoist that is fitted with Grade80 load chain is ideal for all tasks it is asked to perform.

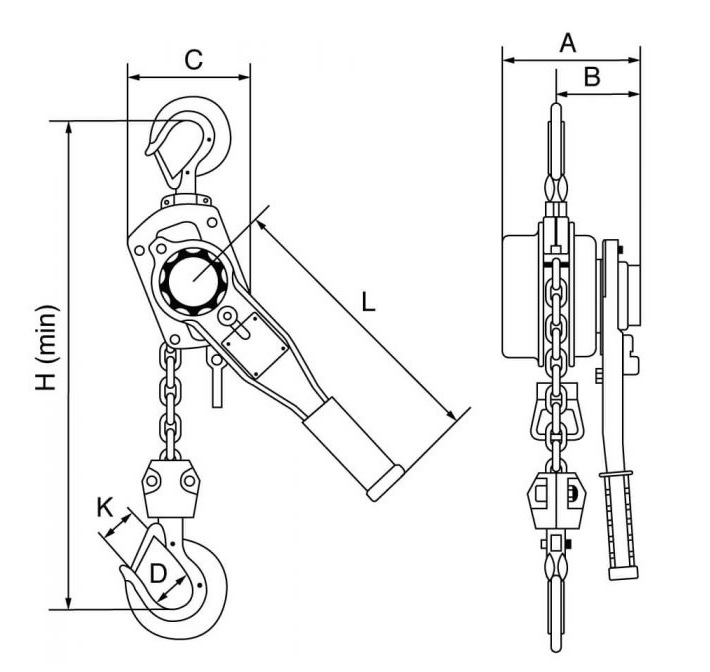

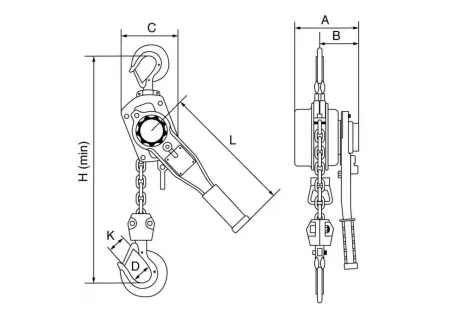

Model	Capacity	Dimension A	Dimension B	Dimension C	Dimension D	Dimension H	Dimension L	Dimension K	Load Chain	Falls Of Chain
VLH0.25T1.5	250Kgs	119	79	90.5	31	237	168	24	4 x 12	1
VLH0.5T1.5	500	130	83	112	36	283	178	25.5	5 x 15	1
VLH0.75T1.5	750	148	90	136	40	320	250	28	6 x 18	1
VLH1T1.5	1000	148	90	136	40	320	250	28	6 x 18	1
VLH1.5T1.5	1500	172	98	160	44	380	300	38	8 x 24	1
VLH2T1.5	2000	180	105	160	46	380	300	38	8 x 24	1
VLH3T1.5	3000	200	115	180	50	480	375	42	10 x 30	1
VLH6T1.5	6000	200	115	235	64	600	375	50	10 x 30	2
VLH9T1.5	900	200	115	335	85	740	410	57	10 x 30	3

The standard Height of lift is 1.5m - Any additional height of lift is available.

GT Viper Lever Hoist supplied as standard with 1.5m of chain

Part Number HSH-X-VLH

Available from 250Kgs up to 9000Kgs Capacities

Matt black finish.

Lightweight and robust ensuring reliability in every position.

Easy to use freewheel mechanism that enables the chain to be pulled freely when not under load.

A short arm lever and special gear ratio allow an easy lift with minimum stress and maximum security.

Minimum break load 4 times the W.L.L.

High-grade steel body protects gears and brake system.

Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.

Meets the W.L.L. performance requirements of BS EN 13157.

Marked in accordance with BS EN 13157. Certification available 2.1 DoC

Model	Capacity	Dimension A	Dimension B	Dimension C	Dimension D	Dimension H	Dimension L	Dimension K	Load Chain	Falls Of Chain
VLH0.25T1.5	250Kgs	119	79	90.5	31	237	168	24	4 x 12	1
VLH0.5T1.5	500	130	83	112	36	283	178	25.5	5 x 15	1
VLH0.75T1.5	750	148	90	136	40	320	250	28	6 x 18	1
VLH1T1.5	1000	148	90	136	40	320	250	28	6 x 18	1
VLH1.5T1.5	1500	172	98	160	44	380	300	38	8 x 24	1
VLH2T1.5	2000	180	105	160	46	380	300	38	8 x 24	1
VLH3T1.5	3000	200	115	180	50	480	375	42	10 x 30	1
VLH6T1.5	6000	200	115	235	64	600	375	50	10 x 30	2
VLH9T1.5	900	200	115	335	85	740	410	57	10 x 30	3

The standard Height of lift is 1.5m - Any additional height of lift is available.

As the premier UK brand of lifting, hoisting, and mechanical handling products, George Taylor aims not only to offer a wide range of standard items but also to create bespoke design manufactured products to complete the “one-stop shop” facility, for all your lifting and moving needs.

If there is any other Lifting or material handling equipment required from the GT lifting range, please feel free to give Ultimate Lifting Solutions a call today at 01384 986 026
