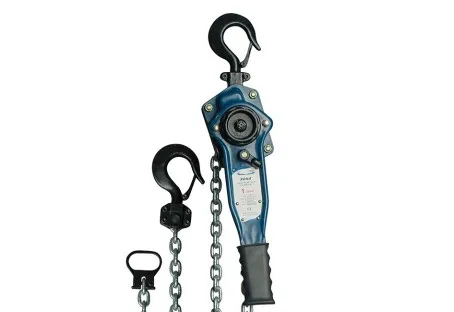

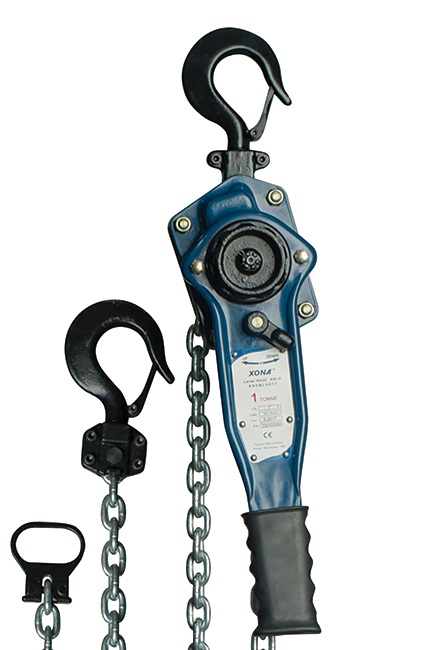

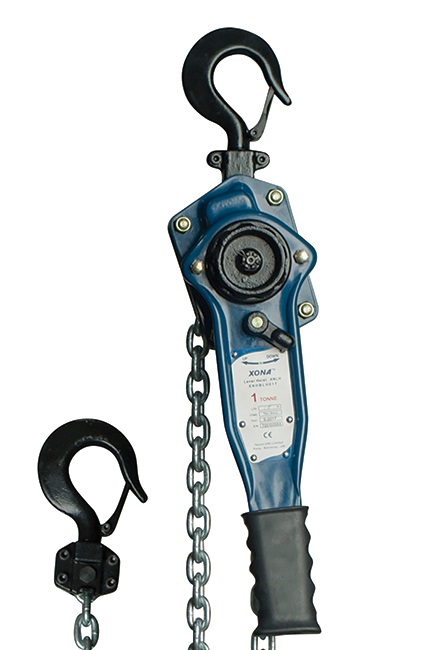

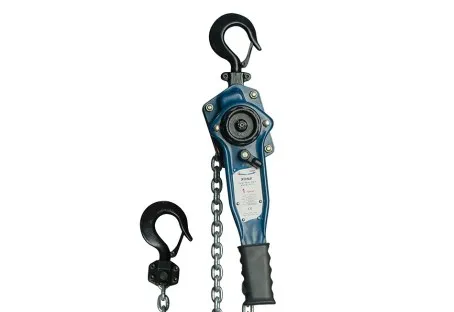

The Xona Blue is a high quality rugged industrial performing lever hoist. Light weight in design with steel constructed body giving an impact resistant high strength lever hoist. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain Electro Galv finish as standard - We can also supply Black powder coat chain to the same quality.
The Xona range of lever hoists
Model
| Capacity
| Chain Dimensions
| Lifting Height
| Closed Height
| Weight
|
XNHBLH0.75T
| 750Kgs
| 6 x 18mm
| 1.5m
| 295mm
| 6.9Kgs
|
XNHBLH1T
| 1000Kgs
| 6 x 18mm
| 1.5m
| 310mm
| 7.1Kgs
|
XNHBLH1.5T
| 1500Kgs
| 8 x 24mm
| 1.5m
| 335mm
| 9.7Kgs
|
XNHBLH3T
| 3000Kgs
| 10 x 30mm
| 1.5m
| 405mm
| 16.3Kgs
|
XNHBLH6T
| 6000Kgs
| 10 x 30mm
| 1.5m
| 550mm
| 26.7Kgs
|
XNHBLH9T
| 9000Kgs
| 10 x 30mm
| 1.5m
| 680mm
| 38.5Kgs
|
The standard Height of lift is 1.5m - Any additional height of lift is available.
Specification for Xona Blue Lever Hoists
High quality manufactured design for rugged industrial performance.
High strength, light weight body, cold formed steel construction giving impact resistance for longer life.
360º handle rotation with short stroke to quickly ratchet loads.
Compact design for minimal effort.
Chain guides fitted as standard to provide smooth chain operation.
Single hand “free chaining” is simple and convenient allowing smooth trouble free operation in the vertical or horizontal position.
Twin pawl as standard to avail slipping chain.
For fleeting/cross hauling. Please contact our technical department for information.
Caged needle roller bearing on load sprocket as standard.
Powder coat finish for durable corrosion protection.
Specially designed hard wearing rubber grip for added operator comfort.
Top and bottom hook housing. Bolts and nylon nuts for easy inspection.
Forged upper and lower hooks with heavy duty cast safety latch. spares readily available
Hook overload stretch indicator marks. For easy checking if any distortion has occurred due to misuse or overloading.
Cast enlarged end ring.
Overload protection limiter available on request.
EC Manufactured EN818-7 Grade – T Hoist Chain.
Available in Black and Electro Galvanised.
INSPECTION BEFORE STARTING WORK
Before starting work, inspect the unit including the suspension, equipment and supporting structure for visual defects, e. g. deformations, superficial cracks, wear and corrosion marks.
In addition also test the brake and check that the hoist and the load are correctly attached.
Checking the brake function Before starting work, always check operation of the brake: To do this, lift, pull or tension and lower or release a load over a short distance with the unit. When the hand lever is released, the load must be held in any position.This check is intended to ensure that even at temperatures below 0°C, the brake disks are not frozen. Repeat it at least twice, before starting further work.
Hoist supplied fully tested in good working order.
Supplied with operating instructions and relevant conformity certificate.
According to national and international accident prevention and safety regulations hoisting equipment must be inspected:
• in accordance with the risk assessment of the operating company
• prior to initial operation
•before the unit is put into service again following a shut down
• after substantial changes
• however, at least once per year, by a competent person.
Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
