Xona Black Lever Hoist to EN13157

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

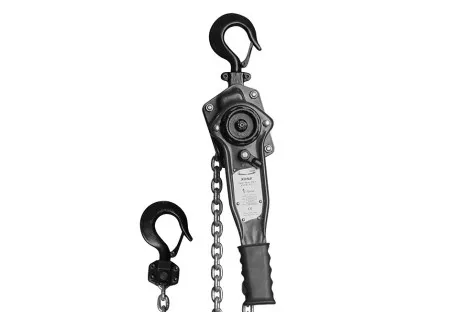

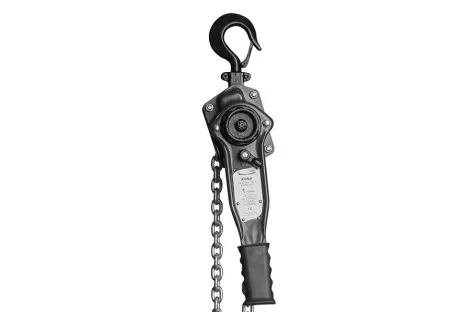

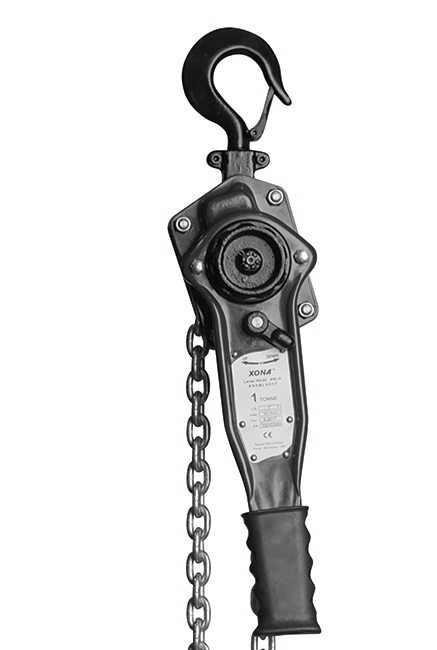

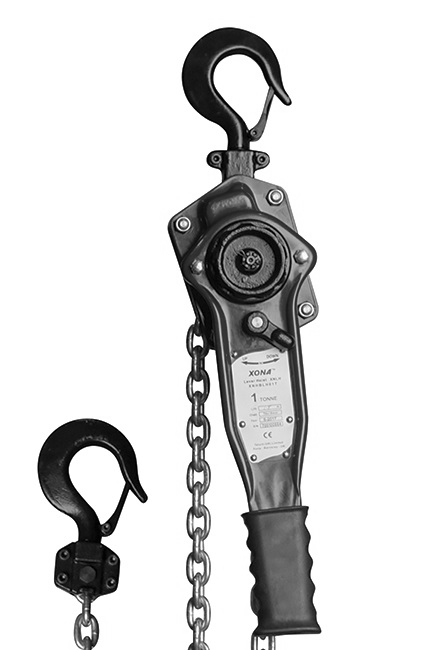

Xona Black Lever Hoist to EN13157

Brand:

Capacity

750Kgs up to 3,000Kgs
(0.75ton to 3 ton)

Description

The Xona Black is a high quality rugged industrial performing lever hoist. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt finish on the body of hoist, load chain and safety catches. Light weight in design with steel constructed body giving an impact resistant high strength lever hoist. Manufactured and tested to EN13157

£86.98 ex VAT

£104.38 inc VAT

Related products

Yale UNOplus Series A Lever Hoist

UNOplus-A

The Yale Uno Plus Series A Lever hoist is a newly improved design offering a versatile ratchet lever hoist designed for both pulling and lifting. Can also be used for lashing loads.

£198.14 ex VAT

£159.98 ex VAT

£191.98 inc VAT

Ratchet Lever Hoist to EN13157

Xona Blue LH

The Xona Blue is a high quality rugged industrial performing lever hoist. Light weight in design with steel constructed body giving an impact resistant high strength lever hoist. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£88.88 ex VAT

£106.66 inc VAT

Xona Blue Chain Block to EN13157

Xona Blue CB

The Xona Blue is a rugged industrial quality chain block. Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£73.98 ex VAT

£88.78 inc VAT

Xona Black Chain Block to EN13157

Xona Black CB

The Xona Black is a rugged industrial quality chain block. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt black finish on hoist body, load chain and safety catches. (hand Chain electro galv). Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£73.98 ex VAT

£88.78 inc VAT

Xona Push Travel Trolley

XNHQPT

Xona quick install Push Travel Trolley for easy positioning and movement of loads along structural sections ("I" Beam).

£59.98 ex VAT

£71.98 inc VAT

Xona Geared Travel Trolley

XNHQGT

Xona Quick install Gear Travel Trolley enables easy positioning and movement of loads suspended from structural section. Fitted with gearing system and hand chain aiding precise positioning of the trolley anywhere along the beam - once in position, the trolley will not creep out of position like the push travel trolley.

£99.98 ex VAT

£119.98 inc VAT

GT Viper Lever Hoist

VLH

The GT Viper Lever Hoist can be considered lightweight in design yet manufactured to be a robust and very reliable ratchet hoist for industrial tasks. Therefore, offering a low-cost universal lifting device for everyday tasks

£66.98 ex VAT

£80.38 inc VAT

GT Viper Push Travel Beam Trolley

VPT

Xona quick install Push Travel Trolley for easy positioning and movement of loads along structural sections ("I" Beam).

£51.98 ex VAT

£62.38 inc VAT

The Xona Black is a high quality rugged industrial performing lever hoist. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt finish on the body of hoist, load chain and safety catches. Light weight in design with steel constructed body giving an impact resistant high strength lever hoist. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain - We can also supply Electro Galv chain to the same quality.

The Xona range of lever hoists

Model
Capacity
Chain Dimensions
Lifting Height
Closed Height
Weight
XNHBLH0.75T
750Kgs
6 x 18mm
1.5m
295mm
6.9Kgs
XNHBLH1T
1000Kgs
6 x 18mm
1.5m
310mm
7.1Kgs
XNHBLH1.5T
1500Kgs
8 x 24mm
1.5m
335mm
9.7Kgs
XNHBLH3T
3000Kgs
10 x 30mm
1.5m
405mm
16.3Kgs
The standard Height of lift is 1.5m - Any additional height of lift is available.
Specification for Xona Black Lever Hoists

High quality manufactured design for rugged industrial performance.
High strength, light weight body, cold formed steel construction giving impact resistance for longer life.
360º handle rotation with short stroke to quickly ratchet loads.
Compact design for minimal effort.
Chain guides fitted as standard to provide smooth chain operation.
Single hand “free chaining” is simple and convenient allowing smooth trouble free operation in the vertical or horizontal position.
Twin pawl as standard to avail slipping chain.
For fleeting/cross hauling. Please contact our technical department for information.
Caged needle roller bearing on load sprocket as standard.
Black powder coat matt finish for less visibility and to aid durable corrosion protection.
Specially designed hard wearing rubber grip for added operator comfort.
Top and bottom hook housing. Bolts and nylon nuts for easy inspection.
Forged upper and lower hooks with heavy duty cast safety latch. spares readily available
Hook overload stretch indicator marks. For easy checking if any distortion has occurred due to misuse or overloading.
Cast enlarged end ring.

Overload protection limiter available on request.

EC Manufactured EN818-7 Grade – T Hoist Chain.
Available in Black and Electro Galvanised.
INSPECTION BEFORE STARTING WORK
Before starting work, inspect the unit including the suspension, equipment and supporting structure for visual defects, e. g. deformations, superficial cracks, wear and corrosion marks.
In addition also test the brake and check that the hoist and the load are correctly attached.
Checking the brake function Before starting work, always check operation of the brake: To do this, lift, pull or tension and lower or release a load over a short distance with the unit. When the hand lever is released, the load must be held in any position.This check is intended to ensure that even at temperatures below 0°C, the brake disks are not frozen. Repeat it at least twice, before starting further work.

Hoist supplied fully tested in good working order.
Supplied with operating instructions and relevant conformity certificate.

According to national and international accident prevention and safety regulations hoisting equipment must be inspected:
• in accordance with the risk assessment of the operating company
• prior to initial operation
•before the unit is put into service again following a shut down
• after substantial changes
• however, at least once per year, by a competent person.

Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
