Xona Blue Chain Block to EN13157
Key notes for ordering:
Supplied tested with certification - Ready to use from the box Prices start at 3m HOL c/w 2.5m drop hand chain. As you add additional load chain, the hand chain will increase ( calculated never to be in contact floor.
Estimated lead time:1 Day
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise

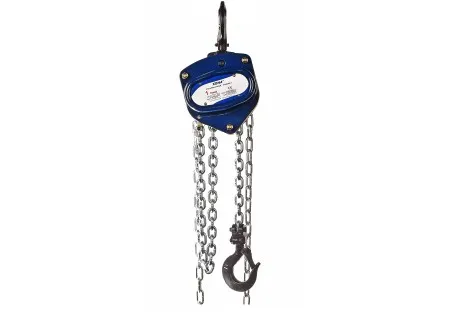

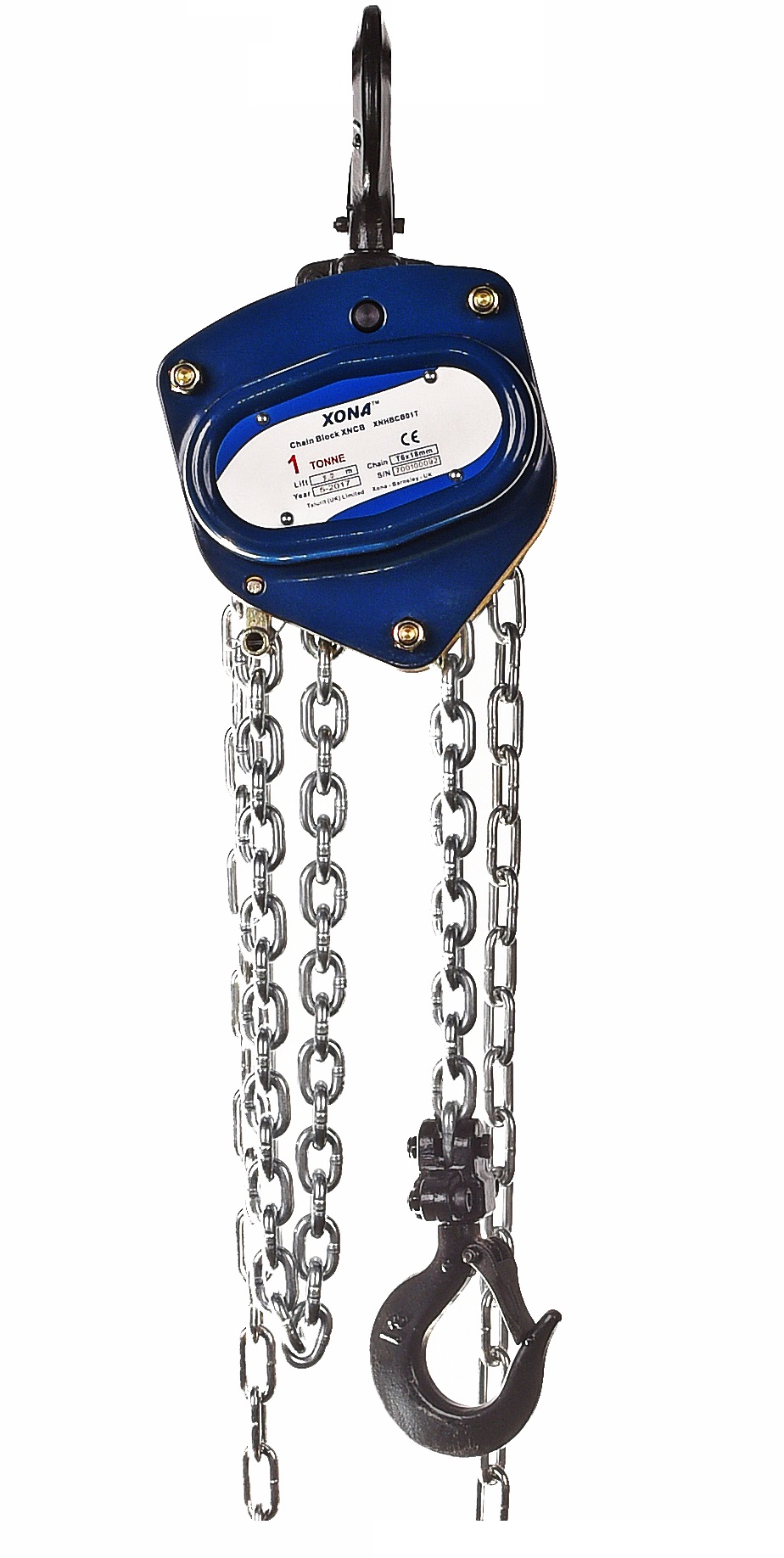

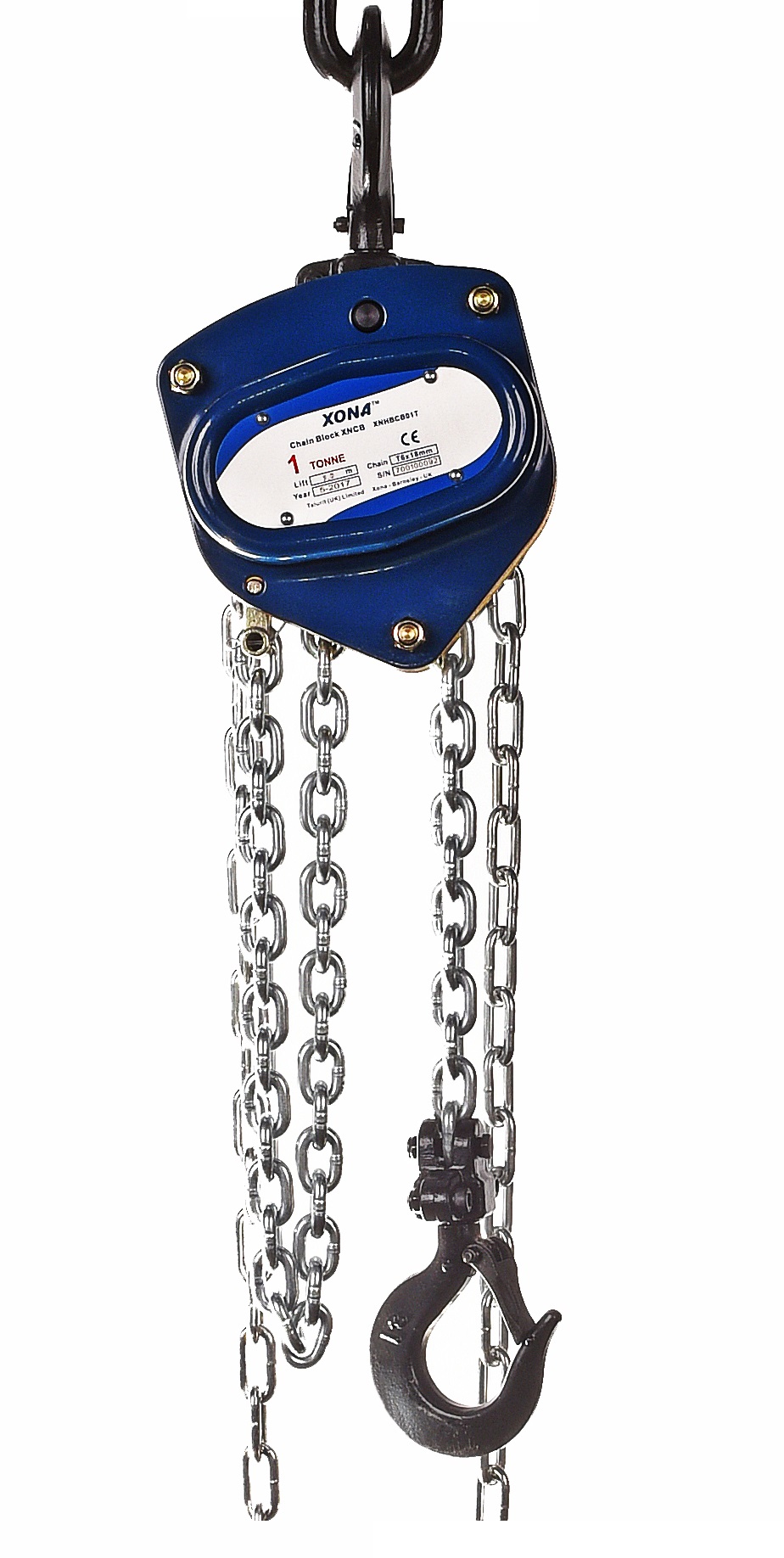

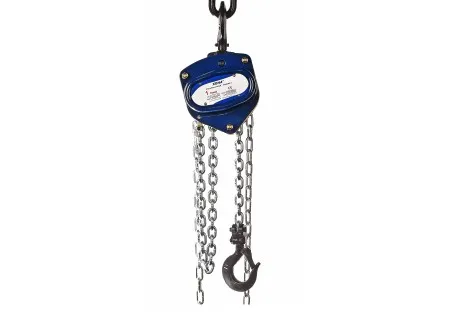

Xona Blue Chain Block to EN13157
Brand:
Capacity
Capacities 500Kgs up to 20,000Kgs
(0.5 tonne - 20 tonne)
Description
The Xona Blue is a rugged industrial quality chain block. Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.
Add to cart
Add to quoteRelated products
VSIII Yale Manual Hand Chain Hoist
VSIII
The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.
£167.32 ex VAT
£114.98 ex VAT
£137.98 inc VAT
-494x340.webp)
Yale YC Standard Beam Clamp
YC
Yale YC Standard Beam Clamps provide a quick and versatile rigging point to attach most hoisting equipment such as chain hoists, lever hoists, pulley blocks, etc to structural steelwork
£59.98 ex VAT
£71.98 inc VAT
Xona Black Lever Hoist to EN13157
Xona Black LH
The Xona Black is a high quality rugged industrial performing lever hoist. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt finish on the body of hoist, load chain and safety catches. Light weight in design with steel constructed body giving an impact resistant high strength lever hoist. Manufactured and tested to EN13157
£69.53 ex VAT
£83.44 inc VAT
Xona Black Chain Block to EN13157
Xona Black CB
The Xona Black is a rugged industrial quality chain block. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt black finish on hoist body, load chain and safety catches. (hand Chain electro galv). Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.
£69.53 ex VAT
£83.44 inc VAT
Xona Beam Clamp with Eye
XNHNBCLAMP
Xona Black Beam Clamps provide a quick and versatile rigging point to attach hoisting equipment such as chain hoists, lever hoists, pulley blocks, etc to structural steelwork.
Matt black finish makes this quality beam clamp suitable for the Entertainment, Theatre, and Hospitality sectors. Will fit most "I" beam flanges.
£32.68 ex VAT
£39.22 inc VAT
Xona Push Travel Trolley
XNHQPT
Xona quick install Push Travel Trolley for easy positioning and movement of loads along structural sections ("I" Beam).
£59.98 ex VAT
£71.98 inc VAT
-494x340.webp)
Xona Geared Travel Trolley
XNHQGT
Xona Quick install Gear Travel Trolley enables easy positioning and movement of loads suspended from structural section. Fitted with gearing system and hand chain aiding precise positioning of the trolley anywhere along the beam - once in position, the trolley will not creep out of position like the push travel trolley.
£99.98 ex VAT
£119.98 inc VAT
The Xona Blue is a rugged industrial quality chain block. Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.
The load chain fitted as standard will be Electro Galvanised - Black Powder coated chain is also available on request - We also produce an Matt Black finish chain hoist, which is targeted at entertainment, theatre and hospitality sectors fitted with black finish chain.
| Model | Capacity WLL / SWL. | Falls of Load Chain. | Lifting Height | Closed Height | Weight @ 3m HOL |
| XNHBCB0.5T | 500Kgs | 1 | 3m | 285mm | 9Kgs |
| XNHBCB1T | 1,000Kgs | 1 | 3m | 315mm | 12.2Kgs |
| XNHBCB1.5T | 1,500Kgs | 1 | 3m | 340mm | 14.5Kgs |
| XNHBCB2T | 2,000Kgs | 1 | 3m | 380mm | 21.0Kgs |
| XNHBCB3T | 3,000Kgs | 2 | 3m | 475mm | 22.0Kgs |
| XNHBCB5T | 5,000Kgs | 2 | 3m | 600mm | 40.0Kgs |
| XNHBCB10T | 10,000Kgs | 4 | 3m | 740mm | 89.4Kgs |
| XNHBCB20T | 20,000Kgs | 8 | 3m | 870mm | 214.7Kgs |
All hoist as standard supplied at 3m HOL c/w 2.5m drop for hand chain - the hand chain will never make contact with floor if ordered correctly and will always be 0.5m (500mm) shorter than overall height of lift - If you require a shorter or longer hand chain to suit a specific task - please contact our sales team for assistance.
Our Xona Chain Hoist - Industrial quality chain hoist manufactured and tested to EN13157
Colours Available - Black 0.5T to 3T – Blue 0.5T to 20T
Larger sizes available on request.
Manufactured to a High quality with high strength capabilities for rugged industrial performance.
Spur gear efficiency reduces operator effort.
Double pawl / double guide rollers enhancing performance, safety and reliability of hoist.
Caged needle roller bearing as standard.
powder coated finish to housing giving a durable corrosion protection.
The top and bottom hook housing can be disassembled for easy inspection.
Forged upper and lower swivel hooks with heavy duty cast style safety catches.
Hook overload indicator marks. For visual checking if distortion has occurred due to misuse or overloading.
For fleeting/cross hauling. Please contact our technical department for information.
Overload protection limiter available on request.
Fitted with high quality load chain - EC Manufactured EN818-7 Grade – T Hoist Chain.
Available in both Black and Electro Galvanised.
INSPECTION BEFORE STARTING WORK
Before starting work, inspect the unit including the suspension, equipment and supporting structure for visual defects, e. g. deformations, superficial cracks, wear and corrosion marks.
In addition also test the brake and check that the hoist and the load are correctly attached.
Checking the brake function Before starting work, always check operation of the brake: To do this, lift, pull or tension and lower or release a load over a short distance with the unit. When the hand lever is released, the load must be held in any position.This check is intended to ensure that even at temperatures below 0°C, the brake disks are not frozen. Repeat it at least twice, before starting further work.
Hoist supplied fully tested in good working order.
Supplied with operating instructions and relevant conformity certificate.
According to national and international accident prevention and safety regulations hoisting equipment must be inspected:
• in accordance with the risk assessment of the operating company
• prior to initial operation
•before the unit is put into service again following a shut down
• after substantial changes
• however, at least once per year, by a competent person.
Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
