Yale YC Standard Beam Clamp

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Yale YC Standard Beam Clamp

Brand:

Capacity

1000Kgs up to 10,000Kgs
(1 tonne - 10 tonne)

Description

Yale YC Standard Beam Clamps provide a quick and versatile rigging point to attach most hoisting equipment such as chain hoists, lever hoists, pulley blocks, etc to structural steelwork

£59.98 ex VAT

£71.98 inc VAT

Related products

Yale UNOplus Series A Lever Hoist

UNOplus-A

The Yale Uno Plus Series A Lever hoist is a newly improved design offering a versatile ratchet lever hoist designed for both pulling and lifting. Can also be used for lashing loads.

£198.14 ex VAT

£159.98 ex VAT

£191.98 inc VAT

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

Xona Blue Chain Block to EN13157

Xona Blue CB

The Xona Blue is a rugged industrial quality chain block. Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£69.53 ex VAT

£83.44 inc VAT

Xona Beam Clamp with Eye

XNHNBCLAMP

Xona Black Beam Clamps provide a quick and versatile rigging point to attach hoisting equipment such as chain hoists, lever hoists, pulley blocks, etc to structural steelwork. Matt black finish makes this quality beam clamp suitable for the Entertainment, Theatre, and Hospitality sectors. Will fit most "I" beam flanges.

£32.68 ex VAT

£39.22 inc VAT

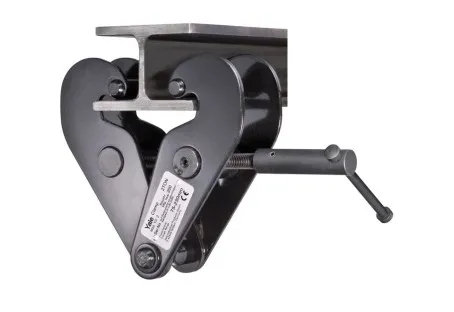

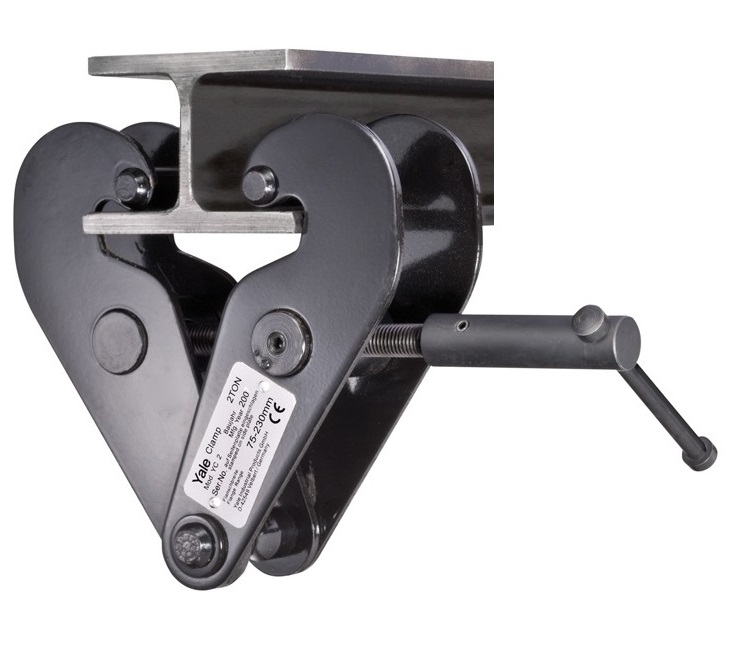

The Yale YC Standard Beam Clamps provide a quick and versatile rigging point to attach most hoisting equipment such as chain hoists, lever hoists, pulley blocks, etc to structural steelwork or tested beam. Fitted with a locking device and having the benefit of a wide adjustment range these Yale YC Beam clamps will fit most "I" beam flanges. The central threaded spindle allows easy attachment and a safe and secure grip on the beam flange, The spindle can be secured against loosening.

This model is only suitable as a suspension point only.
Model
Capacity
Beam Width
Weight
YC1
1,000Kgs
75 - 230mm
3.80Kgs
YC2
2,000Kgs
75 - 230mm
4.60Kgs
YC3
3,000Kgs
80 - 320mm
9.20Kgs
YC5
5,000Kgs
90 - 320mm
11.0Kgs
YC10
10,000Kgs
90 - 320mm
17.2Kgs
Black powder coat finish - suitable for theatres and similar locations where you don't need shiny equipment on show
  • Lightweight design
  • High-quality design from the world-known YALE brand
  • Easy to install by one person
  • supplied with manufacturer 12-month warranty.

Yale YC Standard Beam clamps

  • Sizes available from 1,000kgs up to 10,000kgs (1 tonne - 10 tonne).
  • Lightweight design.
  • High-quality design from the world-known YALE brand.
  • Easy to install by one person.
  • supplied with manufacturer 12-month warranty.
Model
Capacity
Beam Width
Weight
YC1
1,000Kgs
75 - 230mm
3.80Kgs
YC2
2,000Kgs
75 - 230mm
4.60Kgs
YC33,000Kgs
80 - 320mm
9.20Kgs
YC5
5,000Kgs
90 - 320mm
11.0Kgs
YC10
10,000Kgs
90 - 320mm
17.2Kgs

Black powder coat finish - suitable for theatres and similar locations where you don't need shiny equipment on show

INSPECTION, SERVICE & REPAIR

According to national and international accident prevention and safety regulations load lifting attachments must be inspected:

  • in accordance with the risk assessment of the operating company
  • prior to the initial operation
  • before the unit is put into service again following a shutdown
  • after substantial changes
  • however, at least once per year, by a competent person

Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.

The COLUMBUS McKinnon Industrial Products GmbH belongs to a global group of companies in the field of material handling. The range includes a wide pallet of hoists, crane systems, load handling equipment and weighing technology, Cable pullers, textile lifting equipment and lashing systems, material handling equipment, heavy load moving systems, and hydraulic tools sold under the Yale and Pfaff-Silber Blau brands.

The company is known for its market- and quality-oriented business and product policy. Strong product brands as well as Europe’s leading market position in the area of manual standard hoists characterize the COLUMBUS McKINNON Industrial GmbH.

CMCO MISSION & VISION

Our Mission
We provide expert, professional-grade solutions and products, building the trust of customers by solving their high-value problems.

Our Vision
To become the leading industrial technology company in safe and productive motion control.

Our Values
We are raising expectations by living the values through our daily behaviours. These values should be the foundation for everything we do and guide every aspect of how we work and do business with our customers, vendors, and each other. We have five values that support both the mission and vision of Columbus McKinnon.
