The Yale Uno Plus Series A Lever hoist is a newly improved design offering a quality ratchet lever hoist designed for both pulling and lifting. Can also be used for lashing loads. The versatile tool for lifting, pulling, and securing loads is characterized by its compact design, robust stamped steel construction and smoothly running free-chaining device. The further reduced weight optimizes operation, makes the application even more comfortable and the UNOplus - Series A to a convenient, versatile device - See the specification for all the Benefits of this quality Lever hoist that is priced economically, but built to the Yale very high standards making this ratchet lever hoist standard out against other manufacturers.

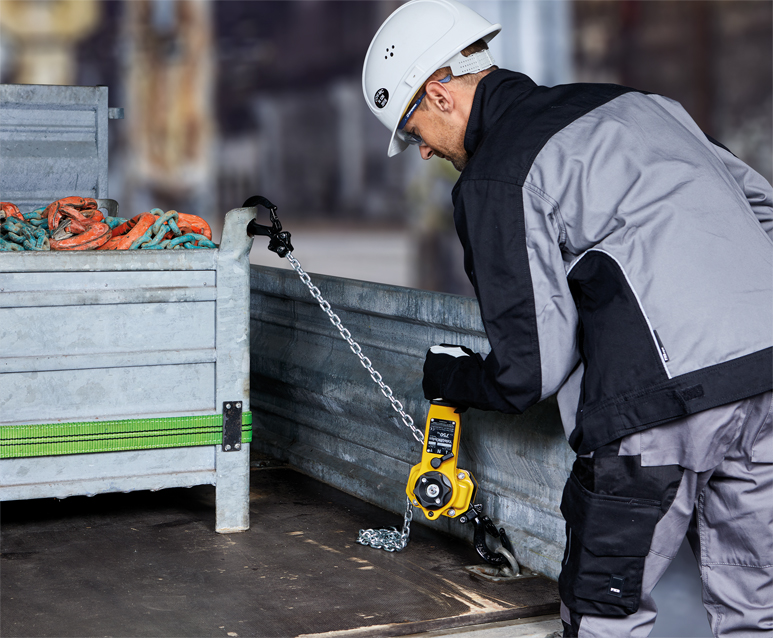

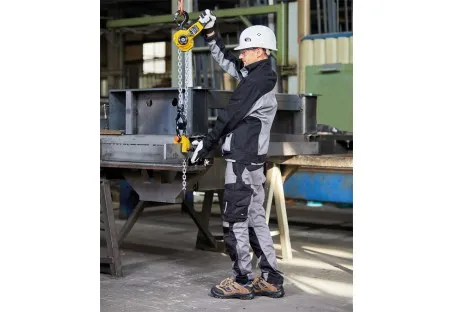

Yale UNOplus-Series A Ratchet Lever Hoist is a brand new design for 2020 - The UNO Leverhoist is now in its third evolution and this new model is the result of further technical developments on a tried and tested design that has proven itself as an industry leader over many years. Lever hoists are a great engineer's friend as they have many uses, Lifting and Lowering of objects. also good for pulling items together and can also be used for lashing downloads.
COMPACT & TRANSPORTABLE - UNIVERSALLY USABLE & USER-FRIENDLY DESIGN - LIGHTWEIGHT & CAN BE USED IN THE SMALLEST AREAS.

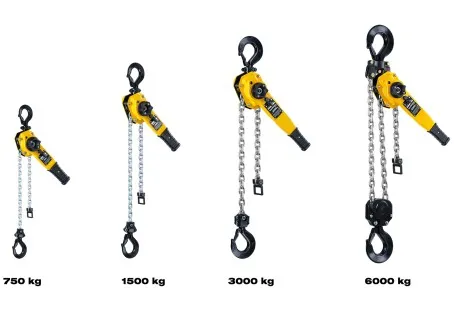

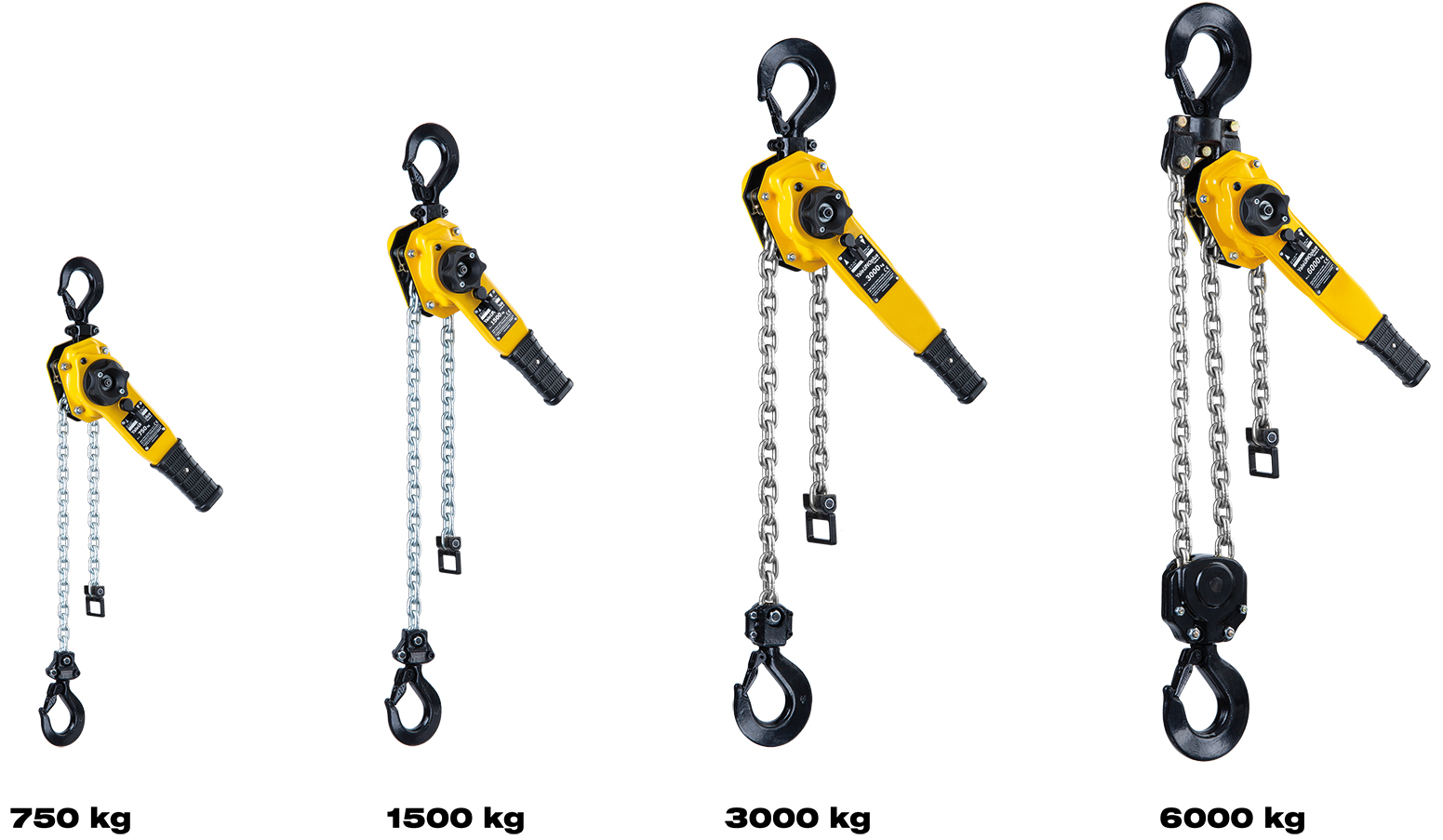

Model
| Capacity WLL / SWL
| Chain Dimensions
| Lifting Height
| Closed Height
| Weight
|
UNOplus-A 750
| 750Kgs
| 5.6mm x 17.1mm
| 1.5m
| 312mm
| 6.3Kgs
|

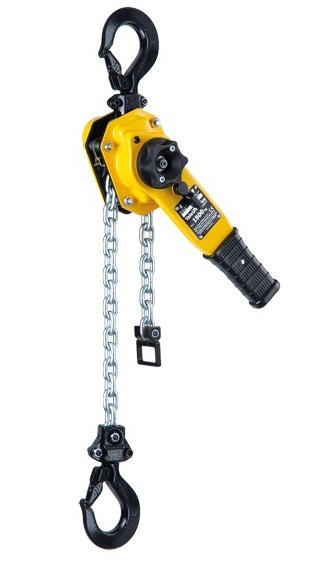

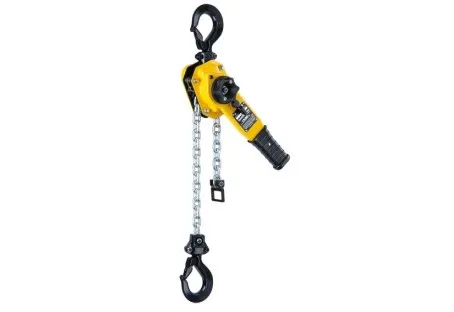

UNOplus-A 1500
| 1500Kgs
| 7.1mm x 21.0mm
| 1.5m
| 375mm
| 9.2Kgs
|

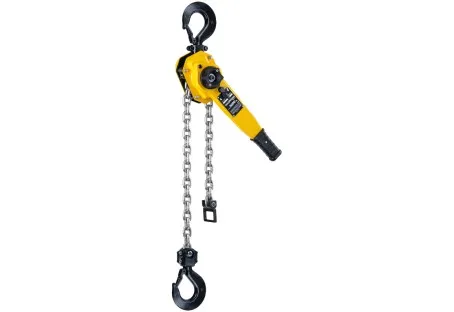

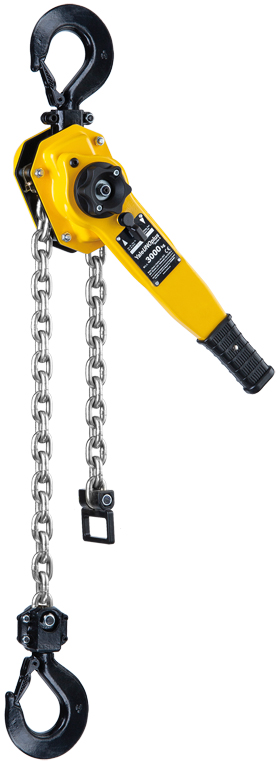

UNOplus-A 3000
| 3000Kgs
| 10.0mm x 28.0mm
| 1.5m
| 445mm
| 16.9Kgs
|

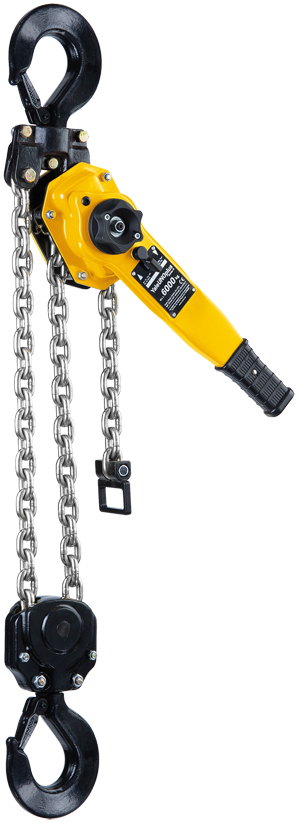

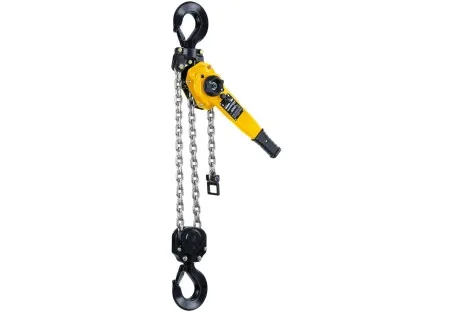

UNOplus-A 6000
| 6000Kgs
| 10.0mm x 28.0mm
| 1.5m
| 563mm
| 28.6Kgs
|
The standard Height of lift is 1.5m - Any additional height of lift is available.
Technical Data
Model
| Capacity WLL / SWL
| Chain Dimensions
| Lifting Height
| Closed Height
| Weight
|
UNOplus-A 750
| 750Kgs
| 5.6mm x 17.1mm
| 1.5m
| 312mm
| 6.3Kgs
|
UNOplus-A 1500
| 1500Kgs
| 7.1mm x 21.0mm
| 1.5m
| 375mm
| 9.2Kgs
|
UNOplus-A 3000
| 3000Kgs
| 10.0mm x 28.0mm
| 1.5m
| 445mm
| 16.9Kgs
|
UNOplus-A 6000
| 6000Kgs
| 10.0mm x 28.0mm
| 1.5m
| 563mm
| 28.6Kgs |
The standard Height of lift is 1.5m - Any additional height of lift is available
BENEFITS & FEATURES
EASY TO USE
Due to optimized gearing and improved bearings in the housing cover a minimum effort is required to operate the short-hand lever.
RUGGED DESIGN
Impact-resistant stamped steel frame and gear cover withstands repeated rigorous use.
LOAD PRESSURE BRAKE
Even today, the load pressure brake, based on the principle of Thomas Weston’s patent of 1875, is still used in our manual hoists.
EASY & SMOOTH FREE CHAINING
For quick take up and positioning of slack chain – even with one hand. Designed not to the accidentally free chain while under load. Cast chain end stop allows the user to easily position the chain in free-chaining mode and prevents it from entering the lift wheel and jamming the hoist.
RELIABLE LOAD GUIDANCE
The load chain runs in the load sheave and is secured against unintentional slipping by the closed chain guide.
NON-SLIP RUBBER HANDLE GRIP
A comfortable rubber grip provides extra protection against slippage.
CORROSION PROTECTION
The robust chain guide, chain stripper, and parts of the brake are zinc-plated and yellow chromate for corrosion protection.
EASY-TO-INSPECT SWIVEL HOOKS
Bolt-on hooks with nylon nuts simplify the inspection process. Hooks are forged, allowing them to yield under overload without breaking. Cast safety latches provide positive and secure load engagement.
INSPECTION BEFORE STARTING WORK
Before starting work, inspect the unit including the suspension, equipment and supporting structure for visual defects, e. g. deformations, superficial cracks, wear and corrosion marks. In addition also test the brake and check that the hoist and the load are correctly attached.
Checking the brake function
Before starting work, always check operation of the brake:
To do this, lift, pull or tension and lower or release a load over a short distance with the unit.
When the hand lever is released, the load must be held in any position.
This check is intended to ensure that even at temperatures below 0°C, the brake disks are not frozen. Repeat it at least twice, before starting further work.
Hoist supplied fully tested in good working order.
Supplied with operating instructions and relevant conformity certificate.
According to national and international accident prevention and safety regulations hoisting equipment must be inspected:
- in accordance with the risk assessment of the operating company
- prior to initial operation
- before the unit is put into service again following a shut down
- after substantial changes
- however, at least once per year, by a competent person.
Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
