GT Viper Adjustable Beam Clamp

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

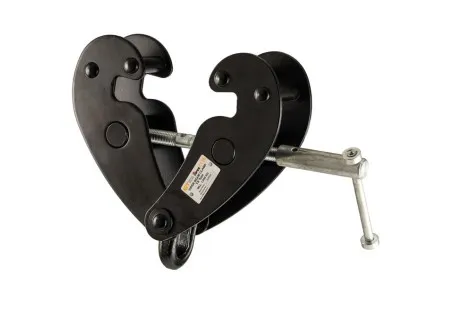

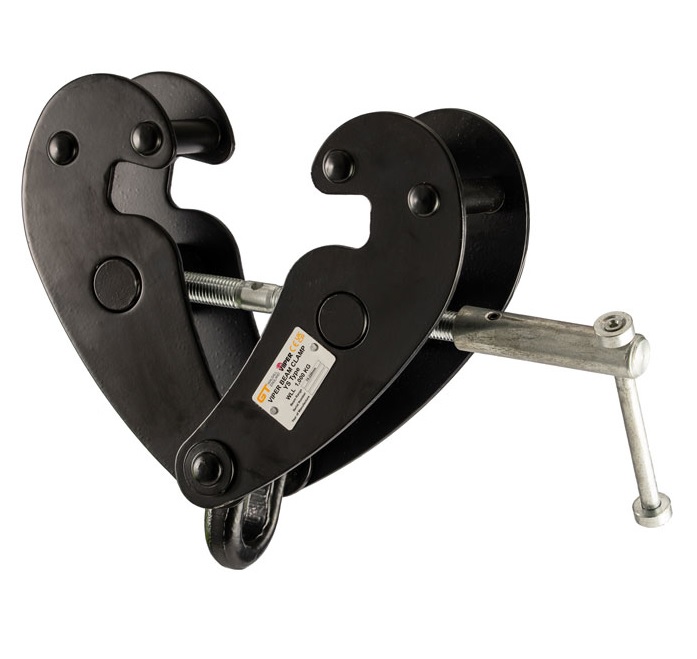

GT Viper Adjustable Beam Clamp

Brand:

Capacity

1000Kgs up to 10,000Kgs
(1 tonne - 10 tonne)

Description

The GT Viper Adjustable Beam Clamp is quick and easy to install to give a safe and secure anchor point off most overhead beam sizes. These heavy duty beam clamps are supplied in a matt black finish with LOLER certification

£36.98 ex VAT

£44.38 inc VAT

Add to cart Add to quote

Related products

Yale YC Standard Beam Clamp

YC

Yale YC Standard Beam Clamps provide a quick and versatile rigging point to attach most hoisting equipment such as chain hoists, lever hoists, pulley blocks, etc to structural steelwork

£59.98 ex VAT

£71.98 inc VAT

Ratchet Lever Hoist to EN13157

Xona Blue LH

The Xona Blue is a high quality rugged industrial performing lever hoist. Light weight in design with steel constructed body giving an impact resistant high strength lever hoist. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£88.88 ex VAT

£106.66 inc VAT

Xona Blue Chain Block to EN13157

Xona Blue CB

The Xona Blue is a rugged industrial quality chain block. Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£73.98 ex VAT

£88.78 inc VAT

Xona Black Chain Block to EN13157

Xona Black CB

The Xona Black is a rugged industrial quality chain block. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt black finish on hoist body, load chain and safety catches. (hand Chain electro galv). Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£73.98 ex VAT

£88.78 inc VAT

Xona Beam Clamp with Eye

XNHNBCLAMP

Xona Black Beam Clamps provide a quick and versatile rigging point to attach hoisting equipment such as chain hoists, lever hoists, pulley blocks, etc to structural steelwork. Matt black finish makes this quality beam clamp suitable for the Entertainment, Theatre, and Hospitality sectors. Will fit most "I" beam flanges.

£32.68 ex VAT

£39.22 inc VAT

The GT Viper Adjustable Beam Clamp is quick and easy to install to give a safe and secure anchor point off most overhead beam sizes. These heavy-duty beam clamps are supplied in a matt black finish with LOLER certification. Fitted with a special Jaw design that applies the load away from the flange edge, thus reducing flange stress.

The GT Lifting Quality Beam is available in Five different sizes ranging from 1 tonne up to 10 tonne
Model
Capacity
Beam Width
Weight
VBC1
1,000Kgs
75 - 220mm
3.80Kgs
VBC2
2,000Kgs
75 - 220mm
5.00Kgs
VBC3
3,000Kgs
80 - 320mm
9.00Kgs
VBC5
5,000Kgs
80 - 320mm
11.0Kgs
VBC10
10,000Kgs
90 - 350mm
16.0Kgs
Easy to install by one person.

GT Viper Adjustable Beam Clamp


Heavy duty construction allows a safe and secure grip on the beam.

Matt black finish.

Meets the W.L.L. performance requirements of BS EN 13155.

The minimum breaking load is 4 times the W.L.L.

Easy and simple mounting.

Adjustable to fit a wide range of flange widths and beams.

A special jaw design applies the load away from the flange edge, thus reducing flange stress.

Marked in accordance with BS EN 13155.

Viper Adjustable Beam Clamp VBC – YS Type

Certification available 2.1DoC

Model
Capacity
Beam Width
Weight
VBC1
1,000Kgs
75 - 220mm
3.80Kgs
VBC2
2,000Kgs
75 - 220mm
5.00Kgs
VBC3
3,000Kgs
80 - 320mm
9.00Kgs
VBC5
5,000Kgs
80 - 320mm
11.0Kgs
VBC10
10,000Kgs
90 - 350mm
16.0Kgs



INSPECTION, SERVICE & REPAIR

According to national and international accident prevention and safety regulations load lifting attachments must be inspected:
• in accordance with the risk assessment of the operating company
• prior to the initial operation
• before the unit is put into service again following a shutdown
• after substantial changes
• however, at least once per year, by a competent person

Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
