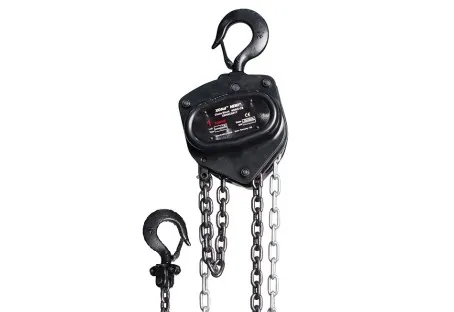

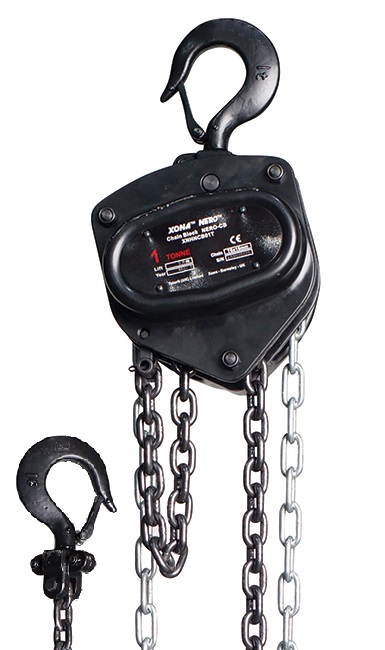

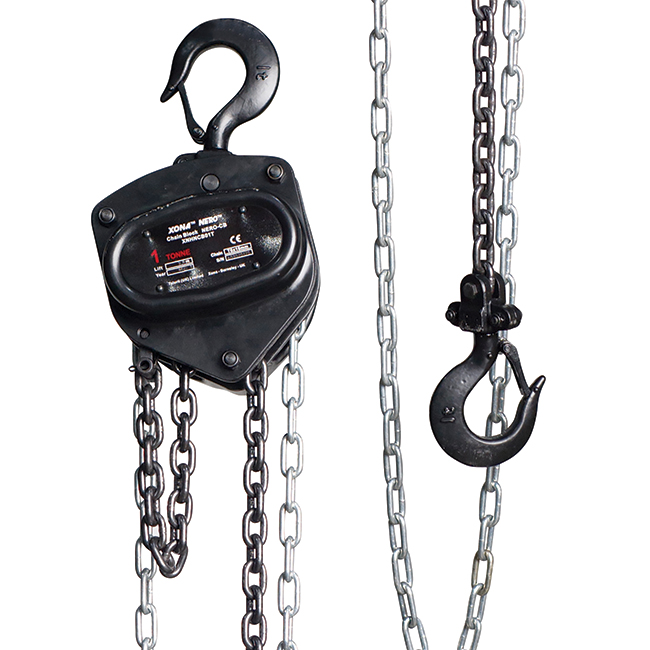

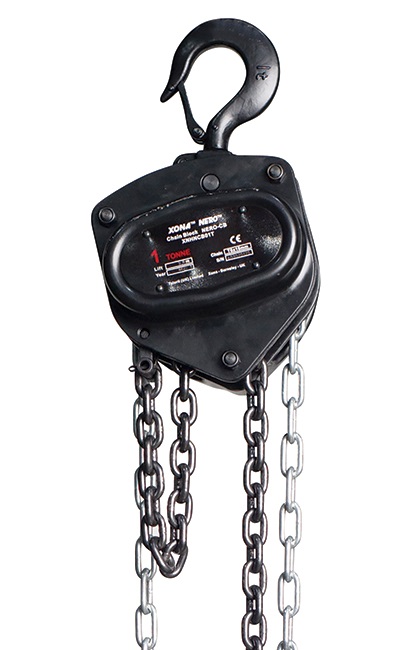

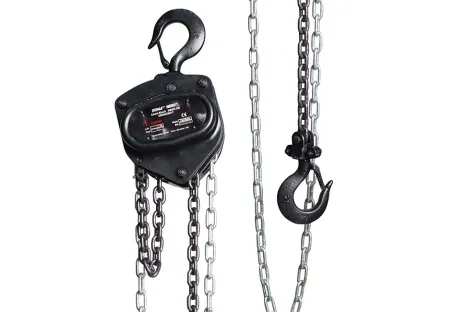

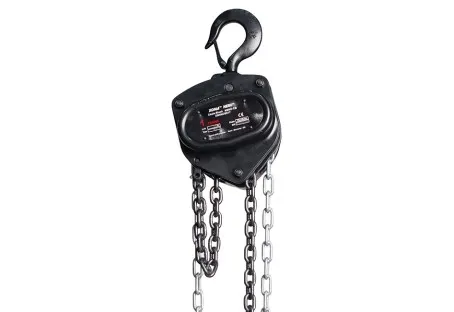

Xona Black Chain Block to EN13157

Key notes for ordering:

Supplied tested with certification - Ready to use from the box Prices start at 3m HOL c/w 2.5m drop hand chain. As you add additional load chain, the hand chain will increase ( calculated never to be in contact floor.

Estimated lead time:1-2 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Xona Black Chain Block to EN13157

Brand:

Capacity

Capacities 500Kgs up to 3,000Kgs
(0.5 tonne - 3 tonne)

Description

The Xona Black is a rugged industrial quality chain block. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt black finish on hoist body, load chain and safety catches. (hand Chain electro galv). Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£69.53 ex VAT

£83.44 inc VAT

Add to cart Add to quote

Related products

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

Ratchet Lever Hoist to EN13157

Xona Blue LH

The Xona Blue is a high quality rugged industrial performing lever hoist. Light weight in design with steel constructed body giving an impact resistant high strength lever hoist. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£85.24 ex VAT

£102.29 inc VAT

Xona Black Lever Hoist to EN13157

Xona Black LH

The Xona Black is a high quality rugged industrial performing lever hoist. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt finish on the body of hoist, load chain and safety catches. Light weight in design with steel constructed body giving an impact resistant high strength lever hoist. Manufactured and tested to EN13157

£69.53 ex VAT

£83.44 inc VAT

Xona Blue Chain Block to EN13157

Xona Blue CB

The Xona Blue is a rugged industrial quality chain block. Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£69.53 ex VAT

£83.44 inc VAT

Xona Beam Clamp with Eye

XNHNBCLAMP

Xona Black Beam Clamps provide a quick and versatile rigging point to attach hoisting equipment such as chain hoists, lever hoists, pulley blocks, etc to structural steelwork. Matt black finish makes this quality beam clamp suitable for the Entertainment, Theatre, and Hospitality sectors. Will fit most "I" beam flanges.

£32.68 ex VAT

£39.22 inc VAT

Xona Push Travel Trolley

XNHQPT

Xona quick install Push Travel Trolley for easy positioning and movement of loads along structural sections ("I" Beam).

£59.98 ex VAT

£71.98 inc VAT

Xona Geared Travel Trolley

XNHQGT

Xona Quick install Gear Travel Trolley enables easy positioning and movement of loads suspended from structural section. Fitted with gearing system and hand chain aiding precise positioning of the trolley anywhere along the beam - once in position, the trolley will not creep out of position like the push travel trolley.

£99.98 ex VAT

£119.98 inc VAT

The Xona Black is a rugged industrial quality chain block. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt finish on hoist body, load chain and safety catches.. Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

The load chain fitted as standard to our Black finished Chain Blocks will be black, (hand chain is electro-galv) - Electro Galv load chain is available for this hoist - We also produce an Blue Powder Coat finish chain hoist, which is fitted with electro Galv Load Chain as standard.
Model
Capacity WLL / SWL.
Falls of Load Chain
Lifting Height
Closed Height
Weight @ 3m HOL
XNHBCB0.5T
500Kgs
13m
285mm
9Kgs
XNHNCB1T
1,000Kgs
13m
315mm
12.2Kgs
XNHNCB1.5T
1,500Kgs
13m
340mm
14.5Kgs
XNHNCB2T
2,000Kgs
13m
380mm
21.0Kgs
XNHNCB3T
3,000Kgs
23m
475mm
22.0Kgs
XNHNCB5T
5,000Kgs
23m
600mm40.0Kgs
XNHNCB10T
10,000Kgs
43m
740mm89.4Kgs
XNHNCB20T
20,000Kgs
83m
870mm214.7Kgs
All hoist as standard supplied at 3m HOL c/w 2.5m drop for hand chain - the hand chain will never make contact with floor if ordered correctly and will always be 0.5m (500mm) shorter than overall height of lift - If you require a shorter or longer hand chain to suit a specific task - please contact our sales team for assistance.

Our Xona Chain Hoist - Industrial quality chain hoist manufactured and tested to EN13157

Colours Available - Black 0.5T to 3T – Blue 0.5T to 20T
Larger sizes available on request.

Manufactured to a High quality with high strength capabilities for rugged industrial performance.
Spur gear efficiency reduces operator effort.
Double pawl / double guide rollers enhancing performance, safety and reliability of hoist.
Caged needle roller bearing as standard.
Matt black finish to housing giving durable corrosion protection and a less visual unit.
The top and bottom hook housing can be disassembled for easy inspection.
Forged upper and lower swivel hooks with heavy duty cast style safety catches.
Hook overload indicator marks. For visual checking if distortion has occurred due to misuse or overloading.

For fleeting/cross hauling. Please contact our technical department for information.

Overload protection limiter available on request.

Fitted with high quality load chain  - EC Manufactured EN818-7 Grade – T Hoist Chain.
Available in both Black and Electro Galvanised.
Hoist supplied fully tested in good working order.
Supplied with operating instructions and relevant conformity certificate.

According to national and international accident prevention and safety regulations hoisting equipment must be inspected:
• in accordance with the risk assessment of the operating company
• prior to initial operation
•before the unit is put into service again following a shut down
• after substantial changes
• however, at least once per year, by a competent person.

Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
