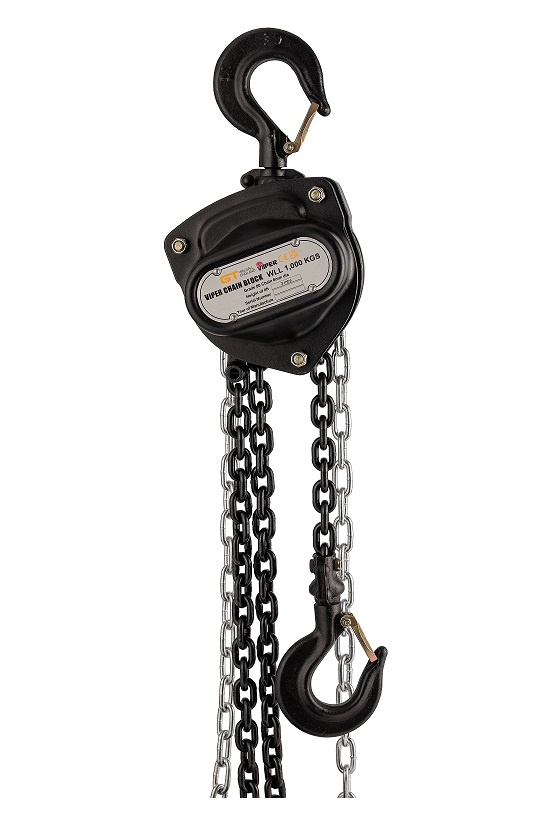

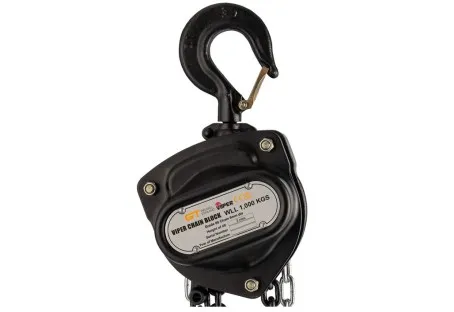

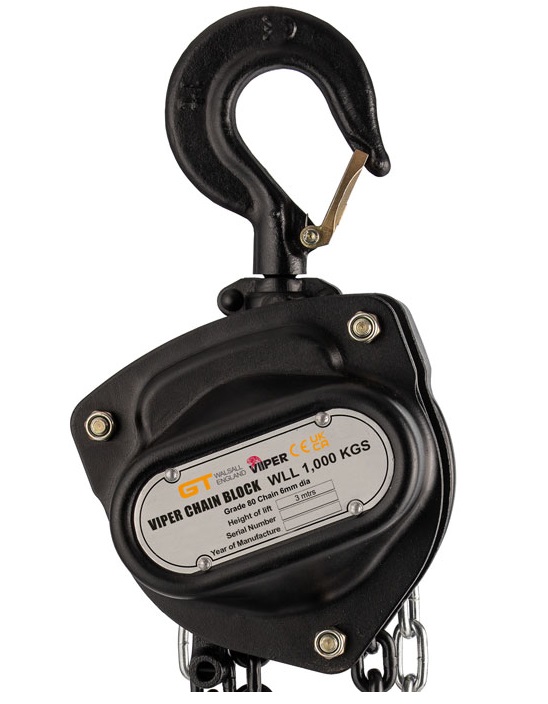

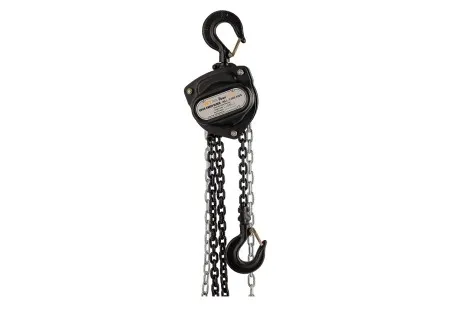

GT Viper Chain Block

Brand:

Capacity

Capacities 500Kgs up to 30,000Kgs
(0.5 tonne - 30 tonne)

Description

GT Viper Chain Block is available to buy today online in capacities from 500 Kgs up to 30 tonnes. These Heavy Duty Industrial quality chain hoists are supplied with Matt black finish as standard and both top & bottom hooks are fitted with HD catches

£69.98 ex VAT

£83.98 inc VAT

Other Options on Height Of Lift (HOL) available upon request
Add to cart Add to quote

Related products

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

Xona Blue Chain Block to EN13157

Xona Blue CB

The Xona Blue is a rugged industrial quality chain block. Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£73.98 ex VAT

£88.78 inc VAT

Xona Black Chain Block to EN13157

Xona Black CB

The Xona Black is a rugged industrial quality chain block. Specifically targeted at the entertainment, theatre & hospitality sector due to its Matt black finish on hoist body, load chain and safety catches. (hand Chain electro galv). Built to high specifications that has produced a reliable, high strength hoist easily capable of fulfilling any lifting task performed onsite or within the factory environment. Manufactured and tested to EN13157 and fitted with EC manufactured EN818-7 Grade T Hoist Chain.

£73.98 ex VAT

£88.78 inc VAT

GT Viper Chain Block is available to buy today online in capacities from 500 Kgs up to 30 tonnes. These Heavy Duty Industrial quality chain hoists are supplied with Matt black finish as standard and both top & bottom hooks are fitted with HD catches. The whole range is made with high-performance materials for extra durability. The VCB Viper Chain Block range starts with the compact 500Kgs capacity and is supplied at the industry standard 3m Height Of Lift (HOL) and also available at 6m HOL, both sizes are available off the shelf for next-day delivery. Other lifting heights are available on request and can still be supplied quickly.

Key Features
Available from 500Kgs up to 30,000Kgs
Available from 3m up to 12m HOL
Hooks and Housing finished in Matt Black Paint
Fitted with Calibrated Electro Galv Hand Chain
Fitted with Grade 80 (T Fine Tolerance) Load Chain (BS EN 818-7)
Marked In Accordance with BE EN 13157
Model
Capacity WLL / SWL.
Falls of Load Chain
Effort Req'd to Lift at Max LoadClosed HeightWeight @ 3m HOL
VCB 0.5T
500Kgs1210N266mm7Kgs
VCB 1T
1,000Kgs1260N324mm10.5Kgs
VCB 1.5T
1,500Kgs1265N392mm17Kgs
VCB 2T
2,000Kgs1272N407mm18Kgs
VCB 3T
3,000Kgs2280N465mm21Kgs
VCB 5T
5,000Kgs2358N636mm42Kgs
VCB 10T
10,000Kgs4370N798mm72.6Kgs
VCB 20T
20,000Kgs8370 x 2N890mm162Kgs
VCB 30T
30,000Kgs12370 x 2N
1000mm228Kgs
All Viper Chain blocks are supplied at 3m HOL c/w 2.5m drop for hand chain. This means, the hand chain will never make contact with the floor if ordered correctly and will always be at least 0.5m (500mm) shorter than the overall height of the lift - If you require a shorter or longer hand chain to suit a specific task - please contact our sales team for assistance.

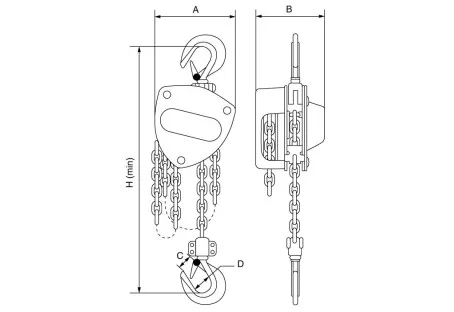

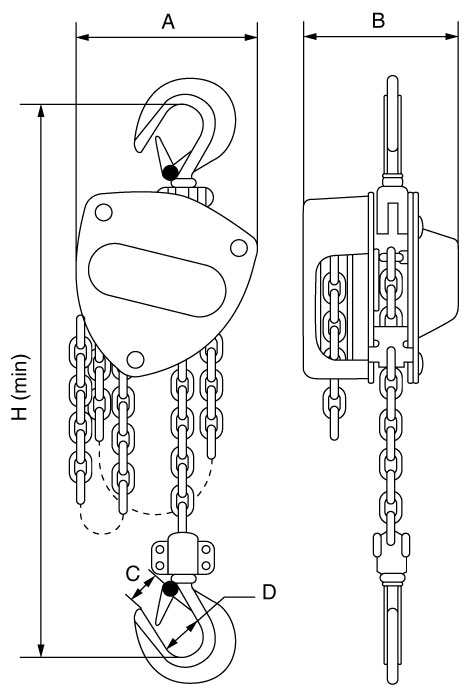

Dimensions for the GT Viper Chain Block
ModelLifting capacityABCDH
VCB 0.5T
500Kgs136mm126.5mm25.5mm36mm266mm
VCB 1T
1000Kgs156mm143mm28mm40mm324mm
VCB 1.5T
1500Kgs182mm148mm38mm52mm392mm
VCB 2T
2000Kgs198mm152mm38mm52mm407mm
VCB 3T
3000Kgs214mm156mm42mm60mm465mm
VCB 5T
5000Kgs266mm181mm50mm68mm636mm
VCB 10T
10000Kgs365mm181mm57mm85mm798mm
VCB 20T
20000Kgs630mm192mm84mm106mm890mm
VCB 30T
30000Kgs670mm330mm84mm106mm1000mm

The GT Viper Manual Chain Block - VCB


General Specification and Key Features
Each hoist is made with high-performance materials for extra durability.
Matt black finish.
Meets the W.L.L. performance requirements of BS EN 13157.
Minimum break load 4 times the W.L.L.
Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance
requirements of BS EN 818-7.
Electro galvanised calibrated hand chain.
The sealed bearings in each unit ensure extra protection and allow complete repair flexibility.
Top and bottom hooks with heavy-duty cast catches.
For heights of lift above 12 mtrs please consult ULS Lifting for technical advice and product guidance.
While fleeting or cross-hauling is not recommended practice, these items can be used in accordance with the specific safety guidelines for this purpose –please check manufacturer guidance before use.

Model
Capacity WLL / SWL.
Falls of Load Chain
Effort Req'd to Lift at Max LoadClosed HeightWeight @ 3m HOL
VCB 0.5T
500Kgs1210N266mm7Kgs
VCB 1.T
1,000Kgs1260N324mm10.5Kgs
VCB 1.5T
1,500Kgs1265N392mm17Kgs
VCB 2T
2,000Kgs1272N407mm18Kgs
VCB 3T
3,000Kgs2280N465mm21Kgs
VCB 5T
5,000Kgs2358N636mm42Kgs
VCB 10T
10,000Kgs4370N798mm72.6Kgs
VCB 20T
20,000Kgs8370 x 2N890mm162Kgs
VCB 30T
30,000Kgs12370 x 2N
1000mm228Kgs
All Viper Chain blocks are supplied at 3m HOL c/w 2.5m drop for hand chain. This means, the hand chain will never make contact with the floor if ordered correctly and will always be at least 0.5m (500mm) shorter than the overall height of the lift - If you require a shorter or longer hand chain to suit a specific task - please contact our sales team for assistance.


Dimensions for the GT Viper Chain Block
ModelLifting capacityABCDH
VCB 0.5T
500Kgs136mm126.5mm25.5mm36mm266mm
VCB 1T
1000Kgs156mm143mm28mm40mm324mm
VCB 1.5T
1500Kgs182mm148mm38mm52mm392mm
VCB 2T
2000Kgs198mm152mm38mm52mm407mm
VCB 3T
3000Kgs214mm156mm42mm60mm465mm
VCB 5T
5000Kgs266mm181mm50mm68mm636mm
VCB 10T
10000Kgs365mm181mm57mm85mm798mm
VCB 20T
20000Kgs630mm192mm84mm106mm890mm
VCB 30T
30000Kgs670mm330mm84mm106mm1000mm

Hoist supplied fully tested in good working order.
Supplied with operating instructions and relevant conformity certificate.

According to national and international accident prevention and safety regulations hoisting equipment must be inspected:
• in accordance with the risk assessment of the operating company
• prior to initial operation
•before the unit is put into service again following a shut down
• after substantial changes
• however, at least once per year, by a competent person.

Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
