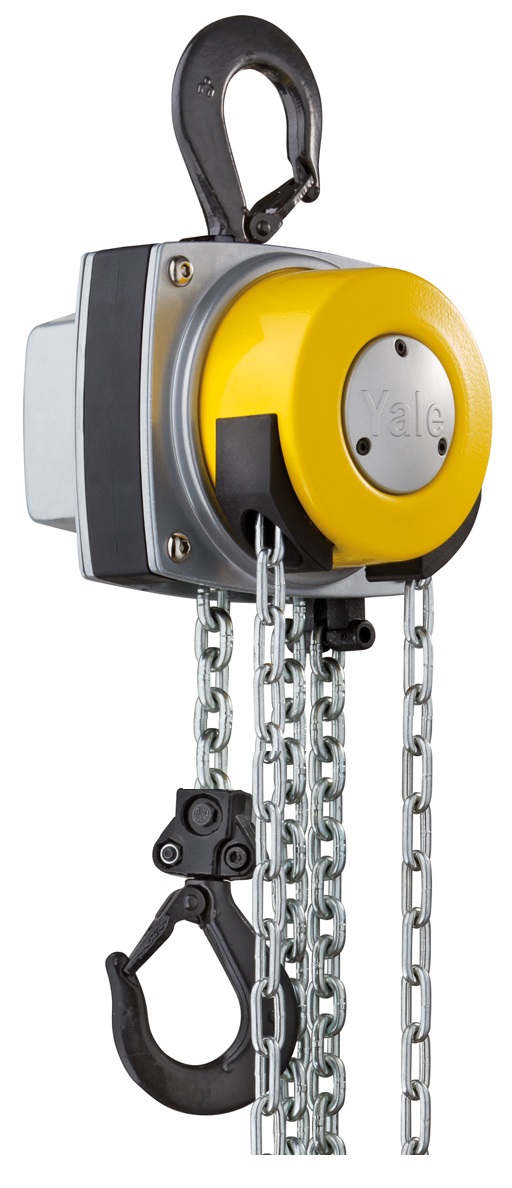

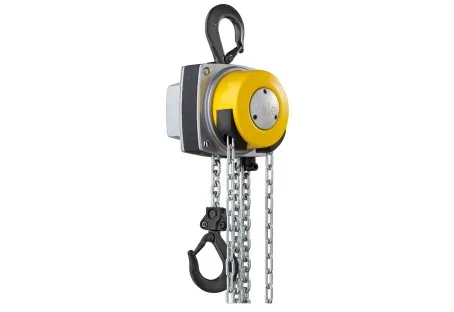

A quality hand chain hoist that opens up huge new opportunities: With the YALE new innovative design, things are really beginning to move. The Yalelift 360 opens up a new world of safety for the operator. The range of applications as well as the operating conditions has been changed by a revolutionary hand chain design.
The key to this innovation is our revolutionary 360° rotating hand chain guide, which allows the operation of the hand chain from virtually any position, even in extremely confined areas. The Yalelift 360 can be operated at the side of the load or from any other position including horizontal pulling. The plane between the top and bottom hook must always be in a straight line and duration of the W.L.L. will apply.
More flexibility gives greater safety - operators can now work outside of the immediate danger zone reducing the risk of operator injury.
SWL 500Kgs to 20,000Kgs.
Height Of Lift - Starting From 3m.
Can Be Operated from various standing positions.
Chain Bag Available.
Safety under control: The Yalelift 360 is for heavy industrial applications and will revolutionize every operation. By means of the 360° rotating hand chain guide, the user can operate the hoist from all directions and is no longer directly within the danger zone as before.
Model
| Capacity WLL / SWL
| Falls of Load Chain
| Lifting Height
| Closed Height
| Weight @ 3m HOL
|
YL500
| 500Kgs
| 1 Fall
| 3m
| 300mm
| 9Kgs
|
YL1000
| 1000Kgs
| 1 Fall
| 3m
| 335mm
| 13Kgs
|
YL2000
| 2,000Kgs
| 1 Fall
| 3m
| 395mm
| 20Kgs
|
YL3000
| 3,000Kgs
| 1 Fall
| 3m
| 520mm
| 29Kgs
|
YL5000
| 5,000Kgs
| 2 Fall
| 3m
| 654mm
| 38Kgs
|
YL10000
| 10,000Kgs
| 3 Fall
| 3m
| 825mm
| 71Kgs
|
YL20000
| 20,000Kgs
| 6 Fall
| 3m
| 1300mm
| 196Kgs
|
*The standard unit is supplied with zinc plated load chain and zinc-plated hand chain.
**There is also a corrosion-resistant version available - The corrosion-resistant unit is supplied with stainless steel hand chain and zinc-plated load chain.
If you require stainless steel load chain please contact our sales team
Protection classification (on request) II2GDcIIBT4T130o C
You choose:
The Yalelift 360° can be operated safely and efficiently from all positions, even from the side of the load. This means more safety and greater flexibility in the working position.
Work from above:
The flexibility of the Yalelift 360 allows the operator to work from directly above the load. The advantage of this application is you can have a long lift whilst using a relatively short hand chain. The revolutionary chain guide ensures a precise and smooth chain operation at all times.
COMPACT CONSTRUCTION
The extremely low headroom allows maximum use of the lifting height.
EASY TO USE
The revolutionary 360° rotating hand chain guide allows the operator to work from virtually any position, even in confined spaces or from above the load. The Yalelift can even be operated from the side of the load, which also makes it possible to use the hoist for horizontal pulling or tensioning. Due to the additional flexibility, the operator is no longer forced to work in the danger zone near the load.
LOAD HOOKS
Rotating Top / Bottom Hooks - EASY TO MAINTAIN
Drop forged load and suspension hooks that yield under overload instead of breaking, are made of high-tensile steel. The hooks are fitted with heavy-duty/ robust safety latches and both the top and bottom hooks rotate 360°.
Model
| Capacity WLL / SWL
| Falls of Load Chain
| Lifting Height
| Closed Height
| Weight @ 3m HOL
|
YL500
| 500Kgs
| 1 Fall
| 3m
| 300mm
| 9Kgs
|
YL1000
| 1000Kgs
| 1 Fall
| 3m
| 335mm
| 13Kgs
|
YL2000
| 2,000Kgs
| 1 Fall
| 3m
| 395mm
| 20Kgs
|
YL3000
| 3,000Kgs
| 1 Fall
| 3m
| 520mm
| 29Kgs
|
YL5000
| 5,000Kgs
| 2 Fall
| 3m
| 654mm
| 38Kgs
|
YL10000
| 10,000Kgs
| 3 Fall
| 3m
| 825mm
| 71Kgs
|
YL20000
| 20,000Kgs
| 6 Fall
| 3m
| 1300mm
| 196Kgs |
*The standard unit is supplied with zinc plated load chain and zinc-plated hand chain.
**There is also a corrosion-resistant version available - The corrosion-resistant unit is supplied with stainless steel hand chain and zinc-plated load chain.
If you require stainless steel load chain please contact our sales team
Protection classification (on request) II2GDcIIBT4T130o C
OPTIONS
OVERLOAD PROTECTION DEVICE
The overload protection device serves to protect all components on and in the device against inadmissible overload. It usually reacts when the permissible load capacity is exceeded by 25 %.
CHAIN CONTAINER
available for all models
CORROSION RESISTANT VERSION
The MKS coating is a coating of zinc and aluminum flakes that primarily protect the device against corrosion.
Even extremely thin layers - typically a system of base and top coat consisting of 8 - 12 μm - high protective effects against base metal corrosion (red rust) can be achieved.
Hoist supplied fully tested in good working order.
Supplied with operating instructions and relevant conformity certificate.
According to national and international accident prevention and safety regulations hoisting equipment must be inspected:
- in accordance with the risk assessment of the operating company
- prior to initial operation
- before the unit is put into service again following a shut down
- after substantial changes
- however, at least once per year, by a competent person.
Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
