250Kgs SWL Wall Mounted Jib Cranes

Key notes for ordering:

Dispatched as a kit with instructions, decide on extras like isolator for electrics, festoon system for elec hoist. Contact us for installation prices. Suppled with certification

Estimated lead time:Manufactured in UK to Order Approx. 3 - 4 Weeks Delivery

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

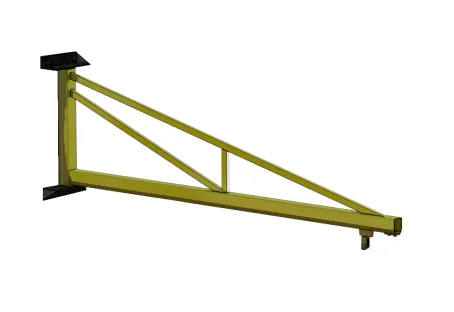

250Kgs SWL Wall Mounted Jib Cranes

Brand:

Capacity

250Kgs

Description

250Kgs SWL Wall Mounted Jib Cranes are UK Manufactured. Internet best prices and supplied fully tested and certified to move loads up to 250 Kgs SWL. Jib Arm length 2m to 6m long available. Slew 180°.

£594.98 ex VAT

£713.98 inc VAT

Please contact our sales team if the following extras are required:

1 - Adjustable Slew Limits
2 - Slewing Lock
3 - Installation

Related products

Festoon System for Overhead Cranes & Hoists

FEST SS

C Rail Style Festoon System  (Full Kit) including flat form power cable, cable trolleys & track. These simple-to-install lightweight kits provide a safe and economical means of supplying power to overhead hoists, overhead cranes, and most other types of moving machinery that travels along a fixed track. Once fitted eliminates dangerous dangling down cables and looks like a professional install or refit

£124.98 ex VAT

£149.98 inc VAT

250Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist

WMJC

250Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist kit complete that is UK Manufactured. Quality Wall Mounted Jib crane supplied with 400-volt Electric Chain Hoist. These Over-Braced Wall Mounted Jib Cranes are supplied complete with a Electric Hoist that fits onto the supplied integral trolley.

£594.98 ex VAT

£713.98 inc VAT

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

Stahl ST Electric Chain Hoist - 400 volt output

ST

**ULS Top Product** Stahl ST Electric Chain Hoist - 400volt output series from Stahl is an acknowledged top-level quality product that ranks amongst the world's most distinctive and extensive ranges of electric hoists on offer - A robust classic design/layout which proves itself in operation day for day. Powerful, reliable yet undemanding with power consumption and maintenance.

£1,469.99 ex VAT

£1,057.98 ex VAT

£1,269.58 inc VAT

250Kgs SWL Column Mounted Jib Crane Galvanised Finish for Outdoor Usage

CMJC-GALV

250Kg SWL Column Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK. Widely used in applications where corrosion resistance is needed and is more cost-effective than our stainless steel version.

£1,148.98 ex VAT

£1,378.78 inc VAT

250Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage

WMJC-GALV

80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.

£1,088.48 ex VAT

£1,306.18 inc VAT

250Kgs SWL Wall Mounted Jib Cranes are UK Manufactured at internet best prices and supplied fully tested and certified to move loads up to 250 Kgs SWL. Jib Arm length 2m to 6m long available. Slew 180°. All our Wall mounted Jib Cranes and Face fixed Jib Cranes are manufactured to a high specification. Wall Mountable Jib Cranes are ideal if you are looking for a Face Fixed Jib Crane that can be bolted securely to an existing wall or flat surface. Supplied as a simple two-part kit, the main slewing arm which your hoist or lifting equipment can be fitted to, and a pair of brackets that will be welded or bolted to the steelwork or load-bearing wall.

The two parts are connected using the supplied pivot pin. The arm can be manufactured to any length between 2m and 6m and is designed to rotate to give a very wide working area span. The arm has a trolley already fitted, making it even more simple for connecting to your hoist, spring balancer, or vacuum lifter. Bespoke Jib cranes are available on request.

Dimensions for illustration only
Model
SWL
Overall Height Of Arm
Trolley Depth
Arm Length (Radius of reach)
Total Weight
WMJC250R2
250Kgs
500mm
77mm
2,000mm (2m)
50Kgs
WMJC250R3
250Kgs
750mm
77mm
3,000mm (3m)
52Kgs
WMJC250R4
250Kgs
800mm
77mm
4,000mm (4m)
71Kgs
WMJC250R5
250Kgs
900mm
94mm
5,000mm (5m)
105Kgs
WMJC250R6
250Kgs
1000mm
94mm
6,000mm (6m)
124Kgs
If you require help with installation, ULS Lifting has a fully trained Jib Crane installation team that can install the jib, commission the wall-mounted jib, and then test the jib to make sure it is fully working safely and legally. We will then issue a certification for you to keep.


Why Choose a Wall or Face Fixed Mounted Jib Crane?
There are many advantages to purchasing 250Kgs SWL Wall Mounted Jib Cranes, they are extremely versatile within the factory, speeding uplifting and moving components off presses or workbenches, and loading or unloading lorries. Lifting heavy objects such as granite, timber, or steel. Wall mountable Jib cranes are made up of two main parts, the arm and set of brackets to attach to an existing flat surface or wall, therefore these simple manual jib cranes do not have many parts to maintain, making them extremely reliable, which in turn means they do not break down, so no loss in production time.

Easy to install
These wall-mounted cranes simply just bolt to existing walls, columns, pillars, stanchions, or any suitable structural steelwork, once you have checked your column is suitable for a jib crane, choose which one you require from the drop-down menus, and we will arrange to manufacture the jib and dispatch it directly to the site for your required delivery date. Then, when it is supplied to the site, The 250Kg Jib Crane just needs to be secured to the wall or steelwork -  We at Ultimate Lifting Solutions offer this service and can offer full installation by using our own highly trained engineers or just the commissioning/ load testing, we can offer a package to meet your requirements.

Because of the simple design, they are inexpensive to both buy and maintain compared to other cranes. Under normal working conditions, the Jib itself will only need an industry standard 12 monthly services. We at Ultimate Lifting Solutions offer this service and can offer various maintenance/service packages to meet your requirements.

How does Swing Jib Crane work?
A standard 250Kgs SWL Wall Mounted Jib Cranes as mentioned has two main parts - The Arm and mounting brackets. The arm can rotate from left to right and vice versa, the swing or slew angle is set for wall mounted at 180° as standard. On all our swing jibs up to 1,000Kgs, they will slew with ease without the requirements of powered assistance, hence keeping the costs down. The arm on our Jib cranes will be supplied with an integral push travel trolley, this moves along the full length of the arm, and the trolley gives you the freedom and flexibility to reach into corners of your factory with ease.

What else is required for Wall Mounted Jib Crane?
You now have your 250Kgs SWL Wall Mounted Jib Crane fitted. You now need suitable lifting equipment such as a hoist of some type or a vacuum lifter or a spring/tool balancer, these fit easily to the trolley that was supplied already fitted within the jib crane arm.  You just need to decide what hoist you need. To keep the costs down a manual hoist is the cheapest option, but you will not save on production time, as they are slow and do need assistance by hand, and sometimes for larger items, you might not be able to reach the hoist chain. The second option and best option is an Electric Hoist, these hoists enable you to easily lift and lower your components quickly, cutting down on production time, and it will soon pay for itself in time saved.

Installation
As mentioned above, the Wall or Face Mounted Jib Crane can be an easy install, once installed and the hoist fitted, all that is left is commissioning, testing, and signing off the Jib as safe to use. we are more than happy for all our customers to install themselves using the instructions supplied or find their installation team. But, these days time is precious, do you have time to sort engineers and dates, etc, Let us save you time as we are also more than happy to offer our engineers to take away this task. We can install the Jib, install the Hoist, commission, and test and we will not leave the site until everything is working correctly and safely.

250Kgs SWL Wall Mounted Jib Cranes


Dimensions for illustration only
Model
SWL
Overall Height Of Arm
Trolley Depth
Arm Length (Radius of reach)
Total Weight
WMJC250R2
250Kgs
500mm
77mm
2,000mm (2m)
50Kgs
WMJC250R3
250Kgs
750mm
77mm
3,000mm (3m)
52Kgs
WMJC250R4
250Kgs
800mm
77mm
4,000mm (4m)
71Kgs
WMJC250R5
250Kgs
900mm
94mm
5,000mm (5m)
105Kgs
WMJC250R6
250Kgs
1000mm
94mm
6,000mm (6m)
124Kgs
If you require help with installation, ULS Lifting has a fully trained Jib Crane installation team that can install the jib, commission the wall-mounted jib, and then test the jib to make sure it is fully working safely and legally. We will then issue a certification for you to keep.

All our manufactured Jibs are

Duty classification:  A3 according to BS 733 : 1990

All jibs are lubrication free.  The pivot bushes are acetal and therefore do not require lubrication. The trolleys running surfaces are also lubrication free.

Manual slewing and trolley travel operation

Minimal maintenance requirement

Clutch controlled slewing mechanism, can be tightened/loosened to control how freely the arm pivots.

Bases are fully welded to the column – in most situations this removes the need for an oversized load spreading plate or setting an anchor frame into concrete, and therefore making installation much quicker and more cost effective.


Key Points of our UK manufactured Jib Cranes

SWL - 250kg

Arm length - 2m up to 6m

Slew Angle - 180-degree manual slew

Trolley - Fitted with integrated push travel trolley for suspending hoists, vacuum lifters and tool balancers from

Fast delivery - We aim to delivery all our Swing Jibs within 10 to 14 days


Optional extras

Adjustable slewing limits, To reduce the swing arc

Slewing lock, to fix the arm in to a specific position

Electrical Isolator - required if electric hoist to be used in conjunction with the Jib Arm

Electric Hoist power feed - supply full festoon system including flat form feed cable, ideal solution for carrying electric supply cable to the hoist,

Full Electric Kit - Our kit includes everything required to fun Electric Hoist (Isolator, Flatform Supply Cable, Cable Runners)

Optional Floor Fixing Bolts

Kit can be supplied to enable the pin to be fitted from below.

Jib Cranes as a rule do not need much service or maintenance. Yet, general observations of the overall condition of the jib and the hoist connected to it can be carried out by the operator - any faults should be reported immediately


More importantly to keep the Jib and hoists running at maximum efficiency and to keep within the UK laws with regarding LOLER inspections set out by HSE, both the Jib and the hoist on it should have a maintenance service scheduled no later than 12 months. This service should be undertaken by qualified service engineers - If you would like to know more about the servicing and general maintenance, please feel free to contact us, we do have qualified engineers and are happy to quote for all your crane servicing requirements.
