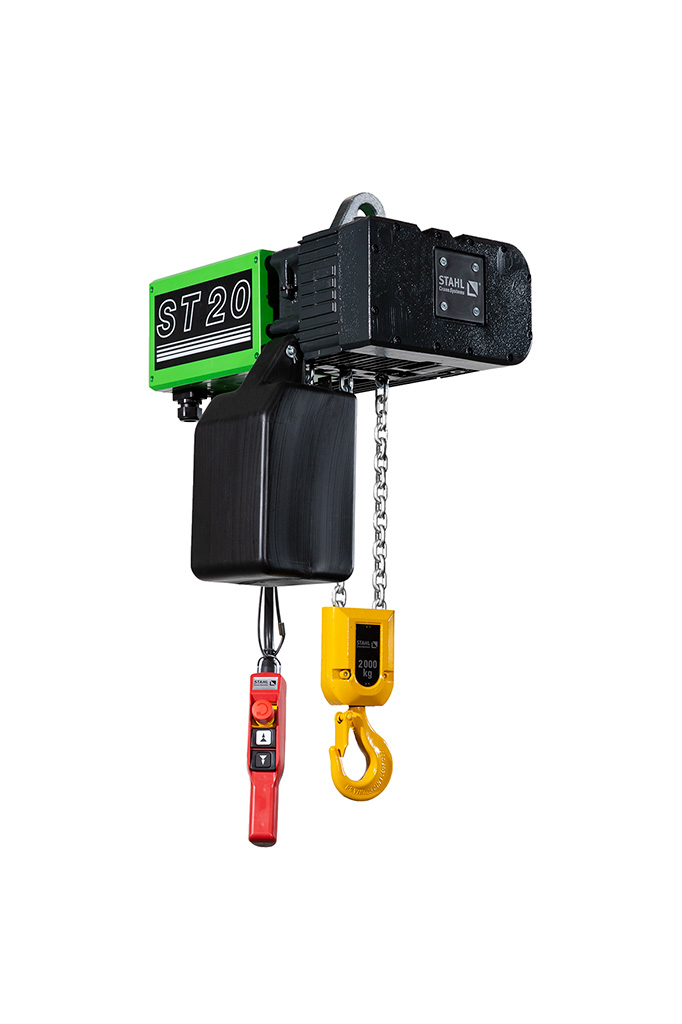

Stahl ST Electric Chain Hoist - 400 volt output
Key notes for ordering:
Prices shown are based on a standard 3m HOL, with 2m pendant. Includes Standard Chain Bag. Trolley (if selected) are adjustable & fit standard travelling beams. Please call if unsure on beam size
Estimated lead time:2 to 3 Days Delivery Time
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise

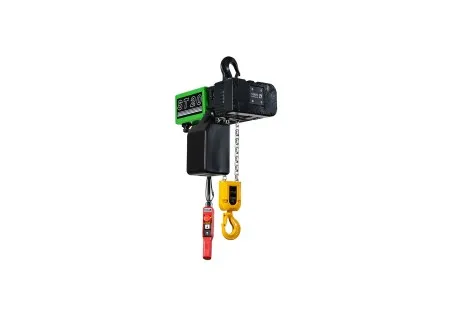

Stahl ST Electric Chain Hoist - 400 volt output
Capacity
125Kgs up to 5,000Kgs
0.125 tonne - 5 tonne)
Description
**ULS Top Product** Stahl ST Electric Chain Hoist - 400volt output series from Stahl is an acknowledged top-level quality product that ranks amongst the world's most distinctive and extensive ranges of electric hoists on offer - A robust classic design/layout which proves itself in operation day for day. Powerful, reliable yet undemanding with power consumption and maintenance.
£1,469.99 ex VAT
£1,057.98 ex VAT
£1,269.58 inc VAT
Limit Switches
Cut-off in Top Hook position
Cut Off both Top / Bottom (not ST05)
Related products
FJC
250Kgs SWL Free Standing Jib Crane - Over Braced version is supplied in a simple two-part crane kit that is lightweight in design that is easy installation and supplied in a simple two-part kit form. The slewing arm which the hoist will attach to, and the upright column that the swing arm fits to. Both the arm and pillar can be manufactured to any length between 2m and 6m and the arm is designed to slew through 270° giving a very wide working area.
£1,218.98 ex VAT
£1,462.78 inc VAT
FJC
500Kgs SWL Free Standing Jib Crane - Over Braced version is supplied fully tested and certified. Fast delivery is available, Can be manufactured in any size, with an arm length of 2m - 6m and column height of 2m - 6m. Slew 270°. Lightweight in design and supplied in a simple two-part kit form for easy installation.
£1,878.98 ex VAT
£2,254.78 inc VAT
CMJC
80Kgs SWL Column Mounted Jib Cranes - Over Braced versions that are manufactured in the UK. Also known as a clamp around the Jib crane as the supporting brackets can be attached to any suitable building column/stanchion or pillar.
£498.98 ex VAT
£598.78 inc VAT
CMJC
250Kgs SWL Column Mounted Jib Cranes - Over Braced versions are manufactured in the UK. These column Jib cranes are ideal if you are looking for a crane suspended securely from an existing column, pillar, or stanchion within your building. The two parts are connected using the supplied pivot pin. The arm can be manufactured to any length between 2m and 6m and the arm is designed to slew through 180° giving a very wide working area.
£594.98 ex VAT
£713.98 inc VAT
CMJC
1,000Kgs SWL Column Mounted Jib Cranes - Over Braced versions are UK Manufactured. These Clamp Around I-Beam mounted Jib cranes are ideal if you are looking for a crane suspended securely from an existing column, pillar, or stanchion within your building. The Jib arm can be manufactured to any length between 2m and 6m and the arm is designed to slew through 180° giving a very wide working area.
£1,244.98 ex VAT
£1,493.98 inc VAT
WMJC
80Kgs SWL Wall Mounted Jib Cranes commonly called Face Fixed Jib Cranes are all manufactured in the UK. These Wall Mountable Jib Cranes are ideal if you are looking for a Jib Crane that can be bolted or welded securely to an existing wall within your building
£498.98 ex VAT
£598.78 inc VAT
WMJC
125Kgs SWL Wall Mounted Jib Cranes are quality UK manufactured Wall Mountable Jib Cranes. Available at any length of swing arm from 2m to 6m Long. With a large slewing angle of 180°. Also known as a Face Fixed fixed Jib Cranes. The 80Kg Wall Mounted Jib Crane is ideal for fixing directly onto a load-bearing wall or similar flat surface.
£529.98 ex VAT
£635.98 inc VAT
WMJC
250Kgs SWL Wall Mounted Jib Cranes are UK Manufactured. Internet best prices and supplied fully tested and certified to move loads up to 250 Kgs SWL. Jib Arm length 2m to 6m long available. Slew 180°.
£594.98 ex VAT
£713.98 inc VAT
WMJC
UK Manufactured 500Kgs SWL Wall Mounted Jib Cranes supplied fully certified and tested. Arm length is available from 2m up to 6m Long with a large Slewing angle of 180°. All our Wall mountable Jib cranes, also known as Face fixed Jib Cranes are ideal if you are looking for a Jib Crane that can be bolted or welded securely to an existing wall or pillar
£684.98 ex VAT
£821.98 inc VAT
WMJC
1,000Kgs SWL Wall Mounted Jib Cranes, Manufactured in the UK. These Quality Wall Mountable Jib Cranes can be supplied with any arm length from 2m to 6m with a Slewing angle of 180°. Bespoke options are available on request.
£1,244.98 ex VAT
£1,493.98 inc VAT
CPV F
£1,554.15 ex VAT
£1,159.98 ex VAT
£1,391.98 inc VAT
CM Lodestar 400v
£2,792.00 ex VAT
£3,350.40 inc VAT
FJC
£998.98 ex VAT
£1,198.78 inc VAT
FJC
1,000Kgs SWL Free Standing Jib Crane - Over Braced version is supplied fully certified and tested. Available with fast delivery is available, Can be manufactured in any size, with an arm length of 2m - 6m and column height of 2m - 6m. Slew 270°.
£2,659.98 ex VAT
£3,191.98 inc VAT
CPV F
£4,756.68 ex VAT
£3,583.78 ex VAT
£4,300.54 inc VAT
CMJC
125Kgs SWL Column Mounted Jib Cranes - Over Braced versions are manufactured in the UK. These column Jib cranes are ideal if you are looking for a crane suspended securely from an existing column, pillar, or stanchion within your building. Supplied in a simple two-part kit form, the main slewing arm which the hoist will move along, and a pair of brackets that will clamp around the pillar or column.
£529.98 ex VAT
£635.98 inc VAT
UBFJC
250Kgs SWL Free Standing Jib Crane - Under Braced design are manufactured in the UK and supplied certified. Ideal for factories or tool rooms with low ceilings. Both the arm and column can be manufactured to any length between 2m-6m with 270° Slew to give a very wide working area.
£1,298.98 ex VAT
£1,558.78 inc VAT
UBFJC
ULS Lifting Solutions are pleased to offer our UK-manufactured and fully certified range of 500Kgs SWL Free Standing Jib Crane - Under Braced design with a wide slewing angle of 270°. All under-braced floor-mounted Jib Cranes are manufactured to order.
£1,588.98 ex VAT
£1,906.78 inc VAT
UBFJC
1000Kgs SWL Free Standing Jib Crane - Under Braced is supplied fully certified and ready for installation onto a suitable floor base. Manufactured in the UK to the customer's specification, yet our delivery times are only a few weeks from design through manufacturer to delivery.
£2,224.98 ex VAT
£2,669.98 inc VAT
UBFJC
125Kgs SWL Free Standing Jib Crane - Under Braced version is manufactured in the UK, supplied fully certified, and designed for areas of low height. Both the arm and column can be manufactured to any length between 2m-6m with a slew angle of 270° giving a very wide working area.
£1,228.98 ex VAT
£1,474.78 inc VAT
UBCMJC
125Kgs SWL Column Mounted Jib Cranes - Under-Braced version, manufactured in UK and can be made to bespoke dimensions. Under-braced Jib Cranes are Ideal for use in a factory that needs a Jib crane to be bolted or welded to structural steelwork, pillars, or stanchions.
£898.98 ex VAT
£1,078.78 inc VAT
UBCMJC
250Kgs SWL Column Mounted Jib Cranes - Under-Braced. Manufactured in the UK. Designed purposely for low-height situations. Jib Arm can be manufactured to any length between 2m-6m and slew through 180° giving a very wide working area.
£998.98 ex VAT
£1,198.78 inc VAT
UBCMJC
UK Manufactured 500Kgs SWL Column Mounted Jib Cranes - Under-Braced style designed for low height factory situations. Jib Arms can be manufactured to any length between 2m-6m and slew through 180° giving a very wide working area.
£1,019.98 ex VAT
£1,223.98 inc VAT
UBCMJC
1000Kgs SWL Column Mounted Jib Cranes - Under-Braced style. Manufactured in the UK. Designed for height-restricted areas. Jib Arm can be manufactured to any length between 2m-6m and slew through 180° giving a very wide working area.
£1,024.98 ex VAT
£1,229.98 inc VAT
UBCMJC
80Kgs SWL Column Mounted Jib Cranes - Under-Braced. Manufactured in the UK. Designed for low-height situations or use with an electric hoist and powered trolley. Jib Arm can be supplied to any length between 2m-6m and slew through 180° giving a very wide working area.
£848.98 ex VAT
£1,018.78 inc VAT
Star
The Star range of Electric Chain Hoists from German manufacturer LIFTKET. The Liftket range is a quality built robust hoist which are currently our best selling hoist due to their superior build quality and performance ratings. Suitable for lifting most industrial loads from 125Kgs up to 5,000Kgs
£1,238.98 ex VAT
£1,486.78 inc VAT
ST High Speed
Stahl High-Speed Electric Chain Hoist, designed for applications that need the hoist to have a fast lifting speed of 12m/minute, is ideal for Abattoir usage.
£3,270.99 ex VAT
£2,616.98 ex VAT
£3,140.38 inc VAT
STAHL 6102-009
Stahl STH Pendant Control Station (2 Button) version is the Official Replacement Stahl 2 Button Corded Pendant Control Station complete with cable and 9-Pin Plug assembly for easy on-site fitment These Stahl replacement 2-button pendants only suit Stahl Hoists with dual speed hoisting option only
£324.98 ex VAT
£389.98 inc VAT
RJC
360 Degree Column Jib Crane offers total flexibility within the workplace. The crane arm has full rotation around the main upright column, providing a complete circular lifting aid of up to 6m. Overall column height can be manufactured up to 6m Tall
£1,698.98 ex VAT
£2,038.78 inc VAT
STAHL 1239000860
STAHL STH PENDANT 9 PIN PLUG (UNASSEMBLED) version is the Official Replacement Stahl 9-Pin Plug assembly for easy on-site fitment.
£65.95 ex VAT
£79.14 inc VAT
The ULS Lifting Top selling Electric Chain hoist - The Stahl ST Electric Chain Hoist - 400 volt output series from Stahl Cranes ranks among the most distinctive and comprehensive on offer worldwide. It is strong, reliable, and modest when it comes to maintenance and energy consumption and is available in capacities ranging from 125 kg up to 5000 Kg, all sizes of Stahl electric hoists are supplied complete with a chain container as standard.
ST Chain hoists have a modular design and can be supplied with a selection of different suspension point configurations from a standard Lug suspension, top hook suspension, or a two-speed electric travel trolley. The Stahl Electric Chain Hoist is supplied as standard with a 3m Height of Lift but can be extended to suit your requirements. ULS offers up to 10m HOL as standard, please call if you require a longer chain length
Why Choose a Stahl St Electric Chain Hoist? Stahl Crane Systems is acknowledged as a top-level quality European supplier offering products that rank amongst the world's most distinctive and extensive ranges on offer when it comes to electric chain hoists. Robust classic design/layout which proves itself in operation day for day. Powerful, reliable yet undemanding with power consumption and maintenance. The Stahl ST 400-volt electric chain hoist is our most popular electric hoist, and our most reliable electric hoist, purchase your Stahl electric hoist from ULS Lifting today. It will not let you down.
Key Facts on the Stahl ST Electric Chain Hoist - 400volt output
Quality-built units fit for industrial use.
Extensive chain hoist range for lifting capacities from 125 kg to 6,300 kg.
Height of lift from 3m.
Various suspension formats are available - Hook, Lug, Push Trolley, and Powered Trolley.
Chain container fitted as standard.
Suspension directly from the chain guide of solid cast iron.
Easy inspection and maintenance of the chain drive thanks to the over-mounted drive shaft.
Extremely short and compact construction ensures that space can be utilised to the maximum.
High ISO classification according to FEM/ISO standards.
Modern Kanban production is available fast.
We offer 12 month's warranty with all Stahl products
Available as an option in explosion-protected design complying with ATEX and IECEx
Model | Capacity | Hoist Speed | Fall of Chain | Weight Hoist only | Weight with Push Trolley | Weight with Electric Trolley |
ST 0501-8/2 | 125Kgs | 8 & 2m/Min | Single | 18Kgs | 24Kgs | 42Kgs |
ST 0502-8/2 | 250Kgs | 8 & 2m/Min | Single | 18Kgs | 24Kgs | 42Kgs |
ST 0502-8/2 | 500Kgs | 4 & 1m/Min | Two | 18Kgs | 26Kgs | 42Kgs |
ST 1005-8/2 | 500Kgs | 8 & 2m/Min | Single | 38Kgs | 46Kgs | 59Kgs |
ST 1005-8/2 | 1000Kgs | 4 & 1m/Min | Two | 41Kgs | 53Kgs | 62Kgs |
ST 2010-8/2 | 1000Kgs | 8 & 2m/Min | Single | 72Kgs | 84Kgs | 88Kgs |
ST 3016-8/2 | 1600Kgs | 8 & 2m/Min | Single | 72Kgs | 98Kgs | 107Kgs |
ST 2010-8/2 | 2000Kgs | 4 & 1m/Min | Two | 75Kgs | 101Kgs | 110Kgs |
ST 5025-6/1 | 2500Kgs | 6.3 & 1.5m/Min | Single | 118Kgs | 101Kgs | 110Kgs |
ST 3016-8/2 | 3200Kgs | 4 & 1m/Min | Two | 82Kgs | 112Kgs | 130Kgs |
ST 5025-6/1 | 5000Kgs | 3.2 & 0.75m/Min | Two | 138Kgs | N/A | 201Kgs |
Any additional Height of lift available - the standard is 3m - additional heights are sold as complete metres only. Standard hoists @ 3m are supplied with 2m pendant cable - As the lifting height increases, the pendant cable will pro-rata
Radio Remote control systems are also available for the above electric hoists, fitted at the factory before dispatch, tested, and certified - contact us for more information.
Do you require a Festoon System for your overhead hoist? ULS Lifting can supply a cost-effective industrial festoon system perfect for powering your new electric chain hoist - The ULS Lifting Festoon System for Overhead Cranes and Hoists come complete with all components required for installation onto the crane system or hoist beam. Once fitted the festoon system eliminates dangerous dangling down electric cables and will leave the new electric hoist installation looking like a professional install. ULS Festoon systems include - Festoon track, track joints, support arms and brackets, flat cable trolleys, towing trolley, end anchor, and end stop and ULS even supply the correct power cable for the electric hoist.
INSTALLATION of Stahl ST Electric Chain Hoist - DO YOU NEED HELP - We have fully qualified engineers available to install Electric Hoists at your premises - call ULS Lifting to obtain your electric hoist installation quotation or additional information.
Suspension Types for Electric Chain Hoists. your new Stahl Electric Chain Hoist can be supplied with various different suspension options. the standard electric chain hoist is usually supplied with hook suspension. A Lug suspension version is also available, both the hook and lug suspension is common when attaching to a suspension point on a jib crane or onto a beam that already has a moving trolley. If you have not got a suitable trolley already, then the push travel trolley option is the correct option if you require manual movement along a crane beam or an I-beam style Jib Crane. On larger capacity electric chain hoists a powered trolley is the most practical option, using a powered travel trolley eliminates all the manual movement of the load by the operator, helping with precise placement of the object being positioned. If you require any more technical help in selecting the correct electric hoist and the correct options, feel free to call the ULS sales team today.

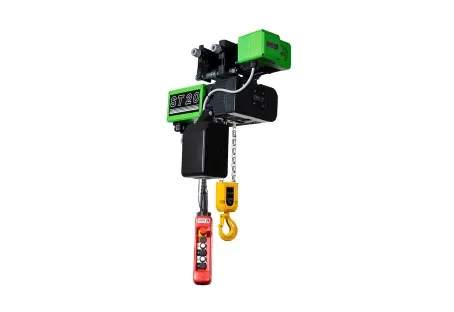

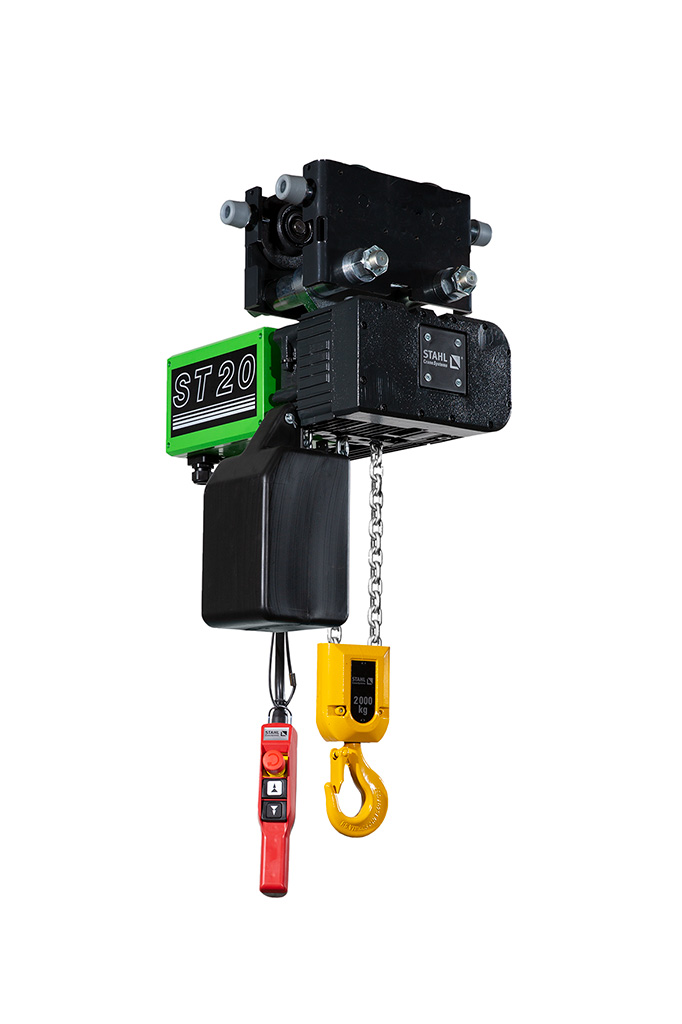

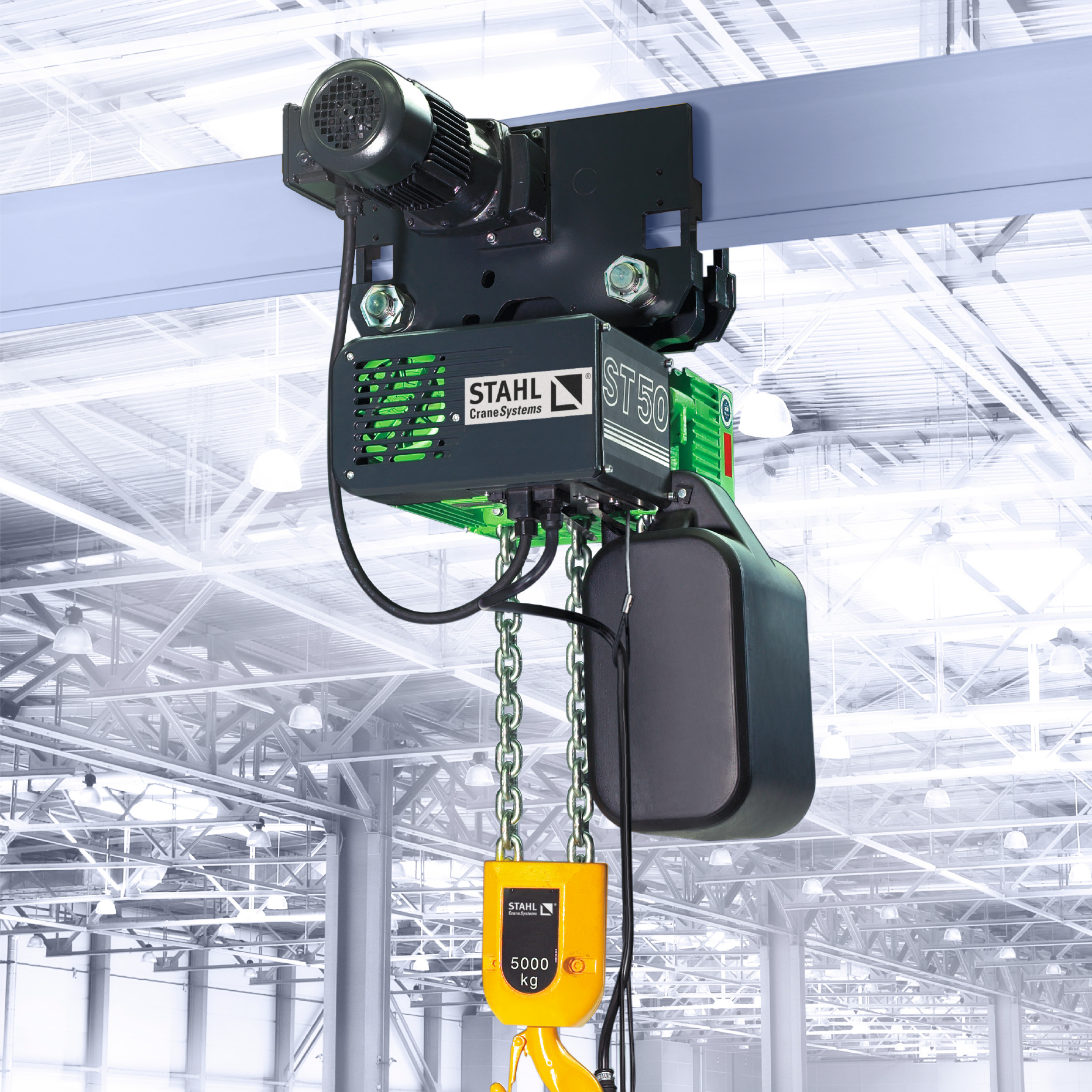

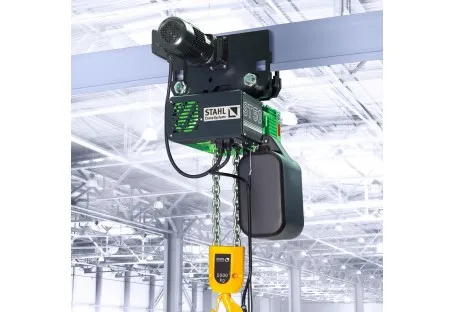

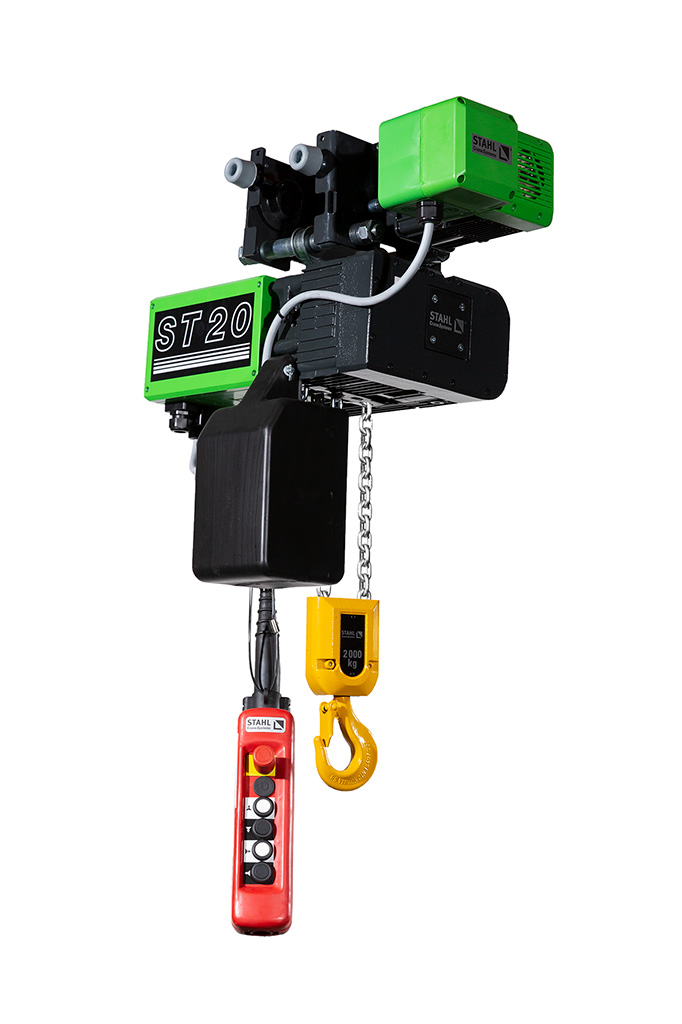

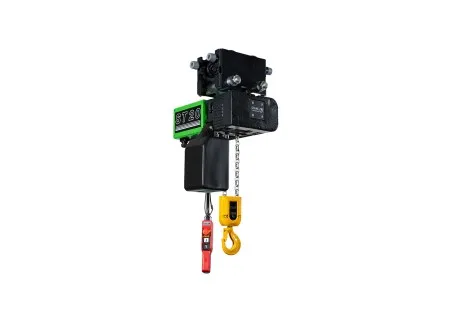

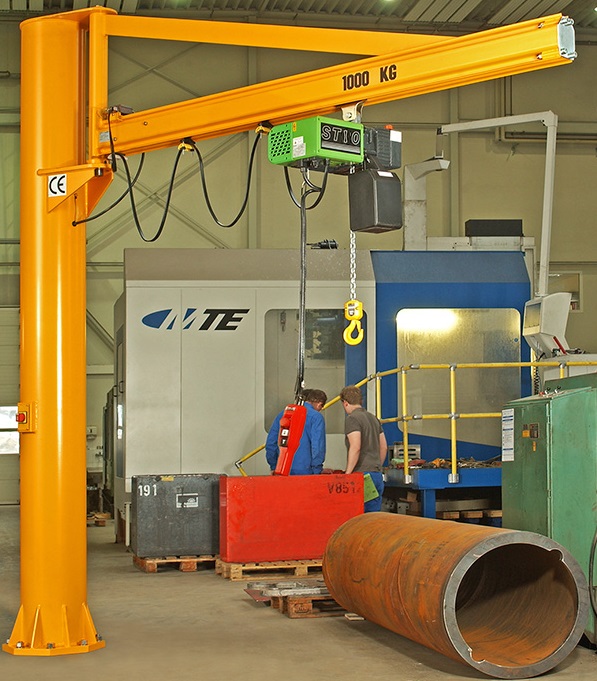

ST is a very versatile hoist for trolley variants - Both manual trolley and electric trolley are available.
Different construction types and trolley variants for the ST chain hoist open up the most varied applications in crane and systems manufacturing. Individually tailored to your specific requirements as a stationary hoist or for use with a trolley. The trolleys are equipped as standard with one travel speed, as an option the motors can be supplied with two travel speeds. But in this matter too we are open to your requirements. The Stahl ST Electric chain hoists are known worldwide for their flexible and versatile use. Compact dimensions and extremely short approach dimensions help to make optimum use of the production shop.
Suspension for stationary positioned hoists.

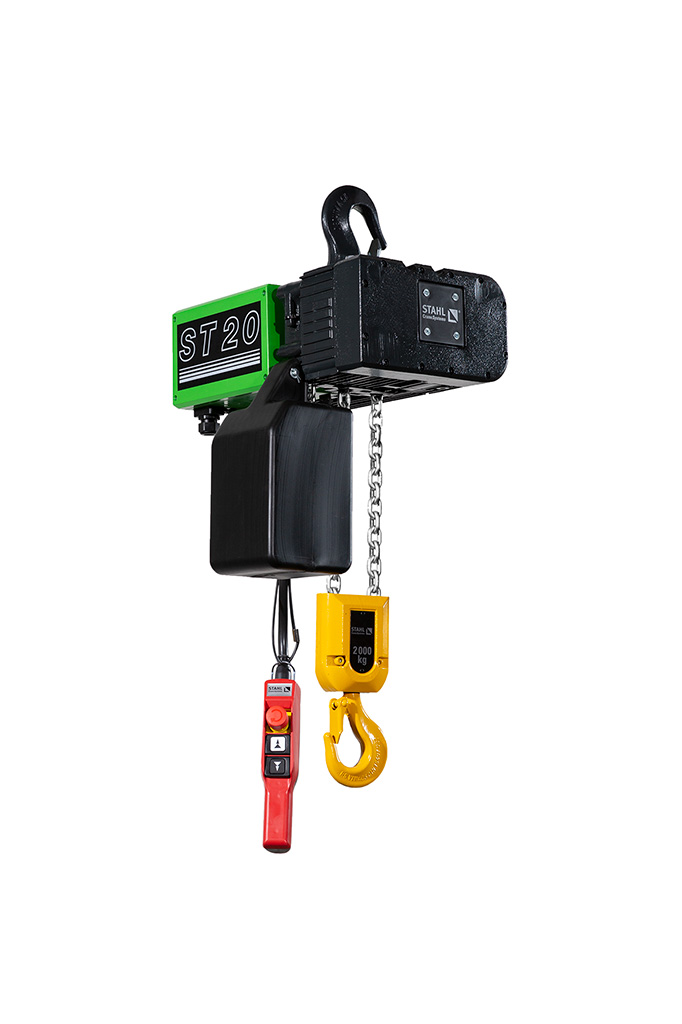

The standard stationary Stahl ST chain hoist has hook suspension, for quick and easy attachment to a suitable trolley or suspension point. However, you can also choose eye suspension or even rigid suspension for your electric hoist.
The eye suspension is used when the chain hoist is fixed onto a suitable suspension point, meaning the hoist is only rarely moved to a different location, while the low headroom with the eye permits long hook paths even in low-ceilinged rooms.
If the ST chain hoist is to be permanently mounted, for example in system manufacture, we recommend rigid suspension. Here too the extremely short headroom is of advantage. In addition, the rigid mounting prevents the chain hoist from swinging on the trolley.
Foot mounting for the stationary version
In order to utilize space optimally in low-ceilinged rooms the ST chain hoist can be bolted from below onto a foot mounting.
Stahl ST Electric Chain Hoist - 400volt output
The chain hoists ST 05 to ST 60 form a programme of professional hoists with a working load range from 125 to 6300 kg.
They are distinguished by characteristics offering decisive advantages in use. It is a programme such as is only to be expected from a pioneer in material handling.
ST chain hoists
The ST chain hoist programme is one of the most distinctive and comprehensive programmes on offer today worldwide. Each chain hoist model has individual advantages as regards its performance characteristics; all share STAHL Crane Systems' legendary material handling competence.
Convincing advantages combined in series - hoist for a hoist!
Extremely safe chain hoist - The ST 10 - ST 60 models have a patented chain guide made of solid cast metal. The enclosed chain guide integrates the load-bearing components into a single sub-assembly, thus the load is supported where it is applied - suspension is direct, and the power flux is not transmitted through the housing!
Extremely simple maintenance of the chain drive thanks to the overhung drive shaft. The chain sprocket, chain ejector and chain guide are easy to dismantle and assemble for servicing.
Extremely easy inspection of the brakes - no adjustment necessary (ST 10-60).
Extremely fast availability. We achieve the shortest delivery times for all chain hoists of the ST series by means of pre-assembled components and up-to-date production control.
Further advantages of the ST chain hoists:
Reduced dimensions
Powerful drive technology made-to-measure
Many options available
Extremely wear-resistant chains in special quality
Well-rounded product range from 125 kg - 6300 kg
Smooth-running trolleys
Customer-specific solutions
Model | Capacity | Hoist Speed | Fall of Chain | Weight Hoist only | Weight with Push Trolley | Weight with Electric Trolley |
ST 0501-8/2 | 125Kgs | 8 & 2m/Min | Single | 18Kgs | 24Kgs | 42Kgs |
ST 0502-8/2 | 250Kgs | 8 & 2m/Min | Single | 18Kgs | 24Kgs | 42Kgs |
ST 0502-8/2 | 500Kgs | 4 & 1m/Min | Two | 18Kgs | 26Kgs | 42Kgs |
ST 1005-8/2 | 500Kgs | 8 & 2m/Min | Single | 38Kgs | 46Kgs | 59Kgs |
ST 1005-8/2 | 1000Kgs | 4 & 1m/Min | Two | 41Kgs | 53Kgs | 62Kgs |
ST 2010-8/2 | 1000Kgs | 8 & 2m/Min | Single | 72Kgs | 84Kgs | 88Kgs |
ST 3016-8/2 | 1600Kgs | 8 & 2m/Min | Single | 72Kgs | 98Kgs | 107Kgs |
ST 2010-8/2 | 2000Kgs | 4 & 1m/Min | Two | 75Kgs | 101Kgs | 110Kgs |
ST 5025-6/1 | 2500Kgs | 6.3 & 1.5m/Min | Single | 118Kgs | 101Kgs | 110Kgs |
ST 3016-8/2 | 3200Kgs | 4 & 1m/Min | Two | 82Kgs | 112Kgs | 130Kgs |
ST 5025-6/1 | 5000Kgs | 3.2 & 0.75m/Min | Two | 138Kgs | N/A | 201Kgs |
Technical features at a glance
Solid, high-tensile chain guide (6) enclosing the chain drive completely, ensures that the chain runs reliably even in harsh operating conditions.
Fast hoisting speeds, powerful motor (2); 1 or 2 hoisting speeds (1:4).
Low-maintenance, asbestos-free electromagnetic disc brake (1) on ST 10-ST 60, sliding rotor brake motor (conical brake) on ST 05. Long service life - safe even in inching operation.
Slipping clutch (4) easily adjusted from outside. Accurate reaction and low impact factor due to integration into 2nd gear step
Up to 2000 kg (ST 2010-8..) optionally direct or contactor control, above this capacity as standard equipment contactor control with the main contactor, control voltage 48 V
Easy handling with an ergonomic control pendant.
Extremely short headroom whether with eye suspension, rigid suspension or trolley.
Rigid suspension permits low headroom for installation in systems and prevents the chain hoist from swinging on the trolley.
Wear-resistant, case-hardened chain sprocket (7).
Two travel speeds (1:4) permit accurate positioning of the load (option).
Simple electrical installation by means of plug connections.
Constant recording of operating hours by means of an optional operating hours counter.
Stahl ST Electric Chain Hoist - 400volt output
The hoist is supplied fully tested and in good working order.
Supplied with operating instructions and relevant conformity certificate.
12 months standard warranty
Please note - According to prevailing national/international occupational safety and health regulations, HOISTING EQUIPMENT must be inspected at least annually by a competent person. Adverse working conditions may dictate shorter inspection periods.
Please contact our Sales Team @ ULS if you require us to carry out your annual servicing on this product or any similar products.
You will find hoisting technology and crane components from STAHL Crane Systems all around the world. Developed by engineers and experts, built with the greatest care in line with our tried-and-tested quality standards. All over the world, many companies from various branches of industry have decided on the maximum safety and quality, of premium products from STAHL Crane Systems. Our global orientation with subsidiaries abroad and over 100 sales partners gives our customers the assurance that we are in their vicinity wherever our products are used on the world market.
