80Kgs SWL Column Mounted Jib Cranes - Over Braced

Key notes for ordering:

Dispatched as a kit with instructions, decide on extras like isolator for electrics, festoon system for elec hoist. Contact us for installation prices. Suppled with certification

Estimated lead time:Manufactured in UK to Order Approx. 3 - 4 Weeks Delivery

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

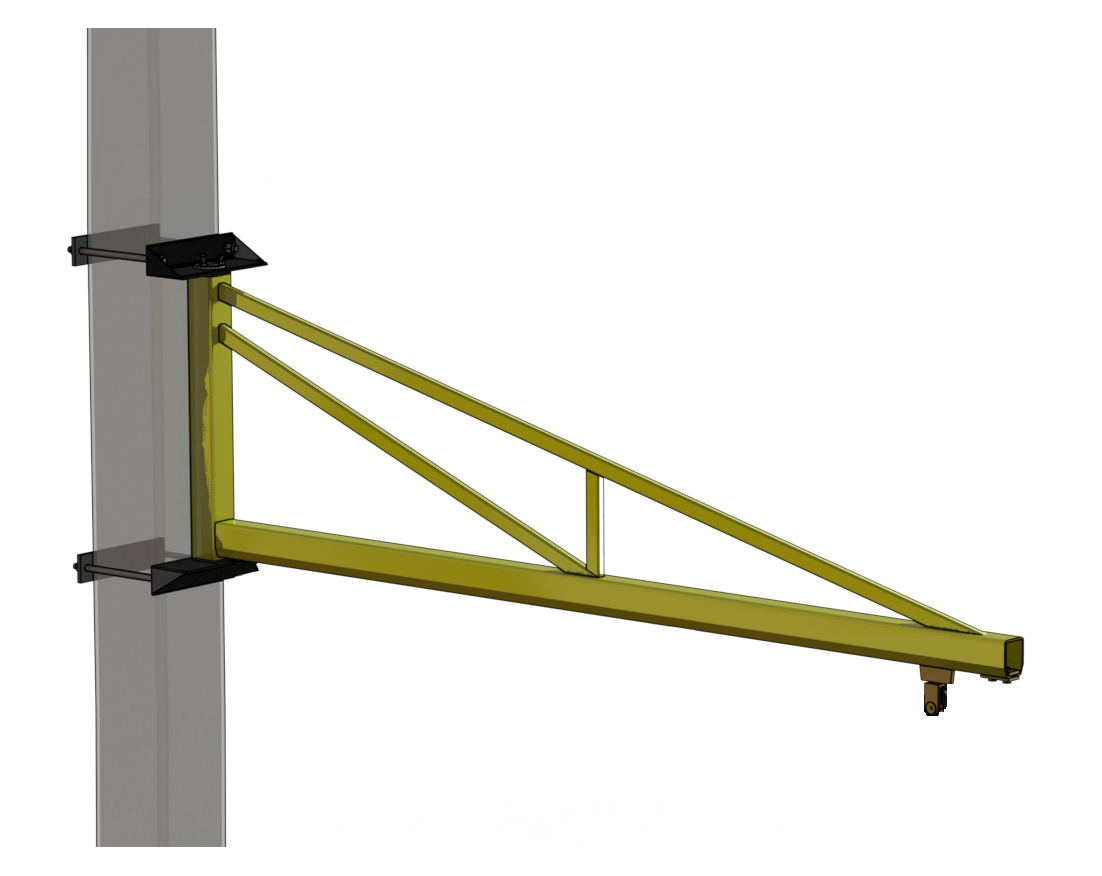

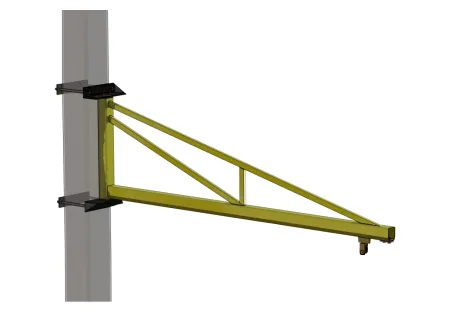

80Kgs SWL Column Mounted Jib Cranes - Over Braced

Brand:

Capacity

80Kgs

Description

80Kgs SWL Column Mounted Jib Cranes - Over Braced versions that are manufactured in the UK. Also known as a clamp around the Jib crane as the supporting brackets can be attached to any suitable building column/stanchion or pillar.

£498.98 ex VAT

£598.78 inc VAT

Please contact our sales team if the following extras are required:

1 - Adjustable Slew Limits
2 - Slewing Lock
3 - Installation
Add to cart Add to quote

Related products

Festoon System for Overhead Cranes & Hoists

FEST SS

C Rail Style Festoon System  (Full Kit) including flat form power cable, cable trolleys & track. These simple-to-install lightweight kits provide a safe and economical means of supplying power to overhead hoists, overhead cranes, and most other types of moving machinery that travels along a fixed track. Once fitted eliminates dangerous dangling down cables and looks like a professional install or refit

£124.98 ex VAT

£149.98 inc VAT

80Kgs SWL Column Jib Crane c/w Electric Hoist

CMJC

80Kgs SWL Column Jib Crane c/w Electric Hoist is manufactured in the UK. These 80Kgs Column Mounted or I-BEAM Mounted Jib cranes are supplied complete with a quality 400v Electric Chain Hoist, this saves you time in selecting which hoist and trolley to order with your Jib arm. Just confirm the working height and Jib Arm length.

£509.98 ex VAT

£611.98 inc VAT

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

Stahl ST Electric Chain Hoist - 400volt output

ST

Stahl ST Electric Chain Hoist - 400volt output series from Stahl is an acknowledged top-level quality product that ranks amongst the world's most distinctive and extensive ranges of electric hoists on offer - A robust classic design/layout which proves itself in operation day for day. Powerful, reliable yet undemanding with power consumption and maintenance.

£1,388.98 ex VAT

£1,034.18 ex VAT

£1,241.02 inc VAT

80Kgs SWL Column Mounted Jib Crane Galvanised Finish for Outdoor Usage

CMJC-GALV

80Kgs SWL Column Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.

£1,048.88 ex VAT

£1,258.66 inc VAT

80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage

WMJC-GALV

80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.

£988.98 ex VAT

£1,186.78 inc VAT

80Kgs SWL Column Mounted Jib Cranes - Under-Braced

UBCMJC

80Kgs SWL Column Mounted Jib Cranes - Under-Braced. Manufactured in the UK. Designed for low-height situations or use with an electric hoist and powered trolley. Jib Arm can be supplied to any length between 2m-6m and slew through 180° giving a very wide working area.

£848.98 ex VAT

£1,018.78 inc VAT

80Kgs SWL Column Mounted Jib Cranes - Over Braced versions manufactured in the UK. Also known as a clamp around the Jib crane, as the supporting brackets can be attached to any suitable building column/stanchion or pillar. Supplied in a lightweight two-part kit form, the main slewing arm, which the lifting gear, such as a hoist, will move along, and a pair of brackets that can clamp around the pillar or column. The Jib Arm is connected to the brackets using the supplied pivot pin or kingpin. The arm can be manufactured to any length between 2m and 6m, and the component is designed to slew through 180°, giving a vast working area.

These lightweight column-mounted jib cranes are manufactured from profile track, making them a cost-effective solution, if you are looking for a Jib Crane suspended securely from an existing column, pillar, or stanchion within your building. Please note that Anti-Slip measures must be taken to ensure the Jib Arm does not slip or move down the column to which it is attached. The  Jib Arm has an integral trolley already fitted, making connecting to your hoist, spring balancer, or vacuum lifter even more straightforward.

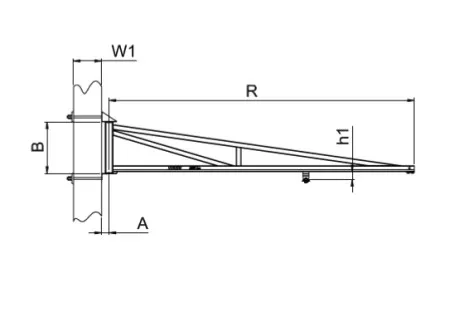

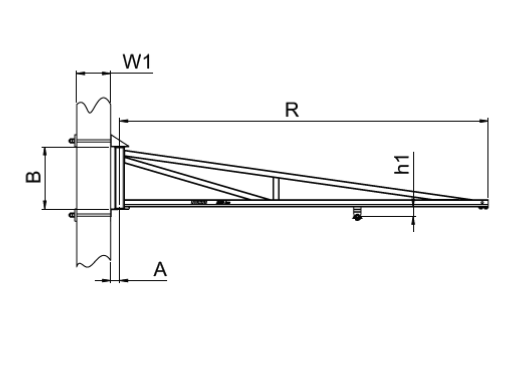

Dimensions for illustration only 80Kgs SWL Column Mounted Jib Cranes - Over Braced versions
Model
SWL
Overall Height Of Arm
Trolley Depth
Arm Length (Radius of reach)
Total Weight
CMJC80R2
80Kgs
400mm
65mm
2,000mm (2m)
40Kg
CMJC80R3
80Kgs
500mm
65mm
3,000mm (3m)
42Kgs
CMJC80R4
80Kgs
600mm
65mm
4,000mm (4m)
58Kgs
CMJC80R5
80Kgs
900mm
65mm
5,000mm (5m)
71Kgs
CMJC80R6
80Kgs
900mm
77mm
6,000mm (6m)
95Kgs

Why Choose an 80Kgs SWL Column Mounted Jib Cranes - Over Braced?
There are many advantages to purchasing a Column Mounted over-braced Jib Crane. They are highly versatile within the factory, speeding up lifting and moving components off presses or workbenches, loading or unloading lorries, and lifting heavy objects such as granite, timber, or steel.

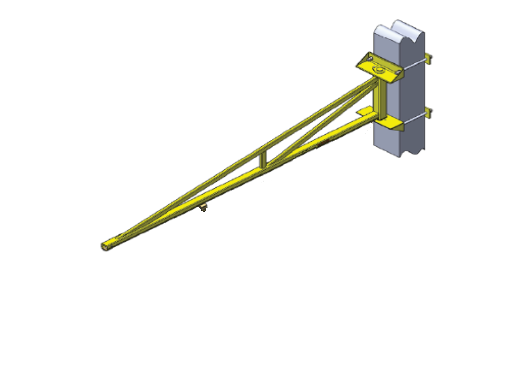

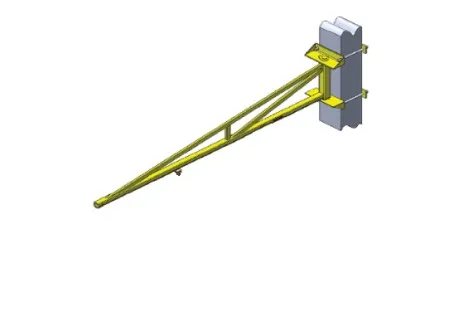

There are only two main parts to an Over Braced Profiled Clamp Around Column mounted jib Crane: The Jib Arm and connecting brackets to attach to existing steelwork. As a result, these simple, lightweight manual jib cranes have fewer parts to maintain, making them highly reliable, which means they don't break down, so there is no loss of production.


Easy to install
These 80Kgs SWL Column Mounted Jib Cranes - Over Braced versions bolt to existing columns, pillars, stanchions, or any suitable structural steelwork. (I am unsure, please seek assistance from a structural engineer). Ch ose your Clamp round Jib Crane from the drop-down menus above, and we will arrange to manufacture the Jib and dispatch it directly to your site address. Th n once delivered, the Jib needs to be secured to the steelwork (Anti-slip measures must be taken to ensure that the jib crane can't slip down the support column). We at Ultimate Lifting Solutions offer Jib crane installation service and can provide complete installation by using our highly trained engineers or just the commissioning/ load testing. We c n offer a package to meet your requirements.

Because of the simple design, they are inexpensive to both buy and maintain compared to other cranes. Unde normal working conditions, they only need an industry standard 12 monthly services. We, Ultimate Lifting Solutions, offer this service and can provide various maintenance/service packages to meet your requirements.

How does a Swing Jib Crane work?
As mentioned, a standard Column Mounted swing Jib has two main parts - The Arm and mounting brackets. The rm can rotate from left to right and vice versa. The s ing or slew angle is set at 180° as standard. On al our swing jibs up to 1,000Kgs, they will slew quickly without the powered assistance requirements, keeping costs down.

The arm on our Jib cranes will be supplied with an integral push travel trolley, this moves along the entire length of the arm, and the trolley gives you the freedom and flexibility to reach into corners of your factory with ease.

What else is required for column Jib Crane?
You now have your Swing Jib fitted to the steelwork. It would help if you now had a hoist of some type, a vacuum lifter, or a spring/tool balancer. These fit easily to the supplied trolley within the jib crane arm. You need to decide what hoist you need. To keep the costs down, a manual hoist is the cheapest option, but you will not save on production time, as they are slow and need assistance by hand, and sometimes for more oversized items, you might not be able to reach the hoist chain. The second and best option is an Electric Chain Hoist, these hoists enable you to lift and lower your components quickly, cutting down on production time, and it will soon pay for itself in time saved.

Installation
As mentioned above, the Column Mountable Jib Crane can easily install. Once installed and the hoist fitted, all left is commissioning, testing, and signing off the Jib as safe to use. We are happy for all our customers to install themselves using the instructions supplied or find their installation team. But, these days, time is precious.

Do you have t me to sort engineers and dates, e c?
Let us save you time, as we are also more than happy to offer our engineers to remove this task. We can install the Jib, hoist, commission, and test, and we will not leave the site until everything works correctly and safely.

All our manufactured Jibs are

Duty classification:  A3 according to BS 733 : 1990

All jibs are lubrication free.  The pivot bushes are acetal and therefore do not require lubrication. The trolleys running surfaces are also lubrication free.

Manual slewing and trolley travel operation

Minimal maintenance requirement

Clutch controlled slewing mechanism, can be tightened/loosened to control how freely the arm pivots.

Bases are fully welded to the column – in most situations this removes the need for an oversized load spreading plate or setting an anchor frame into concrete, and therefore making installation much quicker and more cost effective.


Key Points of our UK manufactured Jib Cranes

SWL - 80kg

Arm length - 2m up to 6m

Slew Angle - 180-degree manual slew

Trolley - Fitted with integrated push travel trolley for suspending hoists, vacuum lifters and tool balancers from

Fast delivery - We aim to delivery all our Swing Jibs within 10 to 14 days


Optional extras

Adjustable slewing limits, To reduce the swing arc

Slewing lock, to fix the arm in to a specific position

Electrical Isolator - required if electric hoist to be used in conjunction with the Jib Arm

Electric Hoist power feed - supply full festoon system including flat form feed cable, ideal solution for carrying electric supply cable to the hoist,

Full Electric Kit - Our kit includes everything required to fun Electric Hoist (Isolator, Flatform Supply Cable, Cable Runners)

Optional Floor Fixing Bolts

Kit can be supplied to enable the pin to be fitted from below.

Jib Cranes as a rule do not need much service or maintenance. Yet, general observations of the overall condition of the jib and the hoist connected to it can be carried out by the operator - any faults should be reported immediately


More importantly to keep the Jib and hoists running at maximum efficiency and to keep within the UK laws with regarding LOLER inspections set out by HSE, both the Jib and the hoist on it should have a maintenance service scheduled no later than 12 months. This service should be undertaken by qualified service engineers - If you would like to know more about the servicing and general maintenance, please feel free to contact us, we do have qualified engineers and are happy to quote for all your crane servicing requirements.
