80Kgs SWL Column Jib Crane c/w Electric Hoist
Key notes for ordering:
Dispatched as a kit with instructions, decide on extras like isolator for electrics, festoon system for elec hoist. Contact us for installation prices. Suppled with certification
Estimated lead time:Manufactured in UK to Order Approx. 3 - 4 Weeks Delivery
Please call us if you need this item sooner
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
80Kgs SWL Column Jib Crane c/w Electric Hoist
All our Wall and Column mounted Jib Cranes are manufactured in the UK. These 80Kgs Column Mounted or I-BEAM Mounted Jib cranes are supplied complete with a quality manual chain hoist, that saves you time in selecting which hoist and trolley to order with your Jib arm. Just confirm the working height and Jib Arm length.
£487.98 ex VAT
£585.58 inc VAT
1 - Adjustable Slew Limits
2 - Slewing Lock
3 - Installation
C Rail Style Festoon System (Full Kit) including flat form power cable, cable trolleys & track. These simple-to-install lightweight kits provide a safe and economical means of supplying power to overhead hoists, overhead cranes, and most other types of moving machinery that travels along a fixed track. Once fitted eliminates dangerous dangling down cables and looks like a professional install or refit
£178.88 ex VAT
£214.66 inc VAT
80Kgs SWL Column Mounted Jib Cranes - Over Braced versions that are manufactured in the UK. Also known as a clamp around the Jib crane as the supporting brackets can be attached to any suitable building column/stanchion or pillar.
£498.98 ex VAT
£598.78 inc VAT
All our Column Mounted Jib Cranes are manufactured in the UK. These I-Beam or Column Mounted Jib Arms are supplied complete with a quality manual chain hoist, this will save you time in selecting which hoist and trolley to order. These column Jib cranes are ideal if you are looking for a crane suspended securely from an existing column, pillar or stanchion within your building. The arm can be manufactured to any length between 2m and 6m and the arm is designed to slew through 180° giving a very wide working area.
£487.98 ex VAT
£585.58 inc VAT
80Kgs Column Mounted Under Braced Jib Crane. Manufactured in the UK. Designed for low height situations or use with powered trolley. Jib Arm can be manufactured to any length between 2m-6m and slew through 180° giving a very wide working area.
£819.98 ex VAT
£983.98 inc VAT

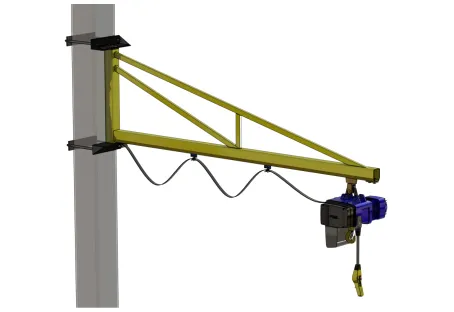

All our Column Mounted Jib Cranes are manufactured in the UK. Our Column Mounted Jib cranes are supplied complete with a quality Electric Chain Hoist and manual trolley, this saves you time in selecting which hoist and trolley to order. These I-Beam mounted Jib Arms are ideal if you require a crane suspended securely from an existing column, pillar or stanchion within your building. The arm can be manufactured to any length between 2m and 6m and the arm is designed to slew through 180° giving a very wide working area. Please note that Anti-Slip measures must be taken to ensure the Jib Arm does not slip or move down the column it is attached to. The arm has a trolley already fitted, making it even more simple for connecting to your hoist, spring balancer or vacuum lifter.
We have made it simple for you - To save you time and stress, we have put a Lifting Jib package together with both the Jib Arm and quality Electric Chain Hoist that fits directly onto the integral Push Travel Trolley inside the Jib arm - All you need to select is what height of lift you require on the manual hoist to suit your jib working height.
Full Electric Supply kit - If added to the order, everything is supplied that is required for installation of the jib/hoist. Within the kit is the main isolator, supply cable for the hoist (cut to a length suitable for the arm purchased) and the cable trollies to keep everything neat and tidy.

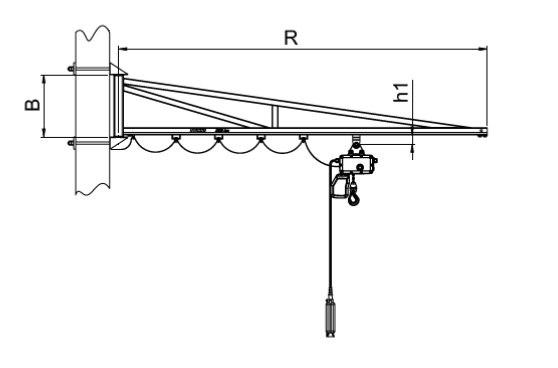

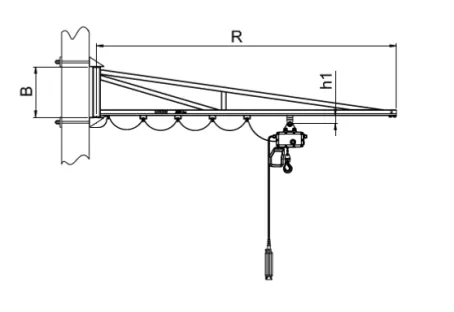

|Model||SWL||Overall Height Of Arm||Trolley Depth||Arm Length||Total Weight|
Why Choose a Column Mounted Jib Crane?
There are many advantages to purchasing a Column Mounted Jib Crane, they are extremely versatile within the factory, speeding uplifting and moving components off presses or workbenches, and loading or unloading lorries. Lifting heavy objects such as granite, timber or steel.
Column Jib cranes are made up of two main parts, the arm and set of brackets to attach to existing steelwork, therefore these simple manual jib cranes do not have many parts to maintain, making them extremely reliable, which in turn means they do not break down, so no loss in production time.
Easy to install
These column-mounted cranes simply just bolt to existing columns, pillars, stanchions or any suitable structural steelwork, once you have checked your column is suitable for a jib crane, choose which one you require from the drop-down menus, and we will arrange to manufacture the jib and dispatch it directly to site for your required delivery date. Then, when it is supplied to the site, The Jib just needs to be secured to the steelwork (Anti-slip measures must be taken to ensure that the jib crane can’t slip down the support column) - We at Ultimate Lifting Solutions offer this service and can offer full installation by using our own highly trained engineers or just the commissioning/ load testing, we can offer a package to meet your requirements.
Because of the simple design they are inexpensive to both buy and maintain compared to other cranes. under normal working conditions, they will only need an industry standard 12 monthly servicing. We at Ultimate Lifting Solutions offer this service and can offer various maintenance/service packages to meet your requirements.
How does a Swing Jib Crane work?
A standard swing Jib as mentioned has two main parts - The Arm and mounting brackets. The arm can rotate from left to right and vice versa, the swing or slew angle is set at 180° as standard. On all our swing jibs up to 1,000Kgs, they will slew with ease without the requirements of powered assistance, hence keeping the costs down.
The arm on our Jib cranes will be supplied with an integral push travel trolley, this moves along the full length of the arm, and the trolley gives you the freedom and flexibility to reach into corners of your factory with ease.
What else is required for column Jib Crane?
You now have your Swing Jib fitted. You now need a hoist of some type or a vacuum lifter or a spring/tool balancer, these fit easily to the trolley that was supplied already fitted within the jib crane arm. You just need to decide what hoist you need. To keep the costs down a manual hoist is the cheapest option, but you will not save on production time, as they are slow and do need assistance by hand, and sometimes for larger items, you might not be able to reach the hoist chain. The second option and best option is an Electric Hoist, these hoists enable you to easily lift and lower your components quickly, cutting down on production time, and it will soon pay for itself in time saved.
As mentioned above, the Jib Crane can be an easy install, once installed and the hoist fitted, all that is left is commissioning, testing and signing off the Jib as safe to use. we are more than happy for all our customers to install themselves using the instructions supplied or find their own installation team. But, these days time is precious, do you have time to sort engineers and dates etc, Let us save you time as we are also more than happy to offer our own engineers to take away this task. We can install the Jib, install the Hoist, commission, and test and we will not leave the site until everything is working correctly and safely.
All our manufactured Jibs are
Duty classification: A3 according to BS 733: 1990
All jibs are lubrication free. The pivot bushes are acetal and therefore do not require lubrication. The trolleys running surfaces are also lubrication free.
Manual slewing and trolley travel operation
Minimal maintenance requirement
A clutch-controlled slewing mechanism can be tightened/loosened to control how freely the arm pivots.
Bases are fully welded to the column – in most situations this removes the need for an oversized load spreading plate or setting an anchor frame into concrete, therefore making installation much quicker and more cost-effective.
Key Points of our UK-manufactured Jib Cranes
SWL - 80kg
Arm length - 2m up to 6m
Slew Angle - 180-degree manual slew
Trolley - Fitted with integrated push travel trolley for suspending hoists, vacuum lifters and tool balancers from
Fast delivery - We aim to deliver all our Swing Jibs within 10 to 14 days
Adjustable slewing limits, To reduce the swing arc
Slewing lock, to fix the arm into a specific position
Electrical Isolator - required if the electric hoist is to be used in conjunction with the Jib Arm
Full Electric Kit - Our kit includes everything required to fun Electric Hoist (Isolator, Flatform Supply Cable, Cable Runners)
Optional Floor Fixing Bolts
A kit can be supplied to enable the pin to be fitted from below
Jib Cranes as a rule do not need much service or maintenance. Yet, general observations of the overall condition of the jib and the hoist connected to it can be carried out by the operator - any faults should be reported immediately
More importantly to keep the Jib and hoists running at maximum efficiency and to keep within the UK laws with regarding LOLER inspections set out by HSE, both the Jib and the hoist on it should have a maintenance service scheduled no later than 12 months. This service should be undertaken by qualified service engineers - If you would like to know more about the servicing and general maintenance, please feel free to contact us, we do have qualified engineers and are happy to quote for all your crane servicing requirements.
