80Kgs SWL Column Mounted Jib Cranes - Under-Braced

Estimated lead time:Manufactured in the UK to Order. Approx. 3 - 4 Weeks Delivery

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

80Kgs SWL Column Mounted Jib Cranes - Under-Braced

Brand:

Capacity

80Kgs

Description

80Kgs SWL Column Mounted Jib Cranes - Under-Braced. Manufactured in the UK. Designed for low-height situations or use with an electric hoist and powered trolley. Jib Arm can be supplied to any length between 2m-6m and slew through 180° giving a very wide working area.

£848.98 ex VAT

£1,018.78 inc VAT

Please contact our sales team if the following extras are required:

1 - Adjustable Slew Limits
2 - Slewing Lock
3 - Installation

Related products

Festoon System for Overhead Cranes & Hoists

FEST SS

C Rail Style Festoon System  (Full Kit) including flat form power cable, cable trolleys & track. These simple-to-install lightweight kits provide a safe and economical means of supplying power to overhead hoists, overhead cranes, and most other types of moving machinery that travels along a fixed track. Once fitted eliminates dangerous dangling down cables and looks like a professional install or refit

£124.98 ex VAT

£149.98 inc VAT

80Kgs SWL Column Jib Crane c/w Electric Hoist

CMJC

80Kgs SWL Column Jib Crane c/w Electric Hoist is manufactured in the UK. These 80Kgs Column Mounted or I-BEAM Mounted Jib cranes are supplied complete with a quality 400v Electric Chain Hoist, this saves you time in selecting which hoist and trolley to order with your Jib arm. Just confirm the working height and Jib Arm length.

£509.98 ex VAT

£611.98 inc VAT

80Kgs SWL Column Mounted Jib Cranes - Over Braced

CMJC

80Kgs SWL Column Mounted Jib Cranes - Over Braced versions that are manufactured in the UK. Also known as a clamp around the Jib crane as the supporting brackets can be attached to any suitable building column/stanchion or pillar.

£498.98 ex VAT

£598.78 inc VAT

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

Stahl ST Electric Chain Hoist - 400 volt output

ST

**ULS Top Product** Stahl ST Electric Chain Hoist - 400volt output series from Stahl is an acknowledged top-level quality product that ranks amongst the world's most distinctive and extensive ranges of electric hoists on offer - A robust classic design/layout which proves itself in operation day for day. Powerful, reliable yet undemanding with power consumption and maintenance.

£1,469.99 ex VAT

£1,057.98 ex VAT

£1,269.58 inc VAT

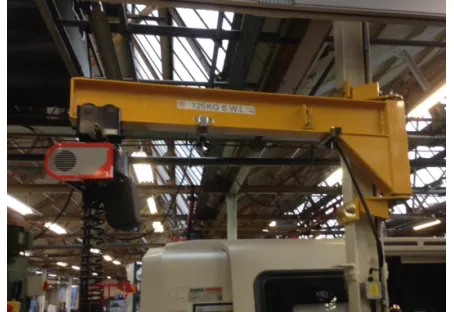

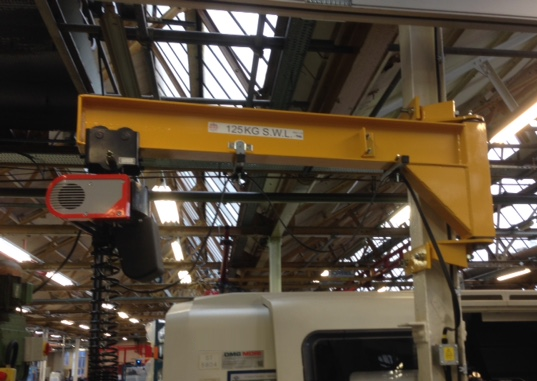

ULS Lifting Solutions are pleased to offer our UK-manufactured and fully certified range of 80Kgs SWL Column Mounted Jib Cranes - Under-Braced. They will create an ideal solution for use within a factory or workshop that has structural steelwork, pillars, or stanchions, as this Jib can be bolted or welded directly to the steelwork. By manufacturing the clamp around the swing Jib arm from I-Beam steel enables the strengthening to be engineered under the Jib Arm thus creating a more compact Jib that can be used in areas that may be restricted by height.

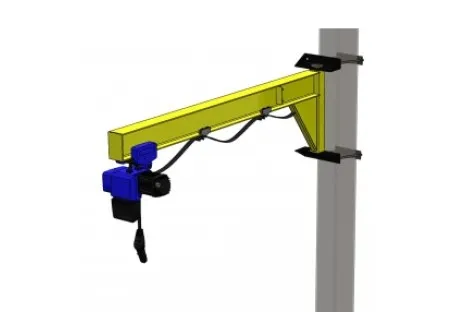

Another great selling point to the Column Mounted Jib Cranes Under-Braced version it enables the use of a Hoist with a powered trolley to assist the movement along the beam, ideal if the Jib arm is being used over a tank or raised floor areas. The arm is designed to have either a manual or powered trolley, making it even more simple for connecting to your hoist, spring balancer, or vacuum lifter.

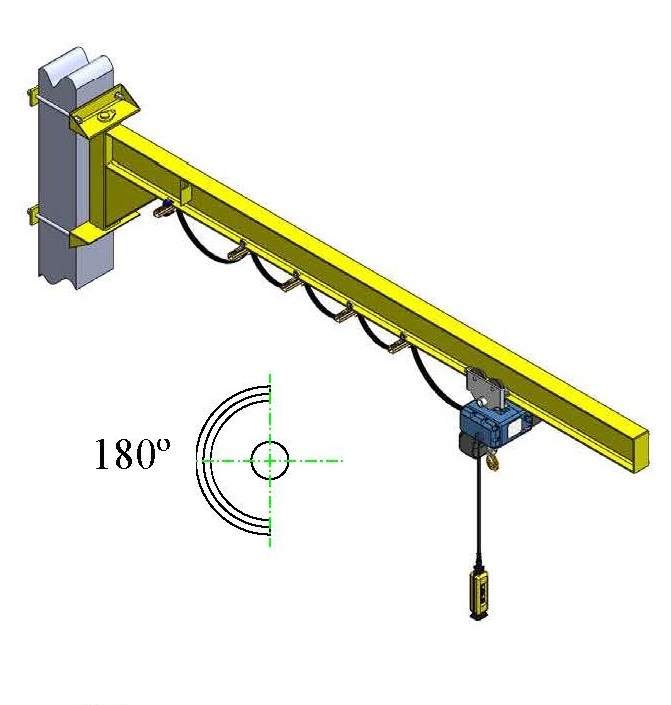

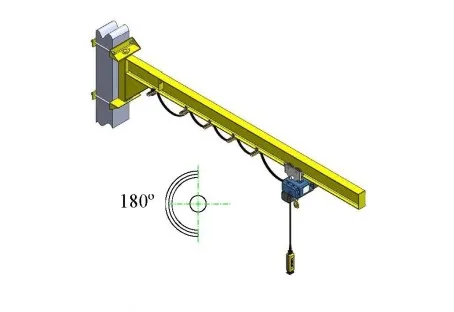

Supplied in a simple two-part kit form, the main slewing arm which the hoist will move along, and a pair of brackets that will clamp around the pillar or column. The two parts are connected using the supplied pivot pin. The arm can be manufactured to any length between 2m and 6m and the arm is designed to slew through 180° giving a very wide working area.

Please note - Anti-Slip measures must be taken to ensure the Jib Arm does not slip or move down the column once fitted. Ultimate Lifting Solutions can advise or can Install all types of Jib cranes and Jib Arms.

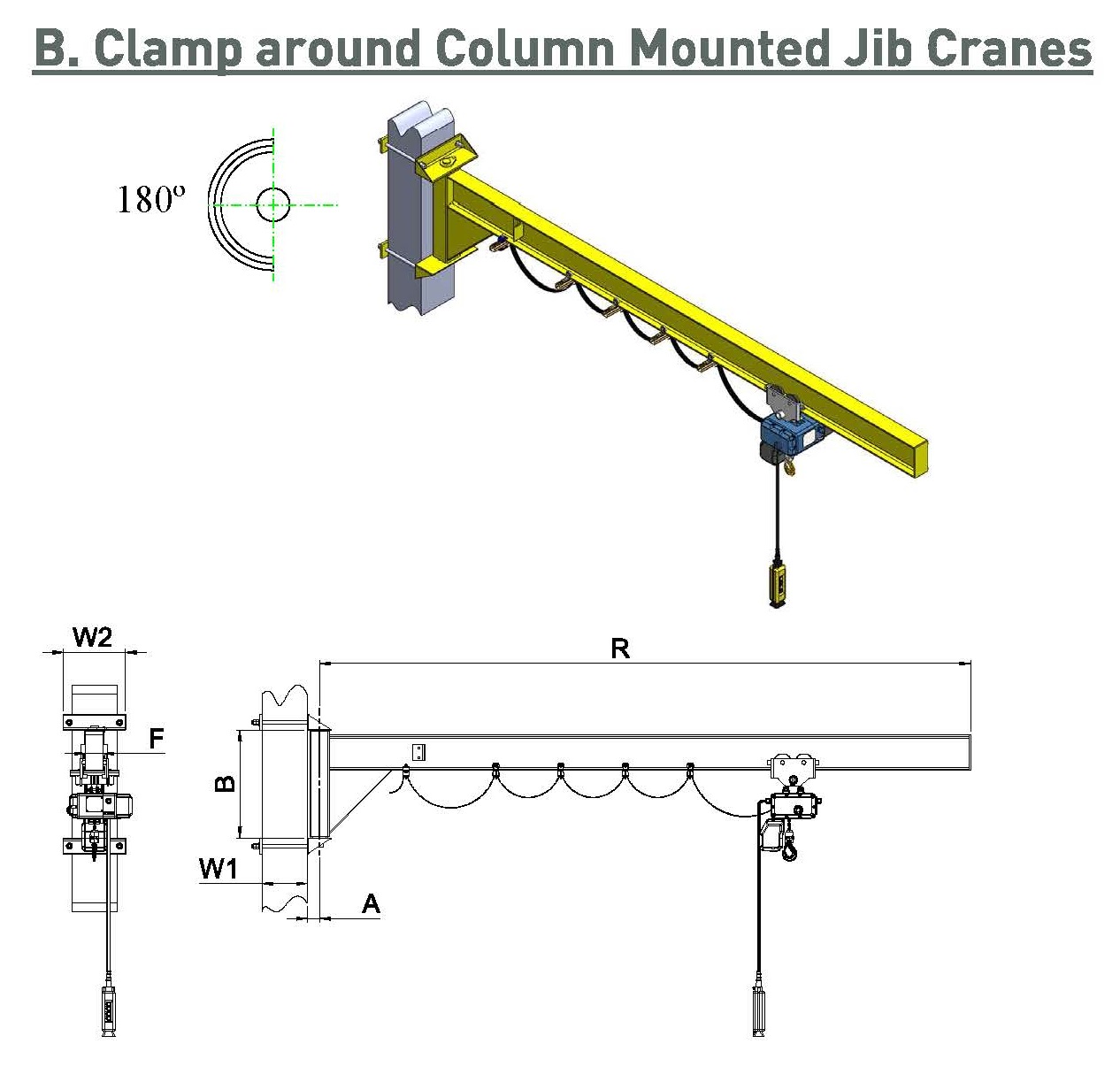

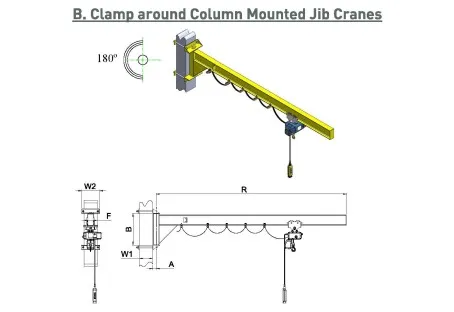

Dimensions for 80Kgs Column Mounted under-braced Jib Cranes (for illustration only)
ModelSWLArm Length (R) Radius of reach
Bracket WidthArm Height (B)Total Weight
UBCMJC8R2
80Kgs
2,000mm (2m)
380mm
400mm80Kg
UBCMJC80R3
80Kgs
3,000mm (3m)
380mm
500mm82Kgs
UBCMJC80R4
80Kgs
4,000mm (4m)
380mm
600mm
101Kgs
UBCMJC80R5
80Kgs
5,000mm (5m)
380mm
900mm147Kgs
UBCMJC80R680Kgs
6,000mm (6m)
380mm
900mm
189Kgs
All 80Kgs SWL Column Mounted Jib Cranes - Under-Braced supplied by Ultimate Lifting Solutions Limited are supplied with Duty Classification A3 according to BS733: 1990
All Under Braced Column Mounted Jib Cranes supplied by Ultimate Lifting Solutions Limited are supplied fully tested & Certified.
The paint Finish is a high-quality Yellow Powder Coat to RAL1004 - other colours available on request.
Galvanised Column Mounted Jib Arms and Stainless Steel Column Mounted Jib Arms are available on request.

Why Choose an 80Kgs SWL Column Mounted Jib Cranes - Under-Braced Crane?
There are many advantages to purchasing a clamp around Under-Braced Jib Crane, they are extremely versatile within the factory, speeding uplifting, and transporting equipment off presses or workbenches, and loading or unloading lorries. Lifting heavy objects such as granite, timber, or steel. Manufactured with a Steel I-Beam enable this style of swing Jib arm to be used with either push travel or motorized traveling trolley
Column Jib cranes are made up of two main parts, the arm and set of brackets to attach to existing steelwork, therefore these simple manual jib cranes do not have many parts to maintain, making them extremely reliable, which in turn means they do not break down, so no loss in production time.

Easy to install
These 80Kgs SWL Column Mounted Under-Braced swing cranes simply just bolt to existing columns, pillars, stanchions, or any suitable structural steelwork, once you have checked your column is suitable for a jib crane, choose which one you require from the drop-down menus, we will arrange to manufacture the jib and dispatch it direct to site for your required delivery date. Then, when it is supplied to the site, The Jib just needs to be secured to the steelwork (Anti-slip measures must be taken to ensure that the jib crane can’t slip down the support column) -  We at Ultimate Lifting Solutions offer this service and can offer full installation by using our own highly trained engineers or just the commissioning/ load testing, we can offer a package to meet your requirements.

Because of the simple design, they are inexpensive to both buy and maintain compared to other cranes. Under normal working conditions, they will only need an industry standard 12 monthly service. We at Ultimate Lifting Solutions offer this service and can offer various maintenance/service packages to meet your requirements.

How do Swing Jib Arm work?
A standard 80Kgs SWL Column Mounted Jib Cranes - Under-Braced version has two main parts. The Swing Arm and Mounting Brackets. The arm can rotate from left to right and vice versa, the swing or slew angle is set at 180° as standard. On all our I-Beam style swing jib arms up to 1,000Kgs, they will slew with ease without the requirements of powered assistance, hence keeping the costs down.
The arm on our Jib cranes will be supplied with an integral push travel trolley, this moves along the full length of the arm, and the trolley gives you the freedom and flexibility to reach into corners of your factory with ease.

What else is required for 80Kgs SWL Column Mounted Jib Cranes - Under-Braced
You now have your Swing Jib fitted. You now need a hoist of some type or a vacuum lifter, Lifting Chains, or a spring/tool balancer, these fit easily to the Jib crane via a traveling trolley.  You just need to decide what hoist you need. To keep the costs down a manual hoist is the cheapest option, but you will not save on production time, as they are slow and do need assistance by hand, and sometimes for larger items, you might not be able to reach the hoist chain. The second option and best option is an Electric Hoist, these hoists enable you to easily lift and lower your components quickly, cutting down on production time, and it will soon pay for itself in time saved.

Installation of 80Kgs SWL Column Mounted Jib Cranes Under-Braced
The Swing Jib Arm is easy to install on site, and once installed and the hoist fitted, all that is left is commissioning, testing and signing off the Jib as safe to use. we are more than happy for all our customers to install themselves using the instructions supplied or find their own installation team. But, these days time is precious , do you have time to sort engineers and dates etc, Let us save you time as we are also more than happy to offer our own engineers to take away this task. We can install the Jib, install the Hoist, commission, test and we will not leave site until everything is working correctly and safely.

Ask the Experts about Swing Jibs and Cranes
Ultimate Lifting Solutions, with over 40 years experience within both the crane industry and lifting gear industry are happy to assist with any questions with regards to under braced Jib cranes and lifting gear. We want our customer to choose the correct kit for the correct job and the best price. So we are always available to answer questions and help design bespoke crane systems or discuss the lifting gear to hang off the crane or discuss the installation of the Jib Crane. Contact Ultimate Lifting Solutions team today by telephone 01384 986 026 or by email sales@ulslifting.com

80Kgs SWL Column Mounted Jib Cranes - Under-Braced


All our manufactured swing Jib arms are

Duty classification:  A3 according to BS 733 : 1990

All jibs are lubrication free. The pivot bushes are acetal and therefore do not require lubrication.

Manual slewing operation.

Minimal maintenance requirement.

Clutch controlled slewing mechanism, can be tightened/loosened to control how freely the arm pivots.

Bases are fully welded to the column – in most situations, this removes the need for an oversized load spreading plate or setting an anchor frame into concrete, therefore making installation much quicker and more cost-effective.


Key Points of our UK-manufactured Jib Cranes

SWL - 80kg.

Arm length - 2m up to 6m.

Slew Angle - 180-degree manual slew.

Trolley - Can be Fitted with a push travel trolley or powered trolley for suspending hoists, vacuum lifters, and tool balancers.

Fast delivery - We aim to deliver all our Swing Jibs within 2 to 3 weeks


Optional extras

Adjustable slewing limits, To reduce the swing arc

Slewing lock, to fix the arm into a specific position

Electrical Isolator - required if the electric hoist is to be used in conjunction with the Jib Arm



Full Electric Kit - Our kit includes everything required to fun Electric Hoist (Isolator, Flatform Supply Cable, Cable Runners)


The kit can be supplied to enable the pin to be fitted from below.

Under Braced Column Mounted Jib Cranes as a rule do not need much service or maintenance. Yet, general observations of the overall condition of the jib and the hoist connected to it can be carried out by the operator - any faults should be reported immediately


More importantly to keep the Jib and hoists running at maximum efficiency and to keep within the UK laws regarding LOLER inspections set out by HSE, both the Jib and the hoist on it should have a maintenance service scheduled no later than 12 months. This service should be undertaken by qualified service engineers - If you would like to know more about the servicing and general maintenance, please feel free to contact us, we do have qualified engineers and are happy to quote for all your crane servicing requirements.
