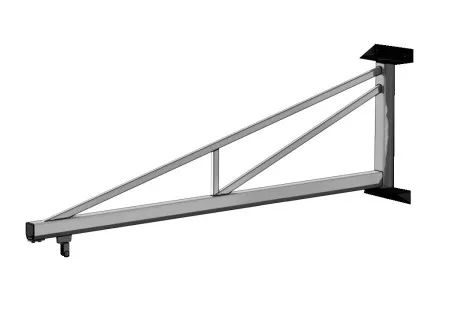

80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage

Key notes for ordering:

Dispatched as a kit with instructions, decide on extras like isolator for electrics, festoon system for elec hoist. Contact us for installation prices. Suppled with certification.

Estimated lead time:Manufactured in UK to Order Approx. 3 - 4 Weeks Delivery

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage

Brand:

Capacity

80Kgs

Description

80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.

£988.98 ex VAT

£1,186.78 inc VAT

Please contact our sales team if the following extras are required:

1 - Adjustable Slew Limits
2 - Slewing Lock
3 - Installation

Related products

Festoon System for Overhead Cranes & Hoists

FEST SS

C Rail Style Festoon System  (Full Kit) including flat form power cable, cable trolleys & track. These simple-to-install lightweight kits provide a safe and economical means of supplying power to overhead hoists, overhead cranes, and most other types of moving machinery that travels along a fixed track. Once fitted eliminates dangerous dangling down cables and looks like a professional install or refit

£124.98 ex VAT

£149.98 inc VAT

80Kgs SWL Column Mounted Jib Cranes - Over Braced

CMJC

80Kgs SWL Column Mounted Jib Cranes - Over Braced versions that are manufactured in the UK. Also known as a clamp around the Jib crane as the supporting brackets can be attached to any suitable building column/stanchion or pillar.

£498.98 ex VAT

£598.78 inc VAT

80Kgs SWL Wall Mounted Jib Cranes

WMJC

80Kgs SWL Wall Mounted Jib Cranes commonly called Face Fixed Jib Cranes are all manufactured in the UK. These Wall Mountable Jib Cranes are ideal if you are looking for a Jib Crane that can be bolted or welded securely to an existing wall within your building

£498.98 ex VAT

£598.78 inc VAT

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

80Kgs SWL Column Mounted Jib Crane Galvanised Finish for Outdoor Usage

CMJC-GALV

80Kgs SWL Column Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.

£1,048.88 ex VAT

£1,258.66 inc VAT

80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.

The ULS Hot Dipped Galvanised Jib Cranes are ideal for both outdoor or indoor locations that will be subjected to any type of moisture, widely used in applications where corrosion resistance is needed and the galvanized version Jib is more cost-effective than our stainless steel version. Our galvanized Jib Cranes are commonly used in any outdoor location such as quarries, mariners, harbours, river/coastal locations, and utility or water treatment plants. Indoor locations can be anywhere that has humid conditions such as plant rooms or pump rooms.

These Wall Mounted Jib cranes are ideal if you are looking for a Jib Crane that can be bolted or welded securely to an existing wall both within your building or in a suitable outdoor location. Supplied as a simple two-part kit form, the main slewing arm which the hoist will move along, and a pair of brackets that will be welded or bolted to the wall/column. The two parts are connected using the supplied pivot pin. The arm can be manufactured to any length between 2m and 6m and the arm is designed to rotate giving a very wide working area. The arm has a trolley already fitted, making it even more simple for connecting to your hoist, spring balancer, or vacuum lifter.

Dimensions for illustration only - 80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage
ModelSWLOverall Height Of ArmTrolley DepthArm Length (Radius of reach)Total Weight
WMJC80R2
80Kgs
400mm
65mm
2,000mm (2m)40Kg
WMJC80R3
80Kgs
500mm65mm
3,000mm (3m) 42Kgs
WMJC80R4
80Kgs
600mm65mm
4,000mm (4m)
58Kgs
WMJC80R5
80Kgs
900mm
65mm
5,000mm (5m)71Kgs
WMJC80R680Kgs
900mm
77mm
6,000mm (6m)
95Kgs

Why Choose a 80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage?
There are many advantages in purchasing a Wall Mounted Jib Crane, they are extremely versatile within the factory, speeding up lifting and moving components off presses or workbenches and loading or unloading lorries. Lifting heavy objects such as granite, timber, or steel.
Wall Jib cranes are made up of two main parts, the arm and set of brackets to attach to existing steelwork, therefore these simple manual jib cranes do not have many parts to maintain, making them extremely reliable, which in turn means they do not break down, so no loss in production time.

Why Choose a 80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage?
The simple answer is that by galvanising the wall mountable jib crane it will prevent premature rust and corrosion to the jib, which means they are perfect for any location that could be subjected to either atmospheric conditions or wet/humid conditions.

Easy to install
These wall-mounted cranes simply just bolt to existing walls or any suitable structural steelwork, once you have checked your column is suitable for a jib crane, choose which one you require from the drop-down menus, and we will arrange to manufacture the jib and dispatch it direct to site for your required delivery date. Then, when it is supplied to the site, The Jib just needs to be secured to the wall or steelwork -  We at Ultimate Lifting Solutions offer this service and can offer full installation by using our own highly trained engineers or just the commissioning/ load testing, we can offer a package to meet your requirements.
Because of the simple design, they are inexpensive to both buy and maintain compared to other cranes. Under normal working conditions, the Jib itself will only need an industry standard 12 monthly service. We at Ultimate Lifting Solutions offer this service and can offer various maintenance/service packages to meet your requirements.

How do 80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage work?
A standard swing Jib as mentioned has two main parts - The Arm and mounting brackets. The arm can rotate from left to right and vice versa, the swing or slew angle is set for wall mounted at 180° as standard. On all our swing jibs up to 1,000Kgs, they will slew with ease without the requirements of powered assistance, hence keeping the costs down.
The arm on our Jib cranes will be supplied with an integral push travel trolley, this moves along the full length of the arm, the trolley gives you the freedom and flexibility to reach into corners of your factory with ease.

What else is required for Wall Mounted Jib Crane?
You now have your Swing Jib fitted. You now need a hoist of some type or a vacuum lifter or a spring/tool balancer, these fit easily to the trolley that was supplied already fitted within the jib crane arm.  You just need to decide what hoist you need. To keep the costs down a manual hoist is the cheapest option, but you will not save on production time, as they are slow and do need assistance by hand, and sometimes for larger items, you might not be able to reach the hoist chain. The second option and best option is an Electric Hoist, these hoists enable you to easily lift and lower your components quickly, cutting down on production time, and it will soon pay for itself in time saved.

Installation
As mentioned above, the Wall or Face Mounted Jib Crane can be an easy install, once installed and the hoist fitted, all that is left is commissioning, testing, and signing off the Jib as safe to use. we are more than happy for all our customers to install themselves using the instructions supplied or find their own installation team. But, these days time is precious, do you have time to sort engineers and dates, etc, Let us save you time as we are also more than happy to offer our own engineers to take away this task. We can install the Jib, install the Hoist, commission, and test and we will not leave the site until everything is working correctly and safely.

80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage


All our manufactured Jibs are

Duty classification:  A3 according to BS 733: 1990

All jibs are lubrication free.  The pivot bushes are acetal and therefore do not require lubrication. The trolleys running surfaces are also lubrication free.

Manual slewing and trolley travel operation

Minimal maintenance requirement

Clutch controlled slewing mechanism, can be tightened/loosened to control how freely the arm pivots.

Bases are fully welded to the column – in most situations, this removes the need for an oversized load spreading plate or setting an anchor frame into concrete, therefore making installation much quicker and more cost-effective.


Key Points of our UK manufactured 80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage

SWL - 80kg

Arm length - 2m up to 6m

Slew Angle - Wall mounted, Max 180° Manual Slew

Trolley - Fitted with integrated push travel trolley for suspending hoists, vacuum lifters, and tool balancers from

Fast delivery - We aim to deliver all our Swing Jibs within 3 to 5 Weeks


Optional extras

Adjustable slewing limits, To reduce the swing arc

Slewing lock, to fix the arm into a specific position

Electrical Isolator - required if the electric hoist is to be used in conjunction with the Jib Arm


Full Electric Kit - Our kit includes everything required to fun Electric Hoist (Isolator, Flatform Supply Cable, Cable Runners)


The kit can be supplied to enable the pin to be fitted from below.

80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage as a rule does not need much service or maintenance. Yet, general observations of the overall condition of the jib and the hoist connected to it can be carried out by the operator - any faults should be reported immediately


More importantly to keep the Jib and hoists running at maximum efficiency and to keep within the UK laws regarding LOLER inspections set out by HSE, both the Jib and the hoist on it should have a maintenance service scheduled no later than 12 months. This service should be undertaken by qualified service engineers - If you would like to know more about the servicing and general maintenance, please feel free to contact us, we do have qualified engineers and are happy to quote for all your crane servicing requirements.
