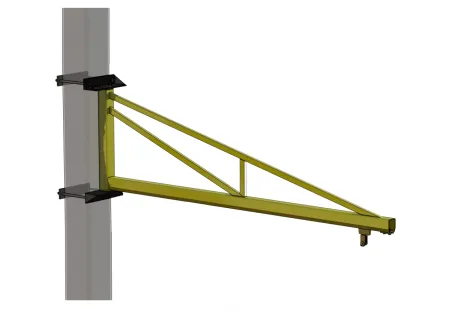

125Kgs SWL Column Mounted Jib Cranes - Over Braced

Key notes for ordering:

Dispatched as a kit with instructions, decide on extras like isolator for electrics, festoon system for elec hoist. Contact us for installation prices. Suppled with certification

Estimated lead time:Manufactured in UK to Order - Approx. 2 - 3 Weeks Delivery. call if required sooner

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

125Kgs SWL Column Mounted Jib Cranes - Over Braced

Brand:

Capacity

125Kgs

Description

125Kgs SWL Column Mounted Jib Cranes - Over Braced versions are manufactured in the UK. These column Jib cranes are ideal if you are looking for a crane suspended securely from an existing column, pillar, or stanchion within your building. Supplied in a simple two-part kit form, the main slewing arm which the hoist will move along, and a pair of brackets that will clamp around the pillar or column.

£529.98 ex VAT

£635.98 inc VAT

Please contact our sales team if the following extras are required:

1 - Adjustable Slew Limits
2 - Slewing Lock
3 - Installation
Add to cart Add to quote

Related products

Festoon System for Overhead Cranes & Hoists

FEST SS

C Rail Style Festoon System  (Full Kit) including flat form power cable, cable trolleys & track. These simple-to-install lightweight kits provide a safe and economical means of supplying power to overhead hoists, overhead cranes, and most other types of moving machinery that travels along a fixed track. Once fitted eliminates dangerous dangling down cables and looks like a professional install or refit

£178.88 ex VAT

£214.66 inc VAT

125Kg SWL Column Mounted Jib Crane Galvanised Finish for Outdoor Usage

CMJC-GALV

125Kg SWL Column Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK. Widely used in applications where corrosion resistance is needed and is more cost-effective than our stainless steel version.

£1,098.98 ex VAT

£1,318.78 inc VAT

125Kgs SWL Wall Mounted Jib Cranes

WMJC

125Kgs SWL Wall Mounted Jib Cranes are quality UK manufactured Wall Mountable Jib Cranes. Available at any length of swing arm from 2m to 6m Long. With a large slewing angle of 180°. Also known as a Face Fixed fixed Jib Cranes. The 80Kg Wall Mounted Jib Crane is ideal for fixing directly onto a load-bearing wall or similar flat surface.

£529.98 ex VAT

£635.98 inc VAT

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

Stahl ST Electric Chain Hoist - 400volt output

ST

Stahl ST Electric Chain Hoist - 400volt output series from Stahl is an acknowledged top-level quality product that ranks amongst the world's most distinctive and extensive ranges of electric hoists on offer - A robust classic design/layout which proves itself in operation day for day. Powerful, reliable yet undemanding with power consumption and maintenance.

£1,388.98 ex VAT

£1,034.18 ex VAT

£1,241.02 inc VAT

125Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage

WMJC - Galv

125Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.

£998.98 ex VAT

£1,198.78 inc VAT

125Kgs SWL Column Mounted Jib Cranes - Under-Braced

UBCMJC

125Kgs SWL Column Mounted Jib Cranes - Under-Braced version, manufactured in UK and can be made to bespoke dimensions. Under-braced Jib Cranes are Ideal for use in a factory that needs a Jib crane to be bolted or welded to structural steelwork, pillars, or stanchions.

£898.98 ex VAT

£1,078.78 inc VAT

All our 125Kgs SWL Column Mounted Jib Cranes - Over Braced versions are manufactured in the UK to suit customer requirements. These Clamp around-style Jib cranes are ideal if you are looking for a lightweight Jib Crane suspended securely from existing columns, pillars, or stanchions within your building. Supplied in a simple two-part kit form, the main slewing arm which the hoist will move along, and a pair of brackets that will clamp around the pillar or column. The two parts are connected using the supplied pivot pin. The arm can be manufactured to any length between 2m and 6m and the arm is designed to slew through 180° giving a very wide working area.

Please note that Anti-Slip measures must be taken to ensure the Jib Arm does not slip or move down the column it is attached to. If you require help with installation, ULS Lifting has a fully trained Jib Crane installation team that can install the jib, commission the jib and then test the jib to make sure it is fully working safely and legally. We will then issue a certification for you to keep.

The arm has a manual trolley already fitted, making it even more simple for connecting to your hoist, spring balancer, or vacuum lifter.

Dimensions for illustration only
ModelSWLOverall Height Of ArmTrolley DepthArm Length (Radius of reach)Total Weight
CMJC125R2
125Kgs
400mm
65mm
2,000mm (2m)45Kg
CMJC125R3
125Kgs
500mm77mm
3,000mm (3m) 49Kgs
CMJC125R4
125Kgs
600mm77mm4,000mm (4m)
60Kgs
CMJC125R5
125Kgs
900mm
77mm
5,000mm (5m)86Kgs
CMJC125R6125Kgs
1000mm
77mm
6,000mm (6m)
99Kgs

Why Choose a 125Kgs SWL Column Mounted Jib Cranes - Over Braced?
There are many advantages to purchasing a Column Mounted Jib Crane, they are extremely versatile within the factory, speed up lifting and moving components off presses or workbenches, and loading or unloading lorries. Lifting heavy objects such as granite, timber, or steel.
Column Jib cranes are made up of two main parts, the arm and set of brackets to attach to existing steelwork, therefore these simple manual jib cranes do not have many parts to maintain, making them extremely reliable, which in turn means they do not break down, so no loss in production time.

Easy to install
These over-braced column-mounted cranes simply just bolt to existing columns, pillars, stanchions, or any suitable structural steelwork, once you have checked your column is suitable for a jib crane, choose which one you require from the drop-down menus, and we will arrange to manufacture the jib and dispatch it directly to the site for your required delivery date. Then, when it is supplied to the site, the Jib just needs to be secured to the steelwork (Anti-slip measures must be taken to ensure that the jib crane can’t slip down the support column) -  We at Ultimate Lifting Solutions offer this service and can offer full installation by using our own highly trained engineers or just the commissioning/ load testing, we can offer a package to meet your requirements.

Because of the simple design, they are inexpensive to both buy and maintain compared to other cranes. Under normal working conditions, they will only need an industry standard 12 monthly services. We at Ultimate Lifting Solutions offer this service and can offer various maintenance/service packages to meet your requirements.

How does a Swing Jib Crane work?
A standard swing Jib as mentioned has two main parts - The Arm and mounting brackets. The arm can rotate from left to right and vice versa, the swing or slew angle is set at 180° as standard. On all our swing jibs up to 1,000Kgs, they will slew with ease without the requirements of powered assistance, hence keeping the costs down.
The arm on our Jib cranes will be supplied with an integral push travel trolley, this moves along the full length of the arm, and the trolley gives you the freedom and flexibility to reach into corners of your factory with ease.

What else is required for 125Kgs SWL Column Mounted Jib Cranes - Over Braced version?
You now have your Swing Jib fitted. You now need a hoist of some type or a vacuum lifter or a spring/tool balancer, these fit easily to the trolley that was supplied already fitted within the jib crane arm.  You just need to decide what hoist you need. To keep the costs down a manual hoist is the cheapest option, but you will not save on production time, as they are slow and do need assistance by hand, and sometimes for larger items, you might not be able to reach the hoist chain. The second option and best option is an Electric Hoist, these hoists enable you to easily lift and lower your components quickly, cutting down on production time, and it will soon pay for itself in time saved.

Installation of 125Kgs SWL Column Mounted Jib Cranes - Over Braced version.
As mentioned above, the 125Kgs column-mounted Jib Crane can be an easy install, once installed and the hoist fitted, all that is left is commissioning, testing, and signing off the Jib as safe to use. we are more than happy for all our customers to install themselves using the instructions supplied or find their own installation team. But, these days time is precious, do you have time to sort engineers and dates, etc, Let us save you time as we are also more than happy to offer our own engineers to take away this task. We can install the Jib, install the Hoist, commission, and test and we will not leave the site until everything is working correctly and safely.

All 125Kgs SWL Column Mounted Jib Cranes - Over Braced are manufactured to customer requirements


Duty classification:  A3 according to BS 733: 1990

All jibs are lubrication free.  The pivot bushes are acetal and therefore do not require lubrication. The trolleys running surfaces are also lubrication free.

Manual slewing and trolley travel operation.

Minimal maintenance requirement.

The clutch-controlled slewing mechanism can be tightened/loosened to control how freely the arm pivots.

Bases are fully welded to the column – in most situations, this removes the need for an oversized load spreading plate or setting an anchor frame into concrete, therefore making installation much quicker and more cost-effective.


Key Points of our UK-manufactured Jib Cranes

SWL - 125kg

Arm length - 2m up to 6m.

Slew Angle - 180-degree manual slew.

Trolley - Fitted with integrated push travel trolley for suspending hoists, vacuum lifters, and tool balancers.

Fast delivery - We aim to deliver all our Swing Jibs within 14 to 21 days from drawing sign-off.


Optional extras

Adjustable slewing limits, To reduce the swing arc

Slewing lock, to fix the arm into a specific position

Electrical Isolator - required if the electric hoist is to be used in conjunction with the Jib Arm



Full Electric Kit - Our kit includes everything required to run a 400volt Electric Hoist (Isolator, Flatform Supply Cable, Cable Runners)

The kit can be supplied to enable the pin to be fitted from below.

125Kgs SWL Column Mounted Jib Cranes - Over Braced as a rule do not need much service or maintenance. Yet, general observations of the overall condition of the jib and the hoist connected to it can be carried out by the operator - any faults should be reported immediately


More importantly to keep the Jib and hoists running at maximum efficiency and to keep within the UK laws regarding LOLER inspections set out by HSE, both the Jib and the hoist on it should have a maintenance service scheduled no later than 12 months. This service should be undertaken by qualified service engineers - If you would like to know more about the servicing and general maintenance, please feel free to contact us, we do have qualified engineers and are happy to quote for all your crane servicing requirements.
