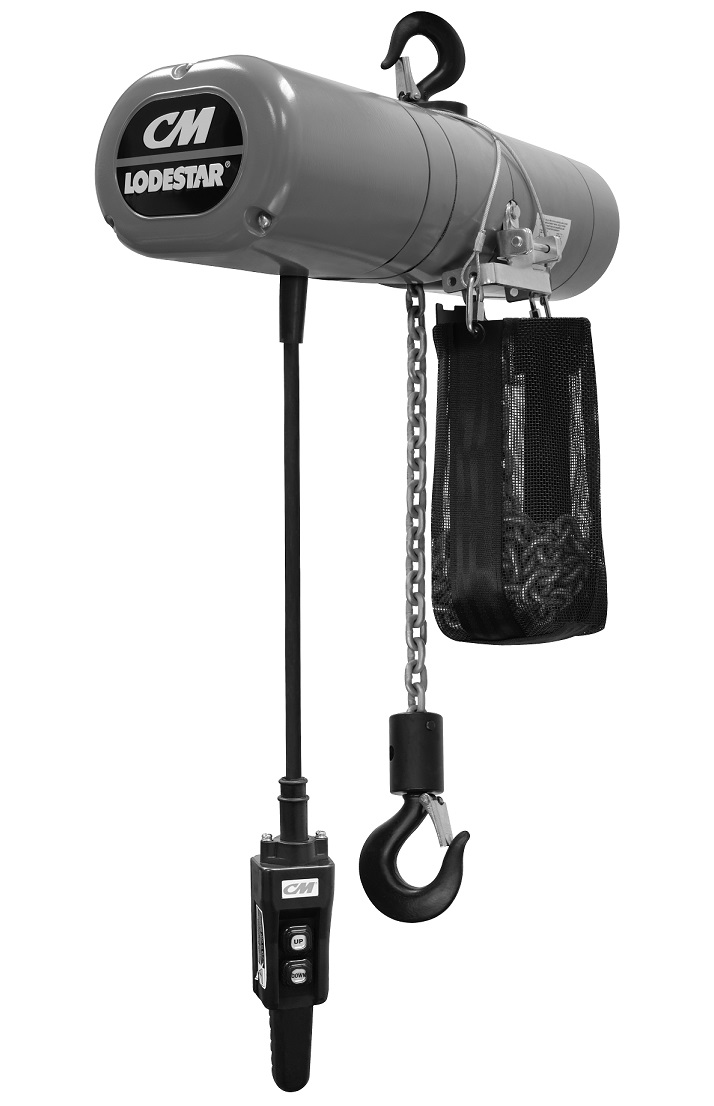

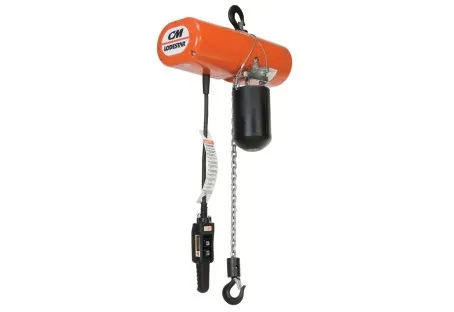

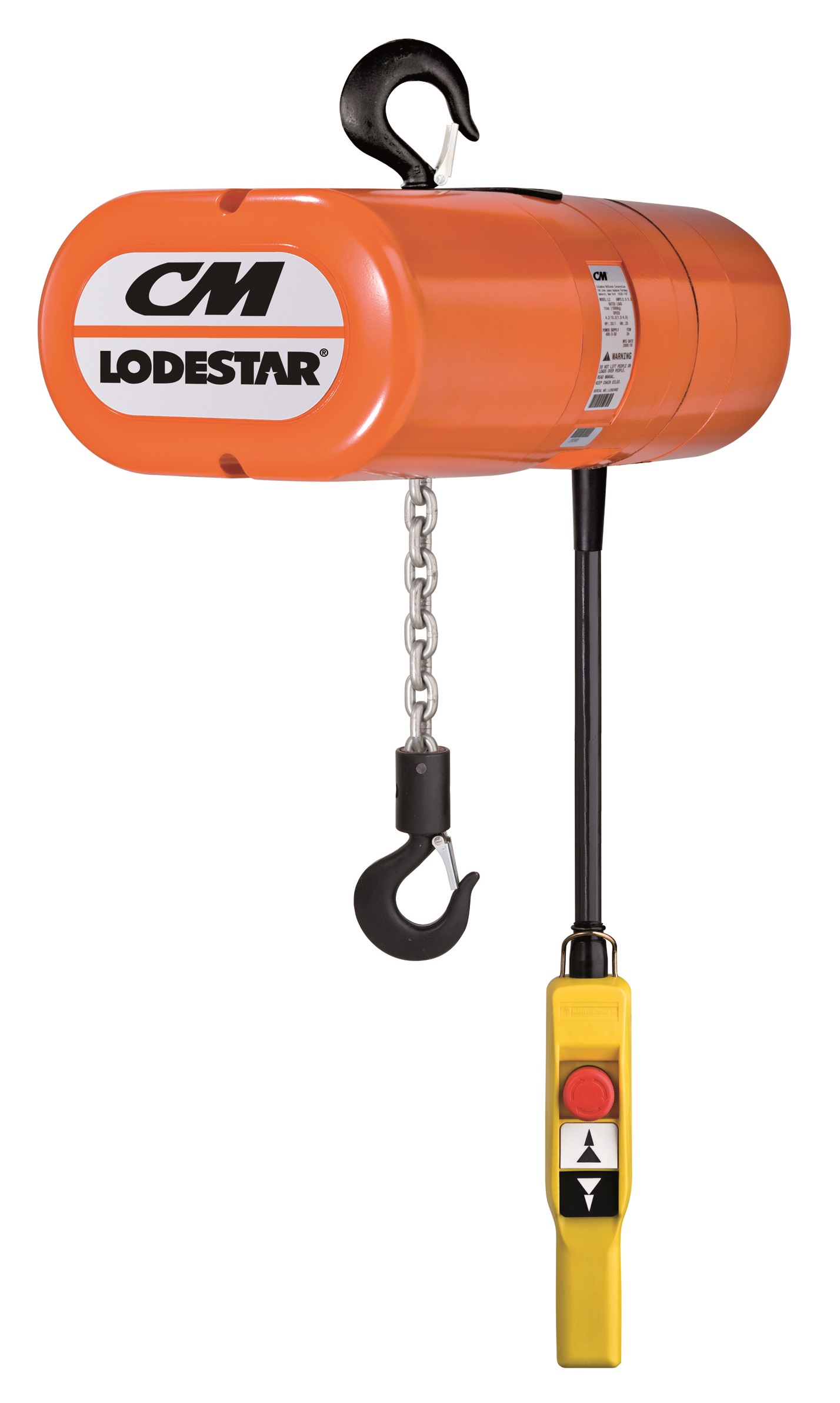

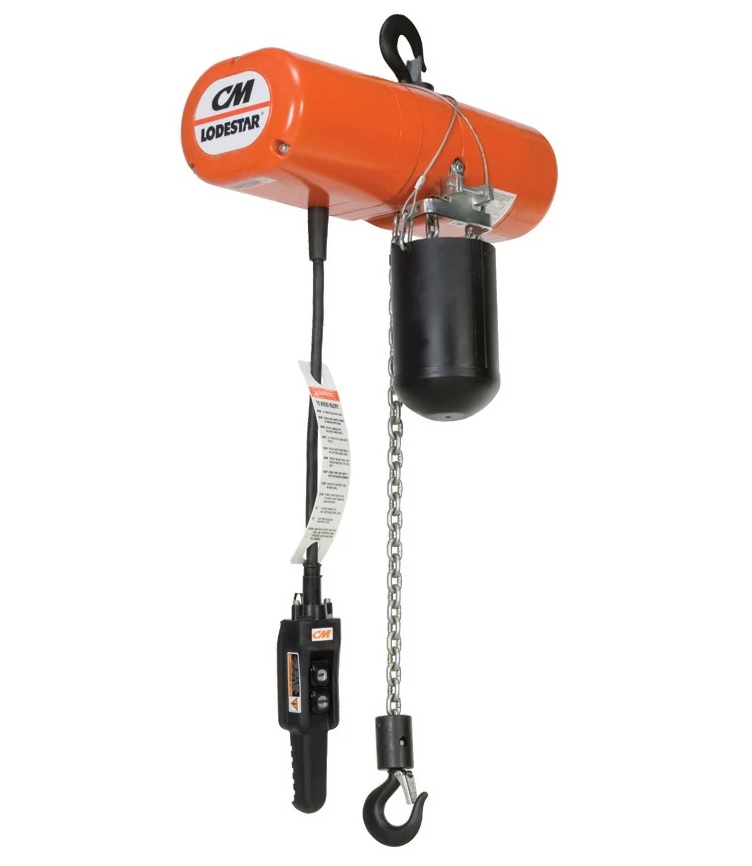

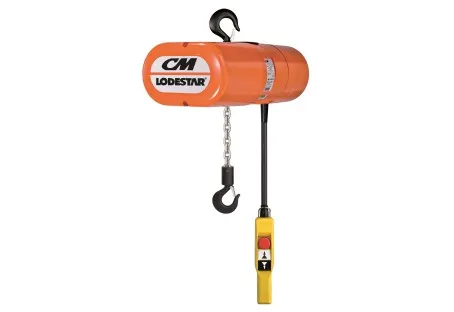

CM Lodestar Electric Chain Hoists (230V)

Key notes for ordering:

Prices shown are based on a standard 3m HOL, with 2m pendant. Excluding Chain Bag. Trolley (if selected) are adjustable & fit only standard travelling beams. Please call if unsure on beam size

Estimated lead time:2 to 3 Days for delivery. Call if required sooner

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

CM Lodestar Electric Chain Hoists (230V)

Brand:

Capacity

Capacities 250Kgs up to 3000Kgs

Description

The CM Lodestar Electric Chain Hoists (230V) is a tough yet durable 230 volt 1ph 50hz electric chain hoist that is available in lifting capacities from 250Kg up to 3,000Kg. This single Phase Electric chain hoist has been designed to keep working in the most arduous applications.

£2,079.98 ex VAT

£2,495.98 inc VAT

Please contact our sales team if the following extras are required

1 - Hoist and Trolley Raincoats are available if Weather Protection is required for the above hoist.
Add to cart Add to quote

Related products

CM Lodestar Electric Chain Hoists (110V)

CM Lodestar 110v

The CM Lodestar Electric Chain Hoists (110V) is a tough yet durable 110 volt 1ph 50hz electric chain hoist that is available in lifting capacities from 250Kg up to 3,000Kg. This single Phase Electric chain hoist has been designed to keep working in the most arduous applications.

£2,079.98 ex VAT

£2,495.98 inc VAT

The CM Lodestar Electric Chain Hoists (230V) is a tough yet durable 230 volt 1ph 50hz electric chain hoist that is available in lifting capacities from 250Kg up to 3,000Kg. This single Phase Electric chain hoist has been designed to keep working in the most arduous applications and the Lodestar ECH is recognised and proven within the hire industry as the number one Hoist, where high duty, combined with long heights of lifts are required. Can be supplied with a rain coat for out door use.

The CM Lodestar Electric Chain Hoists (230V) Key features
available in lifting capacities from SWL 250kg up to 3000 kg.
Supply Voltage - 230Volt (110volt and 400volt options also available).
Available from 3mtr to 30mtr Height of lift.
Robust, tough, and durable workhorse.

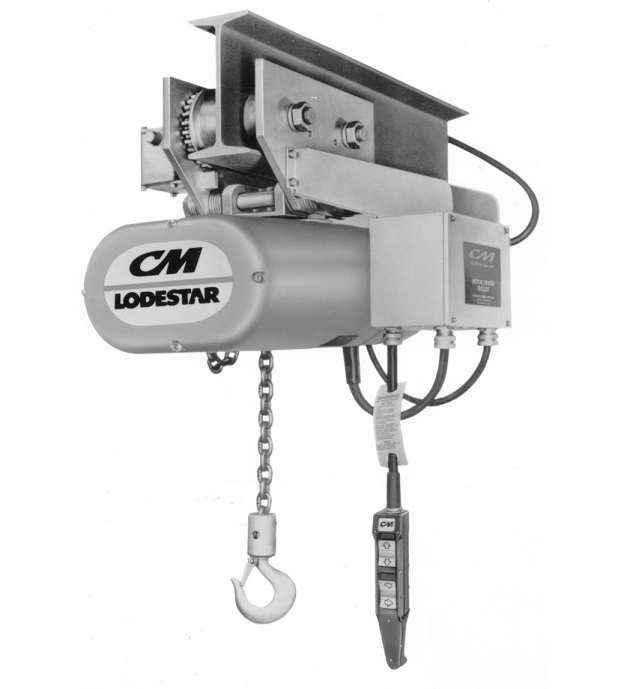

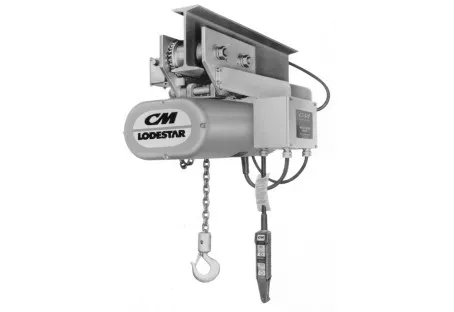

Top hook, Push travel, and electric trolley available across the range.

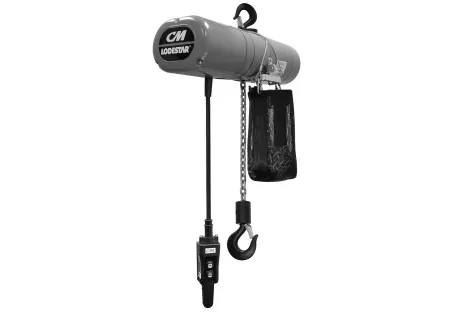

Available in Hook Suspension as standard, the LODESTAR ECH has a proven reputation as the solution for industrial strength lifting.
Model
Operating voltage
Capacity (WLL) kg
Falls of load chain
Lifting speed(s)
Weight Hoist Only
Weight c/w Push Trolley
Weight c/w Electric Trolley
Hoist Motor
C230V or 110V 1 Ph 50Hz
25018 m/min
29Kgs
40Kgs
84Kgs
0.37 kW
F230V or 110V 1 Ph 50Hz
50014 m/min
29Kgs
40Kgs
84Kgs
0.37 kW
J230V or 110V 1 Ph 50Hz
50018 m/min
51Kgs
63Kgs
107Kgs
0.75 kW
L230V or 110V 1 Ph 50Hz
1000
14 m/min
52Kgs
70Kgs108Kgs
0.75 kW
LL400V 3 Ph 50Hz
1000
18 m/min
52Kgs
71Kgs108Kgs
0.75 kW
LL2400V 3 Ph 50Hz
1000
18/2.5 m/min
53Kgs
72Kgs109Kgs
0.75 kW
R230V or 110V 1 Ph 50Hz
2000
22 m/min
58Kgs
77Kgs1113Kgs
0.75 kW
RR400V 3 Ph 50Hz
2000
24 m/min
58Kgs
77Kgs
1113Kgs
0.75 kW
RR2400V 3 Ph 50Hz
2000
24/1.3 m/min
59Kgs
78Kgs114Kgs
0.75 kW
RT230V or 110V 1 Ph 50Hz
3000
31.33 m/min
64Kgs
N/A
N/A
0.75 kW
All the prices shown as based on 3m HOL c/w 2m pendant length


KEY FEATURE CM Lodestar Electric Chain Hoists (230V)
Tough lightweight aluminium alloy covers totally enclose the mechanical and electrical components providing protection and efficient heat dissipation.  The design enables easy access for installation and service.
Adjustable upper and lower limit switches.
48V control, IP65 pendant as standard.
Thermal overload protection as standard.
FEM classification 2m (40% duty - 24mins continuous use per hour).
Motor classification H4.
Excellent closed height dimensions.
A lifetime lubricated gearbox contributes to exceptional service and maintenance characteristics.
Load hook fitted with axial bearing.
Ideal for Long Height of lifts.


CM Lodestar Electric Chain Hoists (230V) single phase.

The 230volt Lodestar EC hoist is a tough and durable electric chain hoist, designed to keep working in the most arduous applications. This hoist is recognised and proven within the hire industry as the number one hoist, where high duty, combined with long heights of lift is required.

From hook suspension in the rental industry to trolleys mounted in a factory production line, the Lodestar has a proven reputation as the solution for industrial strength lifting.

Standard operating voltage: 110v 1ph 50Hz, 240v 1ph 50Hz
and 400v 3ph 50Hz available ex-stock.
Model
Operating voltage
Capacity (WLL) kg
Falls of load chain
Lifting speed(s)
Weight Hoist Only
Weight c/w Push Trolley
Weight c/w Electric Trolley
Hoist Motor
C230V or 110V 1 Ph 50Hz
25018 m/min
29Kgs
40Kgs
84Kgs
0.37 kW
F230V or 110V 1 Ph 50Hz
50014 m/min
29Kgs
40Kgs
84Kgs
0.37 kW
J230V or 110V 1 Ph 50Hz
50018 m/min
51Kgs
63Kgs
107Kgs
0.75 kW
L230V or 110V 1 Ph 50Hz
1000
14 m/min
52Kgs
70Kgs108Kgs
0.75 kW
LL400V 3 Ph 50Hz
1000
18 m/min
52Kgs
71Kgs108Kgs
0.75 kW
LL2400V 3 Ph 50Hz
1000
18/2.5 m/min
53Kgs
72Kgs109Kgs
0.75 kW
R230V or 110V 1 Ph 50Hz
2000
22 m/min
58Kgs
77Kgs1113Kgs
0.75 kW
RR400V 3 Ph 50Hz
2000
24 m/min
58Kgs
77Kgs
1113Kgs
0.75 kW
RR2400V 3 Ph 50Hz
2000
24/1.3 m/min
59Kgs
78Kgs114Kgs
0.75 kW
RT230V or 110V 1 Ph 50Hz
3000
31.33 m/min
64Kgs
N/A
N/A
0.75 kW
All the prices shown as based on 3m HOL c/w 2m pendant length

Features include:
Tough lightweight aluminium alloy covers totally enclose the mechanical and electrical components providing protection and efficient heat dissipation. The design enables easy access for installation and service.
Adjustable upper and lower limit switches.
48v control, IP65 pendant as standard.
Thermal overload protection as standard.
FEM classification 2m (50% duty - 30 minutes continuous use per hour).
Excellent closed height dimensions.
A lifetime lubricated gearbox contributes to exceptional service and maintenance characteristics.
Single phase hoists supplied with handles and 1m supply cable with Cee-Form plug.
3-phase single-speed hoist motors are dual voltage.
Load hook with axial bearing.
The hoist is supplied fully tested in good working order.
Supplied with operating instructions and relevant conformity certificate.

Please note - According to prevailing national/international occupational safety and health regulations, HOISTING EQUIPMENT must be inspected at least annually by a competent person. Adverse working conditions may dictate shorter inspection periods.

Please contact our Sales Team @ ULS if you require us to carry out your annual servicing on this product or any similar products.

CM Industrial Products - Lodestar With more than a century of experience providing products and solutions for industrial manufacturing and construction, the CM brand has developed a loyal following with users around the globe.


From heavy-duty hoists for hazardous environments to general-duty chains and hooks for commercial use, the CM name represents a legacy of expertise in the market. The Lodestar Electric Chain hoist is requested by name due to its reputation for durability and long life.


The CM name represents a legacy of expertise in the market A WORKHOUSE TRUSTED FOR GENERATIONS
