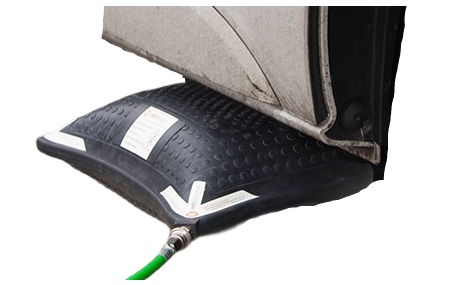

Air (Pneumatic) Lifting Jack - Powermat 8 Bar

Key Product Features & Benefits

The Powermat 8 Bar air lifting jack range is built for maximum performance and durability:

13 Standard Sizes: Available to cover a vast range of lifting requirements.

25mm Low Profile: All models maintain a slimline 25mm deflated height for restricted spaces.

Stackable Design: Powermats can be safely stacked two high to increase total lifting height (The second bag must be smaller than the first - see datasheet).

High Capacity: Lifting capacities range from 1 tonne up to 68 tonnes.

Lightweight: Extremely easy to handle, starting from only 0.5 Kgs.

Durable Construction: Manufactured from hard-wearing rubber for good puncture resistance.

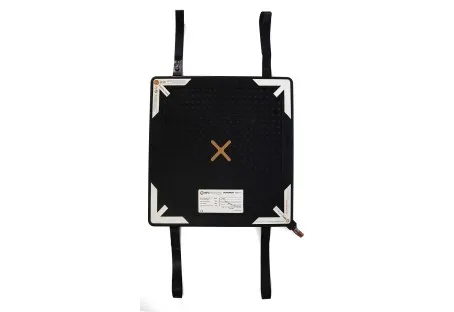

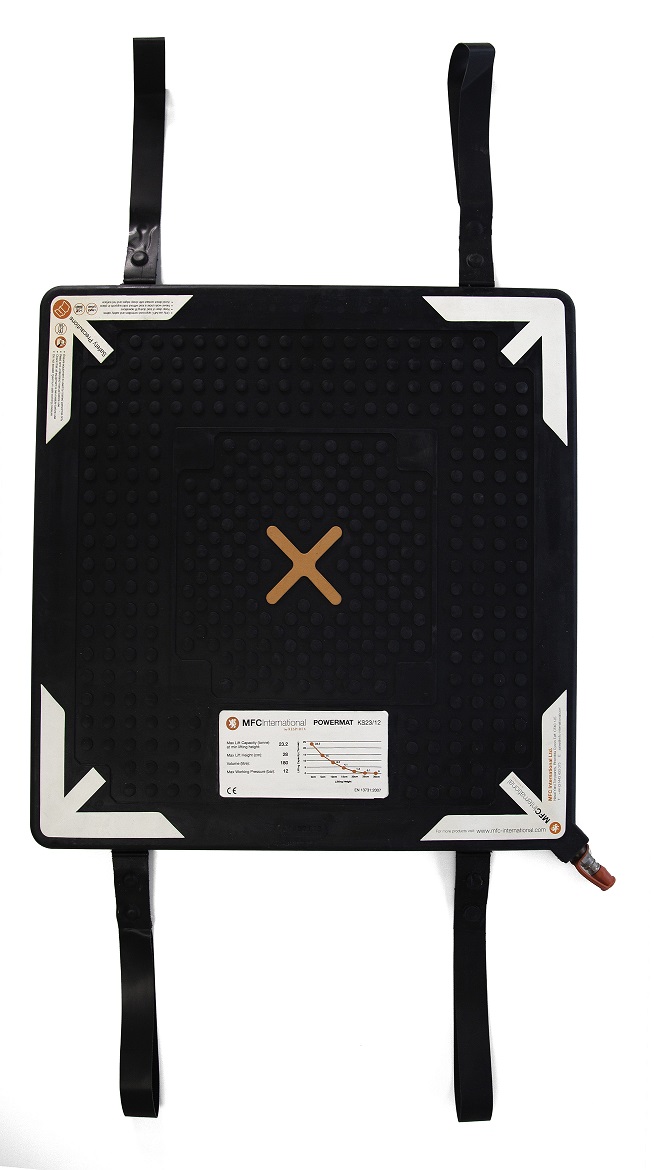

Convenience: Carrying/positioning straps are fitted to most models.

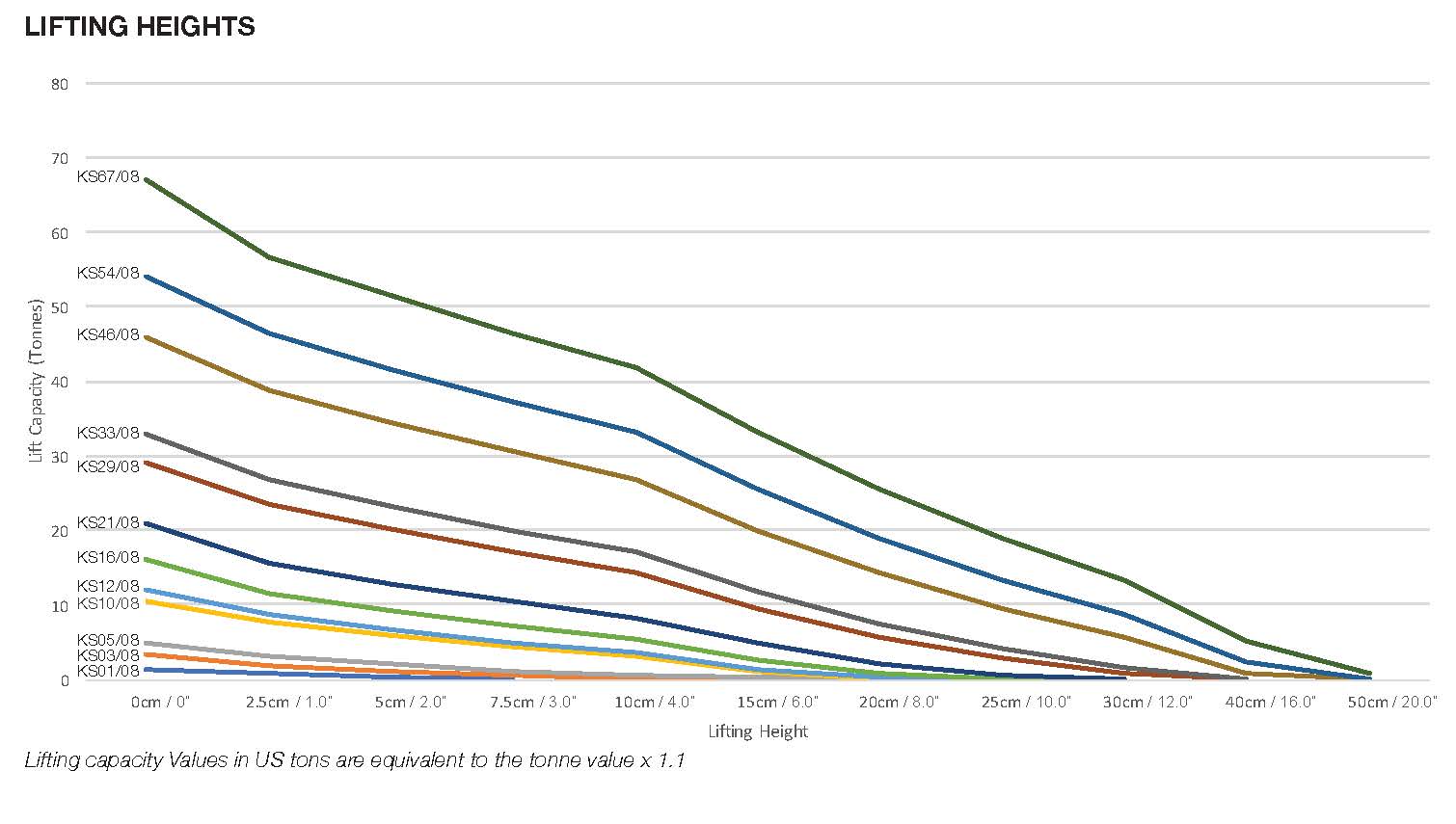

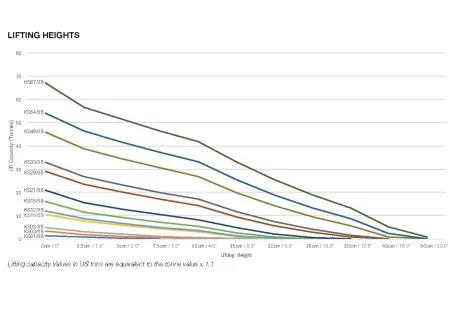

Please note that Lifting capacity decreases as height increases - See the data sheet for more information.

Powermats can be used in pairs to increase the lifting height - When stacking to Powermat Air Lifting Bags the second bag must be smaller than the first - see attached data sheet for more details.

The Air (Pneumatic) Lifting Jack - Powermat 8 Bar is designed for extreme reliability and low maintenance.

Service-Free for 5 Years: Due to the quality of construction, only a simple visual inspection is required before each use for the first five years.

Service Schedule: The first service is requested after five years, followed by services in year seven and year nine. From year ten, annual servicing is required until the unit is 15 years old.

MFC International are a specialist manufacturer of inflatable Lifting bags, rescue, recovery, survival and sewer maintenance equipment based in the UK.  There equipment is used by construction/maintenance companies, breakdown/ vehicle teams,  fire brigades, mountain and lowland rescue, utilities, the military and humanitarian support organisations internationally and we have earned an unrivalled reputation for our product quality, durability and performance.

Founded in 1959, the company (then called MFC Survival) started by manufacturing life jackets and life rafts for the Royal Navy and South Wales commercial shipping ports. Over time the focus shifted towards the design and manufacture of specialist inflatable products for the defence and rescue industries.

MFC quickly became a respected name in the field of technical inflatable products and boasts an impressive history of innovation;

MFC were the original inventor of airlift bags, the first to manufacture aircraft recovery bags and one of the first to introduce inflatable shelters.

There has been continuous investment in new tools and machinery in the UK based factory, including new presses to mould our own high pressure lifting mats and an autoclave for manufacturing our new range of products for sewer maintenance. This means the whole process from design to manufacture is carried out in under one roof.

What is an air lifting jack?

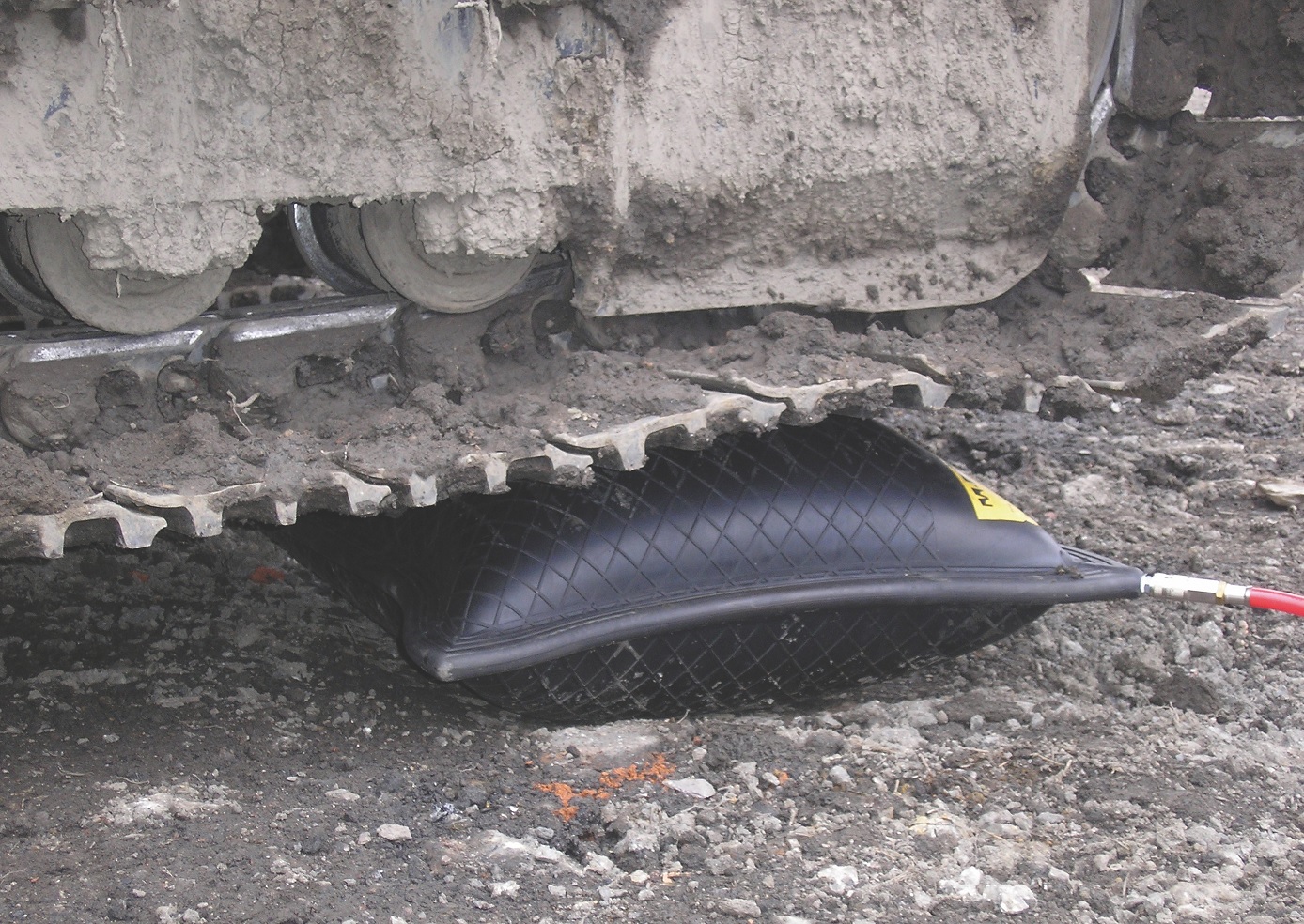

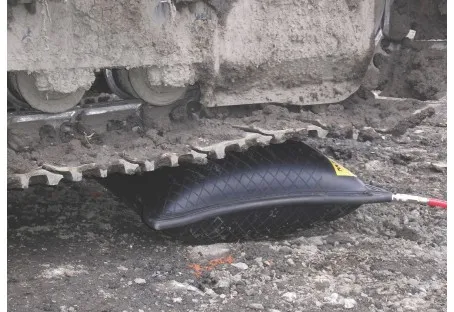

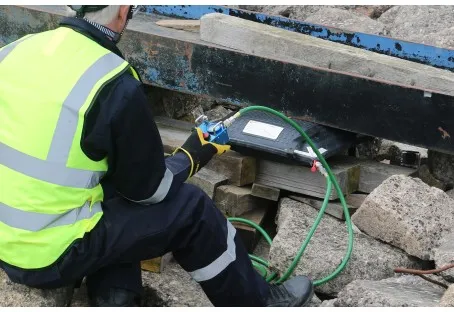

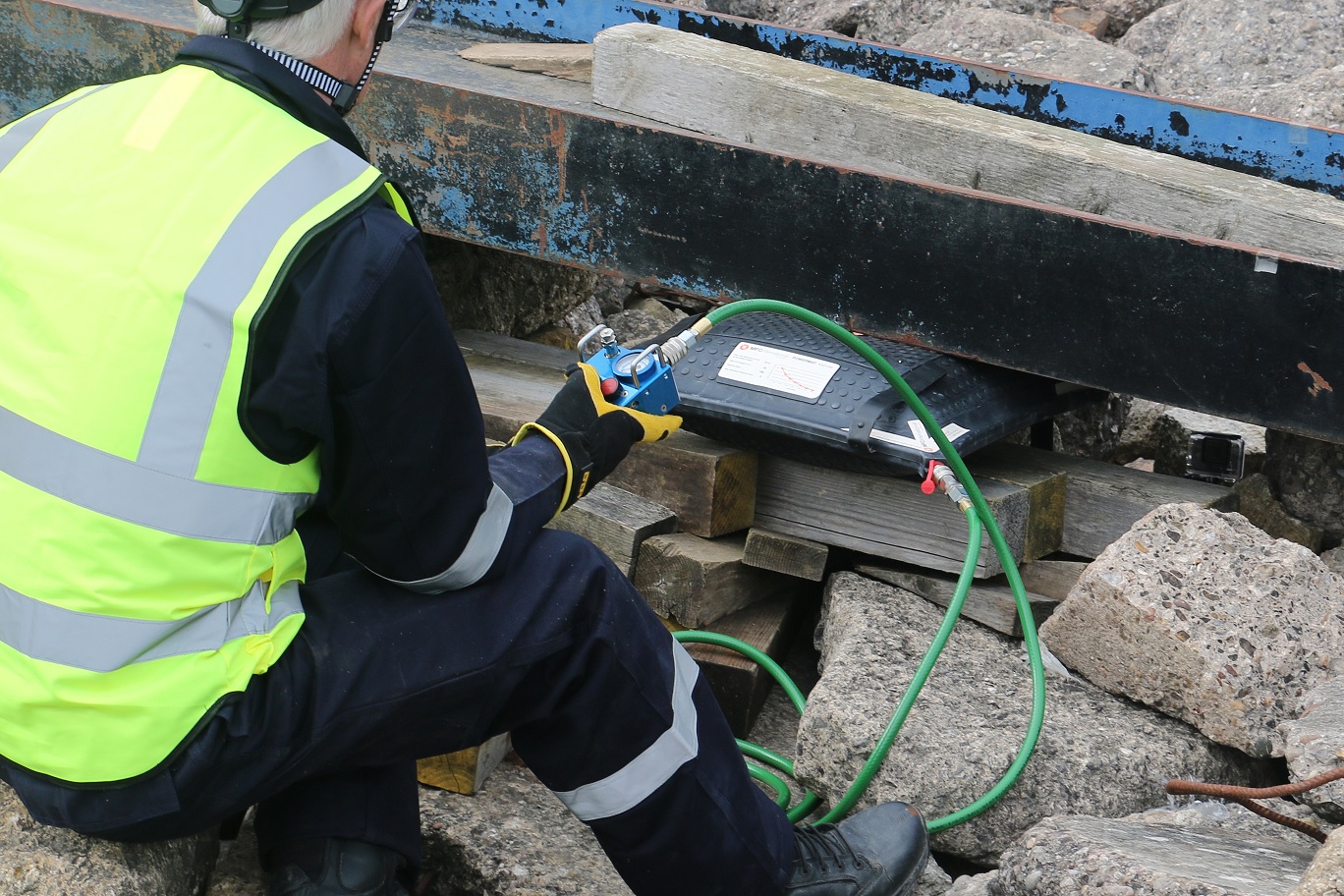

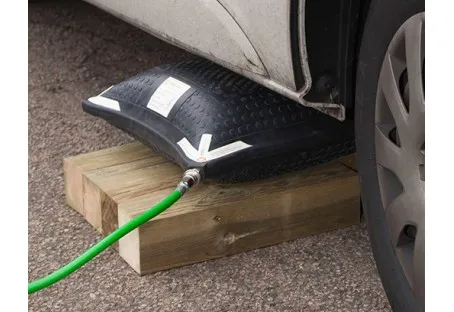

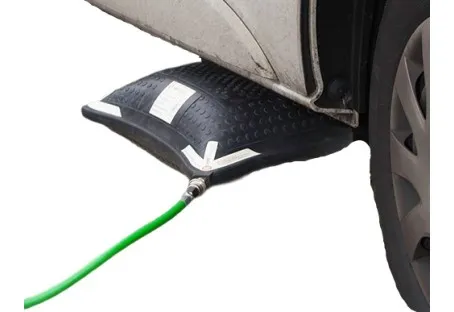

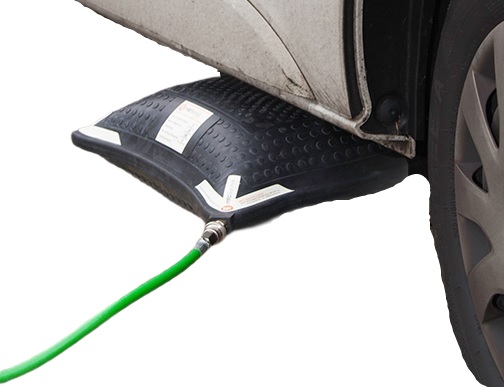

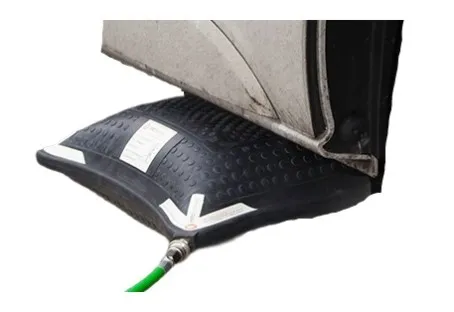

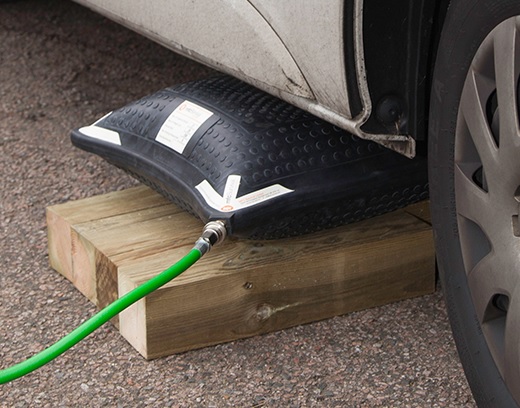

An air lifting jack (or pneumatic lifting jack) is a heavy-duty inflatable bag that uses compressed air (up to 8 bar) to lift heavy objects precisely and safely. They are preferred in low-height or difficult-access situations.

What is the minimum clearance needed for the Powermat jack?

The Powermat range has an extremely low deflated profile, requiring only 25mm of clearance for insertion.

Can I stack the lifting bags to lift higher?

Yes, Powermat bags can be stacked up to two high to increase the total lifting height. Important: The top bag must always be smaller than the bottom bag for stability (refer to the datasheet).

What air supply is required?

They require a maximum of 8 bar (or 116 psi) air supply. Common sources include air compressors, BA/SCUBA cylinders, factory airlines, or a truck's air brake system.

Are these lifting jacks certified?

Yes, all ULS Powermat lifting bags are independently tested and comply with EN 13731:2007 for professional standards.
