BHW-OCP Tiger Hand Winch Corrosion Protected
Estimated lead time:1 Day
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise

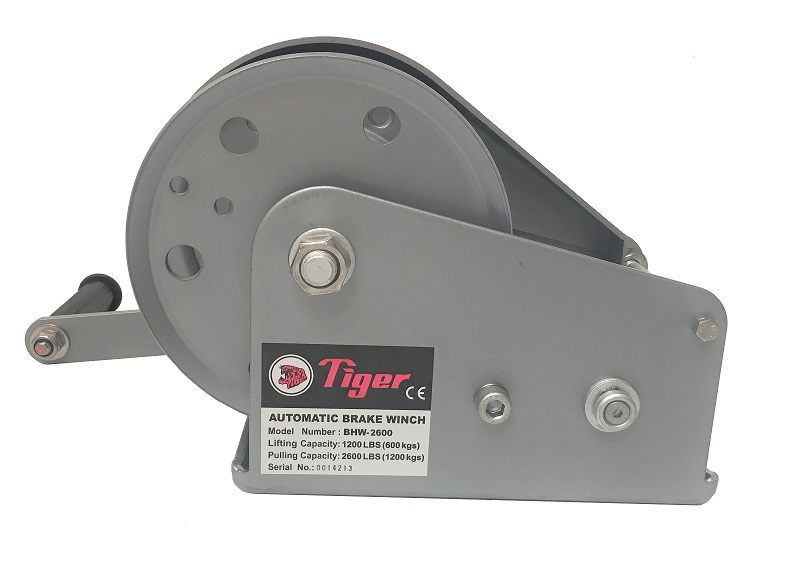

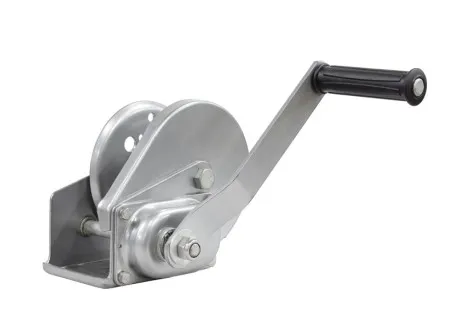

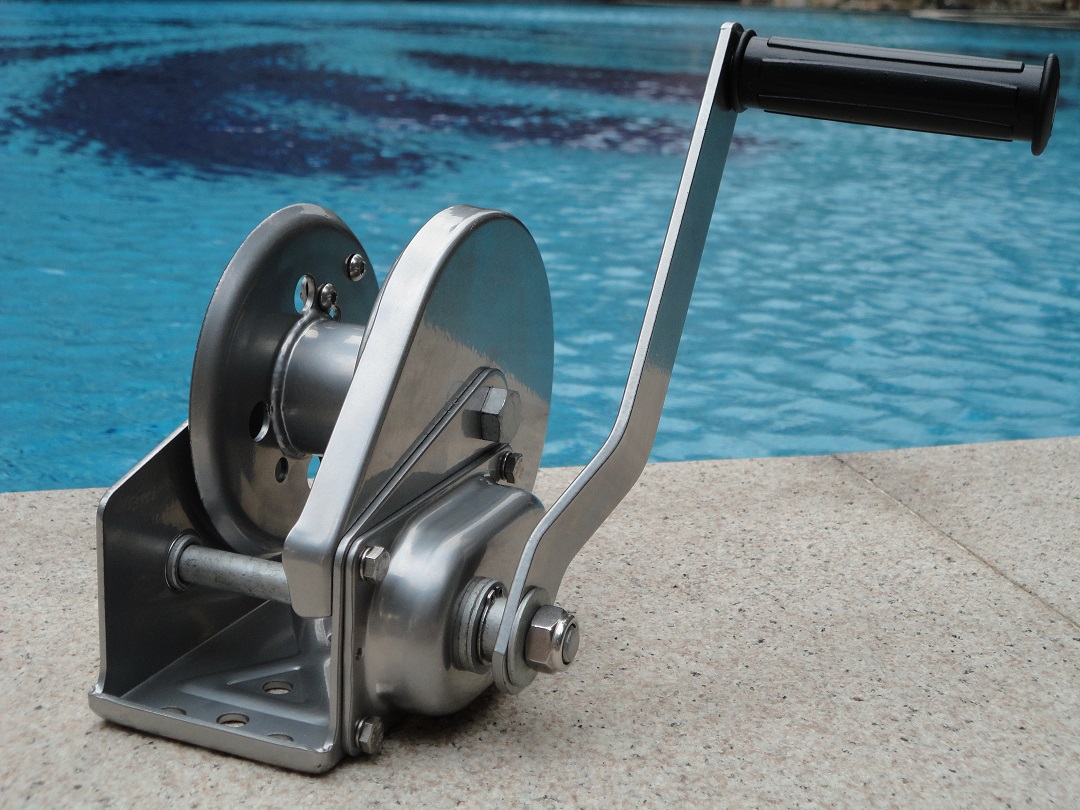

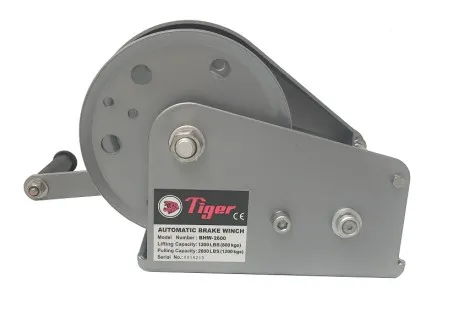

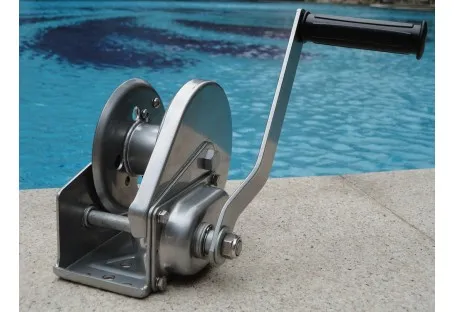

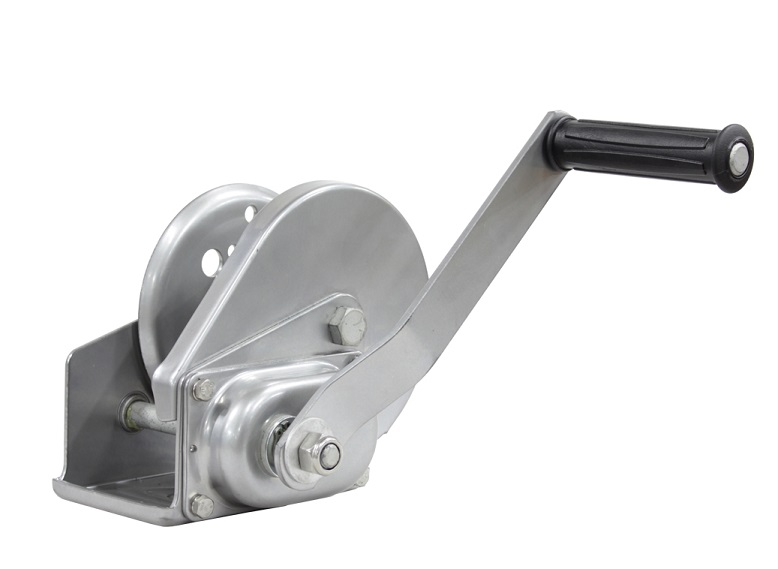

BHW-OCP Tiger Hand Winch Corrosion Protected
Brand:
Capacity
Lifting Capacity - 360Kgs to 1180Kgs
Pulling Capacity - 360Kgs to 1180kgs
Description
The Tiger BHW OCP Braked Hand Winch with corrosion protection is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications. fitted with an automatic brake that ensures the load remains suspended when the crank is released and avoids unchecked descent of the load.
£79.98 ex VAT
£95.98 inc VAT
Add to cart
Add to quoteRelated products
LB Pfaff Wire Rope Winch - Galv Design
LB
£168.43 ex VAT
£202.12 inc VAT
HW-C Yale Spur Gear Drive Manual Wire Rope Winch
HW-C
The HW-C is a Spur Gear driven manual Wire Rope Winch. Ideal for mounting on walls, poles, towers or horizontally mounted.
£59.16 ex VAT
£70.99 inc VAT
BHW Tiger Hand Winch
BHW
The Tiger BHW Braked Hand Winch is a high-quality multi-purpose hand-operated winch used for various lifting and hoisting applications. Fitted with an automatic brake that ensures the load remains suspended when the hand crank is released and avoids unchecked descent of the load.
£42.98 ex VAT
£51.58 inc VAT
Tiger Winch Wire Ropes
WWR
Our range of top quality galvanized winch cables manufactured to suit the Tiger Lifting BHW range of winches
£32.98 ex VAT
£39.58 inc VAT
Tiger Winch Strap
TG
Winch Strap with safety hook to suit Tiger Hand Winches
£23.98 ex VAT
£28.78 inc VAT
The Tiger BHW Braked Hand Winch with corrosion protection is a high quality, compact & lightweight multi-purpose hand operated winch used for a wide variety of lifting and hoisting applications. fitted with an automatic brake that ensures the load remains suspended when the crank is released and avoids unchecked descent of the load.
This model range is protected using our unique formulation giving unprecedented long term reliability and superior corrosion resistance and protection in the most severe conditions. The coating provides excellent friction protection and has been proven to be effective through at least 1000 hours of the ASTM B 117 Salt Spray Test. The coating gives the properties of stainless steel without the cost implications.
Can be used for both Lifting and Pulling Applications - Can be fitted with a either a Winch cable that can be used for both Lifting & Pulling Applications or a polyester Winch Strap that can only be used for Pulling Applications.
Winch is designed not to freewheel, making the hand winch extremely safe to operate.
Winch out casing finished in a high quality powder coat paint, that not only makes these units look very professional, it also offers excellent corrosion protection. All mechanical components such as gears and brakes fully covered to prevent dust, dirt and rain contamination.

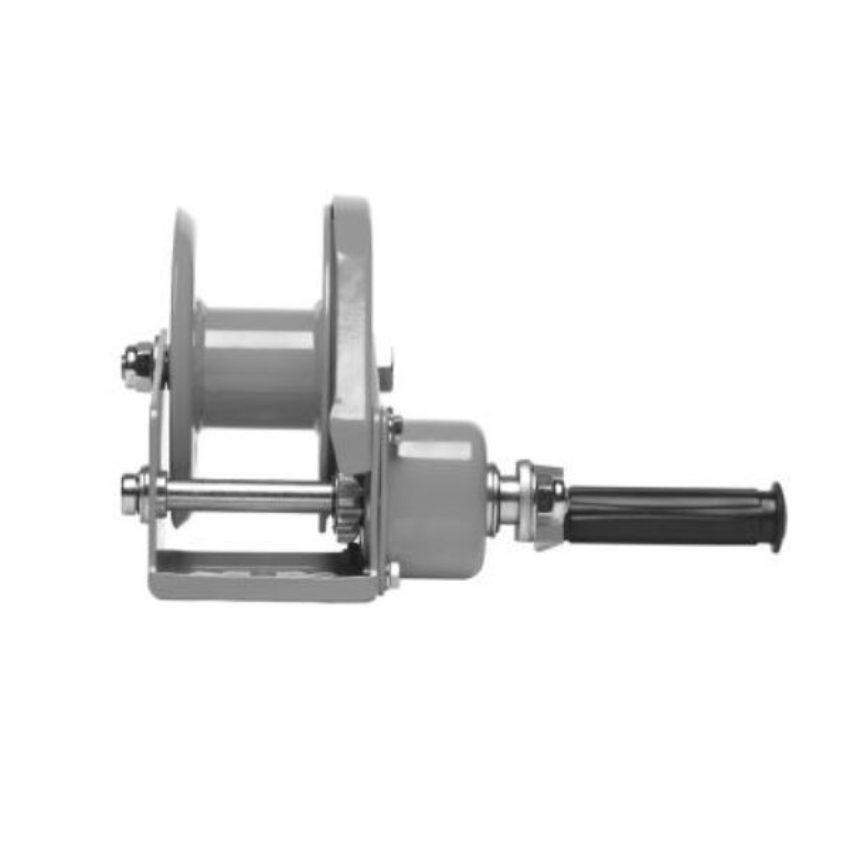

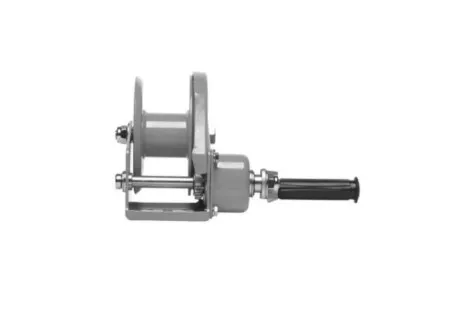

Noiseless 1200lb model: BHW1200N is equipped with a patented quiet brake design that is virtually silent and fully automatic. Best suited to those locations where quiet is required, such as schools, hospitals and theatres.
| Model | Pulling Capacity | Lifting Capacity 1st Layer | Lifting Capacity Mid Layer | Lifting Capacity Last Layer | Gear Ratio | Hub Diameter | Handle Length | Unit Weight | Cable Diameter | Max Cable length | Max Strap Length |
| BHW 0800 OCP | 800Lbs / 360Kgs | 360Kgs | 254Kgs | 180Kgs | 4.1:1 | 40mm | 160mm | 3.0Kgs | 4mm | 36m | 9.1m |
| BHW 1200 OCP | 1200Lbs / 550Kgs | 550Kgs | 392Kgs | 275Kgs | 4.1:1 | 50mm | 210mm | 3.5Kgs | 5mm | 23m | 8.5m |
BHW 1200N OCP Noiseless | 1200Lbs / 550Kgs | 550Kgs | 392Kgs | 275Kgs | 4.1:1 | 50mm | 210mm | 3.5Kgs | 5mm | 23m | 8.5m |
| BHW 1800 OCP | 1800Lbs / 800Kgs | 800Kgs | 562Kgs | 400Kgs | 5:1 | 70mm | 320mm | 8.0Kgs | 6mm | 24m | 14.1m |
| BHW 2600 | 2600Lbs / 1180Kgs | 1180Kgs | 844Kgs | 590Kgs | 10:1 | 82mm | 320mm | 10.5Kgs | 8mm | 18m | 10.6m |
Galvanized winch cable that can be used for both Lifting & Pulling Applications.
| Model | Description | Rope Diameter | Breaking Load | Compatible with |
| WWR-04-30 | 30m Long Winch cable Fitted With Safety Hook | 4mm | 1270Kgs | BHW 0800 |
| WWR-05-20 | 20m Long Winch cable Fitted With Safety Hook | 5mm | 2000Kgs | BHW 1200 BHW 1200N |
| WWR-06-22 | 22m Long Winch cable Fitted With Safety Hook | 6mm | 3000Kgs | BHW 1800 |
| WWR-08-16 | 16m Long Winch cable Fitted With Safety Hook | 8mm | 4500Kgs | BHW 2600 |
Polyester Winch Strap that can only be used for Pulling Applications.
| Model | Description | Strap Dimensions | Breaking Load | Compatible with |
| TG-48 | 6m Long Winch Strap Fitted With Safety Hook | 48mm wide x 1.2mm Thick | 2068Kgs | BHW 0800 BHW 1200 BHW 1200N |
| TG-54 | 9m Long Winch Strap Fitted With Safety Hook | 54mm wide x 1.4mm Thick | 2864Kgs | BHW 1800 |
| TG-60 | 9m Long Winch Strap Fitted With Safety Hook | 60mm wide x 1.7mm Thick | 4136Kgs | BHW 2600 |
Key Features of Tiger Corrosion Protected Hand Winch with Brake.
Superior corrosion protection
Compact, light-weight and rugged construction
Very low operator effort required for easy operation
For cable and strap
High quality multi-purpose winch
Gears and brakes fully covered to prevent dust, dirt and rain contamination
Universal mounting plate
Automatic load-actuated brake can hold the load in any position
Heat treated gears
Available as 800lb, 1200lb, 1800lb, and 2600lb models
| Model | Pulling Capacity | Lifting Capacity 1st Layer | Lifting Capacity Mid Layer | Lifting Capacity Last Layer | Gear Ratio | Hub Diameter | Handle Length | Unit Weight | Cable Diameter | Max Cable length | Max Strap Length |
| BHW 0800 | 800Lbs / 360Kgs | 360Kgs | 254Kgs | 180Kgs | 4.1:1 | 40mm | 160mm | 3.0Kgs | 4mm | 36m | 9.1m |
| BHW 1200 | 1200Lbs / 550Kgs | 550Kgs | 392Kgs | 275Kgs | 4.1:1 | 50mm | 210mm | 3.5Kgs | 5mm | 23m | 8.5m |
BHW 1200N Noiseless | 1200Lbs / 550Kgs | 550Kgs | 392Kgs | 275Kgs | 4.1:1 | 50mm | 210mm | 3.5Kgs | 5mm | 23m | 8.5m |
| BHW 1800 | 1800Lbs / 800Kgs | 800Kgs | 562Kgs | 400Kgs | 5:1 | 70mm | 320mm | 8.0Kgs | 6mm | 24m | 14.1m |
| BHW 2600 | 2600Lbs / 1180Kgs | 1180Kgs | 844Kgs | 590Kgs | 10:1 | 82mm | 320mm | 10.5Kgs | 8mm | 18m | 10.6m |
Galvanized winch cable that can be used for both Lifting & Pulling Applications.
| Model | Description | Rope Diameter | Breaking Load | Compatible with |
| WWR-04-30 | 30m Long Winch cable Fitted With Safety Hook | 4mm | 1270Kgs | BHW 0800 |
| WWR-05-20 | 20m Long Winch cable Fitted With Safety Hook | 5mm | 2000Kgs | BHW 1200 BHW 1200N |
| WWR-06-22 | 22m Long Winch cable Fitted With Safety Hook | 6mm | 3000Kgs | BHW 1800 |
| WWR-08-16 | 16m Long Winch cable Fitted With Safety Hook | 8mm | 4500Kgs | BHW 2600 |
Polyester Winch Strap that can only be used for Pulling Applications.
| Model | Description | Strap Dimensions | Breaking Load | Compatible with |
| TG-48 | 6m Long Winch Strap Fitted With Safety Hook | 48mm wide x 1.2mm Thick | 2068Kgs | BHW 0800 BHW 1200 BHW 1200N |
| TG-54 | 9m Long Winch Strap Fitted With Safety Hook | 54mm wide x 1.4mm Thick | 2864Kgs | BHW 1800 |
| TG-60 | 9m Long Winch Strap Fitted With Safety Hook | 60mm wide x 1.7mm Thick | 4136Kgs | BHW 2600 |
Tiger Lifting - A BRAND TO RELY ON - Robust and reliable are phrases synonymous with Tiger Products. They must be, and are, of the highest quality in order to meet the lifting requirements specified by our customers and to operate effectively in the extremely harsh environmental conditions our clients often place them in.
Tiger Lifting - Global Track Record & enviable reputation - We have manufactured the Tiger brand of manual lifting products for over 50 years and have a proven track record and an enviable reputation for supplying high quality safe, stable products into a varied cross-section of demanding industries throughout the world.
We employ over 100 people across our distribution centres located in Europe, North America and South East Asia, our manufacturing plant based in Taiwan and our various sales offices in different countries.
Our range includes unique, patented designs and our products meet or exceed all relevant international standards, serving all spheres of global industry.
As the manufacturer of our hoisting and winching products, we hold complete technical files to provide full back-up and reassurance on our products’ performance and to ensure that advice for our equipment is readily available. We have a wealth of technical expertise to give our customers full product support.
