LB Pfaff Wire Rope Winch - Stainless Version

Key notes for ordering:

Supplied as winch only- wire rope to be bought separately. Tested and Certified

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

LB Pfaff Wire Rope Winch - Stainless Version

Brand:

Capacity

250Kgs up to 900Kgs
(0.25 tonne - 0.9 tonne)

Description

The LB Stainless Wire Rope Winch is a console-mounted winch. It is from our corrosion-resistant winch range used for a variety of both lifting and pulling applications in outdoor or wet environments - Designed for maximum versatility and efficiency.

£464.74 ex VAT

£557.69 inc VAT

Add to cart Add to quote

Related products

HW-C Yale Spur Gear Drive Manual Wire Rope Winch

HW-C

The HW-C is a Spur Gear driven manual Wire Rope Winch. Ideal for mounting on walls, poles, towers or horizontally mounted.

£59.16 ex VAT

£70.99 inc VAT

HW-CS Yale Spur Gear Drive Manual Stainless Wire Rope Winch

HW-CS

The HW-C Stainless Steel Spur Gear Manual Wire Rope Winch. Being St/St it has extra protection against the elements and great for mounting onto walls, poles and towers etc.

£194.98 ex VAT

£233.98 inc VAT

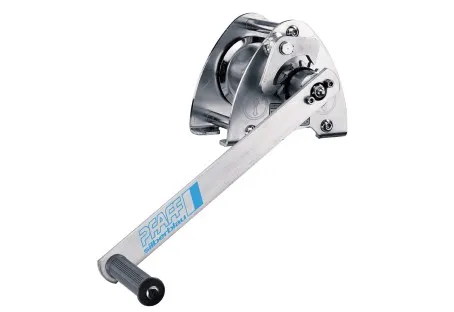

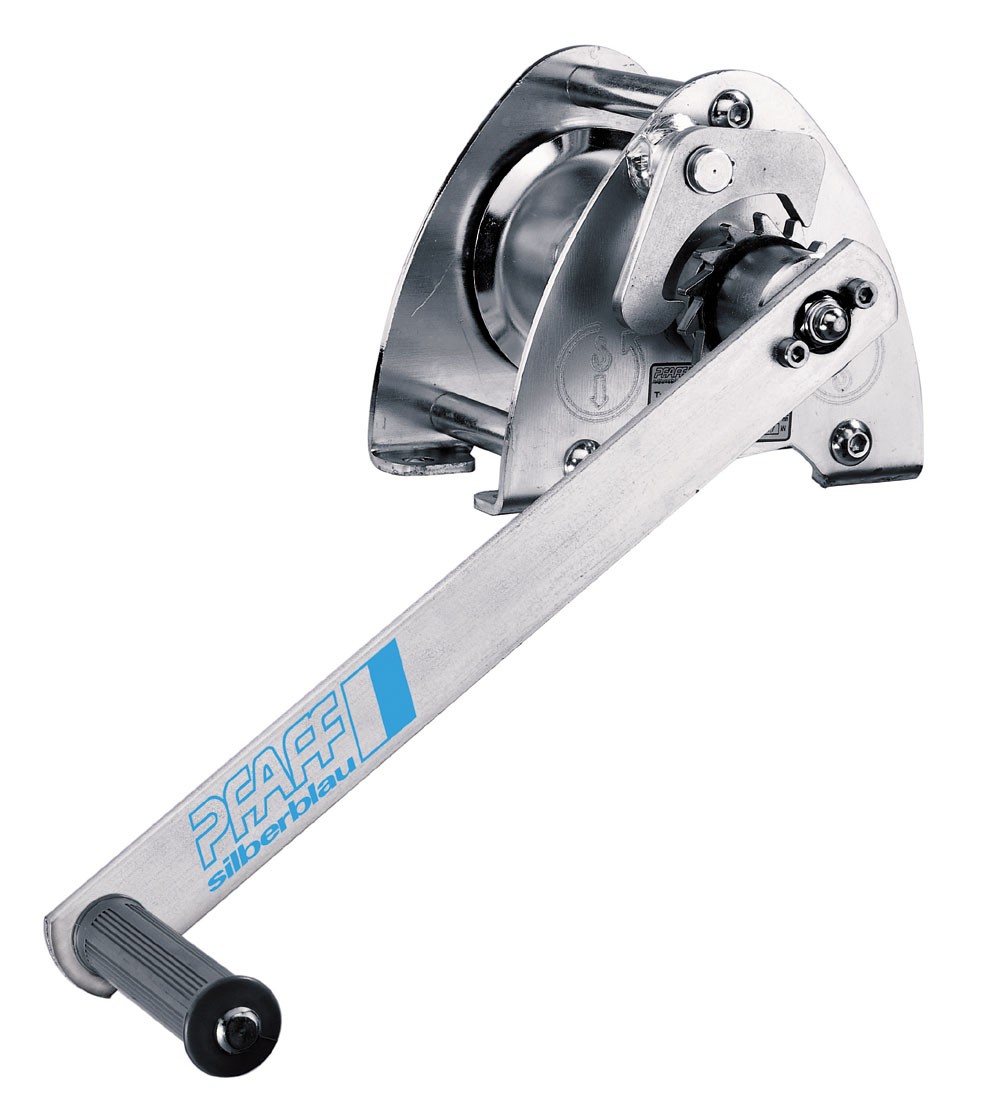

The LB Stainless Steel Wire Rope Winch for increased corrosion protection is a classically styled hand winch. Designed as a base or console-mounted hand winch. The Pfaff LB wire rope winches are from our best-selling winch range and are used for a variety of both lifting and pulling applications - Designed for maximum versatility and efficiency.

Originally developed as a vehicle winch for off-road vehicles, it has a lightweight robust design and is fitted with a load pressure brake to prevent the unintentional releasing of the load.

These stainless Steel Version wire rope winches are ideal for outdoor use or in wet environments.
Model
Lifting Capacity 1st Rope Layer
Upper Rope Layer
Wire Rope Diameter
Lift Per Crank Rotation
Required Crank Pressure
Weight
LB 250 VA
250Kgs
125Kgs
4mm
125mm
20daN
4.8Kgs
LB 650 VA
650Kgs
290Kgs
6mm
55mm
22daN
7.6Kgs
LB 900 VA
900Kgs
320Kgs
7mm
45mm
24daN
12.13Kgs
NB - Only use Stainless Steel Wire Rope with these Winches

The Hand Winch LB is a manual winch operated for lifting and lowering loads.
The winch is not suitable for use in explosive danger areas.
The winch is not suitable for use in a corrosive atmosphere.
Power operation is not allowed.
The winch is not designed for continuous operation respective to stress due to vibration.
The wire rope winch is not suitable for major transformations of energy during lowering operation.
Alterations to the winch or fitting of accessories are only allowed with our written approval.
Carrying loads of 250 – 900 kg

All parts are in high-quality stainless steel V2A.
Robust steel housing with low weight
Smoothly running spur gear
The attached load pressure brake securely holds the load in any position
Simple and quick console attachment
The rope drum is additionally coated with corrosion protection (KTL)

Model
Lifting Capacity 1st Rope Layer
Upper Rope Layer
Wire Rope Diameter
Lift Per Crank Rotation
Required Crank Pressure
Weight
LB 250 VA
250Kgs
125Kgs
4mm
125mm
20daN
4.8Kgs
LB 650 VA
650Kgs
290Kgs
6mm
55mm
22daN
7.6Kgs
LB 900 VA
900Kgs
320Kgs
7mm
45mm
24daN
12.13Kgs
NB - Only use Stainless Steel Wire Rope with these Winches

The Hand Winch LB is a manual winch operated for lifting and lowering loads.
The winch is not suitable for use in explosive danger areas.
The winch is not suitable for use in a corrosive atmosphere.
Power operation is not allowed.
The winch is not designed for continuous operation respective to stress due to vibration.
The wire rope winch is not suitable for major transformations of energy during lowering operation.
Alterations to the winch or fitting of accessories are only allowed with our written approval.

Pfaff-silberblau Established in 1867, Pfaff-silberblau is the leading manufacturer of electric and manual winches in Europe.


Available in capacities from 125kg up to 7500kg and with over 1000 variations the Pfaff range of winches is second to none. Pfaff also offers a comprehensive range of manual and electric hand pallet trucks, pedestrian manual and powered stacker trucks, and manual and electric scissor tables. “Movability is a question of creative technology
