HW-C Yale Spur Gear Drive Manual Wire Rope Winch

Key notes for ordering:

Supplied as winch only- wire rope to be bought separately. Tested and Certified

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

HW-C Yale Spur Gear Drive Manual Wire Rope Winch

Brand:

Capacity

300 to 800 DaN

Description

The HW-C is a Spur Gear driven manual Wire Rope Winch. Ideal for mounting on walls, poles, towers or horizontally mounted.

£59.16 ex VAT

£70.99 inc VAT

Only use Galv wire rope with these winches
Add to cart Add to quote

Related products

LB Pfaff Wire Rope Winch - Galv Design

LB

LB Galv Wire Rope Winch is a classic styled hand winch. Designed as a base or console mounted hand winch. The Pfaff LB wire rope winches are from our best selling winch range and used for a variety of both lifting and pulling applications

£168.43 ex VAT

£202.12 inc VAT

LB Pfaff Wire Rope Winch - Stainless Version

LB

The LB Stainless Wire Rope Winch is a console-mounted winch. It is from our corrosion-resistant winch range used for a variety of both lifting and pulling applications in outdoor or wet environments - Designed for maximum versatility and efficiency.

£464.74 ex VAT

£557.69 inc VAT

HW-CS Yale Spur Gear Drive Manual Stainless Wire Rope Winch

HW-CS

The HW-C Stainless Steel Spur Gear Manual Wire Rope Winch. Being St/St it has extra protection against the elements and great for mounting onto walls, poles and towers etc.

£194.98 ex VAT

£233.98 inc VAT

BHW Tiger Hand Winch

BHW

The Tiger BHW Braked Hand Winch is a high-quality multi-purpose hand-operated winch used for a wide variety of lifting and hoisting applications. fitted with an automatic brake that ensures the load remains suspended when the crank is released and avoids unchecked descent of the load.

£42.98 ex VAT

£51.58 inc VAT

BHW-OCP Tiger Hand Winch Corrosion Protected

BHW OCP

The Tiger BHW OCP Braked Hand Winch with corrosion protection is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications. fitted with an automatic brake that ensures the load remains suspended when the crank is released and avoids unchecked descent of the load.

£79.98 ex VAT

£95.98 inc VAT

Tiger Hand Winch - Noiseless Version

BHW1200N

The Tiger BHW Braked Noiseless Hand Winch is a high quality, compact & lightweight multi-purpose hand operated winch with a built in quiet brake feature, that virtually cuts out all noise created by a traditional hand winch.

£69.98 ex VAT

£83.98 inc VAT

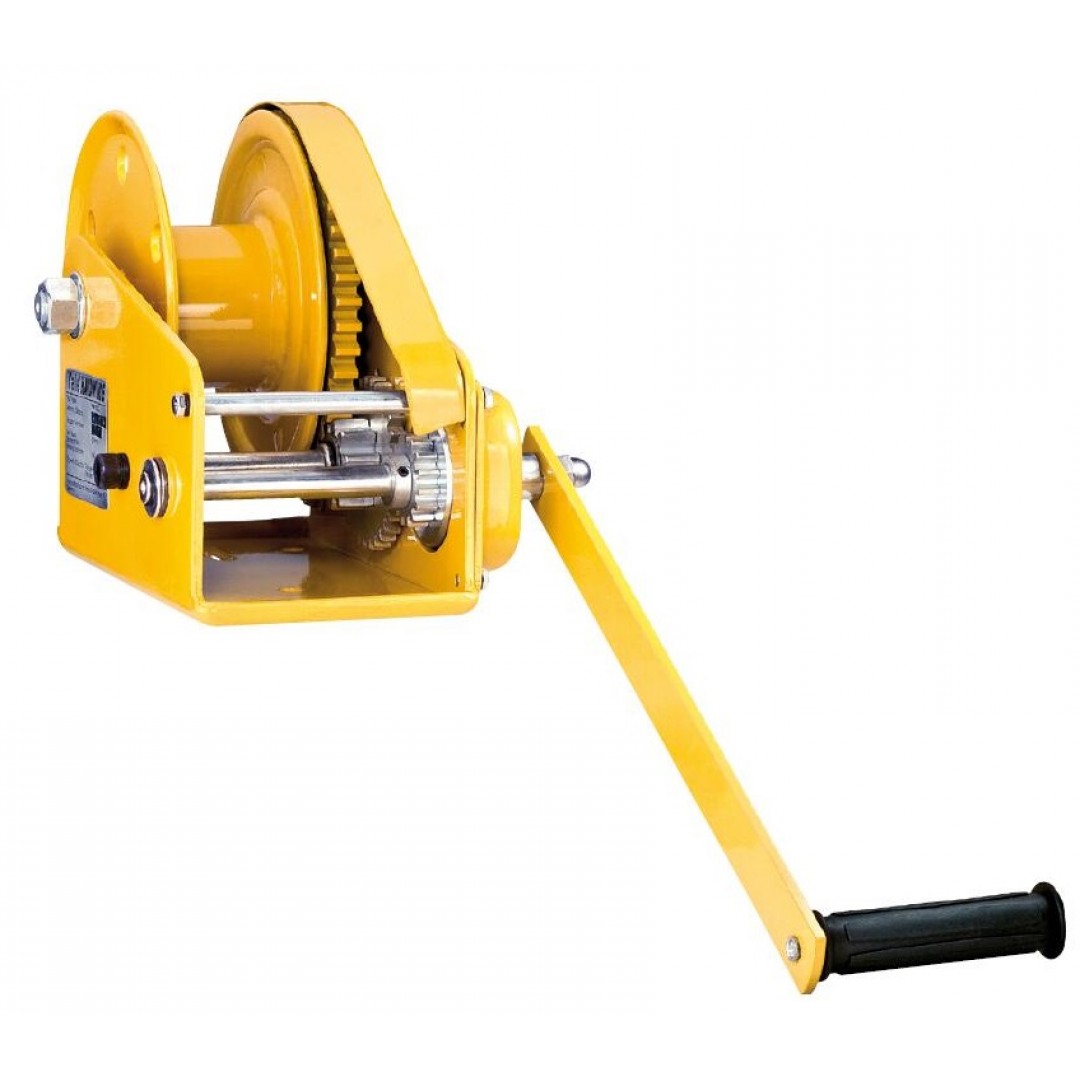

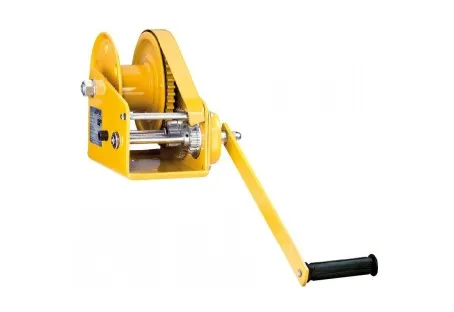

The HW-C is a Spur Gear driven manual Wire Rope Winch manufactured by Yale Products. Competitively priced manual winches that are ideal for mounting onto walls, poles, towers etc, and suitable in areas where electricity is not available or where electric appliances can not be safely operated due to water, mud, or dirt.
The winch housing and rope drum are manufactured from a robust steel plate and finished in a yellow powder-coated finish for high visibility and protection against the elements. In wetter areas, then please look at our Stainless Steel version of this Wire Rope Winch. Fitted with a spur gear drive for optimal efficiency.
Model
 Lifting Capacity 1st Rope Layer
Upper Rope Layer
Wire Rope Diameter
Max Winch Rope length
Weight
HW-C 30
300daN
120daN
5mm
20m
3.8Kgs
HW-C 80
800daN
400daN
8mm
15m
10.1Kgs
Features & Benefits of the HW-C Spur Gear Winch.

  • Winching Housing & Wire Rope Drum from robust Steel Plate for versatility.
  • Rope drum on a bush bearing for flawless rope lead-off.
  • spur gear drive for optimal efficiency.
  • Easy & quick mounting onto Walls, Poles, Towers etc.
  • Pivotably handle.
  • Automatic load pressure brake for sale holding and extremely sensitive lowering of the load.
  • Unintentional brake release is prevented even with swinging loads.
  • The wire rope winch comes with a HIGH Visibility, yellow powder coated finish as standard.
  • Suitable for operation in ambient temperatures of -10 to +50.

Only use Galv wire rope with these winches.

We also offer a stainless steel version for extra corrosion protection or when being used in harsh environments.
Features & Benefits of the HW-C Spur Gear Winch.

  • Winching Housing & Wire Rope Drum from robust Steel Plate for versatility
  • Rope drum on bush bearing for flawless rope lead off
  • spur gear drive for optimal efficiency
  • Easy & quick mounting onto Walls, Poles, Towers etc
  • Pivotably handle
  • Automatic load pressure brake for sale holding and extremely sensitive lowering of the load
  • Unintentional brake release is prevented even with swinging loads
  • The wire rope winch comes with a HIGH Visibility, yellow powder coated finish as standard
  • Suitable for operation in ambient temperatures of -10 to +50

Model
 Lifting Capacity 1st Rope Layer
Upper Rope Layer
Wire Rope Diameter
Max Winch Rope length
Weight
HW-C 30
300daN
120daN
5mm
20m
3.8Kgs
HW-C 80
800daN
400daN
8mm
15m
10.1Kgs
Only use Galv wire rope with these winches.
