BHW Tiger Hand Winch

Key notes for ordering:

Can be supplied with or without winch cable / winch strap. Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

BHW Tiger Hand Winch

Brand:

Capacity

Lifting Capacity - 360Kgs to 1180Kgs
Pulling Capacity - 360Kgs to 1180kgs

Description

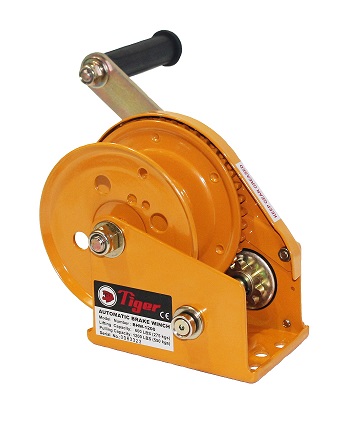

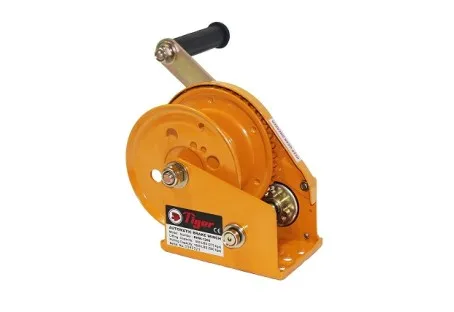

The Tiger BHW Braked Hand Winch is a high-quality multi-purpose hand-operated winch used for various lifting and hoisting applications. Fitted with an automatic brake that ensures the load remains suspended when the hand crank is released and avoids unchecked descent of the load.

£42.98 ex VAT

£51.58 inc VAT

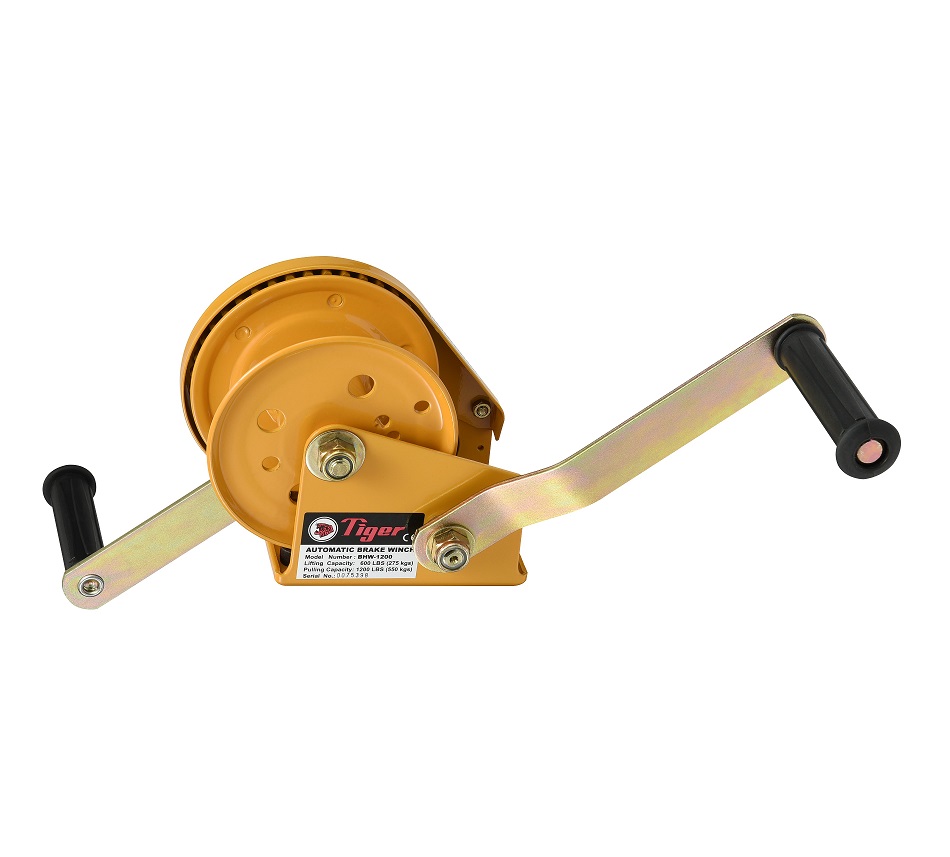

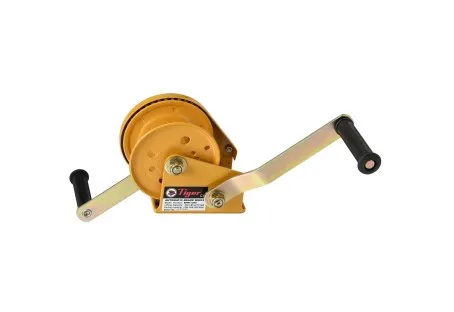

Dual handle pinion shaft option available - allows handle to be fitted on both sides

Related products

LB Pfaff Wire Rope Winch - Galv Design

LB

LB Galv Wire Rope Winch is a classic styled hand winch. Designed as a base or console mounted hand winch. The Pfaff LB wire rope winches are from our best selling winch range and used for a variety of both lifting and pulling applications

£168.43 ex VAT

£202.12 inc VAT

HW-C Yale Spur Gear Drive Manual Wire Rope Winch

HW-C

The HW-C is a Spur Gear driven manual Wire Rope Winch. Ideal for mounting on walls, poles, towers or horizontally mounted.

£59.16 ex VAT

£70.99 inc VAT

Tiger Winch Wire Ropes

WWR

Our range of top quality galvanized winch cables manufactured to suit the Tiger Lifting BHW range of winches

£32.98 ex VAT

£39.58 inc VAT

Tiger Winch Strap

TG

Winch Strap with safety hook to suit Tiger Hand Winches

£23.98 ex VAT

£28.78 inc VAT

BHW-OCP Tiger Hand Winch Corrosion Protected

BHW OCP

The Tiger BHW OCP Braked Hand Winch with corrosion protection is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications. fitted with an automatic brake that ensures the load remains suspended when the crank is released and avoids unchecked descent of the load.

£79.98 ex VAT

£95.98 inc VAT

SF2200 Tiger Heavy Duty Hand Winch

SF 2200

The SF2200 Hand winch from Tiger Lifting is described as a heavy-duty hoist of industrial quality - Can be used for both Lifting applications up to 1000kgs and Pulling applications up to 2000Kgs

£259.98 ex VAT

£311.98 inc VAT

Tiger Hand Winch - Noiseless Version

BHW1200N

The Tiger BHW Braked Noiseless Hand Winch is a high quality, compact & lightweight multi-purpose hand operated winch with a built in quiet brake feature, that virtually cuts out all noise created by a traditional hand winch.

£69.98 ex VAT

£83.98 inc VAT

The Tiger BHW Braked Hand Winch is a high-quality, compact & lightweight multi-purpose hand-operated winch used for various lifting and hoisting applications. Fitted with an automatic brake that ensures the load remains suspended when the hand crank is released and avoids unchecked descent of the load.

Can be used for both Lifting and Pulling Applications - Can be fitted with either a Winch cable that can be used for both Lifting & Pulling Applications or a polyester Winch Strap that can only be used for Pulling Applications.

The winch machine is designed specifically to avoid freewheeling, making the hand winch extremely safe to operate.

The winch-out casing is finished in a high-quality powder coat paint, making these units look very professional and offering excellent corrosion protection. All mechanical components, such as gears and brakes, are fully covered to prevent dust, dirt and rain contamination.

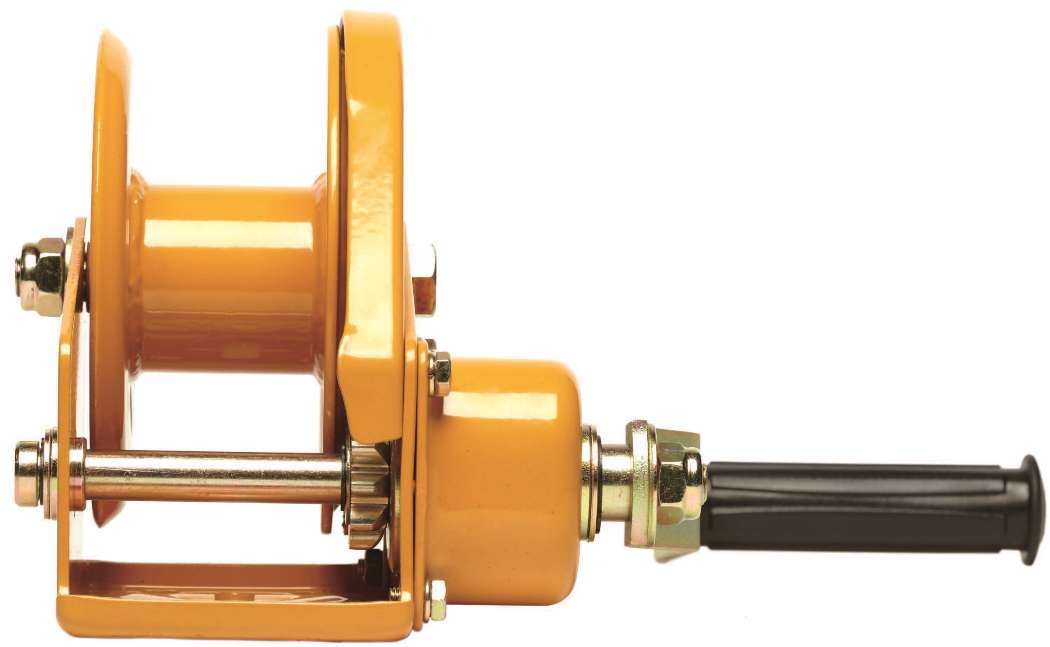

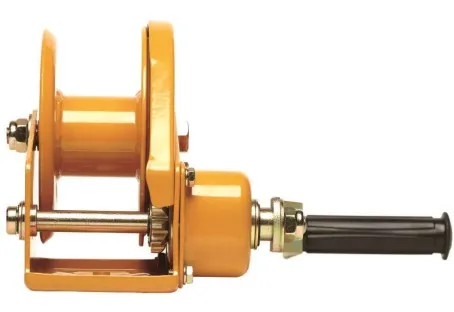

Noiseless 1200lb model: BHW1200N is equipped with a patented quiet brake design that is virtually silent and fully automatic. Best suited to those locations where quiet is required, such as schools, hospitals and theatres.

ModelPulling Capacity

Lifting Capacity

1st Layer

Lifting Capacity

Mid Layer

Lifting Capacity

Last Layer

Gear RatioHub DiameterHandle LengthUnit WeightCable DiameterMax Cable lengthMax Strap Length
BHW 0800800Lbs / 360Kgs360Kgs254Kgs180Kgs4.1:140mm160mm3.0Kgs4mm36m9.1m
BHW 12001200Lbs / 550Kgs550Kgs392Kgs275Kgs4.1:150mm210mm3.5Kgs5mm23m8.5m

BHW 1200N

Noiseless

1200Lbs / 550Kgs
550Kgs
392Kgs
275Kgs
4.1:1
50mm
210mm
3.5Kgs
5mm
23m
8.5m
BHW 18001800Lbs / 800Kgs800Kgs562Kgs400Kgs5:170mm320mm8.0Kgs6mm24m14.1m
BHW 26002600Lbs / 1180Kgs1180Kgs844Kgs590Kgs10:182mm320mm10.5Kgs8mm18m10.6m

Galvanized winch cable that can be used for both Lifting & Pulling Applications.

ModelDescriptionRope DiameterBreaking Load Compatible with
WWR-04-3030m Long Winch cable Fitted With Safety Hook4mm1270KgsBHW 0800
WWR-05-2020m Long Winch cable Fitted With Safety Hook
5mm2000Kgs

BHW 1200

BHW 1200N

WWR-06-2222m Long Winch cable Fitted With Safety Hook
6mm3000KgsBHW 1800
WWR-08-1616m Long Winch cable Fitted With Safety Hook
8mm4500KgsBHW 2600

Polyester Winch Strap that can only be used for Pulling Applications.

ModelDescriptionStrap DimensionsBreaking LoadCompatible with
TG-486m Long Winch Strap Fitted With Safety Hook48mm wide x 1.2mm Thick2068Kgs

BHW 0800

BHW 1200

BHW 1200N

TG-549m Long Winch Strap Fitted With Safety Hook
54mm wide x 1.4mm Thick
2864KgsBHW 1800
TG-609m Long Winch Strap Fitted With Safety Hook
60mm wide x 1.7mm Thick
4136KgsBHW 2600


Key Features of Tiger Hand Winch with Brake.


High-quality multi-purpose manual winch

The automatic load-actuated brake can hold the load in any position

Compact, light-weight and rugged construction

Gears and brakes are fully covered to prevent dust, dirt, and rain contamination.

Heat treated gears

Very low operator effort is required for easy operation

The dual-handle pinion shaft option available on all models allows the handle to be fitted on both sides

Universal mounting plate.

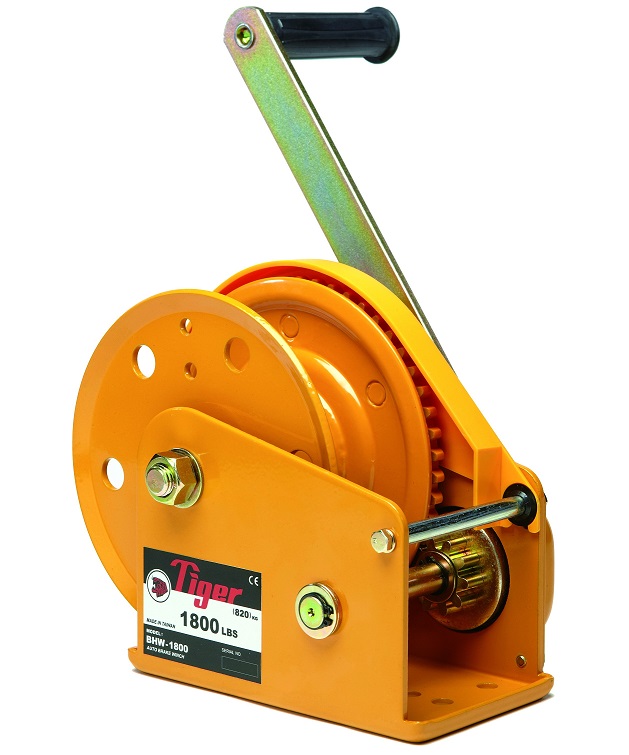

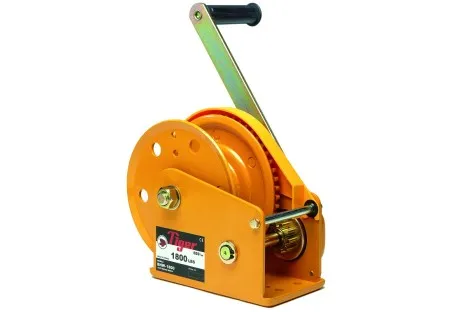

Available as 800lb, 1200lb, 1800lb and 2600lb models.

For cable and strap.

Finished in high-quality powder coat paint offering excellent corrosion protection

Fully corrosion-protected versions are available

Noiseless 1200lb model available

3D Drawings available in full range for project planning

Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)

ModelPulling Capacity

Lifting Capacity

1st Layer

Lifting Capacity

Mid Layer

Lifting Capacity

Last Layer

Gear RatioHub DiameterHandle LengthUnit WeightCable DiameterMax Cable lengthMax Strap Length
BHW 0800800Lbs / 360Kgs360Kgs254Kgs180Kgs4.1:140mm160mm3.0Kgs4mm36m9.1m
BHW 12001200Lbs / 550Kgs550Kgs392Kgs275Kgs4.1:150mm210mm3.5Kgs5mm23m8.5m

BHW 1200N

Noiseless

1200Lbs / 550Kgs
550Kgs
392Kgs
275Kgs
4.1:1
50mm
210mm
3.5Kgs
5mm
23m
8.5m
BHW 18001800Lbs / 800Kgs800Kgs562Kgs400Kgs5:170mm320mm8.0Kgs6mm24m14.1m
BHW 26002600Lbs / 1180Kgs1180Kgs844Kgs590Kgs10:182mm320mm10.5Kgs8mm18m10.6m

Galvanised cable winch that can be used for both Lifting & Pulling Applications.

ModelDescriptionRope DiameterBreaking Load Compatible with
WWR-04-3030m Long Winch cable Fitted With Safety Hook4mm1270KgsBHW 0800
WWR-05-2020m Long Winch cable Fitted With Safety Hook
5mm2000Kgs

BHW 1200

BHW 1200N

WWR-06-2222m Long Winch cable Fitted With Safety Hook
6mm3000KgsBHW 1800
WWR-08-1616m Long Winch cable Fitted With Safety Hook
8mm4500KgsBHW 2600

Polyester Winch Strap that can only be used for Pulling Applications.

ModelDescriptionStrap DimensionsBreaking LoadCompatible with
TG-486m Long Winch Strap Fitted With Safety Hook48mm wide x 1.2mm Thick2068Kgs

BHW 0800

BHW 1200

BHW 1200N

TG-549m Long Winch Strap Fitted With Safety Hook
54mm wide x 1.4mm Thick
2864KgsBHW 1800
TG-609m Long Winch Strap Fitted With Safety Hook
60mm wide x 1.7mm Thick
4136KgsBHW 2600


Tiger Lifting - A BRAND TO RELY ON - Robust and reliable are phrases synonymous with Tiger Products. They must be, and are, of the highest quality to meet the lifting requirements specified by our customers and to operate effectively in the extremely harsh environmental conditions our clients often place them in.

Tiger Lifting - Global Track Record & enviable reputation - We have manufactured the Tiger brand of manual lifting products for over 50 years and have a proven track record and an enviable reputation for supplying high quality safe, stable products to a cross-section of demanding industries worldwide.

We employ over 100 people across our distribution centres located in Europe, North America and South East Asia, our manufacturing plant based in Taiwan and our various sales offices in different countries.

Our range includes unique, patented designs and our products meet or exceed all relevant international standards, serving all spheres of global industry.

As the manufacturer of our hoisting and winching products, we hold complete technical files to provide full backup and reassurance on our products’ performance and to ensure that advice for our equipment is readily available. We have a wealth of technical expertise to give our customers full product support.
