HW-CS Yale Spur Gear Drive Manual Stainless Wire Rope Winch

Key notes for ordering:

Supplied as winch only- wire rope to be bought separately. Tested and Certified

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

HW-CS Yale Spur Gear Drive Manual Stainless Wire Rope Winch

Brand:

Capacity

300 to 800 DaN

Description

The HW-C Stainless Steel Spur Gear Manual Wire Rope Winch. Being St/St it has extra protection against the elements and great for mounting onto walls, poles and towers etc.

£194.98 ex VAT

£233.98 inc VAT

Add to cart Add to quote

Related products

LB Pfaff Wire Rope Winch - Galv Design

LB

LB Galv Wire Rope Winch is a classic styled hand winch. Designed as a base or console mounted hand winch. The Pfaff LB wire rope winches are from our best selling winch range and used for a variety of both lifting and pulling applications

£168.43 ex VAT

£202.12 inc VAT

LB Pfaff Wire Rope Winch - Stainless Version

LB

The LB Stainless Wire Rope Winch is a console-mounted winch. It is from our corrosion-resistant winch range used for a variety of both lifting and pulling applications in outdoor or wet environments - Designed for maximum versatility and efficiency.

£464.74 ex VAT

£557.69 inc VAT

HW-C Yale Spur Gear Drive Manual Wire Rope Winch

HW-C

The HW-C is a Spur Gear driven manual Wire Rope Winch. Ideal for mounting on walls, poles, towers or horizontally mounted.

£59.16 ex VAT

£70.99 inc VAT

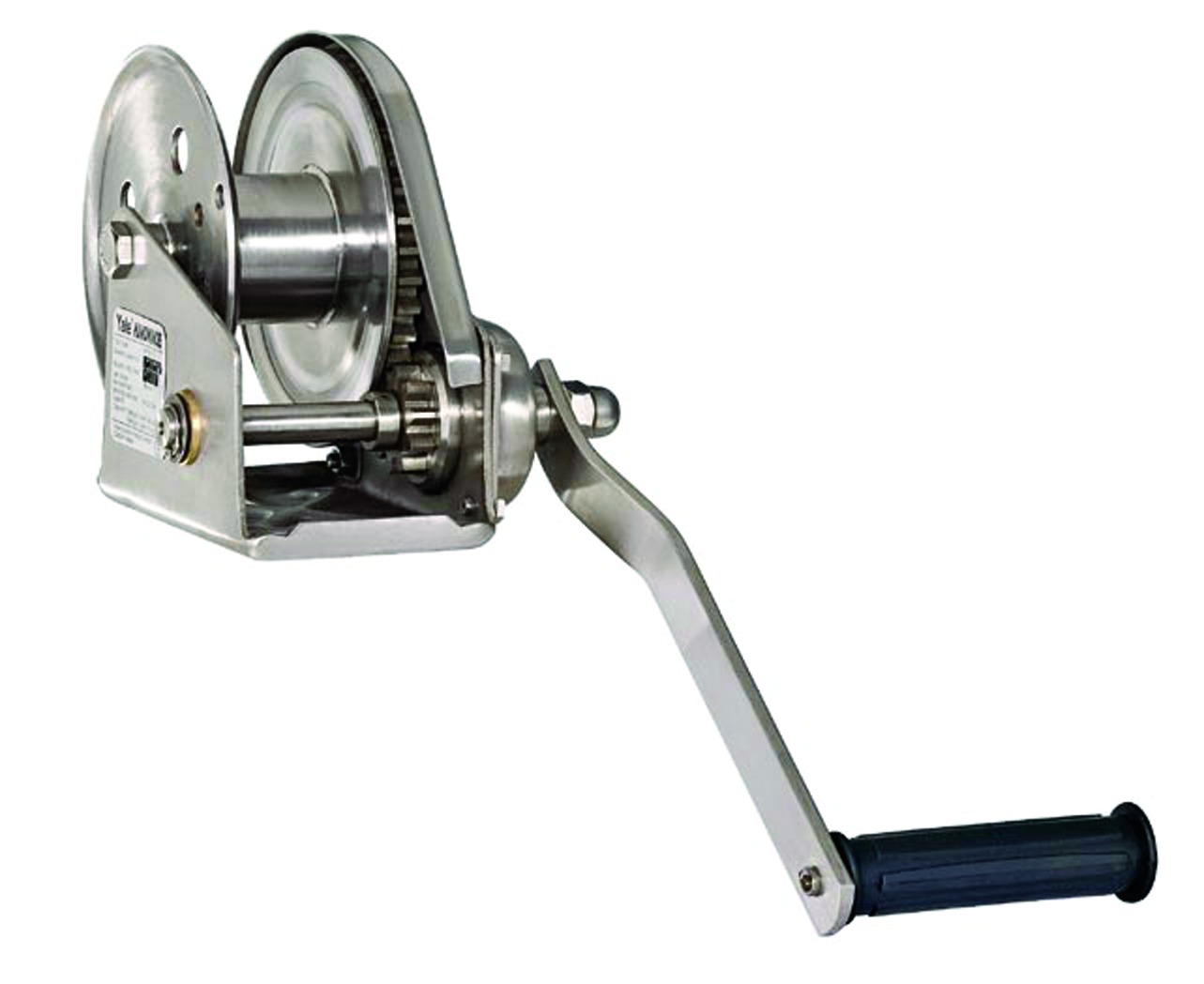

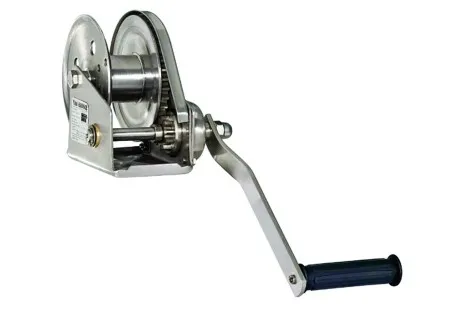

The HW-CS, Stainless Steel Spur Gear Manual Wire Rope Winches by Yale Products - Great for mounting onto walls, poles, towers etc, and suitable in areas where electricity is not available or where electric appliances can not be safely operated due to water, mud or dirt. Being a Stainless Steel hand winch makes this winch a great choice for use outdoors in wet environments.

The winch housing and rope drum are manufactured from robust Stainless Steel plate and the plain drum bearing are made from bronze for additional corrosion resistance. Fitted with a spur gear drive for optimal efficiency.
Model
Lifting Capacity 1st Rope Layer
Upper Rope Layer
Wire Rope Diameter
Max Winch Rope length
Weight
HW-CS 30
300daN
120daN
5mm
20m
3.8Kgs
HW-CS 80
800daN
400daN
8mm
15m
10.1Kgs
Only use Stainless Steel wire rope with these winches.

Features & Benefits of the HW-C Spur Gear Winch.

  • Winching Housing & Wire Rope Drum from robust Stainless Steel Plate.
  • The plain drum bearing is made from bronze for additional corrosion resistance.
  • Rope drum on bush bearing for flawless rope lead off.
  • spur gear drive for optimal efficiency.
  • Easy & quick mounting onto Walls, Poles, Towers etc.
  • Pivotably handle.
  • Automatic load pressure brake for sale holding and extremely sensitive lowering of the load.
  • Unintentional brake release is prevented even with swinging loads.
  • Suitable for operation in ambient temperatures of -10 to +50.

We also offer a standard steel version to cover standard conditions.
Features & Benefits of the HW-C Spur Gear Winch.

  • Winching Housing & Wire Rope Drum from robust Stainless Steel Plate .
  • The plain drum bearing are mad from bronze for additional corrosion resistance.
  • Rope drum on bush bearing for flawless rope lead off.
  • spur gear drive for optimal efficiency.
  • Easy & quick mounting onto Walls, Poles, Towers etc.
  • Pivotably handle.
  • Automatic load pressure brake for sale holding and extremely sensitive lowering of the load.
  • Unintentional brake release is prevented even with swinging loads.
  • Suitable for operation in ambient temperatures of -10 to +50.
Model
Lifting Capacity 1st Rope Layer
Upper Rope Layer
Wire Rope Diameter
Max Winch Rope length
Weight
HW-CS 30
300daN
120daN
5mm
20m
3.8Kgs
HW-CS 80
800daN
400daN
8mm
15m
10.1Kgs
Only use Stainless Steel wire rope with these winches
We also offer a standard steel version to cover standard conditions.
