Yale Festoon Power Supply Cable System
Brand:
Description

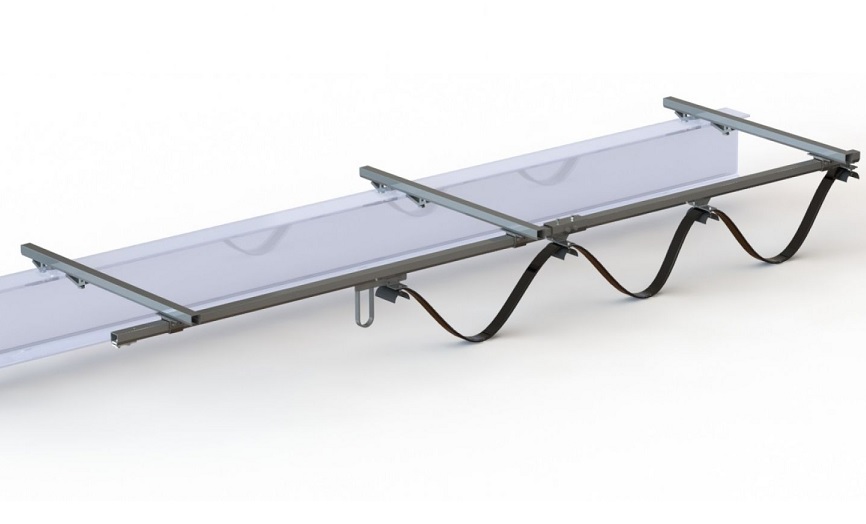

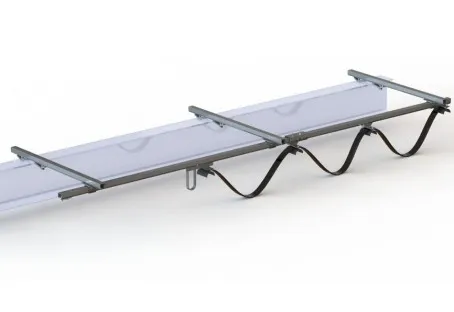

Yale Festoon Power Supply Cable System is a cost-effective Industrial Festoon System designed for Overhead Cranes & Hoists.
Add to cart
Add to quoteRelated products
-494x340.webp)

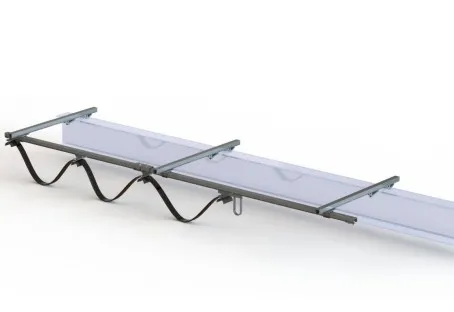

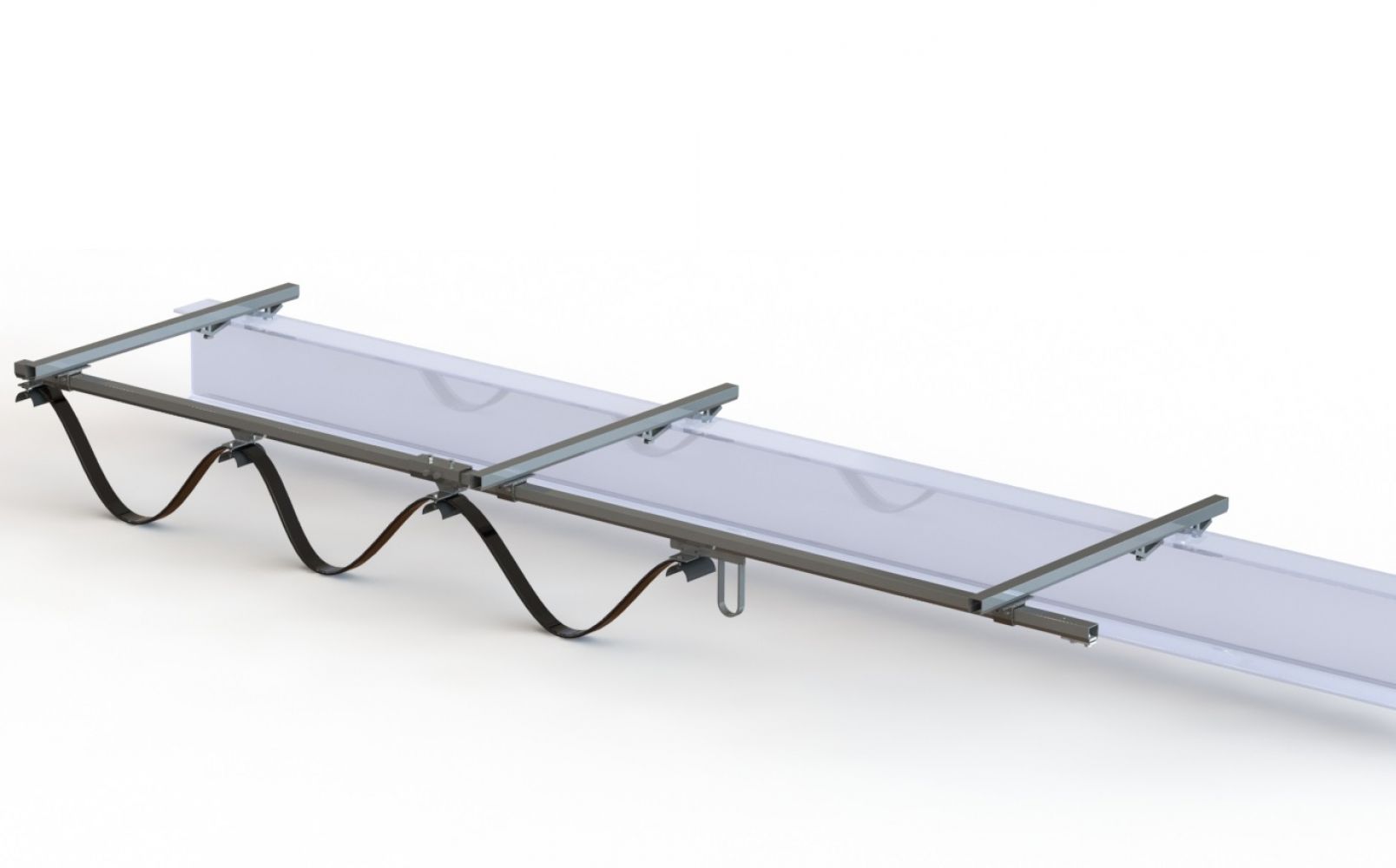

Festoon System for Overhead Cranes & Hoists
FEST SS
C Rail Style Festoon System (Full Kit) including flat form power cable, cable trolleys & track. These simple-to-install lightweight kits provide a safe and economical means of supplying power to overhead hoists, overhead cranes, and most other types of moving machinery that travels along a fixed track. Once fitted eliminates dangerous dangling down cables and looks like a professional install or refit
£178.88 ex VAT
£214.66 inc VAT

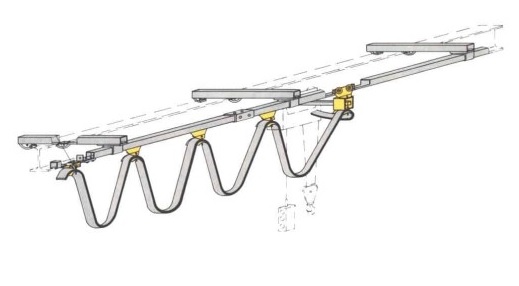

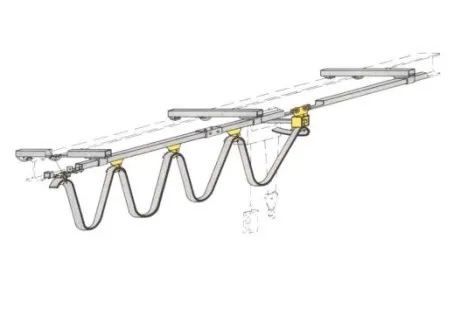

Yale Festoon Power Supply Cable System is a cost-effective Industrial Festoon System designed for Overhead Cranes & Hoists. The System will contain all parts and cables required to install your power cable supply on top of a suitable runway beam or steelwork. The Festooned Cable System can be supplied from any length from 3m up to 30m, all support brackets, track, cable trolleys, and rail connectors will be supplied to suit the length of the festoon system ordered, ULS Lifting also includes the correct amount of Flat Form Power Cable for wiring directly into the hoist or other electrical equipment.
The main Features and benefits included
Both the track and the supports brackets etc are galvanised to help protect against weathering, all parts connect together easily, only the track itself needs to be cut on-site to create the desired length, making the Yale Festoon System simple and quick to install. This festoon system is designed for use to power any standard Electric Chain Hoist where the pendant is fitted directly to the hoist. Included in the price is the 4 core 2.5mm PVC Flatform Cable, it will be supplied to the correct length and based on 700mm loop sag. If you require extra cable or special requirements, feel free to call and discuss.
Yale Festoon Power Supply Cable System is supplied with the following parts
| Model | Festoon Length | Flat Form Cable Length | Track Joints | Support Brackets | End Clamps | End Stops | Towing Cable Trolley | Track x 3m Lg |
| Festoon Kit 3 | 3 | 6 | 0 | 3 | 1 | 1 | 2 | 1 |
| Festoon Kit 6 | 6 | 10 | 1 | 5 | 1 | 1 | 3 | 2 |
| Festoon Kit 9 | 9 | 13 | 2 | 7 | 1 | 1 | 5 | 3 |
| Festoon Kit 12 | 12 | 16 | 3 | 9 | 1 | 1 | 7 | 4 |
| Festoon Kit 15 | 15 | 20 | 4 | 11 | 1 | 1 | 9 | 5 |
| Festoon Kit 18 | 18 | 23 | 5 | 13 | 1 | 1 | 11 | 6 |
| Festoon Kit 21 | 21 | 26 | 6 | 15 | 1 | 1 | 13 | 7 |
Standard YALE Festoon Kits are designed to fit on Runway Beams or I-Beam style steelwork with a max flange of 305mm - ULS Lifting can offer alternative fixings such as ceiling-mounted support brackets perfect for bolting to the ceiling or overhead steelwork. Wall-mounted support brackets for bolting to walls or again steelwork and Split suspension brackets that are used for mounting directly to the underside flange of parallel I-Beams - Please call the ULS LIFTING office 01384 986 026 for any of these fittings.
Yale Festoon Power Supply Cable System - has everything required, track, brackets, and PVC Flatform cable to install power to your crane or hoist - just needs installing
Features and Benefits
Galvanised track and supports.
System length from 3m to 30m.
Simple and quick to install.
Supplied with PVC Flatform cable.
Yale Festoon Power Supply Cable System is supplied with the following parts
| Model | Festoon Length | Flat Form Cable Length | Track Joints | Support Brackets | End Clamps | End Stops | Towing Cable Trolley | Track x 3m Lg |
| Festoon Kit 3 | 3 | 6 | 0 | 3 | 1 | 1 | 2 | 1 |
| Festoon Kit 6 | 6 | 10 | 1 | 5 | 1 | 1 | 3 | 2 |
| Festoon Kit 9 | 9 | 13 | 2 | 7 | 1 | 1 | 5 | 3 |
| Festoon Kit 12 | 12 | 16 | 3 | 9 | 1 | 1 | 7 | 4 |
| Festoon Kit 15 | 15 | 20 | 4 | 11 | 1 | 1 | 9 | 5 |
| Festoon Kit 18 | 18 | 23 | 5 | 13 | 1 | 1 | 11 | 6 |
| Festoon Kit 21 | 21 | 26 | 6 | 15 | 1 | 1 | 13 | 7 |
The track itself is supplied in 3m Long lengths and can easily be cut down on-site without the aid of any special tools - A simple hacksaw can be used.
Flat-form cable supplied is 4 core 2.5mm PVC.
The Flatform cable will be supplied to suit the track length ordered, we have calculated the total length required including the loops set at 700mm (EG - 3m system supplied with 6m of cable).
Support brackets connect directly onto steel work (I-Beam up to 305mm Flange) and are spaced at 1.5m intervals.
Each kit will include the following items
Track, supplied in 3m lengths
Track joints (where needed)
Support arm with bracket (one every 1.5m)
End anchor/clamp x 1
Flat cable trolleys (one every 1.5m)
Towing cable trolley x 1
Cable - 4 core 2.5mm flat PVC cable - cut to length
PVC flat cable glands x 2
Track end stop x 1
If you require Pendant system kits or power and pendant system kits - please call for a quotation
