20" Rubbish Chute Kit
Estimated lead time:2 to 3 Days
Please call us if you need this item sooner
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
20" Rubbish Chute Kit
Quality Red 20" Rubbish Chute starter kit for standard house clearance. supplied with a top Hopper and 4 straight sections giving a 5m Rubble chute Kit, Ideal for aiding the safe disposal of builders' waste materials, debris, or rubble from a standard house roof down to a skip. Quick and easy setup, supplied with all connection chains and optional scaffold fixing frame.
£198.98 ex VAT
£238.78 inc VAT
£986.00 ex VAT
£859.98 ex VAT
£1,031.98 inc VAT
The ET200 IMER Scaffold Hoist - 200Kgs is supplied with a top mounting bracket and the Scaffold connection pole from Imer is an industry favourite due to its 200 kg capacity, lifting height of 30m, and fast lifting speed of 19m/min. The hoist is a 110-volt power supply and is supplied with a waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from over lifting of goods.
£1,279.00 ex VAT
£1,118.98 ex VAT
£1,342.78 inc VAT
The TR225 IMER Scaffold Hoist - 200Kgs c/w extendable mounting bracket and Scaffold connection pole Is the TOP MODEL from Imer. 200 kg capacity, lifting height of 30m, and a fast lifting speed of 19m/min. (TR225N is the newer model and superseded the TR225). Added feature for the TR225 is its low noise motor (only 70db(A)), making this hoist a builders choice when working in noise-sensitive locations
£1,593.00 ex VAT
£1,394.98 ex VAT
£1,673.98 inc VAT
£513.00 ex VAT
£448.98 ex VAT
£538.78 inc VAT
£319.00 ex VAT
£279.98 ex VAT
£335.98 inc VAT
£69.98 ex VAT
£83.98 inc VAT

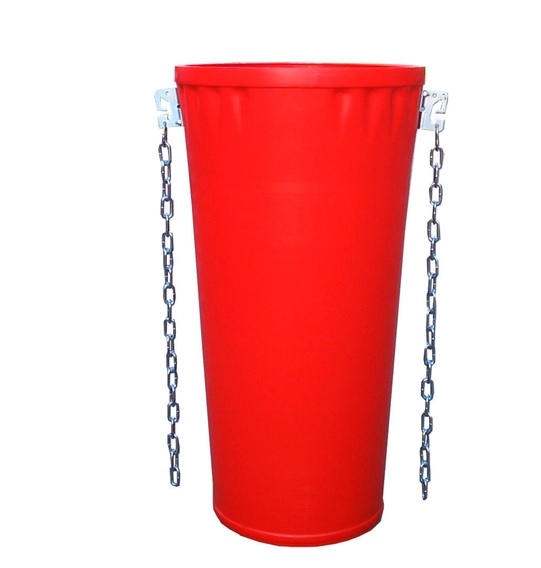

Quality 20" Rubbish Chute Section, ideal for aiding safe disposal of builders' waste materials, debris, or rubble from high level down to the floor or skip. Quick and easy setup, supplied with connection chains
£44.98 ex VAT
£53.98 inc VAT

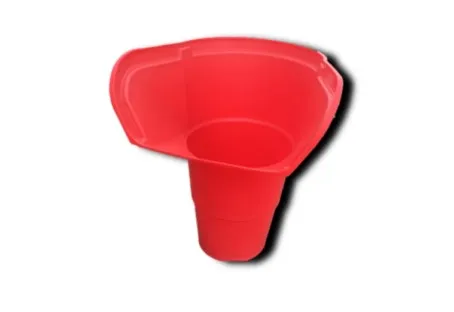

Quality 20" Rubbish Chute Top Hopper. To be used with the 20" Chute Section to create a system for safe disposal of builder's waste materials, debris, or rubble from high level down to the floor or skip. Quick and easy setup, supplied with connection chains
£44.98 ex VAT
£53.98 inc VAT
Quality 20" Rubbish Chute Side Hopper. To be used with the 20" Chute Section to create a system for safe disposal of builder's waste materials, debris, or rubble from high level down to the floor or skip. Quick and easy setup, supplied with connection chains
£49.98 ex VAT
£59.98 inc VAT
Strong and robust Universal Fixing Frame to suit 20" Rubbish Chute systems. Rubbish Chute Fixing Frame is required if securing a rubbish chute system to scaffolding on building or construction sites. Quick and easy setup, supplied with connection chains
£84.98 ex VAT
£101.98 inc VAT

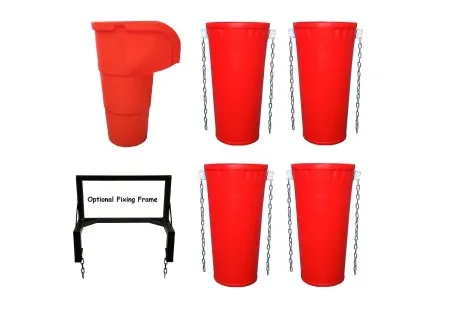

Quality Red 20" Rubbish Chute starter kit for standard house clearance. supplied with a top Hopper and 4 straight sections giving a 5m Rubble chute Kit, Ideal for aiding the safe disposal of builders' waste materials, debris, or rubble from a standard house roof down to a skip. Quick and easy setup, supplied with connection chains and optional extra straight sections can be added to the order as well as adding a Scaffold Fixing Frame. These Rubbish Chute Sections are stackable for compact storage and easy transportation between sites when not in use.

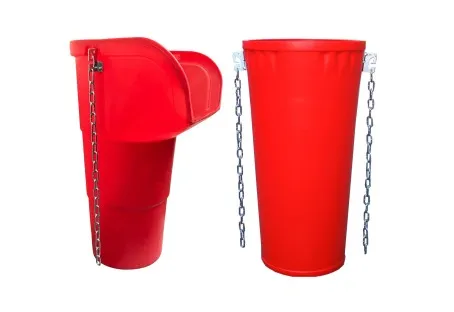

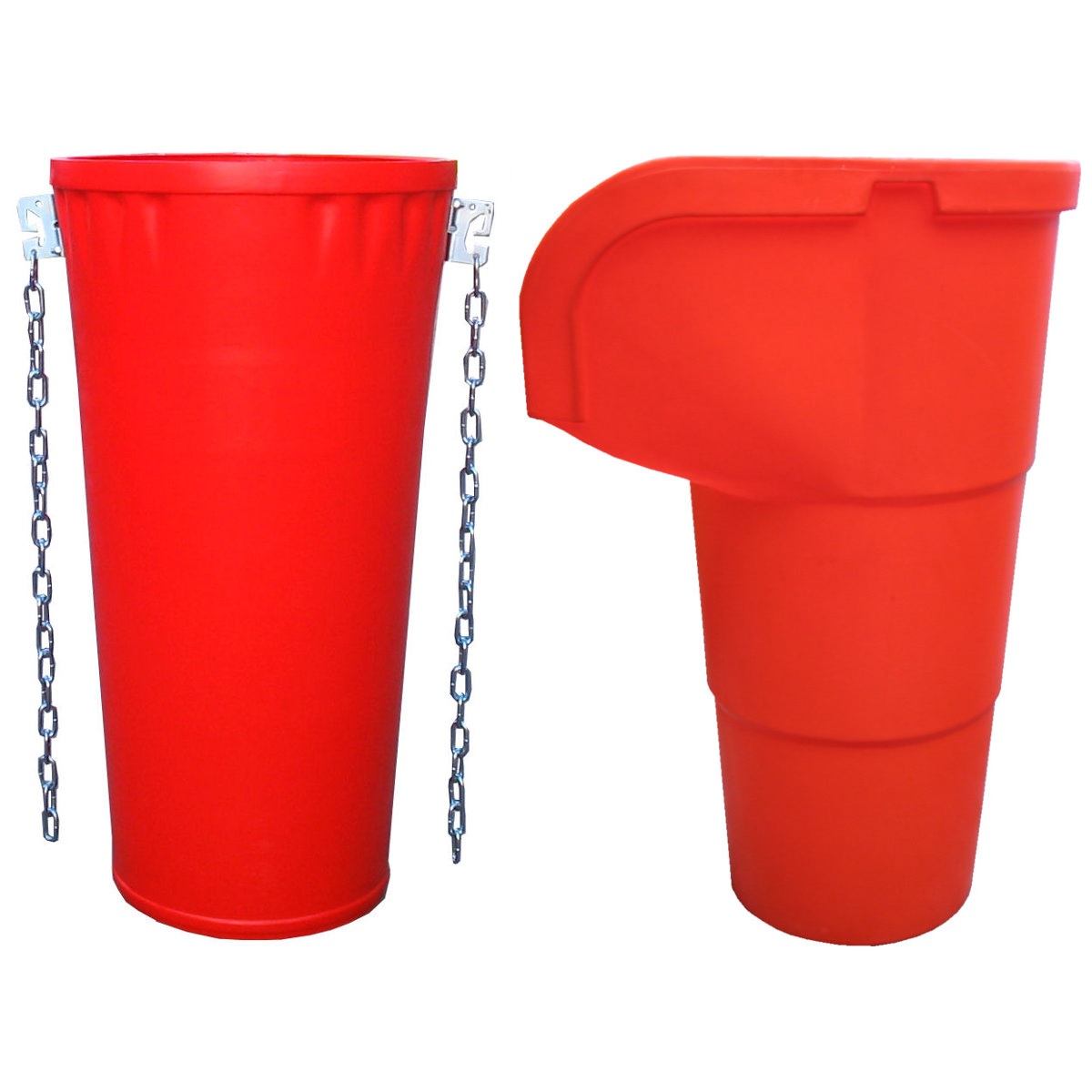

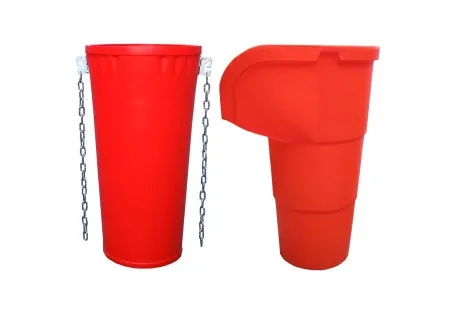

Ultimate Lifting Solutions promotes the Oaklands Plastics range of rubbish chutes and the 20" Red Rubble Chute systems are our best sellers. Made up of straight sections that are supplied 1100mm long and lightweight yet very robust at only 8.5kgs per section. Fitted with galvanized brackets and chains that easily connect to create a versatile rubbish chute system that is ideal for any situation where a rigid rubbish chute system is practical. Once the sections are connected and chained it will create a very safe and secure system. Adding the RCTH 20" Top Hopper with its enlarged opening, will make the loading of rubble or waste easier and eliminates overspilling or missing the hopper. We also supply an interconnecting side hopper RCSE ideal for loading builders' waste from more than one level into the same skip.
|Part Number||Description||System diameter||Top Entry Dia||Bottom Dia||Height||Weight|
|RCST||20" Rubbish Chute (RED)||20" (500mm)||500mm (20")||400mm||1100mm||8.5 Kgs|
|RCTH||20" Top Hopper (RED)||20" (500mm)||650mm||400mm||1100mm||8 Kgs|
|RCSE||20" Side Hopper (RED)||20" (500mm)||650mm||400mm||1100mm||10 Kgs|

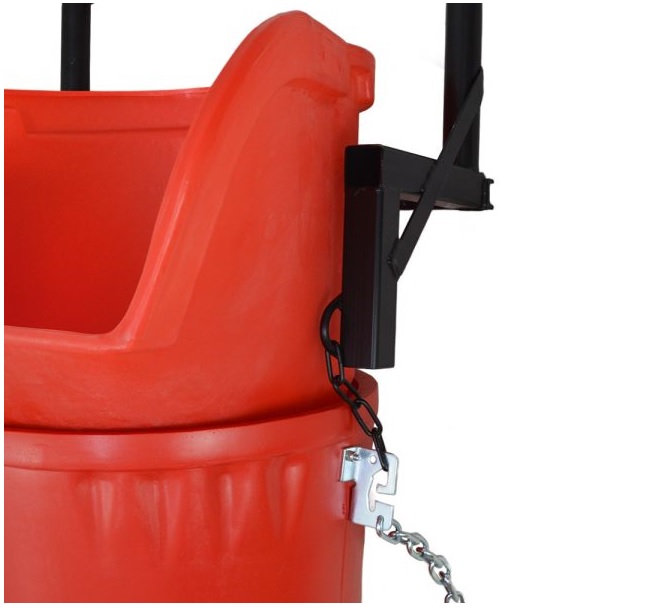

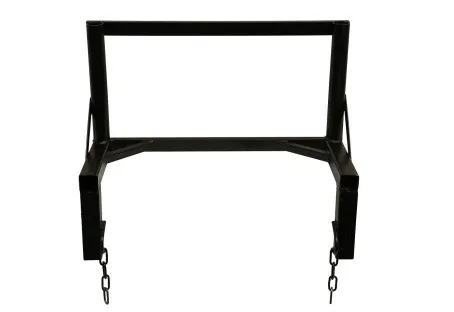

ULS Lifting also supplies a universal top fixing frame to support the 20" Rubbish Chute System. Can easily secure a top hopper or the straight sections to the fixing frame via the two supplied chains. Then secure it onto the scaffolding. It is also good to practice adding a fixing support frame for every 10m of the rubbish chute, (One frame per 10 chutes).
Why use the 20" Rubble System? The 20" Red Chute System is our best seller and is an ideal solution for when a rigid chute system is not suitable or practical. ULS LIFTING can also supply a Heavy Duty 22" Rubbish Chute System. Once erected these systems become heavy-duty semi-rigid units providing extra strength, and minimizing damage and dust. Designed with a tapered body to give an increased top diameter that will prevent blockages when in use. These systems are supplied with wire rope and snap hooks to secure scaffolding easily without the need for a fixing frame. And just like the Red 20" Rubble Chute System, the yellow 22" Scaffolding Chute System is stackable for easy storage and transportation.
For clearance of larger debris or bulkier materials, then our largest rubbish chute system may be suitable, this larger 30" diameter rubbish chute system is manufactured from high-quality MDFE and HDPE Plastic to create a semi-rigid chute ideal for bulkier and larger pieces of waste or rubble. Just like the 22" Chute System, the black 30" Rubble System is supplied with Wire Rope and snap hook fixing kits for easy fixing straight to the scaffolding. and again these kits are stackable.
What is a Rubbish Chute - Rubbish Chutes provide an easy and safe solution to remove any type of waste, excess materials, building materials, or renovation waste from buildings, construction sites, or any other structure. Commonly called scaffold Chutes, Skip Chutes, Rubble Chutes or refuse chutes, and garage chutes, these multi-use chute systems are manufactured from high-quality plastic which is highly resistant to abrasion and stays rigid and strong on impact. the Oaklands Rubbish Chutes supplied by Ultimate lifting Solutions Limited can be used in both warm and cold weather conditions as the MDPE and HDPE plastic is not affected by seasonal conditions.

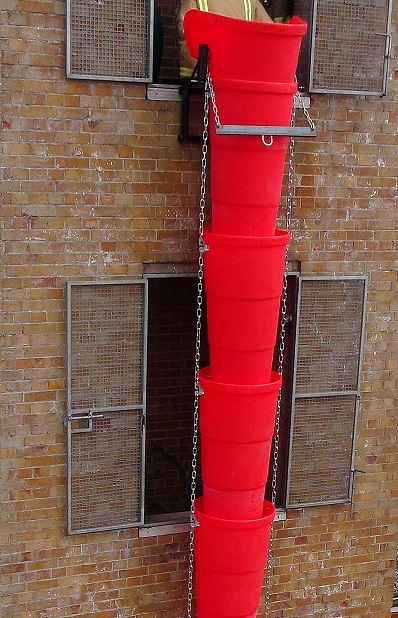

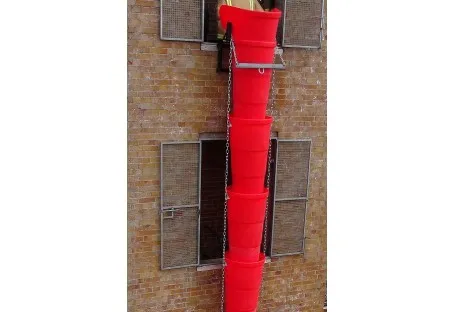

How to create the desired Rubbish Chute - Firstly, work out the height required and calculate how many 1m sections of straight rubble chute sections are required. Add a 1m long top hopper and secure the fixing frame if required. When connected, the whole rubble chute system will become a versatile yet flexible kit that can bend or flex a little to compensate for the building or scaffolding. Ideal for when a rigid system is not practical or feasible.
Components to make up a Rubbish Chute System

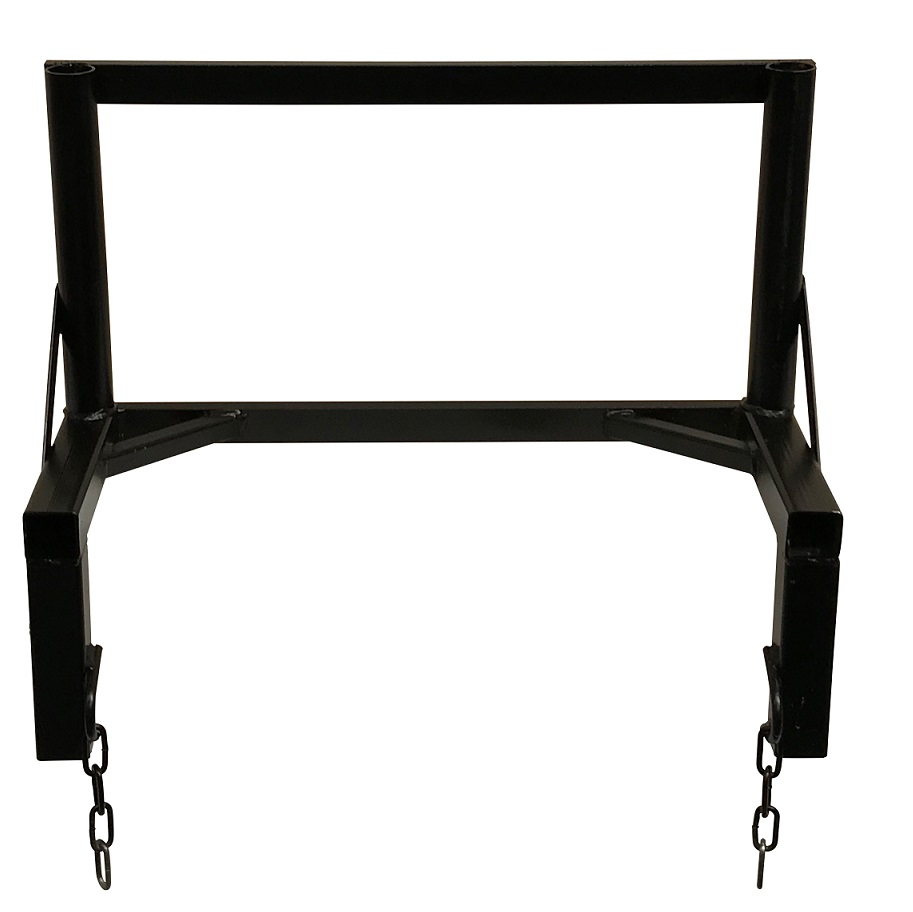

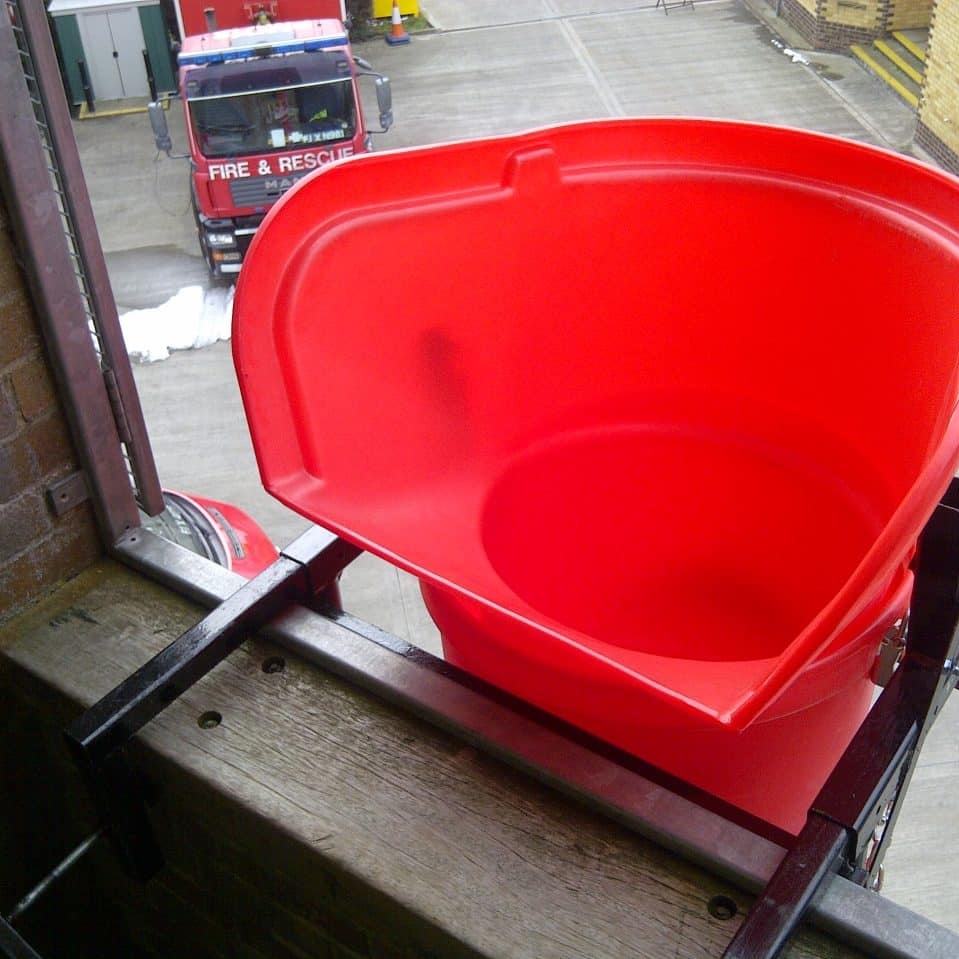

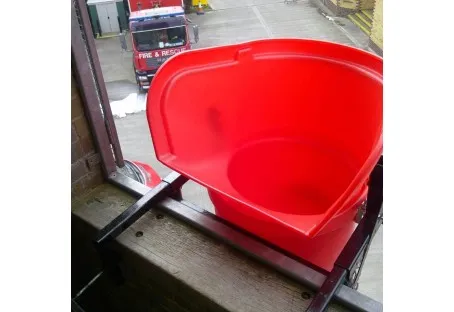

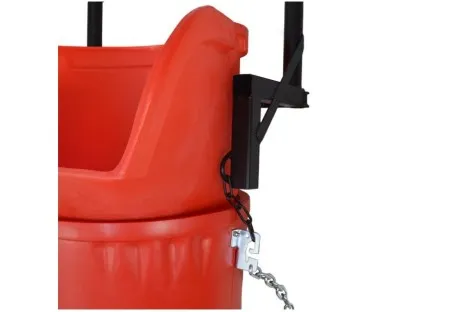

Rubbish Chute Fixing Frame - The Rubbish Chute Fixing Frame is secured at the top of the system, onto the scaffolding, and held securely in place by utilizing two horizontal scaffold ledger beams.

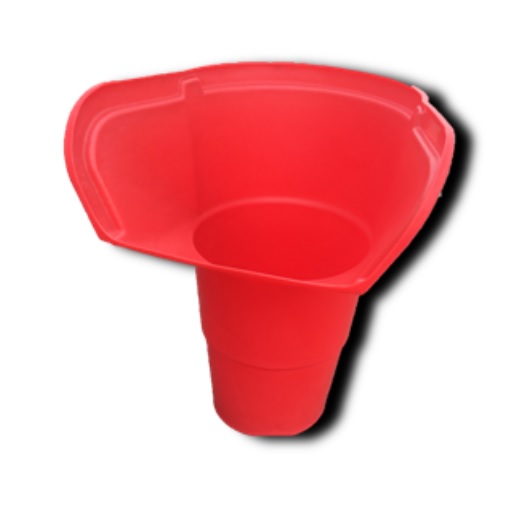

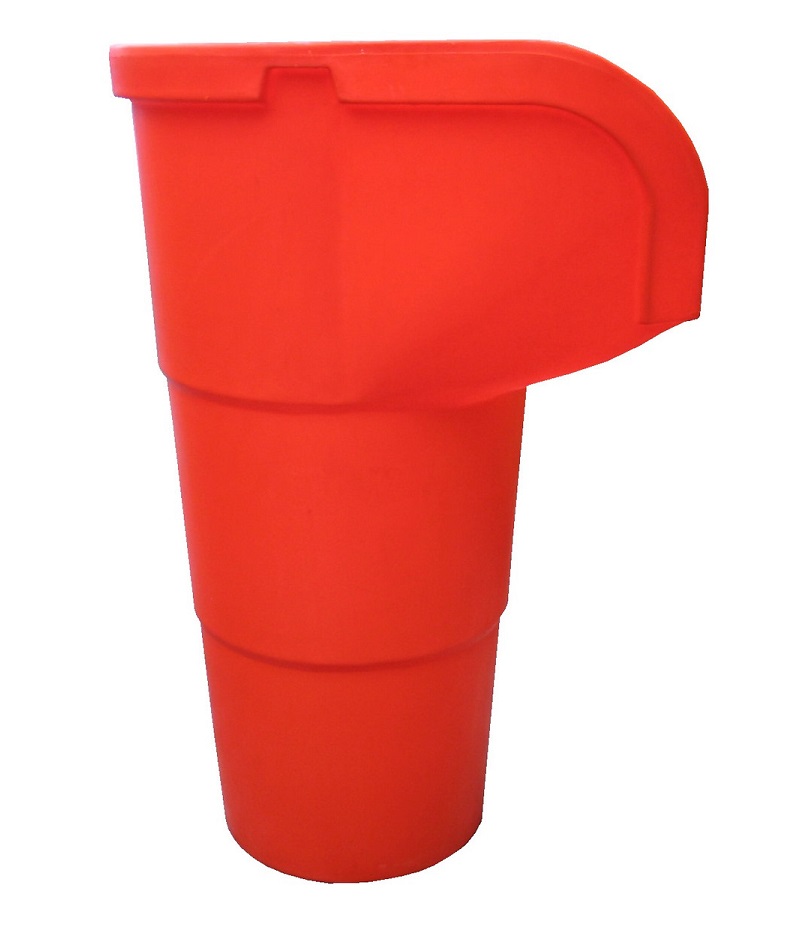

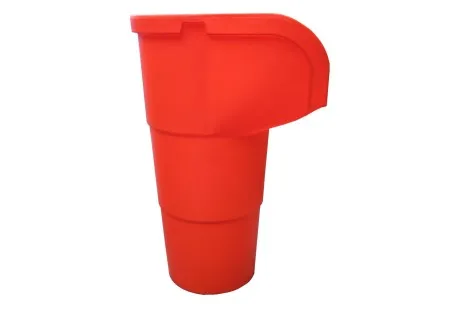

Rubbish Chute Top Hopper - Fitted as the top piece of the Rubbish Chute System and has an extra wide opening that enables the Rubble, site waste, or rubbish to be easily entered into the funnel.

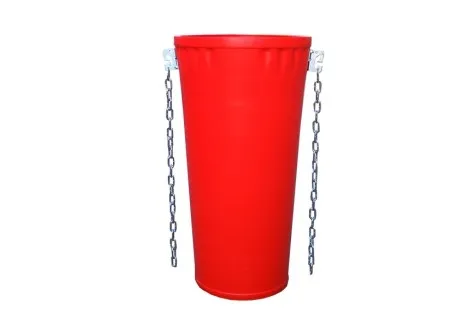

Rubbish Chute Section - These 1m straight sections are the main chute component, these are fixed to the top hopper to generate the height required for the chute system.
