Securpulley c/w Swivel Bracket, Fixed Bracket & Kit Bag

Key notes for ordering:

This kit comprising Swivel Bracket, fixed bracket and a kit bag. Ropes are optional extra

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT

Next day
delivery

SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Securpulley c/w Swivel Bracket, Fixed Bracket & Kit Bag

Brand:

Description

Model/Capacity:

Rope Required?:

save£81.62

£513.00 ex VAT

£444.98 ex VAT

£533.98 inc VAT

Add to cart

Add to quote

Related products

GW10E - Gin Wheel

GW10E

GW10E - Gin Wheel, also known as a Builder's Gin Wheel Block with Swivel Eye, fits perfectly over scaffold tubes and is widely used on construction sites as an affordable pulley block. It is compatible with 16mm and 18mm Gin Wheel Ropes with a spliced eye (sold separately).

£34.50 ex VAT

£41.40 inc VAT

More info

Securpulley c/w Fixed Bracket / Kit Bag

8501001

Securpulley c/w Fixed Bracket / Kit Bag system is a great lifting pulley kit that fits quickly and securely to any scaffolding tube. The kit comprises a fixed bracket that can fit directly onto a standard scaffold tube and a kit bag for keeping the scaffold hoist clean when not in use, to create an all-in kit.

£319.00 ex VAT

£288.98 ex VAT

£346.78 inc VAT

More info

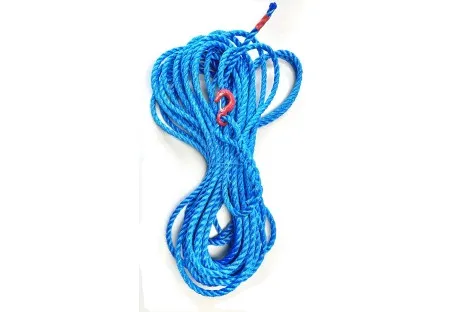

Securpulley Rope - 60m long with hook end

910006

Securpulley Rope - 60m long with hook end, supplied fully tested and certified - Manufactured from a quality 18mm Dia polypropylene rope x 60m Long. Supplied complete with a tested lifting hook on one end. NOTE - To be used in conjunction with the Securpulley lifting system only.

£209.98 ex VAT

£251.98 inc VAT

More info

Gin Wheel Rope c/w Lifting Hook

GWR

Gin Wheel Rope c/w Lifting Hook to be used with the GWE10 - Gin Wheel. The fully certified lifting rope is fitted with a high-quality lifting hook on one end. The other end is sealed to stop fraying and will easily feed into the standard gin wheel. Manufactured from quality Staplespum Polypropylene Rope

£39.50 ex VAT

£47.40 inc VAT

More info

Securepulley Rope - 30m long with hook end

910005

Securepulley Rope - 30m long with hook end supplied fully tested and certified. the lifting rope is manufactured from 18mm Dia quality rope x 30m Long. These ropes are supplied fully certified and fitted with a large Hook to one end to aid in lifting buckets and materials on site via your SECURPULLEY.

£99.98 ex VAT

£119.98 inc VAT

More info

20" Rubbish Chute Section

RCST

Quality 20" Rubbish Chute Section, ideal for aiding safe disposal of builders' waste materials, debris, or rubble from high level down to the floor or skip. Quick and easy setup, supplied with connection chains

£44.98 ex VAT

£53.98 inc VAT

More info

20" Rubbish Chute Universal Fixing Frame

RCFF

Strong and robust Universal Fixing Frame to suit 20" Rubbish Chute systems. Rubbish Chute Fixing Frame is required if securing a rubbish chute system to scaffolding on building or construction sites. Quick and easy setup, supplied with connection chains

£84.98 ex VAT

£101.98 inc VAT

More info

20" Rubbish Chute Kit (5 chutes included)

RCK205R

Quality Red 20" Rubbish Chute kit for standard house clearance. Supplied with a 1 Top Hopper and 4 Straight Chute Sections to give an approximate 5m long Rubble chute Kit (extra sections can be added to create longer kits). Ideal for aiding the safe disposal of builders' waste materials, debris, or rubble from a standard house roof down to a skip. optional scaffold fixing frame available.

£198.98 ex VAT

£238.78 inc VAT

More info

20" Rubbish Chute Kit (10 chutes included)

RCK2010R

Quality 20" Rubbish Chute Kit (10 chutes included) designed for taller multi-level buildings such as office blocks, schools, hospitals, and flats. Supplied with 1 Top Hopper and 9 Straight Chute Sections giving an approximately 10m Rubble Chute Kit (extra sections can be added to create longer kits if required).

£398.98 ex VAT

£478.78 inc VAT

More info

Description
Specifications
Maintenance and servicing
Brand benefits
Downloads
Reviews (0)
Q & A

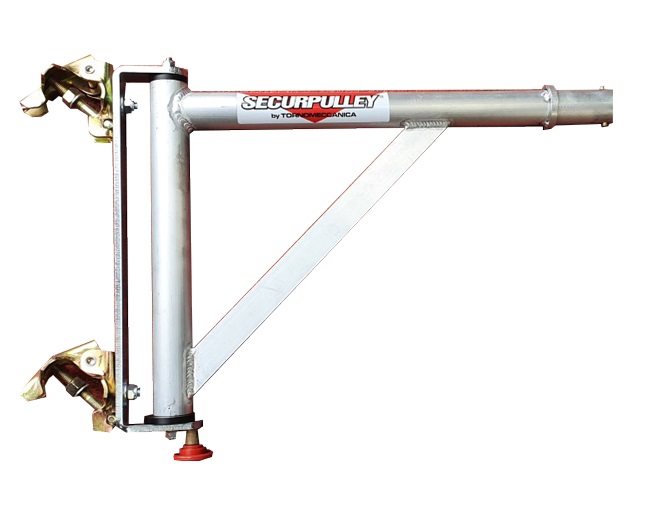

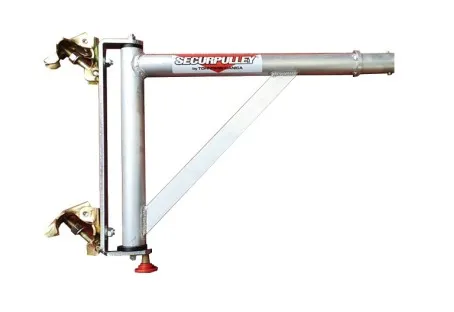

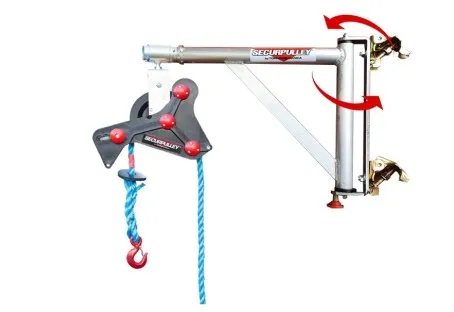

Securpulley c/w Swivel Bracket, Fixed Bracket & Kit Bag system supplied with two mounting brackets, the standard fixed bracket and an extra swivel bracket, as well as a kit bag to keep everything in one place when not in use. The Securpulley Swivel Bracket and Fixed Bracket fit quickly and securely to standard scaffolding tubes to create an onsite Gin Wheel system with automatic brake. The exclusive automatic braking system stops the load from falling as and when the operator releases the rope, eliminating the risk of the load falling.

This kit comprises of one Securepulley Pulley Wheel, as well as the swivel bracket, fixed bracket, and a kit bag that creates an ALL-IN one kit to suit all lifting and lowering applications on construction sites or building sites.

All the manoeuvres normally done by the scaffolding erector are allowed safely: Lifting of loads, lowering of loads, even lowering of just the rope itself. All tasks are performed without risk and without the possibility of a falling load. perfect for lifting or lowering building materials onsite or at high working heights.

Model	Maximum Load	Maximum Height	Allowed Rope diameter	Connection	Pulley Weight
Securpulley	50 Kgs	30 m	18mm dia, 20mm dia	Swivel Arm & Fixed Bracket	4,6 Kgs

Securpulley is the only rope sheave for the building industry that conforms to the Safety requirements of the Machinery Directive ECC 89/392, as witnessed by the CE mark.

SECURPULLEY® has been designed and manufactured with the specific purpose of eliminating the risks due to manual handling of building materials up and down scaffolding on all building sites, and moreover to allow the operators to temporarily stop the lifting/lowering process, for rest, for a sudden inconvenience, preventing accidental release, leaving the load safely hanging without fall.

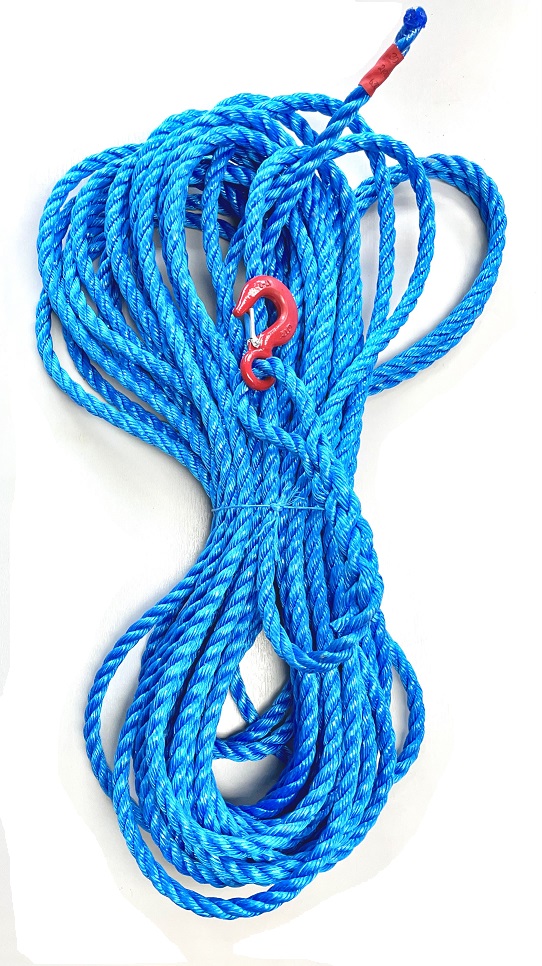

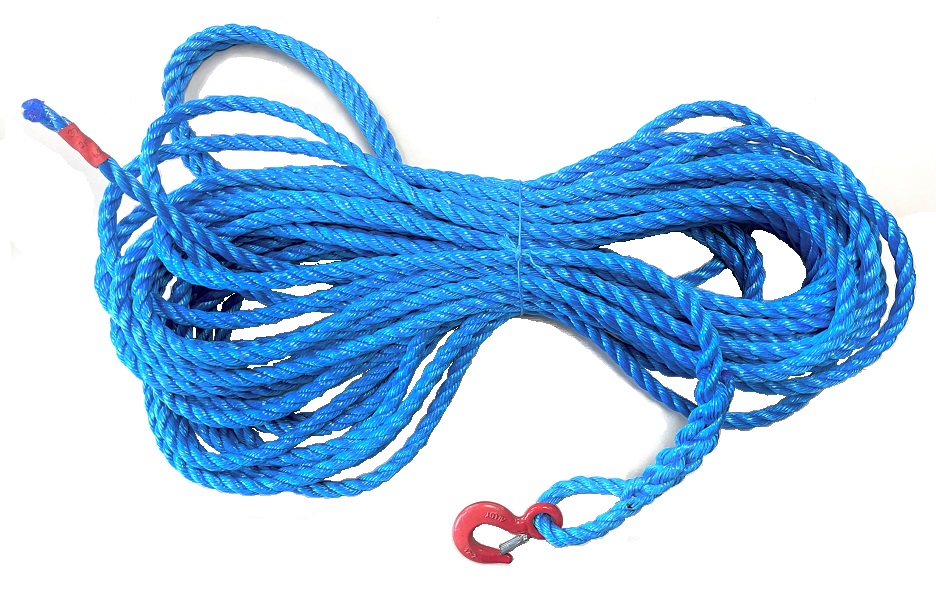

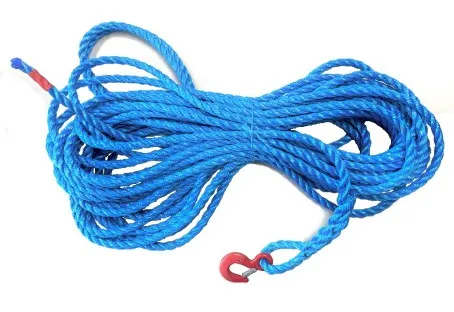

The Securpulley with Swivel Bracket, Fixed Bracket & Kit Bag can be supplied with or without lifting ropes. both 18mm and 20mm dia ropes can be used. Ultimate Lifting Solutions offers quality manufactured lifting ropes to be used with the Securpulley. the ULSLIFTING Gin wheel ropes are supplied with a hook/catch on one end and a plain other end to help assemble onto the Securpulley. Gin wheel Ropes supplied by ULSLIFTING come complete with certification.

Model	Description	Rope Dia	Length	End Termination
910005/30	Securpulley Lifting Rope	18 mm	30 m	Hook/Catch one end only
910005/60	Securpulley Lifting Rope	18 mm	60 m	Hook/Catch one end only

The secure pulley is a TORNOMECCANICA patent intended to revolutionize scaffolding work, eliminating the risk of a fall of the suspended loads. The exclusive automatic braking system stops the lifted load as the rope is released by the operator.

Specification of Securpulley c/w Swivel Bracket, Fixed Bracket & Kit Bag

Safe Working Load - 50Kgs

Pulley Weight: 4.6Kgs

Maximum Load: 50 Kg

Minimum Load: 8-10Kgs

Maximum Height: 30m

Allowed rope diameters: 18mm and 20mm

Supplied with a Fixed Bracket or Swivel Bracket

Model	Maximum Load	Maximum Height	Allowed Ropes	Connection	Pulley Weight
Securpulley	50 Kgs	30 m	18mm dia, 20mm dia	Fixed Bracket Only	4,6 Kgs

Securpulley is the only rope sheave for the building industry that conforms to the Safety requirements of the Machinery Directive ECC 89/392, as witnessed by the CE mark.

SECURPULLEY® has been designed and manufactured with the specific purpose of eliminating the risks due to manual handling of building materials up and down scaffolding on all building sites, and moreover to allow the operators to temporary stop the lifting/lowering process, for rest, for a sudden inconvenience, preventing accidental release, leaving the load safely hanging without fall.

The Securpulley kits can be supplied with or without lifting ropes. both 18mm and 20mm dia ropes can be used. Ultimate Lifting Solutions offer quality manufactured lifting ropes to be used with the Securpulley. the ULSLIFTING Gin wheel ropes are supplied with a hook/catch one end and plain other end to help assembly onto the Securpulley. Gin wheel Ropes supplied by ULSLIFTING come complete with certification.

Model	Description	Rope Dia	Length	End Termination
910005/30	Securpulley Lifting Rope	18 mm	30 m	Hook/Catch one end only
910005/60	Securpulley Lifting Rope	18 mm	60 m	Hook/Catch one end only

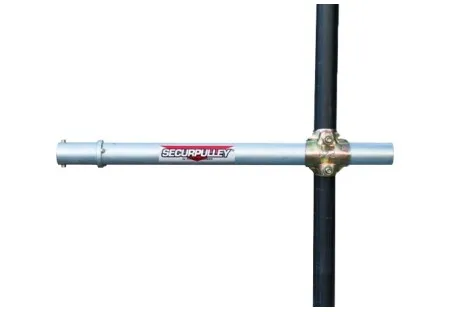

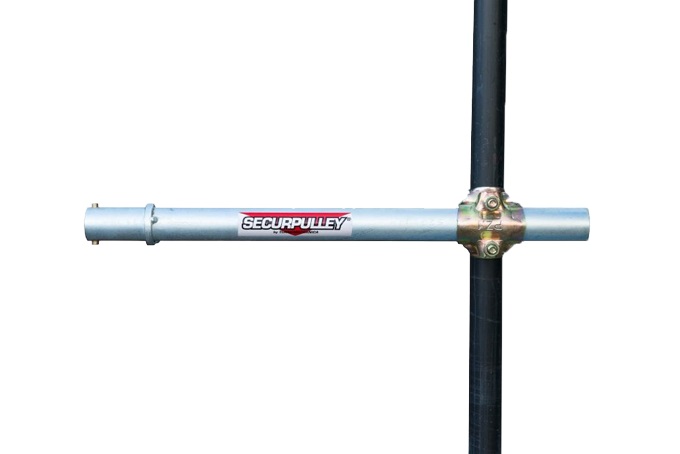

Connection to standard pipe for scaffoldings or to Tornomeccanica rotating support.

INSTRUCTIONS FOR MAINTENANCE AND PERIODICAL CHECK

Correct storage and maintenance are basic for ensuring the safety, efficiency, and durability of SECURPULLEY®.

SECURPULLEY® does not require particular maintenance interventions, except cleaning and periodical checks, besides the substitution of some wear parts.

We recommend following the directions herein given:

- Take care of cleaning SECURPULLEY®: eliminate dust or small parts with a compressed air stream or, if necessary with thin steel wires or tools. If taking off parts penetrated inside is difficult, do not use force, not to damage internal parts. If the disassembly required is not included in the ones foreseen in this chapter, ask for After Sales Service help.

• Store SECURPULLEY® in a dry place, protected from dust and polluting agents.

• Execute the periodical check indicated.

• Substitute parts worn or damaged, if any, with genuine spare parts.

• Never modify SECURPULLEY®.

• Never have SECURPULLEY® repaired by unauthorized dealers.

INSTRUCTION MANUAL FOR SAFETY SHEAVE

Periodical check and maintenance

For a good functioning of SECURPULLEY®, the indicated operations must be done, as well as the daily checks

MONTHLY:

Check the wear degree of the wedge brake: if wear is recognized, with reduced braking action and modification of the serrated profile, the wedge brake must be

substituted.

Check the wear state of the wedge pressing bush: if the external surface is damaged, a new bush must be used.

Check the state of the pulley rim: if it is worn or damaged it must be substituted.

Check the state of the reeving roller: if its surface is worn or damaged it must be substituted.

THREE-MONTHLY:

Check the state of the bearings: make rotate the pulley, the supporting bracket, and the reeving roller.

Check that the rotation is free, without visible gaps or vibration. If a bearing is damaged, it must be substituted.

Secure pulley safety pulley is a TORNOMECCANICA patent intended to revolutionize scaffolding work, eliminating the risk of a fall of the suspended loads. The exclusive automatic braking system stops the lifted load as the rope is released by the operator.

All the manoeuvres normally done by the scaffolding erector are allowed:

•LIFTING OF LOADS

•LOWERING OF LOADS

•LOWERING OF THE EMPTY ROPE

without risk and with the possibility to interrupt the lifting for rest with heavy loads or high working heights.

The secure pulley is the only rope sheave for the building industry that conforms to the Safety requirements of the Machinery Directive ECC 89/392, as witnessed by the mark.

Securpulley specification
