Securpulley c/w Fixed Bracket / Kit Bag

Key notes for ordering:

This kit comprising fixed bracket and kit bag. Ropes are optional extra

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT

Next day
delivery

SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Securpulley c/w Fixed Bracket / Kit Bag

Brand:

Description

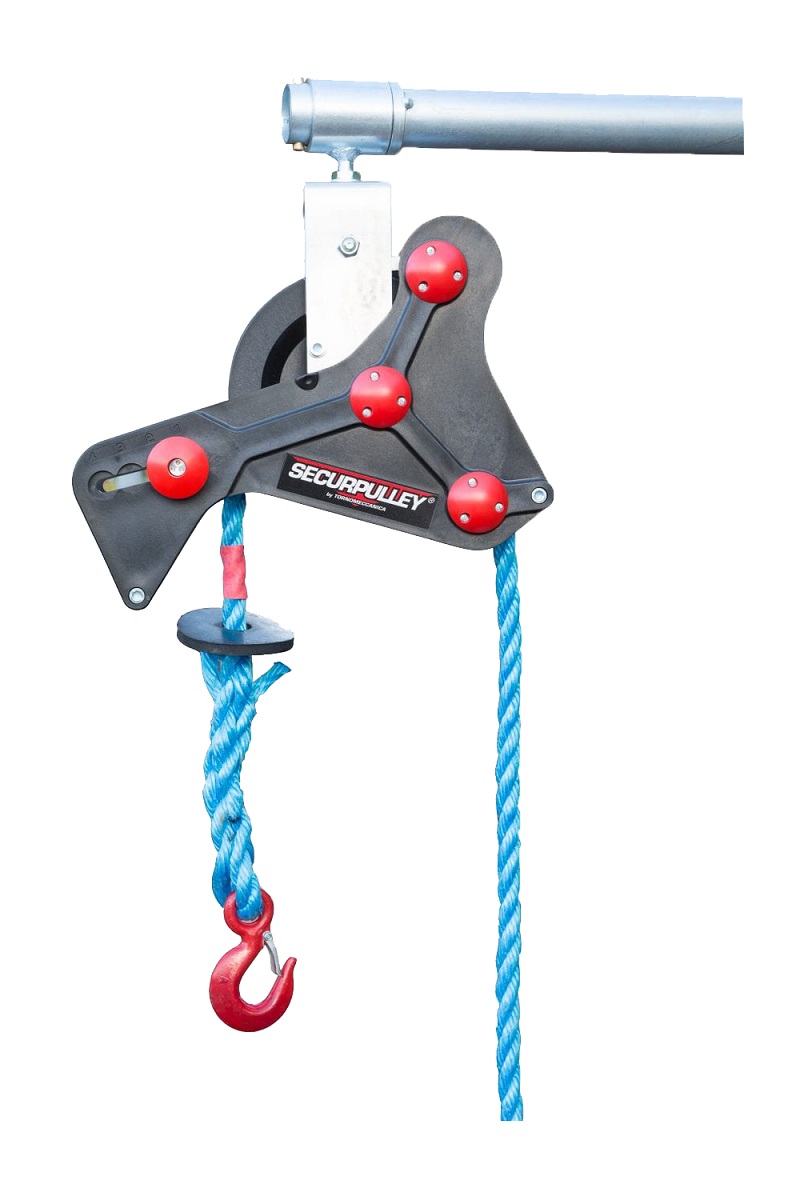

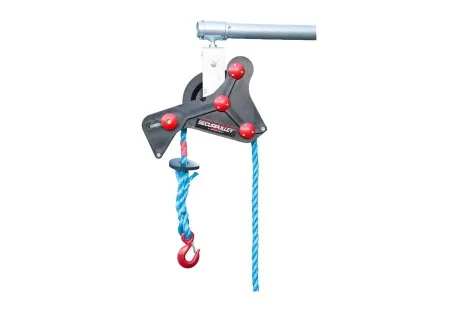

The Securpulley is a fantastic onsite lifting aid that connects direct to scaffolding to create a GIN Wheel with an automatic brake system. The exclusive automated braking system stops the load from falling as the operator releases the rope, eliminating the risk of the load falling.

Model/Capacity:

Rope Required?:

save£46.82

£319.00 ex VAT

£279.98 ex VAT

£335.98 inc VAT

Add to cart

Add to quote

Related products

GW10E - Gin Wheel

GW10E

Builders Gin Wheel Block with swivel eye. Slides perfectly over scaffold tubes and used on many construction sites as a cheap pulley block. Suits 16mm and 18mm Gin Wheel Ropes with Spliced Eye (sold separately) - PLEASE NOTE - This style of pulley blocks are unbraked.

£34.50 ex VAT

£41.40 inc VAT

More info

Securpulley c/w Swivel Bracket, Fixed Bracket & Kit Bag

8501002

Securpulley is basically a onsite Gin Wheel with automatic brake system, fits quickly and securely to scaffolding tubes - This kit comprising Swivel Bracket, fixed bracket and a kit bag is the ALL IN kit to suit all applications. The exclusive automatic braking system stops the load from falling as and when the operator releases the rope, eliminating the risk of the load falling.

£513.00 ex VAT

£448.98 ex VAT

£538.78 inc VAT

More info

Securpulley Rope - 60m long with hook end

910006

Securpulley Lifting Rope - 18mm Dia x 60m Long - These Certified lifting ropes with large Hook fitted to one end to aid in lifting buckets and materials on site via your SECURPULLEY.

£209.98 ex VAT

£251.98 inc VAT

More info

Gin Wheel and Lifting Rope Kit

GWK

Our Gin Wheel and Lifting Rope Kits combine the two parts required to save you on time money and carriage charges - Kit is complete with Builders Gin Wheel Block with swivel eye that slides perfectly over scaffold tubes and used on many construction sites as a cheap pulley block and also supplied with either 16mm and 18mm Gin Wheel Ropes with Spliced Eye, just choose your length of rope - PLEASE NOTE - This style of pulley blocks are unbraked.

£69.98 ex VAT

£83.98 inc VAT

More info

Securepulley Rope - 30m long with hook end

910005

Securpulley Lifting Rope - 18mm Dia x 30m Long. These Certified lifting ropes with large Hook fitted to one end to aid in lifting buckets and materials on site via your SECURPULLEY.

£99.98 ex VAT

£119.98 inc VAT

More info

20" Rubbish Chute Section

RCST

Quality 20" Rubbish Chute Section, ideal for aiding safe disposal of builders' waste materials, debris, or rubble from high level down to the floor or skip. Quick and easy setup, supplied with connection chains

£44.98 ex VAT

£53.98 inc VAT

More info

20" Rubbish Chute Universal Fixing Frame

RCFF

Strong and robust Universal Fixing Frame to suit 20" Rubbish Chute systems. Rubbish Chute Fixing Frame is required if securing a rubbish chute system to scaffolding on building or construction sites. Quick and easy setup, supplied with connection chains

£84.98 ex VAT

£101.98 inc VAT

More info

20" Rubbish Chute Kit

RCK205R

Quality Red 20" Rubbish Chute starter kit for standard house clearance. supplied with a top Hopper and 4 straight sections giving a 5m Rubble chute Kit, Ideal for aiding the safe disposal of builders' waste materials, debris, or rubble from a standard house roof down to a skip. Quick and easy setup, supplied with all connection chains and optional scaffold fixing frame.

£198.98 ex VAT

£238.78 inc VAT

More info

Description
Specifications
Downloads
Reviews (0)
Q & A

The Securpulley system is a great lifting pulley kit that fits quickly and securely to any scaffolding tube. This kit comprising a fixed bracket and a kit bag to create an all-in kit to suit most manual lifting applications on a building site or construction site. The main selling point of the SecurPulley is the exclusive automatic braking system that stops the load from falling if the operator accidentally releases the rope, eliminating the risk of the load falling .

All the manoeuvres usually done by those who assemble scaffolding are allowed safely: Lifting of loads, lowering of loads, even lowering of just the rope itself. All tasks are performed without risk and the possibility of a falling load. perfect for lifting or lowering building materials onsite or at high working heights.

Model	Maximum Load	Maximum Height	Allowed Rope diameter	Connection	Pulley Weight
Securpulley	50 Kgs	30 m	18mm dia, 20mm dia	Fixed Bracket Only	4,6 Kgs

Securpulley is the only rope sheave for the building industry that conforms to the Safety requirements of the Machinery Directive ECC 89/392, as witnessed by the CE mark.

Securepulley has been designed and manufactured with the specific purpose of eliminating the risks due to manual handling of building materials up and down scaffolding on all building sites, and to allow the operators to temporarily stop the lifting/lowering process, for rest, for a sudden inconvenience, preventing accidental release, leaving the load safely hanging without fall.

The Securpulley kits can be supplied with or without lifting ropes. both 18mm and 20mm diameter ropes can be used. Ultimate Lifting Solutions offers high-quality manufactured lifting ropes to be used with the Securpulley.

The ULSLIFTING Gin wheel ropes are supplied with a hook on one end and a plain on the other end to aid assembly onto the Securpulley. Gin wheel ropes provided by ULSLIFTING come complete with certification.

Model	Description	Rope Dia	Length	End Termination
910005/30	Securpulley Lifting Rope	18 mm	30 m	Hook/Catch one end only
910005/60	Securpulley Lifting Rope	18 mm	60 m	Hook/Catch one end only

Securpulley is a TORNOMECCANICA-patent, intended to revolutionise scaffolding work, eliminating the risk of a fall of the suspended loads. The exclusive automatic braking system stops the lifted load as the operator releases the rope.

Specification of Securpulley Pulley System

Safe Working Load - 50Kgs

Pulley Weight: 4.6Kgs

Maximum Load: 50Kgs

Minimum Load: 8-10Kgs

Maximum Height: 30m

Allowed rope diameters: 18mm and 20mm

Supplied with Fixed Bracket or Swivel Bracket

Model	Maximum Load	Maximum Height	Allowed Ropes	Connection	Pulley Weight
Securpulley	50 Kgs	30 m	18mm dia, 20mm dia	Fixed Bracket Only	4,6 Kgs

Securpulley is the only rope sheave for the building industry that conforms to the Safety requirements of the Machinery Directive ECC 89/392, as witnessed by the CE mark.

SECURPULLEY® has been designed and manufactured with the specific purpose of eliminating the risks due to manual handling of building materials up and down scaffolding on all building sites, and moreover to allow the operators to temporarily stop the lifting/lowering process, for rest, for a sudden inconvenience, preventing accidental release, leaving the load safely hanging without fall.

The Securpulley kits can be supplied with or without lifting ropes. both 18mm and 20mm dia ropes can be used. Ultimate Lifting Solutions offers quality manufactured lifting ropes to be used with the Securpulley. the ULSLIFTING Gin wheel ropes are supplied with a hook/catch on one end and a plain on the other end to help assemble onto the Securpulley. Gin wheel Ropes provided by ULSLIFTING come complete with certification.

Model	Description	Rope Dia	Length	End Termination
910005/30	Securpulley Lifting Rope	18 mm	30 m	Hook/Catch one end only
910005/60	Securpulley Lifting Rope	18 mm	60 m	Hook/Catch one end only

Connection to standard pipe for scaffoldings or to Tornomeccanica rotating support.

Securpulley specification
