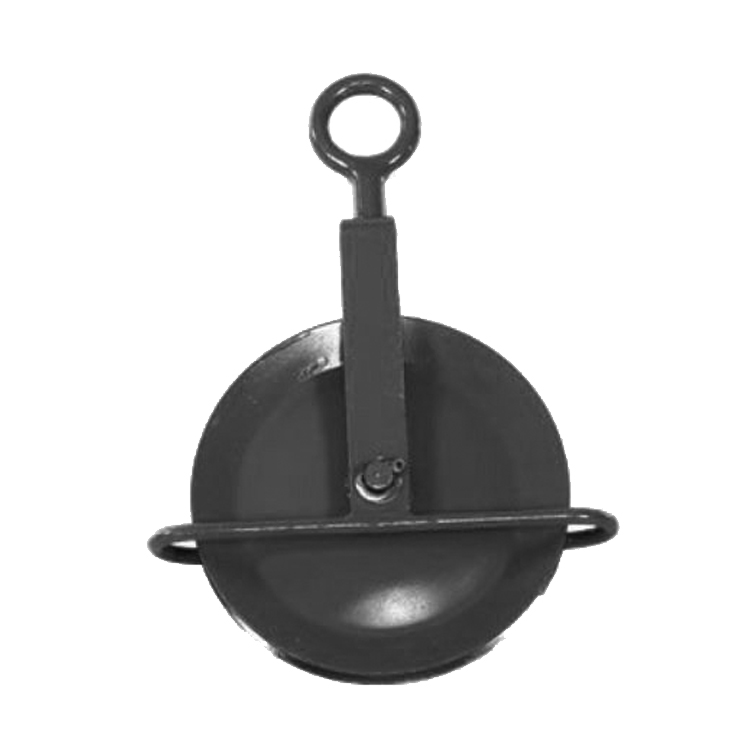

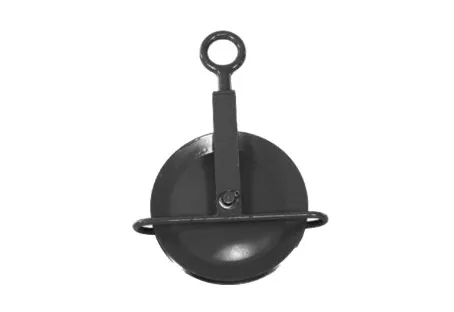

GW10E Gin Wheel - Builder's Scaffold Pulley Block 250kg

Key notes for ordering:

Supplied Tested with Certification - Supplied without the rope.

Estimated lead time:1 - 2 Days

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

GW10E Gin Wheel - Builder's Scaffold Pulley Block 250kg

Brand:

Capacity

250Kgs

Description

The GW10E Gin Wheel is an essential and affordable pulley block specifically designed for construction sites. Engineered to fit over standard scaffold tubes, this robust gin wheel is ideal for safely lifting materials. It's compatible with 16mm and 18mm Gin Wheel Ropes with a spliced eye (sold separately), making it a versatile and indispensable tool.


£34.50 ex VAT

£41.40 inc VAT

We also offer certified ropes with hook to suit these gin blocks
Add to cart Add to quote

Related products

Securpulley c/w Swivel Bracket, Fixed Bracket & Kit Bag

8501002

Securpulley c/w Swivel Bracket, Fixed Bracket & Kit Bag system supplied with two mounting brackets, the standard fixed bracket and an extra swivel bracket, as well as a kit bag to keep everything in one place when not in use. The Securpulley Swivel Bracket and Fixed Bracket fit quickly and securely to standard scaffolding tubes.

£438.98 ex VAT

£526.78 inc VAT

Securpulley c/w Fixed Bracket / Kit Bag

8501001

Securpulley c/w Fixed Bracket / Kit Bag system is a great lifting pulley kit that fits quickly and securely to any scaffolding tube. The kit comprises a fixed bracket that can fit directly onto a standard scaffold tube and a kit bag for keeping the scaffold hoist clean when not in use, to create an all-in kit.

£294.98 ex VAT

£353.98 inc VAT

Gin Wheel Rope c/w Lifting Hook

GWR

Gin Wheel Rope c/w Lifting Hook to be used with the GWE10 - Gin Wheel. The fully certified lifting rope is fitted with a high-quality lifting hook on one end. The other end is sealed to stop fraying and will easily feed into the standard gin wheel. Manufactured from quality Staplespum Polypropylene Rope

£39.50 ex VAT

£47.40 inc VAT

Gin Wheel and Lifting Rope Kit

GWK

Gin Wheel and Lifting Rope Kit or Builders Gin Wheel kit that combines both the manual Gin Wheel and a certified Lifting Rope c/w Hook. Ideal for lifting and lowering goods from floor to top of buildings

£69.98 ex VAT

£83.98 inc VAT

Discover the GW10E Gin Wheel, a highly efficient and widely used lifting solution on construction sites across the UK and beyond. This specific model, often referred to as a Builder's Gin Wheel or Gin Wheel Pulley Block, is expertly designed with a durable swivel eye that seamlessly fits over standard 52mm scaffold tubes, ensuring secure and stable operation.

The GW10E Gin Wheel serves as an indispensable, affordable pulley block, facilitating the manual lifting of building materials, tools, and equipment to various heights. Its robust construction makes it a reliable choice for daily site operations. This gin wheel accommodates both 16mm and 18mm gin wheel ropes (with spliced eyes, sold separately), offering flexibility for different load requirements.

Key Features of the GW10E Gin Wheel:


Optimal Compatibility: Designed for easy and secure attachment to standard scaffold tubes (52mm top eye size).

Durable Construction: Manufactured from mild steel with a protective painted finish, ensuring longevity and resistance to the harsh construction environment.

Efficient Lifting: Features a 250mm (10") sheave size for smooth rope movement and effective manual lifting.

High Capacity: Boasts a substantial 250kg capacity, suitable for a wide range of building materials.

Affordable Solution: Provides a cost-effective alternative for vertical material handling on-site.

Important Note on Gin Wheel Operation:

Please be aware that the GW10E Gin Wheel is an unbraked system. It is crucial that the user is fully responsible for safely controlling the load attached to the gin wheel rope throughout the lifting and lowering process. For applications requiring a braked lifting solution, please explore our advanced Securpulley range, which offers enhanced control and safety features.

Sheave Size: 250mm Pulley Wheel (10") - optimised for gin wheel ropes

Top Eye Size: 52mm - perfectly suits Standard Scaffold Tubes, making this a true scaffold gin wheel

Capacity: 250Kgs - a reliable capacity for a variety of construction loads

Material: Mild Steel with a painted finish (ensuring durability for a builder's gin wheel)

In the United Kingdom, the Lifting Operations & Lifting Equipment Regulations (LOLER) unequivocally classify all shackles and eye bolts used for lifting purposes as lifting accessories. Consequently, they necessitate a thorough examination by a competent person at least every six months. Beyond legislative requirements, the Lifting Equipment Engineers Association (LEEA) strongly advocates for this rigorous inspection policy to be adopted by all parties responsible for the safe condition of lifting equipment, including gin wheels. Regular maintenance and inspection of your gin wheel are paramount for ensuring ongoing safety and compliance on your construction site.

If you have any uncertainties regarding your LOLER obligations or require a thorough examination for your gin wheel or other lifting equipment, please do not hesitate to contact Ultimate Lifting Solutions. Our team of highly trained engineers is available to conduct comprehensive inspection and servicing, either directly on your site or at our in-house facility, ensuring your gin wheel remains safe and compliant.
What is a gin wheel used for? A gin wheel (or builder's gin wheel) is a simple pulley system used on construction sites to manually lift building materials, tools, and other equipment vertically to different levels of a scaffold or structure.

How do you attach a gin wheel to scaffolding? The GW10E Gin Wheel features a swivel eye designed to fit securely over standard 52mm scaffold tubes.

What type of rope is used with a gin wheel? The GW10E Gin Wheel is compatible with 16mm and 18mm Gin Wheel Ropes with a spliced eye.

Is the GW10E gin wheel braked? No, the GW10E is an unbraked gin wheel. The user is responsible for controlling the load. For braked options, see our Securpulley range.

What is the capacity of this gin wheel? The GW10E Gin Wheel has a maximum lifting capacity of 250kg.

How often should a gin wheel be inspected? In the UK, under LOLER, a gin wheel should undergo a thorough examination by a competent person at least every six months.
