Probst Manhole and Cone Chain Clamp SRG
Brand:
Capacity
1500Kgs or 3000Kgs
(1.5 tonne or 3.0tonne)
Description

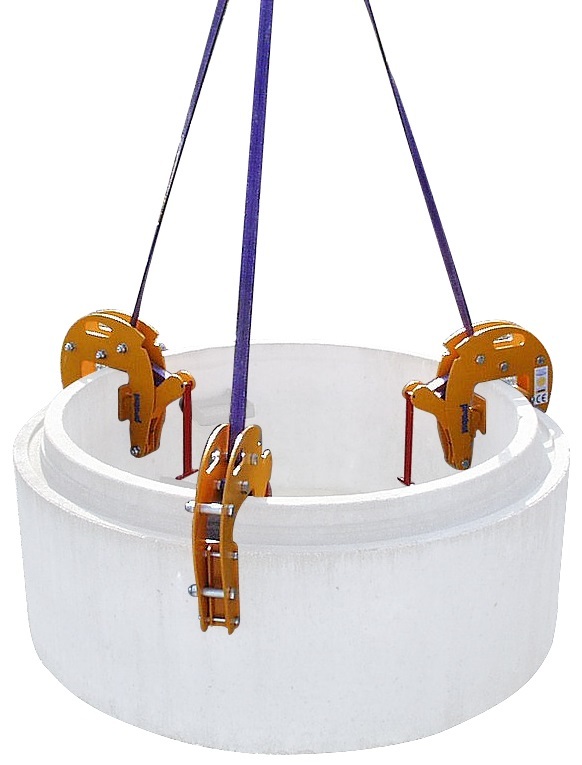

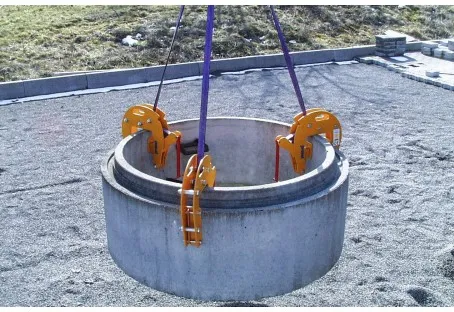

Probst Manhole and Cone Chain Clamp SRG is a universal and extremely lightweight 3-leg clamp for lifting, transporting, and installing of large manhole rings, concrete cone elements, and well rings as per DIN4034.
Add to cart
Add to quoteRelated products
Probst SVZ-UNI Manhole and Cone Lifter
Probst SVZ-UNI
The Probst Manhole and Cone Clamp offers the safest lifting aid for larger concrete manhole and cone style products. No additional help required from anybody other than the driver. No one getting on back of lorries or near the edge of the laying area. The driver can pick up , transport and position easily and safely due to the automatic release movement
£2,848.98 ex VAT
£3,418.78 inc VAT
Automatic Manhole lifter ML 1067.1
ML 1067.1
Automatic Manhole Ring Lifter to enable the safe movement of large concrete shaft and ring style products, such as bases and covers, cones and other shaft rings.
£2,548.98 ex VAT
£3,058.78 inc VAT
Probst Concrete Gully Hook
GH
Probst GH Gully Hook with chain sling. Designed to make lifting, handling and installing concrete gullies easier, safer and quicker. This quality manufactured handy solution fits snugly in the gully spout without the need to remove the rodding eye cover or to damage the gasket.
£332.98 ex VAT
£399.58 inc VAT
Probst Mechanical Concrete Gully Lifter
GL
Probst Mechanical Concrete Gully Lifter is the perfect solution for loading and offloading Gullies from transport and delivery lorries safely and quickly, can be attached to an Excavator, Backactor, Crane, or Hiab. Designed to fit snugly on the gully and will readily accommodate the spout.
£924.98 ex VAT
£1,109.98 inc VAT
Probst SDH-H Hydraulic Manhole Cover Lifter
Probst SDH-H
Probst SDH-H Hydraulic Manhole Cover Lifter is a small and light mechanical manhole cover lifter designed for safely lifting manhole covers up to a diameter of 800 mm—heavy-duty build quality with a galvanised finish to ensure durability. The ULS Lifting kit is supplied with a set of keys and spreader bars making it suitable for both experienced professionals and newcomers.
£1,609.00 ex VAT
£1,484.98 ex VAT
£1,781.98 inc VAT
Probst Concrete Pipe Lifter RVD 4.5 ECO
Probst RVD-4.5-ECO
Probst RVD Concrete Pipe Lifter. Universal excavator attachment enabling large steel reinforced concrete pipes to be unloaded, transported, and installed on-site.
£11,244.98 ex VAT
£13,493.98 inc VAT

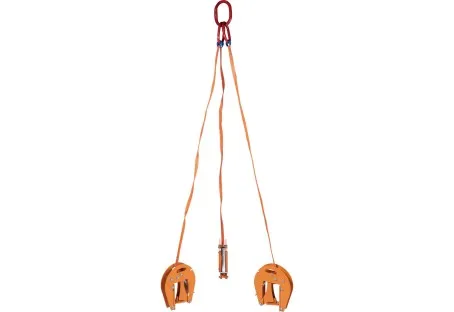

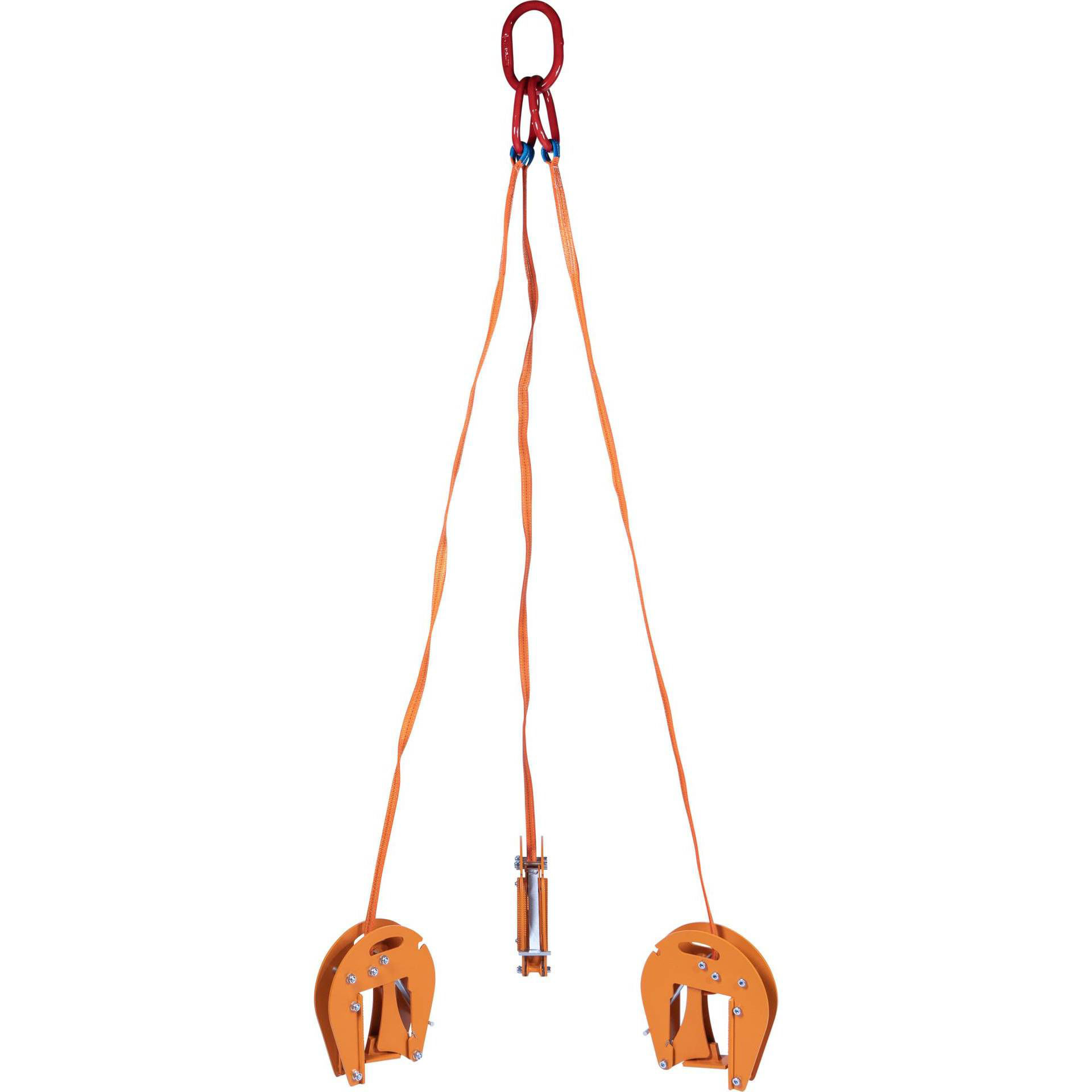

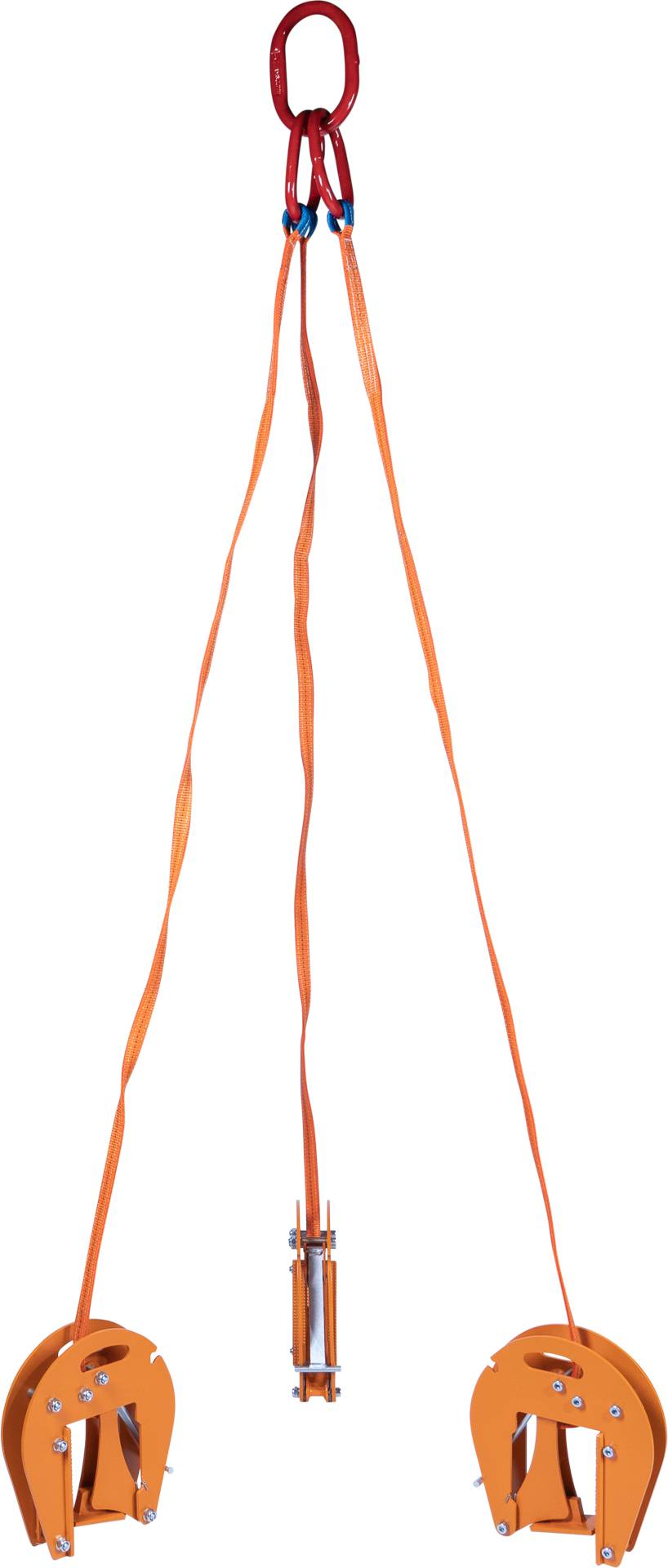

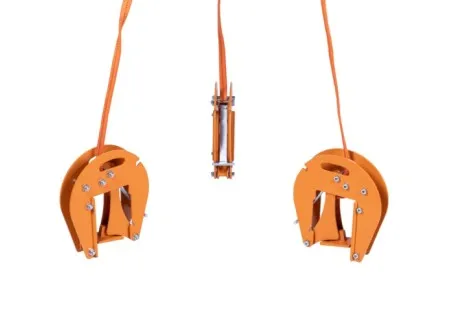

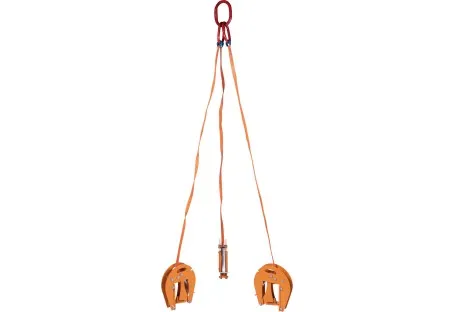

Probst Manhole and Cone Chain Clamp SRG is a universal and extremely lightweight 3-leg clamp for lifting, transporting, and installing of large manhole rings, concrete cone elements, and well rings as per DIN4034. supplied with three clamps connected via webbing slings and terminating in a ring for easy attachment to a crane hook to create a one-person device for gripping and handling concrete elements such as manhole covers.

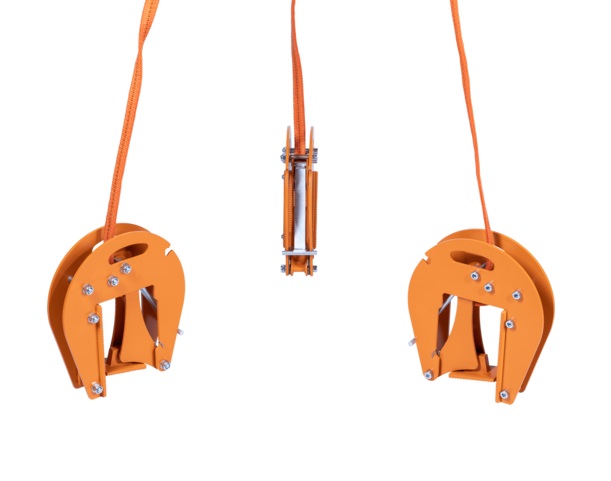

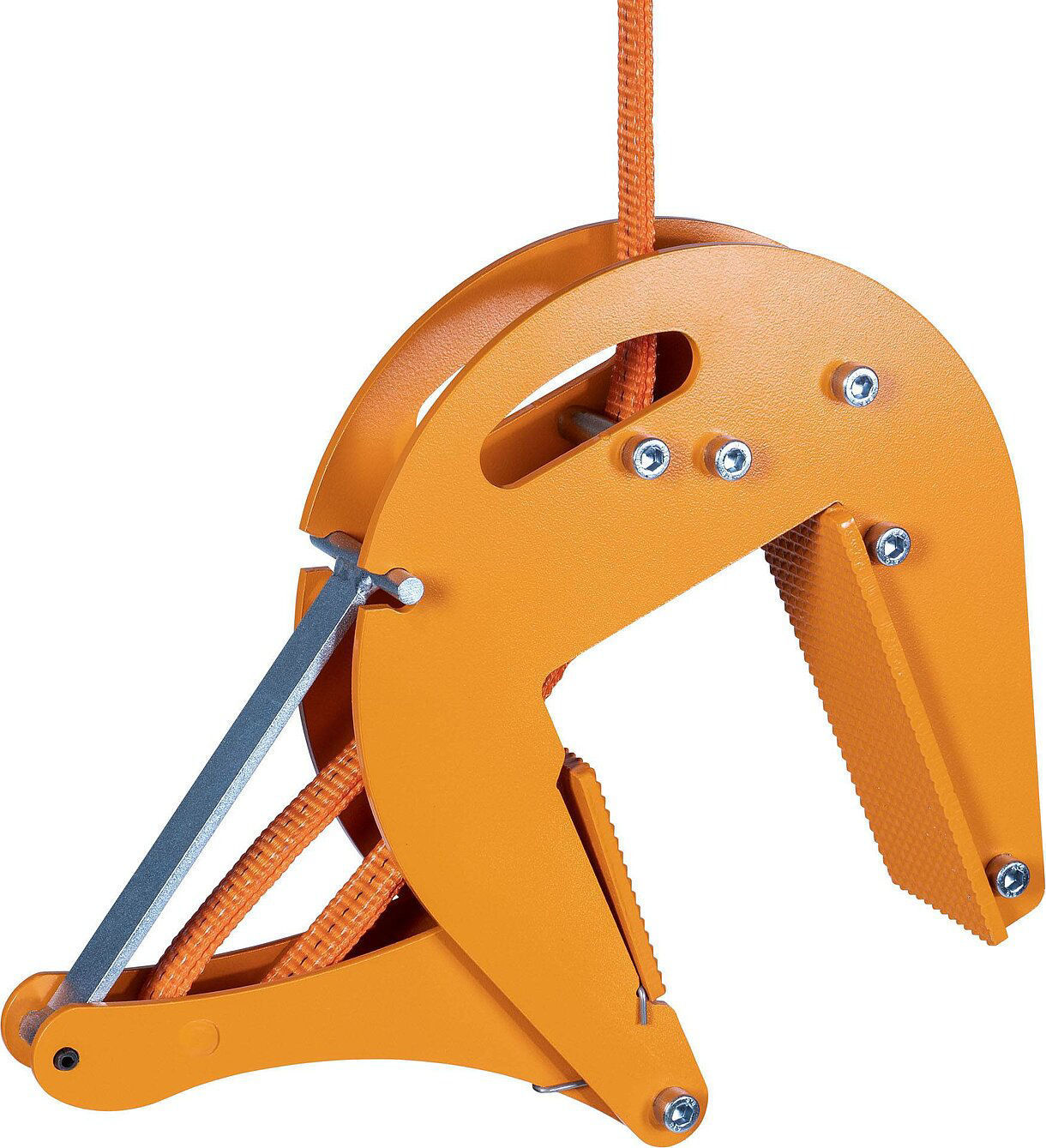

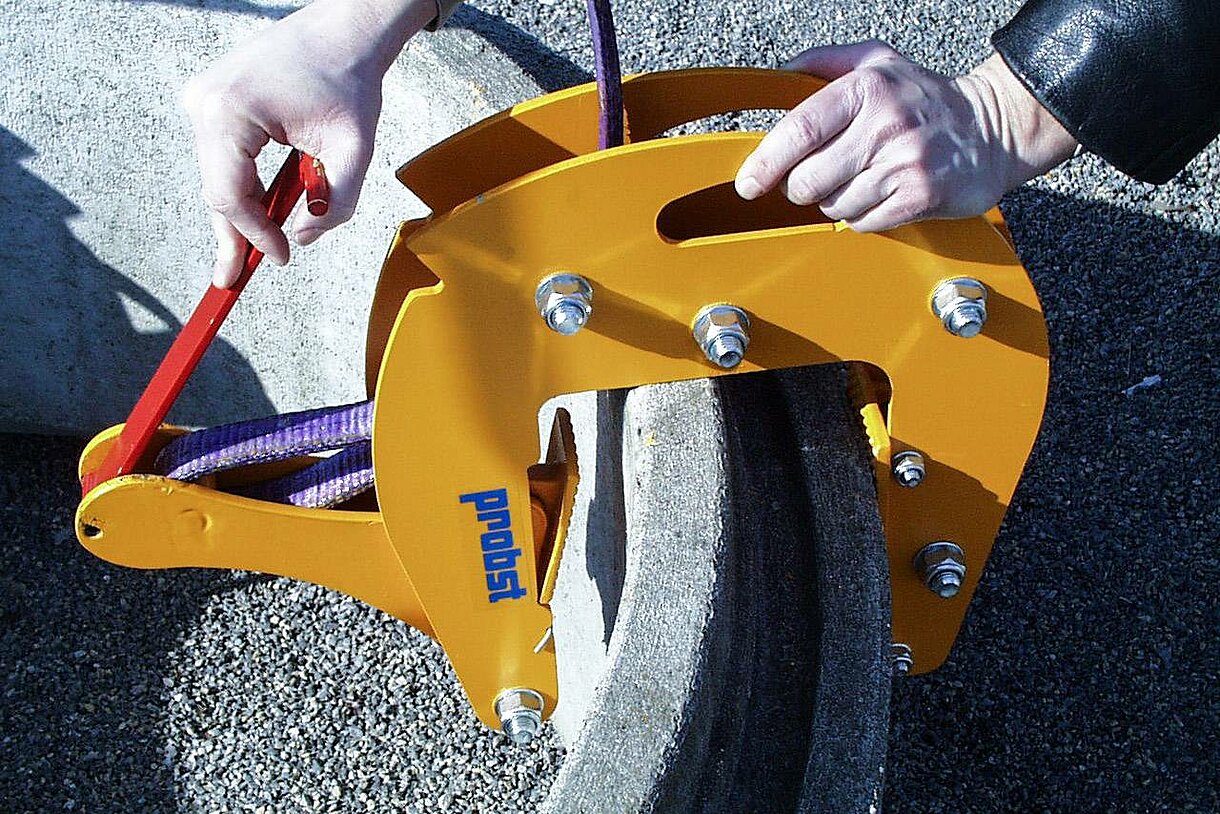

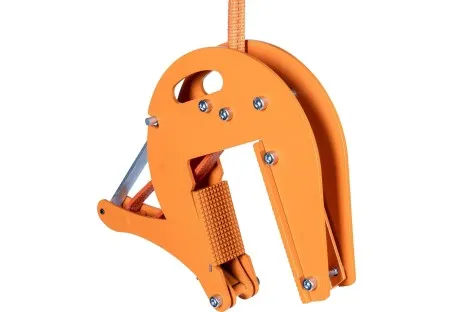

Two models are available, both supplied as a 3-leg manhole lifter, the clamps are supplied with serrated steel finger grippers that automatically adjust to the correct thickness of the concrete element. Clamps are designed for easy slinging and when released remain open.

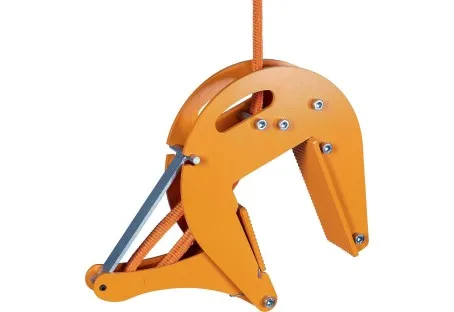

SRG-UNI-1.5 - 1500kgs lifting capacity. Gripping range 40 - 120mm. designed for manhole rings as per DIN4034. Part 2 and cones.

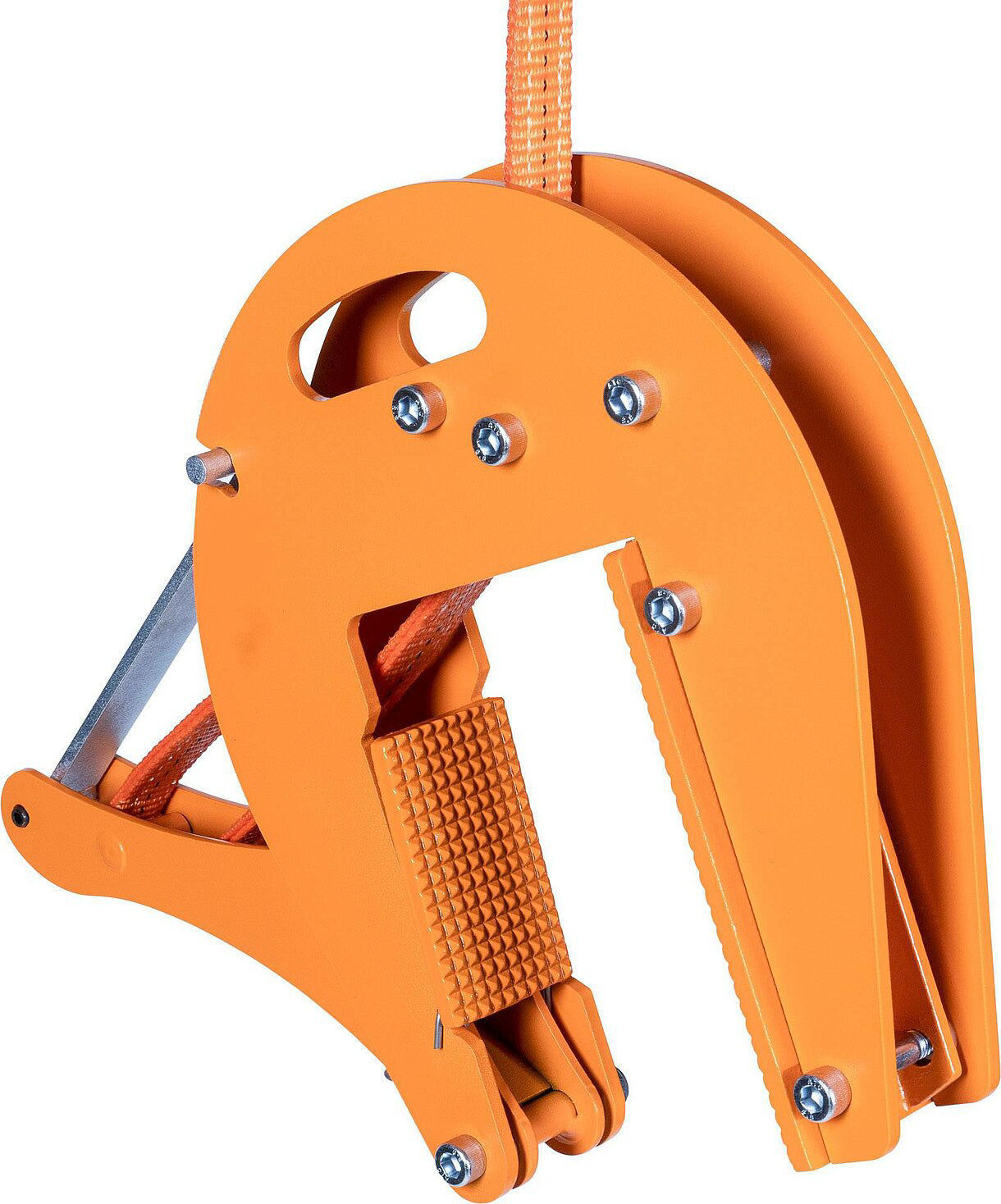

SRG-UNI-3.0 - 3000kgs lifting capacity. Gripping range 60 - 180mm. designed for manhole rings as per DIN4034. Part 1 + 2 and cones.
| Model | Probst Part Number | Lifting Capacity WLL | Gripping Range | Nominal Value ID | Weight |
| SRG-UNI-1.5 | 54400015 | 1500 Kgs | 40 - 120 mm | 800 - 2000 mm | 28 Kgs |
| SRG-UNI-3 | 54400014 | 3000 Kgs | 60 - 180 mm | 800 - 2000 mm | 40 Kgs |

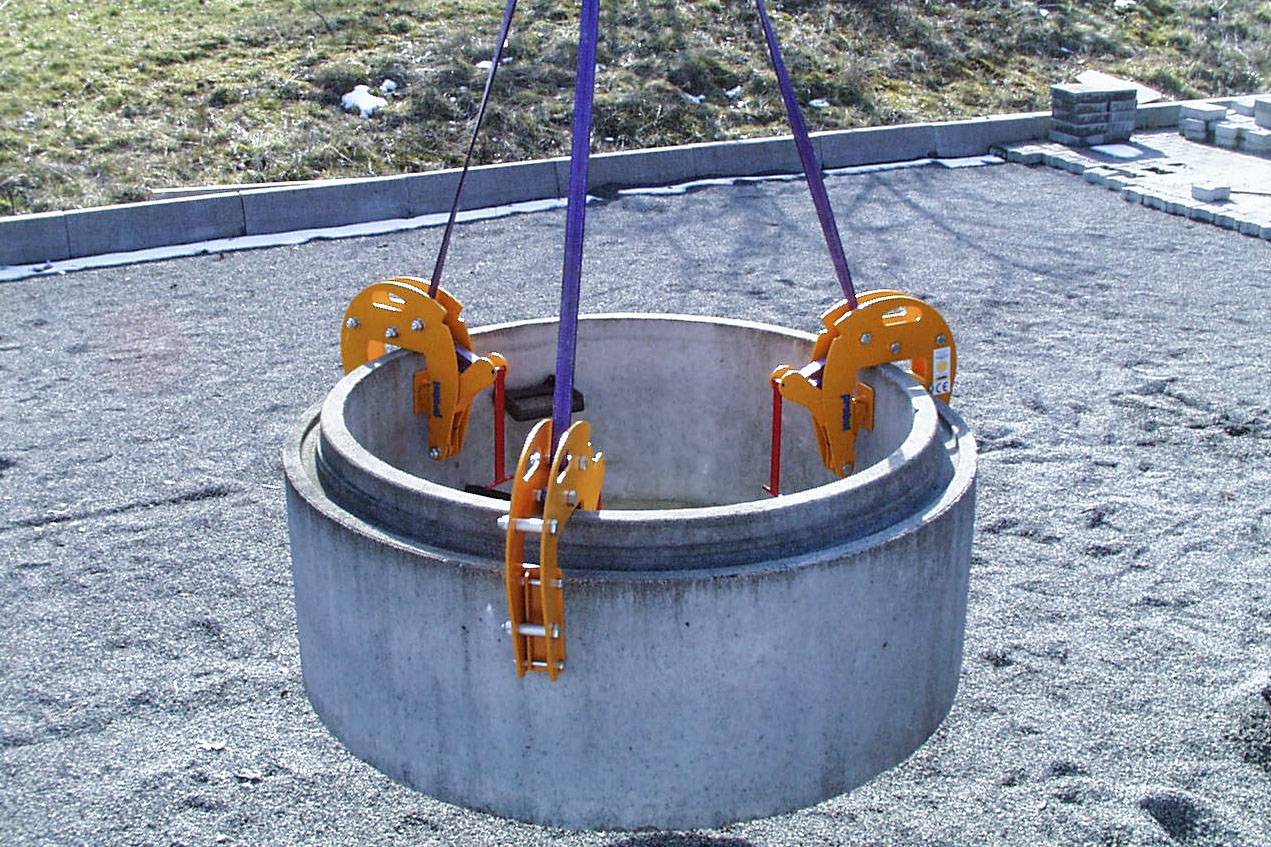

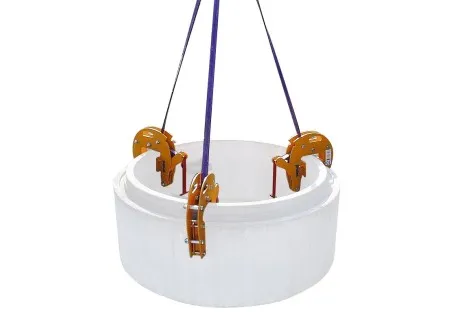

Probst Manhole and Cone Chain Clamp
Perfect for transporting manhole rings and cones. Comes with a lifting strap.
Manhole and Cone Chain Clamp SRG-UNI: especially easy handling and lightweight. Automatically adjustable clamping range of the claws to the thickness of the pipe walls.
Two models are available.
SRG-UNI-1.5 - Part Number 54400015 - 1500kgs lifting capacity. Gripping range 40 - 120mm. designed for manhole rings as per DIN4034. Part 2 and cones.
SRG-UNI-3.0 - Part Number 54400014 - 3000kgs lifting capacity. Gripping range 60 - 180mm. designed for manhole rings as per DIN4034. Part 1 + 2 and cones.
Further information
Manhole and Cone Chain Clamp SRG-UNI –The Upgrade of Our Classic Clamp SRG
Universal, extremely lightweight chain clamp for installation of manhole rings, cones as per DIN 4034, and well rings.

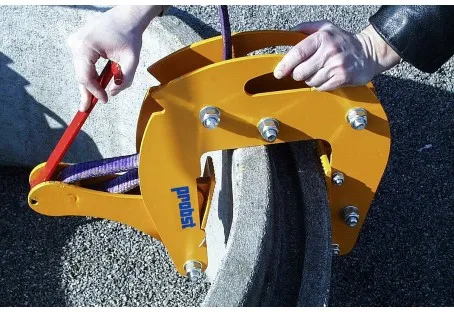

Easy slinging and releasing through a permanent opener, the clamp need not to be lifted
No adjustment of clamping range
Large transmission of the gripping force guarantees optimum safety
Fitted with spring preload to prevent the load from unintended release
Comes with serrated steel finger grippers
| Model | Probst Part Number | Lifting Capacity WLL | Gripping Range | Nominal Value ID | Weight |
| SRG-UNI-1.5 | 54400015 | 1500 Kgs | 40 - 120 mm | 800 - 2000 mm | 28 Kgs |
| SRG-UNI-3 | 54400014 | 3000 Kgs | 60 - 180 mm | 800 - 2000 mm | 40 Kgs |
Probst - Making hard work easier !!!!
For over 60 years Probst has been manufacturing tools and equipment that have made everyday life on the construction site easier. Thanks to many important ergonomic and efficiency-enhancing innovations, Probst Material Handling today is the world market leader and defines the handling of construction materials on sites and in concrete plants.
The headquarters are in Erdmannhausen (Germany), the Competence Centre Robot Production is in Könitz (Germany), as well as at our five subsidiaries in Great Britain, France, Italy, Poland, and the USA, find the optimal solution for our customers every day. We are present worldwide with over 450 sales partners. Since 2020, the entire corporate group has been climate-neutral.
Whether in structural or civil engineering, whether in the garden or on the street: Probst products are at home on all construction sites. there machines and tools make life easier for everyone who works with paving stones, pipes, and other concrete products. WHY - Because they put efficiency and ergonomics first, and have become the world market leader in the field of gripping and laying technology through numerous innovations.
