1,000Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist

Key notes for ordering:

Dispatched as a kit with instructions, decide on extras like isolator for electrics, festoon system for elec hoist. Contact us for installation prices. Suppled with certification

Estimated lead time:Manufactured in UK to Order Approx. 2 - 3 Weeks Delivery

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

1,000Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist

Brand:

Capacity

1,000Kgs

Description

1,000Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist kit manufactured in the UK at best Online Prices. These Quality Wall Mounted Jib cranes, are supplied with 400v Electric Chain Hoist. Ideal if you require a Jib Crane that can be bolted securely to an existing wall.

£1,244.98 ex VAT

£1,493.98 inc VAT

Please contact our sales team if the following extras are required:

1 - Adjustable Slew Limits
2 - Slewing Lock
3 - Installation

Related products

Festoon System for Overhead Cranes & Hoists

FEST SS

C Rail Style Festoon System  (Full Kit) including flat form power cable, cable trolleys & track. These simple-to-install lightweight kits provide a safe and economical means of supplying power to overhead hoists, overhead cranes, and most other types of moving machinery that travels along a fixed track. Once fitted eliminates dangerous dangling down cables and looks like a professional install or refit

£124.98 ex VAT

£149.98 inc VAT

1,000Kgs SWL Wall Mounted Jib Cranes

WMJC

1,000Kgs SWL Wall Mounted Jib Cranes, Manufactured in the UK. These Quality Wall Mountable Jib Cranes can be supplied with any arm length from 2m to 6m with a Slewing angle of 180°. Bespoke options are available on request.

£1,244.98 ex VAT

£1,493.98 inc VAT

1,000Kgs SWL Wall Mounted Jib Cranes c/w Manual Hoist

WMJC

1,000Kgs SWL Wall Mounted Jib Cranes c/w Manual Hoist Kit that are manufactured in the UK. These Over-Braced Wall Mounted Jib Cranes are supplied with a manual chain hoist, which saves you time in selecting which hoist to order. These Wall Mounted Jib cranes are ideal if in need of a Jib Crane that can be bolted or welded securely to an existing wall or suitable steelwork around your factory.

£1,244.98 ex VAT

£1,493.98 inc VAT

1,000Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist kit manufactured in the UK at best Online Prices. These Quality Wall Mounted Jib cranes, are supplied with 400v Electric Chain Hoist. Ideal if you require a Jib Crane that can be bolted securely to an existing wall. All our Wall or Face Fixed Jib Cranes are supplied fully tested and certified ready for installation.

Supplied as a simple two-part kit form, the main slewing arm which the hoist will move along, and a pair of brackets that can be welded or bolted to the column or wall. The two parts connect together using the supplied pivot pin. The arm can be manufactured to any length between 2m and 6m and the arm is designed to rotate giving a very wide working area. The arm has a trolley already fitted, making it even more simple for connecting to your 400-volt Electric Chain hoist.

Ultimate lifting has made it simple for you - To save you time and stress, we have put a package together with both the Jib Crane and a quality 400volt power supply Electric Chain Hoist - All you need to select is what height of lift you require on the hoist to suit your jib cranes working height.

Full Electric Supply kit - If added to the order, everything is supplied that is required for installation of the jib/hoist. Within the kit are the main isolator, supply cable for the hoist (cut to length suitable for the arm purchased), and the cable trollies to keep everything neat and tidy.

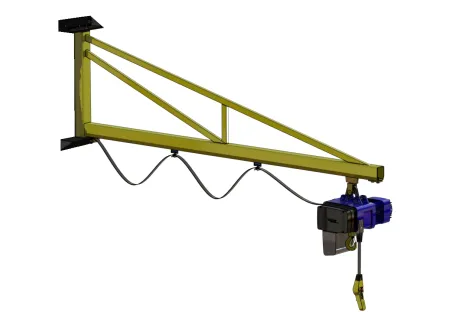

Dimensions for illustration only
Model
SWL
Overall Height Of Arm
Trolley Depth
Arm Length (Radius of reach)
Total Weight
WMJC1000R2
1000Kgs
600mm
123mm
2,000mm (2m)
99Kgs
WMJC1000R3
1000Kgs
900mm
123mm
3,000mm (3m)
103Kgs
WMJC1000R4
1000Kgs
1000mm
123mm
4,000mm (4m)
136Kgs
WMJC1000R5
1000Kgs
1200mm
123mm
5,000mm (5m)
164Kgs
WMJC1000R6
1000Kgs
1300mm
123mm
6,000mm (6m)
187Kgs

Why Choose a Wall or Face Fixed Mounted Jib Crane?
There are many advantages to purchasing a 1,000Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist, they are extremely versatile within the factory, speeding up lifting and moving components off presses or work benches, loading or unloading lorries. Lifting heavy objects such as granite, timber, or steel. Wall Jib cranes are made up of two main parts, the arm and set of brackets to attach to existing steelwork, therefore these simple manual jib cranes do not have many parts to maintain, making them extremely reliable, which in turn means they do not break down, so no loss in production time.


Easy to install
These wall-mounted cranes simply fix to an existing wall or any suitable structural steelwork, once you have checked your column or wall is suitable for a jib crane installation (seek help from a structural engineer), choose which one you require from the drop-down menus on www.ulslifting.com. We will arrange to manufacture the jib and dispatch it direct to the site for your required delivery date.
Then, when it is supplied to the site, The Jib just needs to be secured to the wall or steelwork -  We at Ultimate Lifting Solutions offer this service and can offer full installation by using our own highly trained engineers or just the commissioning/ load testing, we can offer a package to meet your requirements.

Because of the simple design, they are inexpensive to both buy and maintain compared to other cranes. Under normal working conditions, they will only need an industry standard 12 monthly service. We at Ultimate Lifting Solutions offer this service and can offer various maintenance/service packages to meet your requirements.


How do 1,000Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist work?
A standard swing Jib as mentioned has two main parts - The Arm and mounting brackets. The arm can rotate from left to right and vice versa, the swing or slew angle is set for wall mounted at 180° as standard. On all our swing jibs up to 1,000Kgs, they will slew with ease without the requirements of powered assistance, hence keeping the costs down. The arm on our Jib cranes will be supplied with an integral push travel trolley, this moves along the full length of the arm, and the trolley gives you the freedom and flexibility to reach into corners of your factory with ease.


What else is required for 1,000Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist?
You now have your Swing Jib fitted. You now need a hoist of some type or a vacuum lifter or a spring/tool balancer, these fit easily to the trolley that was supplied already fitted within the jib crane arm.  You just need to decide what hoist you need. To keep the costs down a manual hoist is the cheapest option, but you will not save on production time, as they are slow and do need assistance by hand, and sometimes for larger items, you might not be able to reach the hoist chain. The second option and best option is a 400-volt Electric Hoist, these hoists enable you to easily lift and lower your components quickly, cutting down on production time, and it will soon pay for itself in time saved.


Installation
As mentioned above, the Wall or Face Mounted Jib Crane can be an easy install, once installed and the hoist fitted, all that is left is commissioning, testing, and signing off the Jib as safe to use. we are more than happy for all our customers to install themselves using the instructions supplied or find their own installation team. But, these days time is precious, do you have time to sort engineers and dates, etc, Let us save you time as we are also more than happy to offer our own engineers to take away this task. We can install the Jib, install the Hoist, commission, test and we will not leave the site until everything is working correctly and safely."

1,000Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist


All our manufactured Jibs are

Duty classification:  A3 according to BS 733 : 1990

All jibs are lubrication free.  The pivot bushes are acetal and therefore do not require lubrication. The trolleys running surfaces are also lubrication free.

Manual slewing and trolley travel operation

Minimal maintenance requirement

Clutch controlled slewing mechanism, can be tightened/loosened to control how freely the arm pivots.

Bases are fully welded to the column – in most situations this removes the need for an oversized load spreading plate or setting an anchor frame into concrete, and therefore making installation much quicker and more cost effective.


Key Points of our UK manufactured Jib Cranes

SWL - 1000kg

Arm length - 2m up to 6m

Slew Angle - a 180-degree manual slew

Trolley - Fitted with integrated push travel trolley for suspending hoists, vacuum lifters, and tool balancers from

Fast delivery - We aim to deliver all our Swing Jibs within 10 to 14 days


Optional extras

Adjustable slewing limits, To reduce the swing arc

Slewing lock, to fix the arm into a specific position

Electrical Isolator - required if the electric hoist is to be used in conjunction with the Jib Arm


Full Electric Kit - Our kit includes everything required to fun Electric Hoist (Isolator, Flatform Supply Cable, Cable Runners)

The kit can be supplied to enable the pin to be fitted from below"

1,000Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist as a rule do not need much service or maintenance. Yet, general observations of the overall condition of the jib and the hoist connected to it can be carried out by the operator - any faults should be reported immediately


More importantly to keep the Jib and hoists running at maximum efficiency and to keep within the UK laws with regarding LOLER inspections set out by HSE, both the Jib and the hoist on it should have a maintenance service scheduled no later than 12 months. This service should be undertaken by qualified service engineers - If you would like to know more about the servicing and general maintenance, please feel free to contact us, we do have qualified engineers and are happy to quote for all your crane servicing requirements.
