125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced

Key notes for ordering:

Dispatched as a kit with instructions for building and maintenance. Contact us for installation prices and service price. Suppled with certification

Estimated lead time:Manufactured in UK to Order - Approx. 2 - 3 Weeks Delivery

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced

Brand:

Capacity

125Kgs

Description

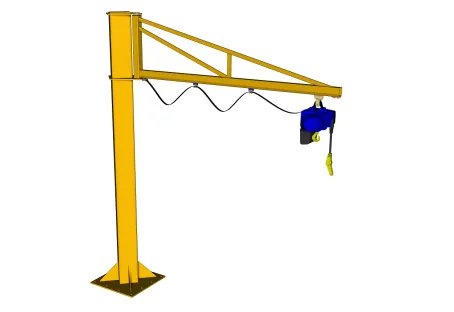

125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced version that is manufactured in the UK. These Freestanding Jib crane kits, come complete with an Electric Chain hoist as standard and are manufactured and delivered in a simple two-part jib crane kit form.

£1,009.98 ex VAT

£1,211.98 inc VAT

Add to cart Add to quote

Related products

125Kgs SWL Free Standing Jib Crane - Over Braced

FJC

125Kgs SWL Free Standing Jib Crane - Over Braced are manufactured fully tested, certified, and ready to install. Supplied in a simple two-part kit form. Both the arm and pillar can be manufactured to any length between 2m and 6m and the arm is designed to slew through 270° giving a very wide working area.

£1,009.98 ex VAT

£1,211.98 inc VAT

125Kgs SWL Free Standing Jib Crane c/w Manual Chain Hoist

FJC

125Kgs SWL Free Standing Jib Crane c/w Manual Chain Hoist. These lightweight Jib cranes come complete with a quality manual hoist, that will simply hook onto the Jib Crane Manual Trolley already fitted to the swinging Jib Arm.

£1,009.98 ex VAT

£1,211.98 inc VAT

125Kgs SWL Free Standing Jib Crane - Under Braced

UBFJC

ULS 125Kgs Freestanding Under Braced Jib cranes are manufactured in the UK. Designed for low height situations. Both the arm and column can be manufactured to any length between 2m-6m and the arm is designed to slew through 270° giving a very wide working area.

£1,049.98 ex VAT

£1,259.98 inc VAT

125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced version that is manufactured in the UK. These Freestanding Jib crane kits, come complete with an Electric Chain hoist as standard and are manufactured and delivered in a simple two-part jib crane kit form. The slewing arm which the hoist will move along, and the main column with floor base plate that the swing arm fits to. Both the arm and column can be manufactured to any length between 2m and 6m and the arm is designed to slew through 270° giving a very wide working span. The arm has an integral trolley already fitted, making it even more simple for connecting to your electric hoist.

We have made it simple for you to order your 125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced. And to save you time and stress, we have put a package together with both the Jib Crane and a quality 400-volt supply Electric Chain Hoist for all lifting operations - All you need to do is select what height of lift you require on the electric hoist and then add it all to your basket for purchase. If you are unsure or need help choosing your 125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced version, please feel free to call our sales team for assistance.

Also available is the full Electric Supply kit - If added to your order, everything you need to install the jib/hoist electrically is supplied. In this kit are the main isolator, supply cable for the hoist (cut to a length suitable for the arm purchased), and the cable trollies to keep everything neat.

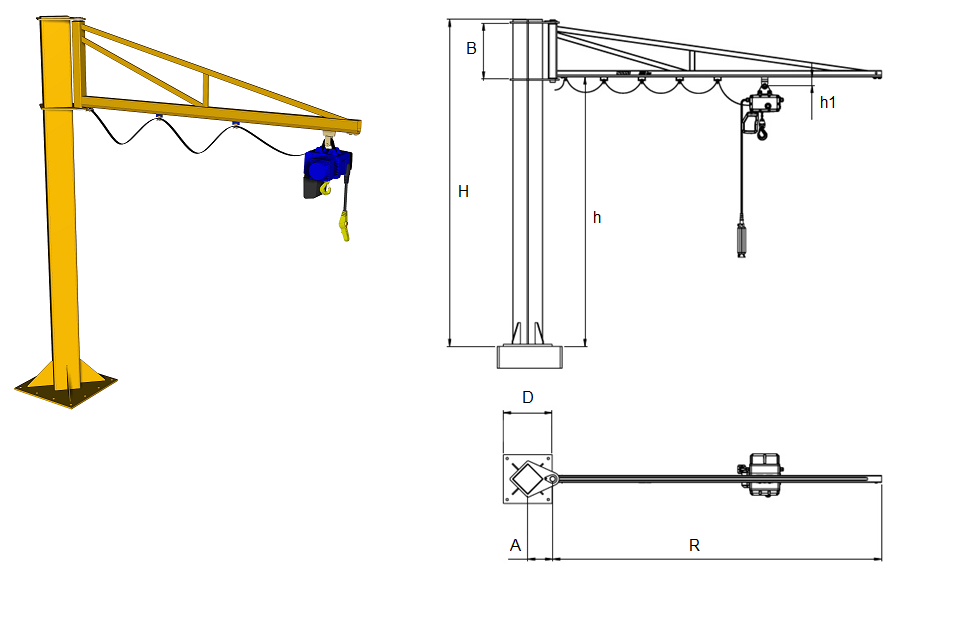

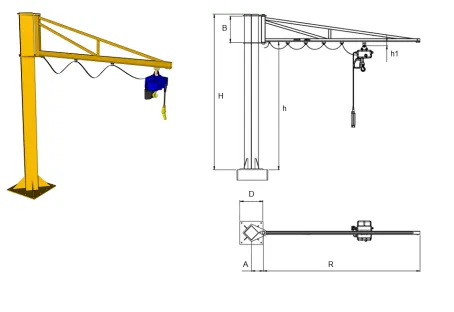

Dimensions for illustration only - Based on 125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced with 3m Overall height.
Model
SWL
Working Height to
Underside of beam
Overall
Height of Jib
Trolley
Depth
Arm Length
(Radius of reach)
Total
Weight
FJC125R3
125Kgs
2,500mm (2.5m)
3,000mm (3m)
77mm
3,000mm (3m)
210Kgs
FJC125R4
125Kgs
2,400mm (2.4m)
3,000mm (3m)
77mm
4,000mm (4m)
220Kgs
FJC125R5
125Kgs
2,100mm (2.1m)
3,000mm (3m)
77mm
5,000mm (5m)
270Kgs
FJC125R6
125Kgs
2,000mm (2.0m)
3,000mm (3m)
77mm
6,000mm (6m)
355Kgs

Why Choose a 125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced?

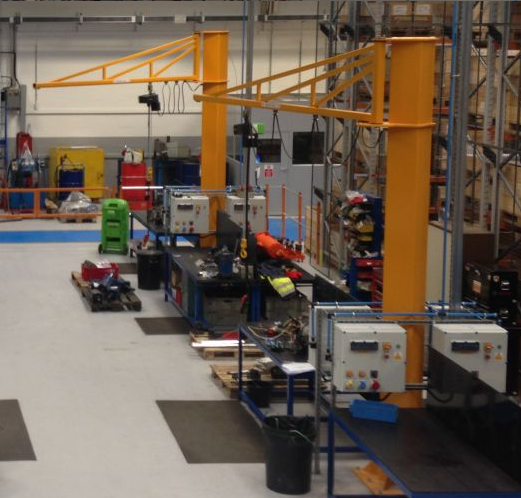

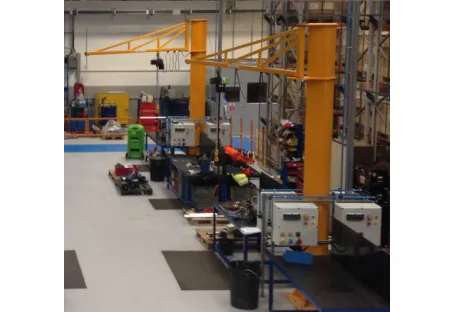

There are many advantages to purchasing an over-braced free-standing Jib Crane; they are extremely versatile within the factory, speeding up the lifting and moving of components off presses or workbenches, and loading or unloading lorries. Lifting heavy objects such as granite, timber, or steel. Swing Jib cranes are made up of two main parts, the main column complete with floor base plate, and the jib swing arm, therefore a simple manual jib crane does not have many parts to maintain, making them extremely reliable, which in turn means they do not break down, so no loss in production time.

Easy to install
These floor-mounted jib cranes simply just bolt directly to the floor using chemical resin floor anchors, Once you have checked your floor is suitable for a jib crane and bought it, we arrange to manufacture the jib, and then when it is supplied to the site, the floor just needs to be drilled and the floor mounting plate secured -  We at Ultimate Lifting Solutions offer this service and can offer full installation by using our own highly trained engineers or just the commissioning/ load testing, we can offer a package to meet your requirements.

Because of the simple design, they are inexpensive to both buy and maintain compared to other cranes. Under normal working conditions, they will only need an industry standard 12 monthly servicing. We at Ultimate Lifting Solutions offer this service and can offer various maintenance/service packages to meet your requirements.

How does a Swing Jib Crane work?

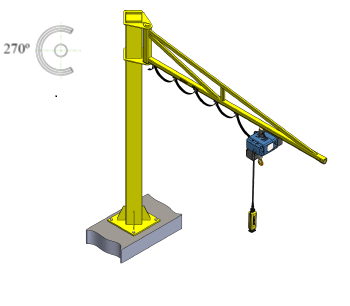

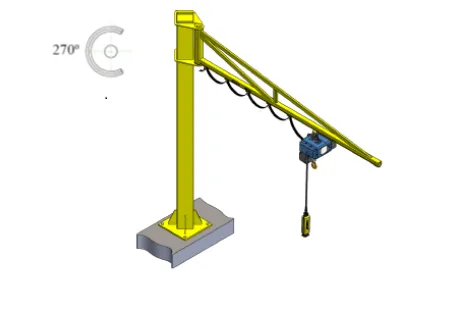

A standard swing Jib as mentioned has two main parts - The main column and the Jib Arm. The arm can rotate from left to right and vice versa the swing or slew angle is set at 270° as standard. On all our swing jibs up to 1,000Kgs, they will slew with ease without the requirements of powered assistance, hence keeping the costs down. The arm on the ULS Lifting Jib cranes will be supplied with an integral trolley, which moves along the full length of the jib arm, this trolley gives you the reach and flexibility to reach into corners of your factory with ease.

Installation
As mentioned above, the over-braced Jib Crane with base plate is easy to install, once installed and the hoist fitted, all that is left is commissioning, testing, and signing off the Jib as safe to use. we are more than happy for all our customers to install themselves or find their installation team. We are also more than happy to offer our engineers to take away this task. We can install the Jib, install the Hoist, commission, and test and we will not leave the site until everything is working correctly and safely.

125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced

ULS Lifting manufactures and installs a wide range of different types of jib cranes, that can be either freestanding, clamp around an existing steel column, or bolted directly to a structural wall. Jib cranes can be built to customer-specific specifications to ensure they meet the customers lifting requirements.


Main features of Over-Braced Swing Jib

SWL: 125kg.

Column height: up to 6m.

Arm length: up to 6m.

Arm types: profile track, over-braced.

Fixing: freestanding and supplied with base plate to be fixed to the floor.

Slewing arc: 270°on standard arm.

Paint finish: powder coated as standard. Hot dip galvanized or stainless steel is available on request.

Designed in accordance with BS 7333: 1990.


Advantages of choosing a 125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced

Quick delivery, usually within 2 to 4 working weeks.

Made to order, no costs for excess steel or cutting.

Free and easy to operate.

Low maintenance.

Braking device to control slewing speed.

Lubrication-free acetyl bearings are used on the majority of jib arms.

The base plate is fabricated directly to the pillar and therefore expensive foundation frames are not required.

Dimensions for illustration only - Based on 80Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced version with 3m Overall height.

Model
SWL
Working Height to
Underside of beam
Overall
Height of Jib
Trolley
Depth
Arm Length
(Radius of reach)
Total
Weight
FJC125R3
125Kgs
2,500mm (2.5m)
3,000mm (3m)
77mm
3,000mm (3m)
210Kgs
FJC125R4
125Kgs
2,400mm (2.4m)
3,000mm (3m)
77mm
4,000mm (4m)
220Kgs
FJC125R5
125Kgs
2,100mm (2.1m)
3,000mm (3m)
77mm
5,000mm (5m)
270Kgs
FJC125R6
125Kgs
2,000mm (2.0m)
3,000mm (3m)
77mm
6,000mm (6m)
355Kgs

125Kgs SWL Free Standing Jib Crane c/w Electric Hoist - Over Braced version as a rule does not need much service or maintenance. Yet, general observations of the overall condition of the jib and the hoist connected to it can be carried out by the operator - any faults should be reported immediately


More importantly to keep the Jib and hoists running at maximum efficiency and to keep within the UK laws regarding LOLER inspections set out by HSE, both the Jib and the hoist on it should have a maintenance service scheduled no later than 12 months. This service should be undertaken by qualified service engineers - If you would like to know more about the servicing and general maintenance, please feel free to contact us, we do have qualified engineers and are happy to quote for all your crane servicing requirements.
