IMER ET300 Builders Gantry Hoist System 300Kgs

Key notes for ordering:

Supplied as a kit. Just add ballast once assembled. (Ballast Not Supplied)

Estimated lead time:3 to 4 Days Delivery (Due to Size) - May incur extra carriage charges - Please call to discuss

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

IMER ET300 Builders Gantry Hoist System 300Kgs

Brand:

Description

IMER Builders Gantry Hoist System 300Kg Capacity with heavy-duty site hoist. This Gantry Hoist System is an all-you-need kit to lift or lower all building materials on site up to 300kg quickly and safely.

£2,399.98 ex VAT

£2,879.98 inc VAT

Various lifting attachments available - Tipping Buckets, Brick Baskets, Bucket Carriers

Related products

IMER ET200 Scaffold Hoist

ET200 NEO

The IMER ET200 NEO Scaffold Hoist is an industry favourite due to its 200 kg capacity, lifting height of 30m, and fast lifting speed of 19m/min. Supplied with a top mounting bracket, and Scaffold Transmission Pole. Ready to use once unboxed

£1,124.98 ex VAT

£1,349.98 inc VAT

IMER TR225 Scaffold Hoist

TR225 NEO

JUST LAUNCHED – the IMER TR225 NEO Scaffold Hoist builds on the trusted performance of its predecessor and is packed with features to make lifting easier and safer on-site.

£1,414.98 ex VAT

£1,697.98 inc VAT

Imer Tipping Buckets - 3 Sizes Available

ITB

Imer Tipping Buckets are our number one scaffold hoist accessory. Available in three sizes, 150Kgs / 200Kgs and 300Kgs capacity, and designed for lifting or lowering materials on site. Fitted with a lifting eye that easily fits any scaffolding hoist hook.

£174.98 ex VAT

£209.98 inc VAT

Brick Basket for scaffold hoists 200Kg

9100002

Brick Basket for scaffold hoists 200Kgs capacity fitted with a central lifting eye. Great accessory for lifting bricks and other bulky, heavy, or loose materials safely on-site. The scaffolder's brick basket is ideal for use with the IMER or other scaffold hoists

£228.98 ex VAT

£274.78 inc VAT

Liftable Wheelbarrow 200Kg

860001

Strong and robust Liftable Wheelbarrow 200Kg capacity that offers a safe and easy way of lifting or lowering wet or loose materials on-site via a scaffold hoist or other lifting devices

£188.98 ex VAT

£226.78 inc VAT

Bucket Carrier for scaffold hoists - 2 or 4 Bucket options

IBC

IMER scaffold hoist Bucket Carriers. two options are available, 2 buckets or 4 Buckets carriers that are perfect for lifting or lowering rubble onsite via plastic buckets. These lightweight bucket carriers are fitted with a lifting eye that suits Imer scaffold hoists and any other brand of scaffold hoist or builder's hoists.

£112.98 ex VAT

£135.58 inc VAT

IMER Builders Gantry Hoist System 500Kg Capacity

G500 N

IMER Builders Gantry Hoist System 500kg capacity with heavy-duty site hoist. This is an all-you-need kit to lift and lower building materials up to 500 kg quickly and safely on site. The kit includes both the hoist and gantry system.

£3,088.98 ex VAT

£3,706.78 inc VAT

IMER ET200N Scaffold Hoist (Old Style)

ET200N

The IMER ET200 Scaffold Hoist is an industry favourite due to its 200 kg capacity, lifting height of 30m, and fast lifting speed of 19m/min. Supplied with a top mounting bracket, and Scaffold Transmission Pole. Ready to use once unboxed

IMER TR225N Scaffold Hoist (Old Style)

TR225N

The IMER TR225 features an extendable mounting bracket and scaffold transmission pole. With a 200kg capacity, 30m lifting height, and 19m/min speed, it's the ultimate scaffold hoist.

Portable Gantry Hoist for Builders and Construction Sites

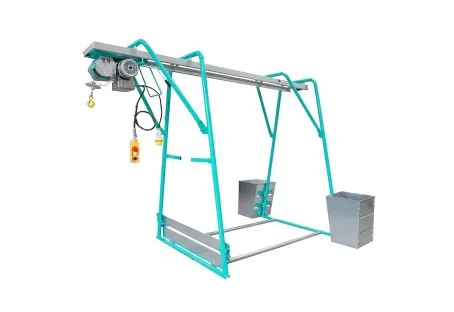

The IMER ET300 gantry hoist system offers an efficient and safe way to lift materials on busy construction sites. With a 300kg safe working load and a 30m maximum working height, this self-supporting gantry hoist is perfect for high-rise projects, roof installations, and sites where traditional scaffold hoists are not suitable.

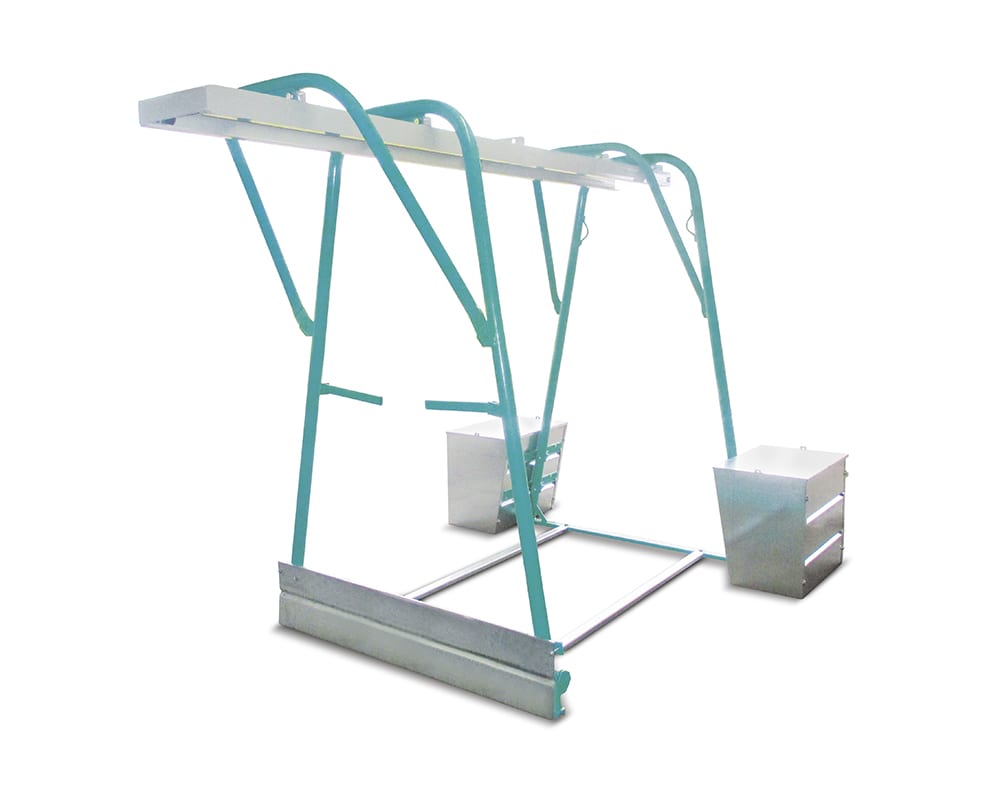

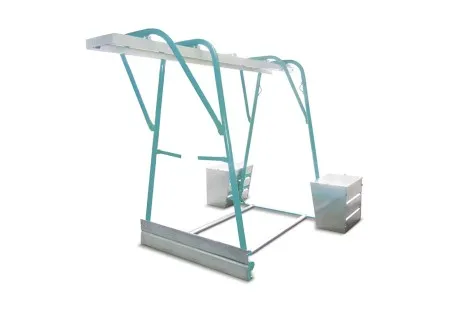

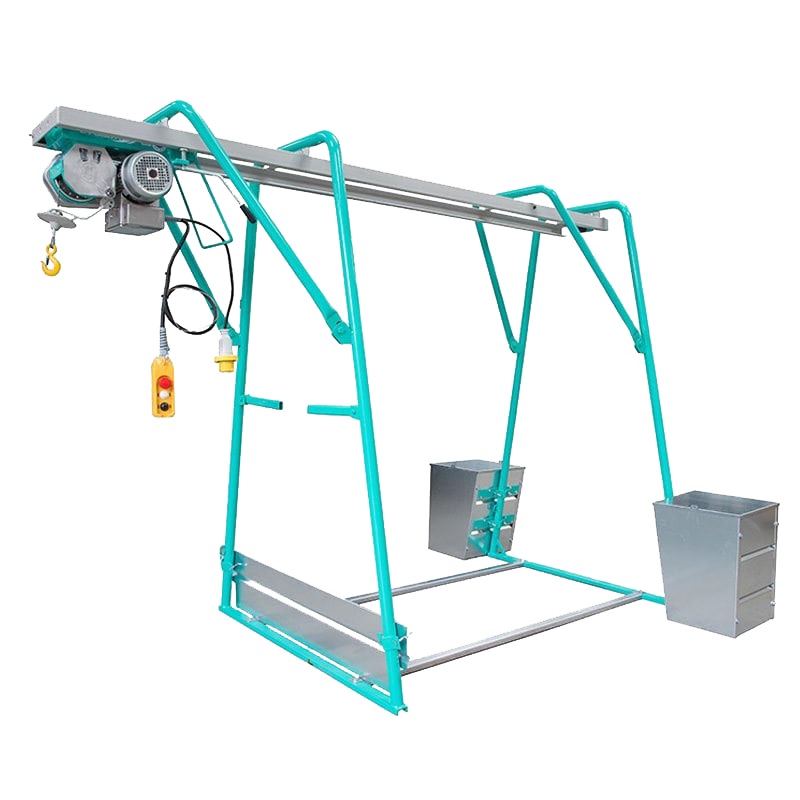

The robust A-frame design features a 3.3m aluminium beam with a 1m overhang for loading beyond building edges. A travelling trolley with brake and locking mechanism ensures smooth positioning, while the hoist’s high-speed lifting (19m/min) keeps your workflow fast and efficient.

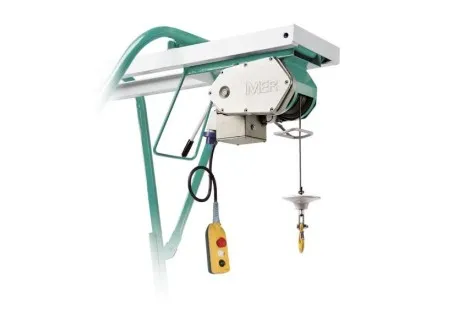

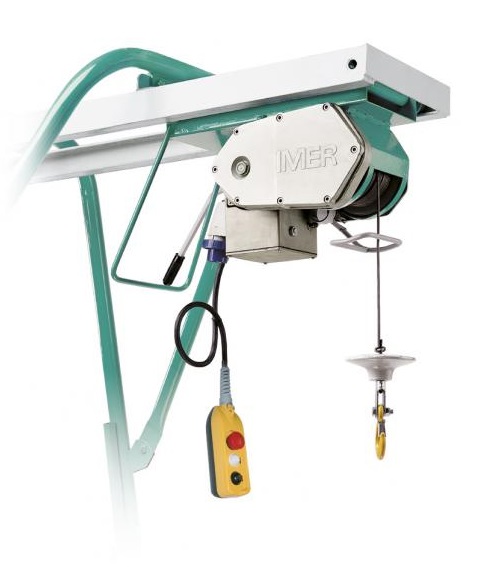

Supplied as a complete system, the IMER ET300 includes the electric hoist, beam, travelling trolley, front and rear gantry goalposts, and two lockable ballast boxes (ballast weights sold separately). Built for durability and daily use, this IMER scaffold hoist offers reliable performance backed by Italian engineering.


This construction site hoist is compatible with a wide selection of site lifting accessories such as tipping buckets, brick baskets, bucket carriers and lifting wheelbarrows to create a complete material handling system tailored to your site needs.


Why choose the IMER ET300 electric scaffold winch?

Designed for challenging construction environments

The ET300 gantry hoist is built to perform where scaffold-mounted systems can’t be used. Whether working on rooftops, open-plan builds, or locations with no scaffold access, this electric gantry hoist is a practical and portable solution.


Heavy-duty lifting performance

Capable of lifting 300kg at 19m/min, the IMER ET300 handles daily material movement with ease. It’s compatible with a wide range of lifting accessories including IMER tipping buckets, brick baskets and liftable wheelbarrows.


Fully compliant and safe to operate

Supplied with a front kick plate, top limit switch, lockable ballast boxes, and pendant controls with emergency stop, the system is fully compliant with UK safety regulations when used with appropriate ballast.

Easy setup and transport

With its compact dimensions, 50kg hoist weight, and modular goalpost frame, the IMER ET300 is easy to install, disassemble, and transport between sites.

Safety Notice: To comply with lifting regulations, the system must be used with 150kg ballast per box. These are not included and must be purchased separately.

Need professional installation or LOLER inspections for your new IMER gantry hoist? ULS Lifting also offers crane installation and service & maintenance packages to ensure your system is correctly fitted, compliant, and kept in peak condition.

For expert advice or to discuss compatibility with your site, contact ULS Lifting on 01384 986 026 or email us here.

Specifications – IMER ET300 scaffold winch 300kg

Key features

- 300kg lifting capacity for heavy-duty site use

- 30m lifting height for multi-storey construction

- 19m/min average lifting speed for improved productivity

- Travelling trolley with lock-off brake

- 3.3m beam with 1m overhang for building edge access

- Lockable ballast boxes (150kg ballast required per box – available separately)

- 110V/32A power supply for safe site operation

- Top limit safety switch with galvanised wire rope

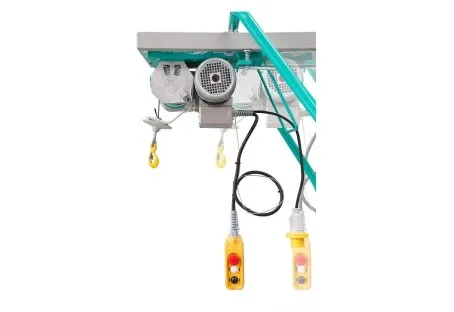

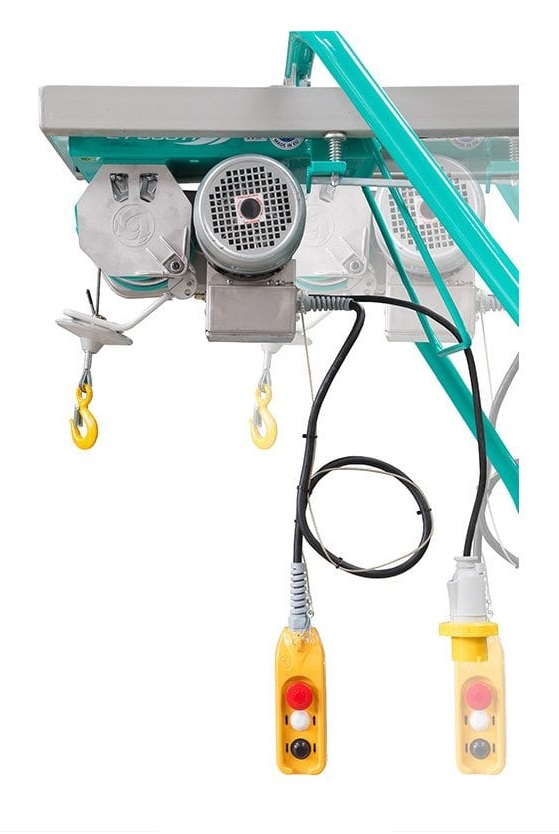

- Pendant control with up, down, and emergency stop functions


Technical details

- Model: ET300 N
- Working load limit (WLL): 300kg
- Max working height: 30m
- Lifting speed: 19m/min
- Power: 110V or 230V / 50Hz single-phase
- Motor rating: 1.1kW
- Motor speed: 1320rpm
- Hoist weight: 50kg
- Steel rope: 5mm dia, 31m length
- Noise level: <72 dB(A)
- Beam dimensions: 330mm x 780mm x 380mm
- Packed dimensions: 390mm x 810mm x 590mm

ModelCapacityMax Working HeightHoist SpeedHoist WeightDimensions

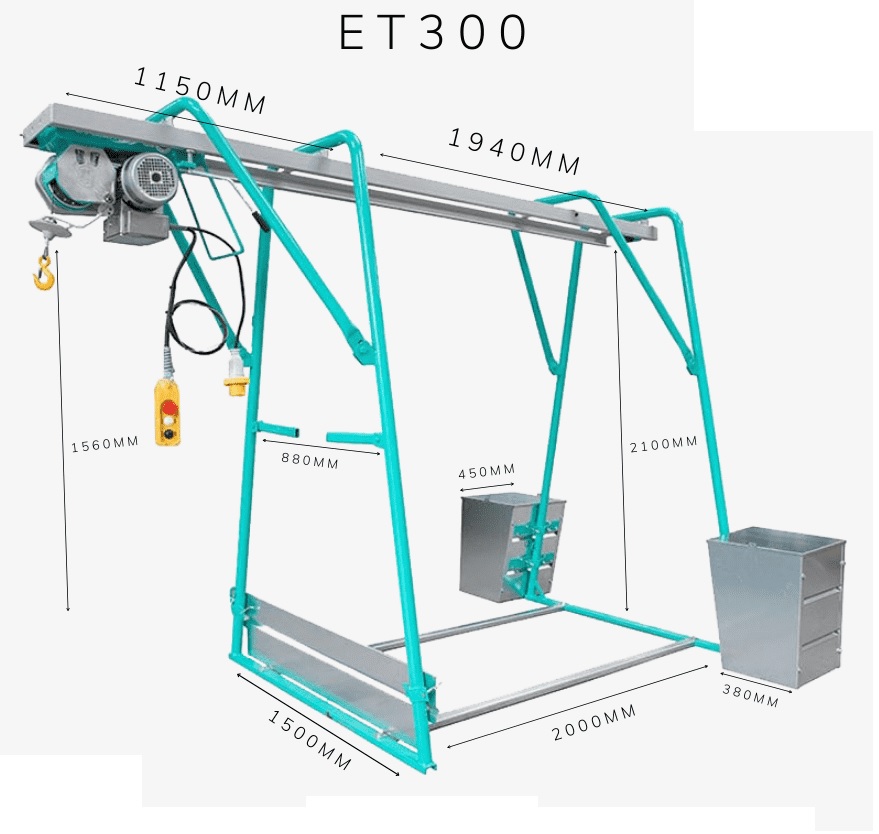

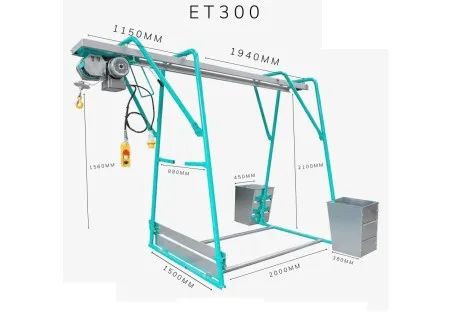

ET300 N300Kgs30m19 m/min50 Kgs2000mm L x 1500mm W x 2100mm H

To meet lifting regulations, the IMER ET300 N Builders Gantry Kit includes a front kickboard and lockable rear ballast boxes. Please note that 150kg of ballast per box is required but not included. Contact our office at 01384 986 026, and we can supply them for you.


Ultimate Lifting Solutions provides a range of lifting accessories compatible with the IMER Gantry System, including tipping buckets, brick baskets, liftable wheelbarrows, bucket carriers, lifting slings, and shackles.

Brand benefits – IMER Group

IMER Group has been manufacturing industry-leading construction equipment since 1962. With a reputation for reliability and innovation, IMER products are trusted on building sites around the world. Their lifting solutions are designed for maximum productivity, safety, and ease of use, making them a go-to choice for trade professionals across the UK.


FAQs – IMER ET300 gantry hoist system

What is a gantry hoist?

A gantry hoist is a freestanding lifting system consisting of a hoist mounted on a beam supported by an A-frame structure. It is commonly used for lifting materials vertically on sites without scaffolding.


What makes the IMER ET300 different from a scaffold hoist?

The IMER ET300 is a portable gantry hoist with its own goalpost-style support frame, making it ideal for open areas or roof-level sites where scaffold towers are unavailable or impractical.


What power supply does the ET300 gantry hoist require?

The IMER ET300 operates on a 110V (32A) site supply as standard. A 230V version is also available – please specify at time of order.


Is the IMER ET300 compatible with brick baskets and other accessories?

Yes, the hoist works with a variety of lifting attachments including IMER tipping buckets, brick baskets and liftable wheelbarrows (available separately). Contact the ULS team for accessory options.


Do I need to buy ballast weights separately?

Yes. Two lockable ballast boxes are supplied, but the required 150kg of ballast per box must be purchased separately. ULS Lifting can supply the correct ballast weights – call us for details 01384 986 026.


How fast does the IMER ET300 lift materials?

The IMER ET300 hoist lifts at an average speed of 19 metres per minute, allowing you to move loads efficiently and reduce downtime.


Where is this IMER gantry hoist best used?

The IMER ET300 is ideal for use on rooftops, flat concrete slabs, and construction sites without scaffolding. It provides a stable, independent lifting solution where scaffold hoists cannot be installed.
