Stahl High-Speed Electric Chain Hoist – Technical Overview

The Stahl high-speed electric chain hoist represents the pinnacle of German engineering in industrial lifting equipment. Built to exacting standards and incorporating over 130 years of crane technology expertise, each Stahl chain hoist delivers reliable performance in the most demanding applications.

Key Technical Features:

- Quality construction: Industrial-grade units suitable for demanding environments with high duty cycles

- Capacity range: Models available for lifting capacities of 500kg, 1000kg, and 1600kg

- Dual-speed lifting: High speed of 12 metres per minute for rapid cycling, with slow speed for precision positioning

- Standard height of lift: 3 metres, with additional heights available in 1m increments

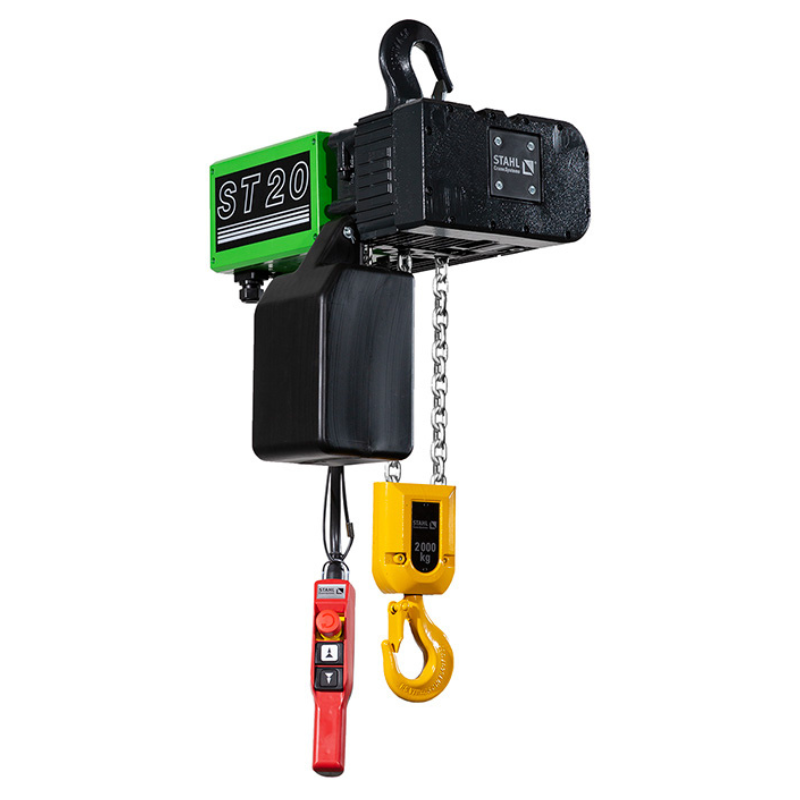

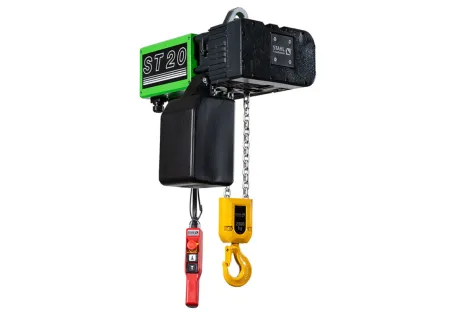

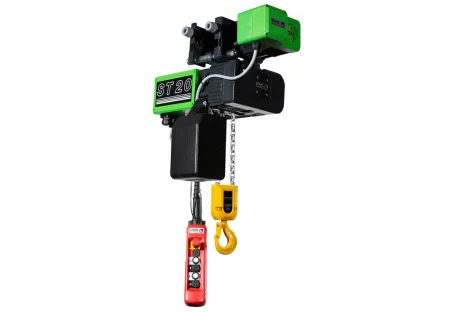

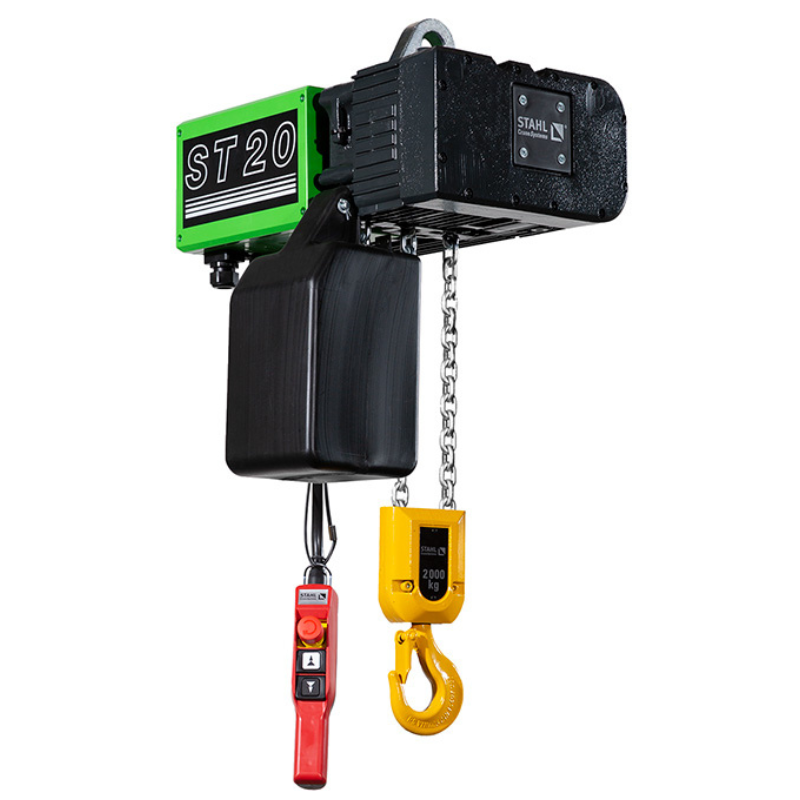

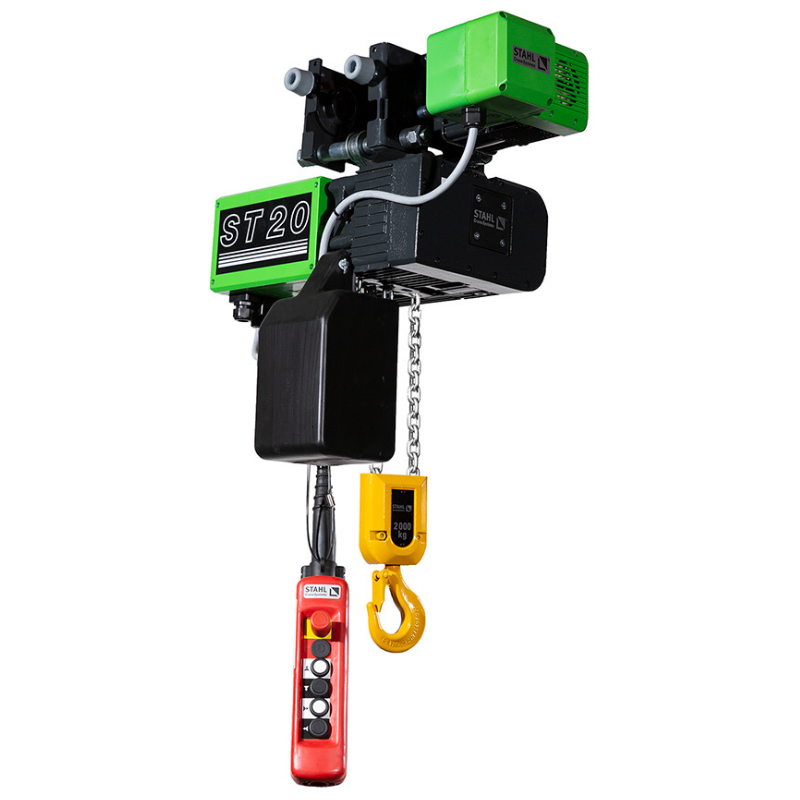

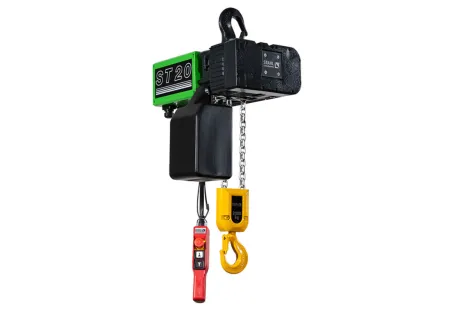

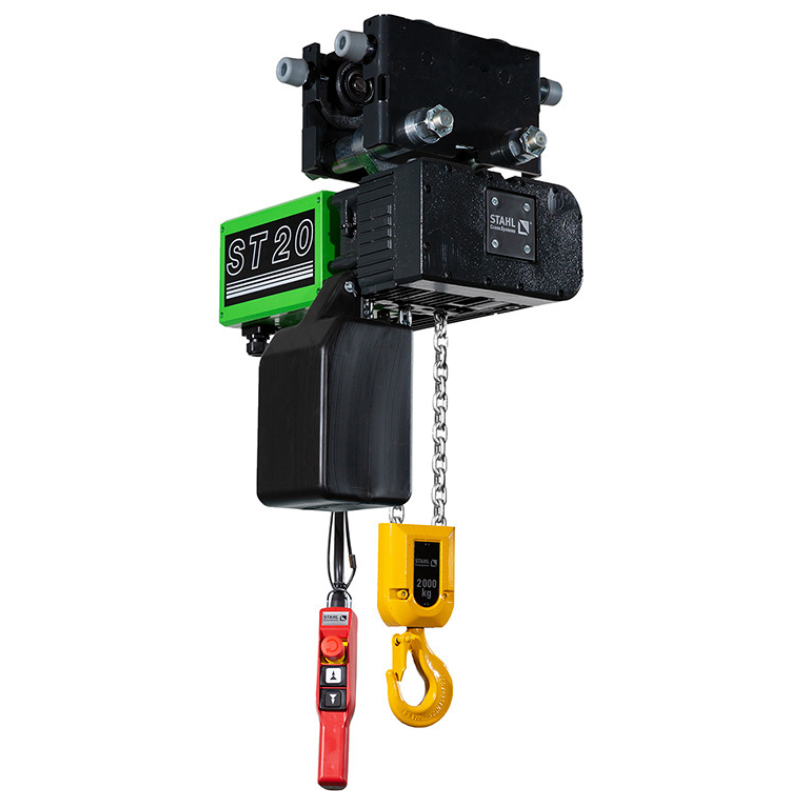

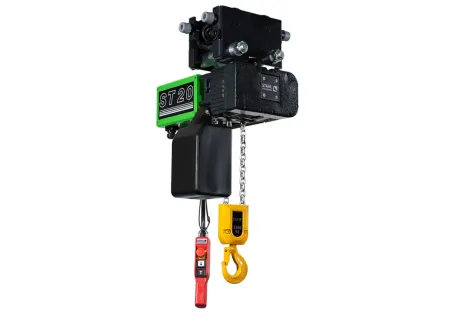

- Suspension configurations: Available with hook, lug, push trolley, or powered trolley mounting

- Chain container: Fitted as standard for safe chain storage

- Durable suspension: Direct suspension from a patented solid cast-iron chain guide

- Easy maintenance: Over-mounted drive shaft allows simple inspection and maintenance of chain drive components

- Compact design: Extremely short and compact construction maximising space efficiency

- ISO classification: Meets high ISO standards according to FEM/ISO guidelines for industrial lifting equipment

- Modern production: Manufactured using Kanban production methods for consistent quality and rapid availability

- Comprehensive warranty: All Stahl products supplied with 12-month warranty

- Explosion-protected options: Available in explosion-protected design compliant with ATEX and IECEx standards for Zone 1, Zone 21, and Zone 22

Standard Operating Voltages:

- 400V 3-phase 50Hz (most common for UK industrial applications)

Alternative voltages available on request

Protection Class:

Standard: IP 55

Option: IP 66 for outdoor use or demanding environments

Ambient Temperature Range:

Standard: -20°C to +40°C

Option: Up to +50°C

Paint System:

Standard: Polyurethane topcoat in greyish black/yellow-green (RAL 7021/6018)

Optional: Enhanced corrosion protection systems for outdoor or corrosive environments

Stahl Electric Chain Hoist Servicing & Inspection

All Stahl high-speed electric chain hoists supplied by ULS have been fully tested and are in good working order. Each unit is supplied with comprehensive operating instructions and the relevant conformity certificate.

Every Stahl chain hoist includes a standard 12-month warranty covering manufacturing defects and workmanship.

Important Safety Information: In accordance with national and international occupational safety and health regulations (including LOLER and PUWER), hoisting equipment must be inspected at least annually by a competent person. Adverse working conditions, intensive use, or operation in harsh environments may require more frequent thorough examinations.

ULS offers comprehensive servicing and annual inspection services for Stahl electric hoists and all lifting equipment. Our qualified engineers are experienced with Stahl products and can provide:

- Annual LOLER inspections and thorough examinations

- Preventative maintenance programmes

- Repair and overhaul services

- Genuine Stahl spare parts supply

- Technical support and troubleshooting

- Modernisation and upgrade services

To arrange your annual servicing or to discuss a maintenance contract for your Stahl hoist, please contact our Sales Team:

Email: sales@ulslifting.com

Telephone: 01384 986 026

Stahl CraneSystems – German Engineering Excellence

A Legacy of Innovation and Reliability

For over 130 years, STAHL CraneSystems has been at the forefront of lifting and crane technology innovation. The Stahl electric chain hoist range represents this legacy of engineering excellence, combining field-proven reliability with cutting-edge technology.

Hoisting technology and crane components from STAHL CraneSystems are trusted worldwide across diverse industries. Each Stahl chain hoist is developed by specialist engineers and manufactured with meticulous care in accordance with tried-and-tested quality standards that have made STAHL a byword for reliability.

Worldwide Trust in Stahl Quality

Companies across the globe in industries including manufacturing, construction, petrochemical, food processing, and logistics have chosen STAHL CraneSystems for maximum safety and quality. The Stahl hoist is the preferred choice when reliability, safety, and performance are non-negotiable.

Global Support Network

STAHL CraneSystems' global orientation with subsidiaries abroad and over 100 sales partners ensures customers receive expert support wherever their equipment operates. This worldwide network provides:

- Local technical support and expertise

- Rapid spare parts availability

- Professional installation and commissioning services

- Comprehensive training programmes

- 24/7 emergency support in many territories

Commitment to Explosion Protection

STAHL CraneSystems is internationally recognised as a specialist in explosion protection technology and is regarded as the world market leader in this field. The safety of people and machines in areas subject to gas and dust explosion hazards is paramount. The Stahl electric chain hoist is available in fully certified explosion-protected variants for the most demanding hazardous area applications.

When you choose a Stahl chain hoist from ULS, you're investing in German-engineered quality that will deliver reliable performance for decades to come.

FAQs – Stahl High-Speed Electric Chain Hoist

What lifting speeds are available for the Stahl High Speed Electric Chain Hoist?

The high-speed version offers dual-speed control with a fast lifting speed of 12m/min and a slow speed of 3m/min for precise load positioning.

What capacities does the Stahl High Speed Electric Chain Hoist cover?

Three models are available with lifting capacities of 500kg, 1000kg, and 1600kg.

Is this Stahl hoist suitable for use in abattoirs or food processing?

Yes - the Stahl high-speed chain hoist is particularly popular in abattoirs, where rapid vertical movement is required. However, the Stahl High Speed Electric Chain Hoist has a broad range of applications covering a variety of industries.

What suspension types are available for the Stahl High Speed Electric Chain Hoist?

You can choose from top hook, lug mount, manual push trolley, or electric travel trolley options.

Does the Stahl High Speed Electric Chain Hoist come with a chain container?

Yes, a chain container is included as standard for all Stahl electric hoists.

What is the power requirement for the Stahl High Speed Electric Chain Hoist?

These hoists operate on 400V three-phase power as standard. Other voltage options are available upon request - simply get in touch with our team to enquire

Are pendant controls included?

Yes, a standard 2-button pendant control is included with your Stahl High Speed Electric Chain Hoist. Additional options, including radio control, are available on request.

Is the Stahl High Speed Electric Chain Hoist easy to service or inspect?

Absolutely - the over-mounted drive shaft and cast-iron components are designed for easy access and maintenance.

Can I add a remote control or festoon kit to my Stahl High Speed Electric Chain Hoist?

Absolutely - festoon systems and remote controls are both compatible and available as add-ons.

How fast is delivery for the Stahl High Speed Electric Chain Hoist?

Thanks to modern Kanban manufacturing, these units are typically available with a quick turnaround of 7 to 10 days. If required urgently, please give our team a call.
