1000Kg Yale CPV F 400v Electric Chain Hoist
Brand:
Capacity
Capacity 1000Kgs
(1.0 tonne)
Description
The Yale CPV-F Electric Chain Hoist 400V 1000kg is a robust and versatile 1-ton electric hoist, ideal for industrial applications. Available with single, dual, and fast speed options, this 1-tonne hoist ensures efficient and precise lifting.
Add to cart
Add to quoteRelated products
CM Lodestar Electric Chain Hoists (400V)
CM Lodestar 400v
£2,914.98 ex VAT
£3,497.98 inc VAT
CPV F YALE ELECTRIC CHAIN HOIST 400V (capacity 2500 - 5000 Kgs)
CPV F
The Yale CPV F Electric Chain Hoist 400V, with a substantial capacity range of 2,500 to 5,000 kg, represents the pinnacle of electric chain hoisting in the Yale CPV series. Designed for demanding industrial applications, these 2,500 kg and 5,000 kg CPV/F Electric Chain Hoists combine robustness with a compact construction, making them the ultimate choice for heavy-duty lifting hoists needs.
£3,548.98 ex VAT
£4,258.78 inc VAT
-494x340.webp)
Stahl ST Electric Chain Hoist - 400 volt output
ST
The Stahl ST Electric Chain Hoist is a powerful yet energy-efficient solution, demanding minimal maintenance while delivering consistent, high-performance lifting.
£1,029.98 ex VAT
£1,235.98 inc VAT
Liftket Star Electric Chain Hoist
Star
The Star range of Electric Chain Hoists from German manufacturer LIFTKET. The Liftket range is a quality built robust hoist which are currently our best selling hoist due to their superior build quality and performance ratings. Suitable for lifting most industrial loads from 125Kgs up to 5,000Kgs.
£1,295.98 ex VAT
£1,555.18 inc VAT
Stahl High Speed Electric Chain Hoist
ST High Speed
Stahl High-Speed Electric Chain Hoist, designed for applications that need the hoist to have a fast lifting speed of 12m/minute, is ideal for Abattoir usage.
£2,695.20 ex VAT
£3,234.24 inc VAT
500Kg Yale CPV F 400v Electric Chain Hoist
CPVF 5-4
The Yale CPV-F Electric Chain Hoist 500kg (400V) offers reliable lifting for various industrial applications. This robust 500kg electric chain hoist is available with both single and dual hoist speeds, making it a versatile 500kg hoist solution. We are a leading supplier of the 500kg Yale CPV-F.
£1,298.98 ex VAT
£1,558.78 inc VAT
2000Kg Yale CPV F 400v Electric Chain Hoist
CPVF 20
The Yale CPV-F Electric Chain Hoist 400V, with a 2-ton capacity, is a robust and versatile electric hoist for industrial use. Available in both single and dual-speed options, it operates at 400V, 3-phase, 50Hz, making it an excellent electric lifting solution.
£1,817.75 ex VAT
£2,181.30 inc VAT
- Description
- Specifications
- Maintenance and servicing
- Brand benefits
- Downloads
- FAQs
- Reviews (0)
- Q & A
The Yale CPV-F Electric Chain Hoist 400V with a 400V power supply, rated for 1000kg (1 tonne) capacity, stands out as one of the best electric chain hoists in its class. Yale's commitment to high standards is evident in the design of this new model, combining modern aesthetics with technical innovation. Its robust, compact construction makes this 1-ton electric hoist a versatile unit, perfectly suited for demanding industrial applications. The CPV F 1-tonne hoist model offers a service-friendly modular design, allowing for easy access to all critical components, which streamlines maintenance and periodic inspections. Safety and longevity are paramount, with integrated upper and lower limit switches significantly extending the lifespan of the slipping clutch, motor and gearbox. The 1-ton chain hoists in this series are equipped with electromagnetic spring pressure brakes that reliably hold the load, even in the event of a power failure. A notable feature is the externally adjustable slip clutch, ensuring a permanent connection between the load and the brake. Mainline contactors, fitted as standard, provide increased operational safety.
Yale CPV 1000kg Electric Chain Hoist Key Specifications
- SWL: 1000 kg (1 tonne)
- Supply Voltage: 400V 3ph 50Hz

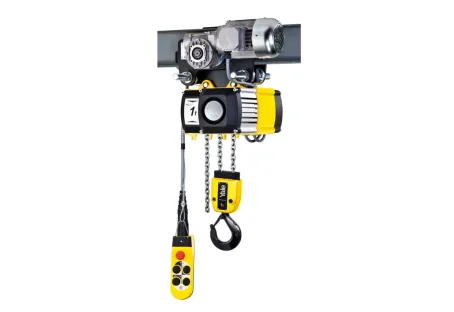

- Suspension Options: Available with Top Hook Suspension as standard or Lug suspension, push trolley and single-speed / dual-speed travelling trolley.
- Falls of Chain: Available in 1 or 2 falls, depending on the specific model and speed configuration.
- Hoist Speed Options:
- Single Speed: 4 m/min (CPV 10-4, 2 falls) or 8 m/min (CPV 10-8, 1 fall).
- Dual Speed: 4 & 1 m/min (CPV/F 10-4, 2 falls) or 8 & 2 m/min (CPV/F 10-8, 1 fall).

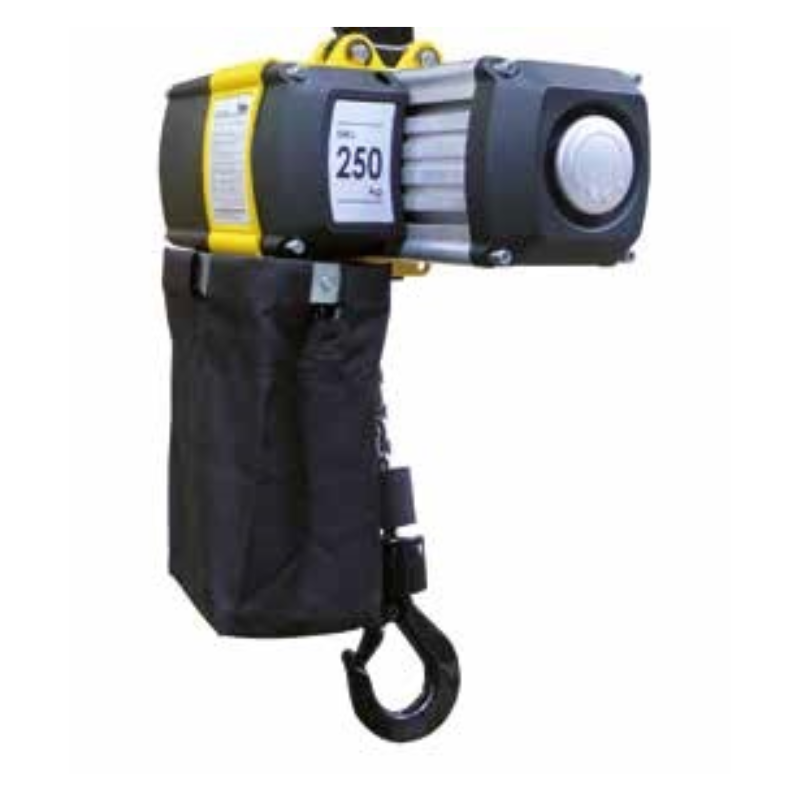

- Chain Containers: Can be supplied for efficient chain management.
- Height of Lift (HOL): Available from 3 m to 15 m as standard (higher on request, as there are no restrictions on overall length).
Model Variants for your 1 Tonne Requirements:
| Model | Capacity | Hoist Speed | Fall of Chain | Weight Hoist only | Weight with Push Trolley | Weight with Electric Trolley |
| CPV 10-4 | 1,000Kgs | 4 m/Min | Two | 28Kgs | 43Kgs | 51Kgs |
| CPV/F 10-4 | 1,000Kgs | 4 & 1m/Min | Two | 29Kgs | 44Kgs | 52Kgs |
| CPV 10-8 | 1,000Kgs | 8m/Min | Single | 58Kgs | 77Kgs | 84Kgs |
| CPV/F 10-8 | 1,000Kgs | 8 & 2m/Min | Single | 59Kgs | 78Kgs | 85Kgs |
Any additional height of lift is available; the standard is 3m, and additional heights are sold in complete metres only. Standard hoists at 3m are supplied with a 2m pendant cable. As the lifting height increases, the pendant cable length will be adjusted pro rata. The hoist body can be fitted with a raincoat, with three sizes available to suit all hoist sizes. Powered trolley raincoats are also available, but only up to a 2-tonne capacity. Radio remote control is available for the above hoists, fitted at the factory before dispatch, and tested and certified. Please contact us for more information on your 1-ton electric chain hoist.
CPV / F Hoist Features Include:
- Increased operating safety through a 42V control voltage (low voltage control) and a main contactor.
- An integrated limit switch for the highest and lowest hook positions, considerably extending the service life of the slip clutch, motor and gearbox.
- Overload protection (slip clutch) in all CPV hoists, which allows for higher safety requirements.
- An electromagnetic spring pressure brake that holds the load safely even in the event of a power failure.
- Different suspension types are available, such as top hook, lug, or integrated trolley. A retrofit to another type of suspension is possible.
- Custom chain lengths (lifting heights) are available upon customer request.
- An oil bath gearbox (or semi-fluid grease with CPV/F 2-8 and 5-4, as well as CPV 2-4 and 5-2) featuring helical gearing for particularly smooth operation and enhanced lifespan.
- All-steel chain guide.
- The chain guide of the smallest hoists (CPV/F 2-8 and 5-4, as well as CPV 2-4 and 5-2) consists of a thermoplastic (POM) chain guide that is integral to the housing.
- The CPV series is protected up to IP 55 against dust ingress and water jets.
- A 2-year warranty (excluding worn parts) and a lifetime lubricated gearbox.
- Duty cycle of 50% ED for single speed.
- Standard operating voltage: 400V, 3Ph, 50Hz.
- Available with either Top Hook suspension or Lug for reduced headroom. Lug fitting is designed for easy integration into trolley applications (customer to specify at the time of ordering).
- Fully tested and certified.
Assistance with installation
For those looking for electric hoist installation services, get in touch with the ULS team for installation and testing by fully qualified engineers.
Optional Extras
Make the power cable installation of the 1-tonne Yale CPV motorised chain hoist easier; why not purchase the Yale Festoon Power Supply Cable System from ULS Lifting at the same time as the CPV-F Hoist? This cost-effective Industrial Festoon System is designed specifically for Electric Chain Hoists. The system will be supplied with all parts and cables required to install your power cable supply on top of a suitable runway beam or steelwork.

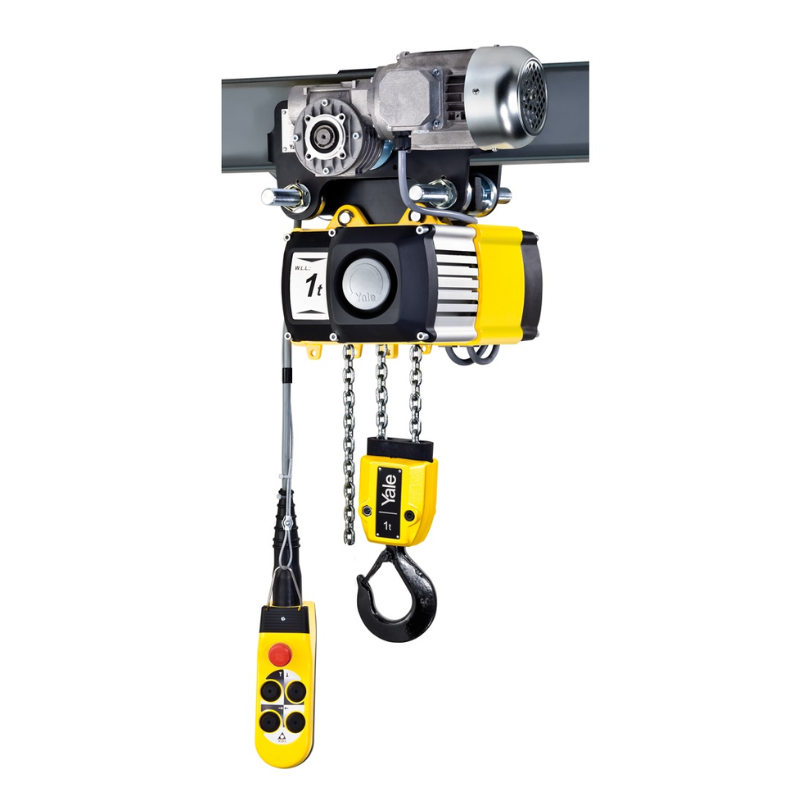

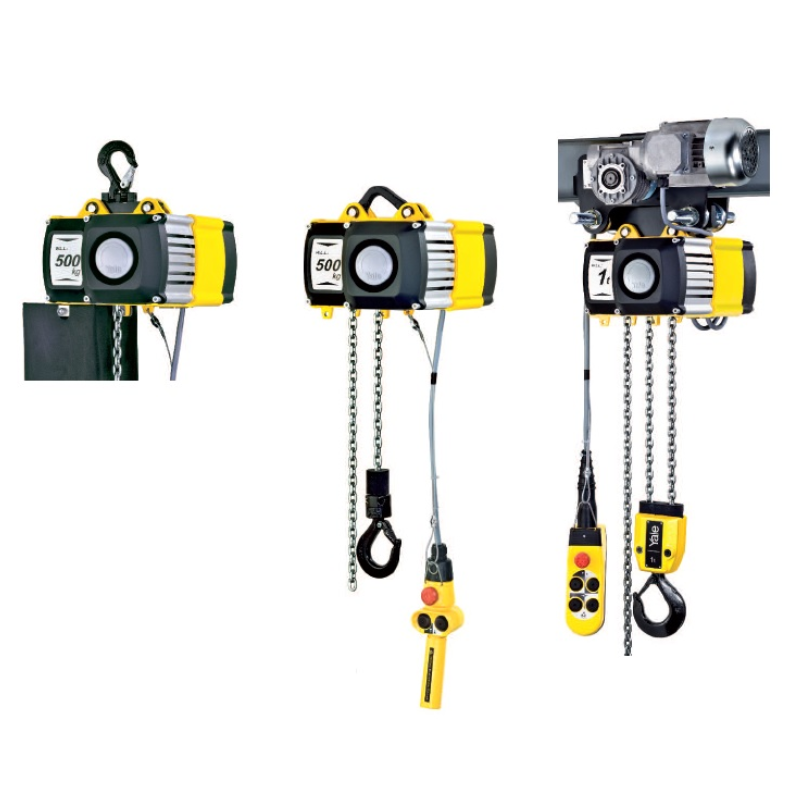

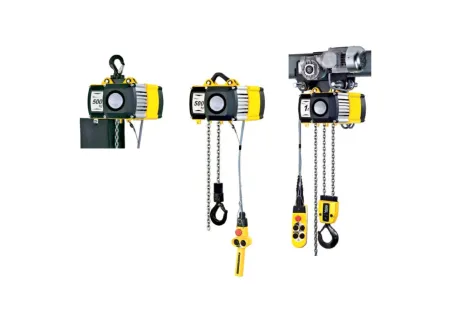

Suspension Options available - Top Hook suspension, Lug Suspension and Powered Travel (see below)
CPV Electric Hoist 1000kg Features:
- Increased operating safety through a 42V control voltage (low voltage control) and a main contactor.
- An integrated limit switch for the highest and lowest hook positions, considerably extending the service life of the slip clutch, motor and gearbox.
- Overload protection (slip clutch) in all CPV hoists, which allows for higher safety requirements.
- An electromagnetic spring pressure brake that holds the load safely even in the event of a power failure.
- Different suspension types are available, such as top hook, lug, or integrated trolley. A retrofit to another type of suspension is possible.
- Custom chain lengths (lifting heights) are available upon customer request.
- An oil bath gearbox (or semi-fluid grease with CPV/F 2-8 and 5-4, as well as CPV 2-4 and 5-2) featuring helical gearing for particularly smooth operation and enhanced lifespan.
- All-steel chain guide.
- The chain guide of the smallest hoists (CPV/F 2-8 and 5-4, as well as CPV 2-4 and 5-2) consists of a thermoplastic (POM) chain guide that is integral to the housing.
- The CPV series is protected up to IP 55 against dust ingress and water jets.
- A 2-year warranty (excluding worn parts) and a lifetime lubricated gearbox.
- Duty cycle of 50% ED for single speed.
- Standard operating voltage: 400V, 3Ph, 50Hz.
- Available with either Top Hook suspension or Lug for reduced headroom. Lug fitting is designed for easy integration into trolley applications (customer to specify at the time of ordering).
- Fully tested and certified.
| Model | Capacity | Hoist Speed | Fall of Chain | Weight Hoist only | Weight with Push Trolley | Weight with Electric Trolley |
| CPV 10-4 | 1,000Kgs | 4 m/Min | Two | 28Kgs | 43Kgs | 51Kgs |
| CPV/F 10-4 | 1,000Kgs | 4 & 1m/Min | Two | 29Kgs | 44Kgs | 52Kgs |
| CPV 10-8 | 1,000Kgs | 8m/Min | Single | 58Kgs | 77Kgs | 84Kgs |
| CPV/F 10-8 | 1,000Kgs | 8 & 2m/Min | Single | 59Kgs | 78Kgs | 85Kgs |
| Model | Capacity | Hoist Speed | Fall of Chain | Weight Hoist only | Weight with Push Trolley | Weight with Electric Trolley |
| CPV/F 2-8 | 250Kgs | 8 & 2m/Min | Single | 19Kgs | 28Kgs | 33Kgs |
| CPV/F 5-4 | 500Kgs | 4 & 1m/Min | Two | 21Kgs | 30Kgs | 35Kgs |
| CPV 5-8 | 500Kgs | 8m/Min | Single | 21Kgs | 30Kgs | 35Kgs |
| CPV/F 5-8 | 500Kgs | 8 & 2m/ Min | Single | 27Kgs | 42Kgs | 50Kgs |
| CPV 10-4 | 1,000Kgs | 4 m/Min | Two | 28Kgs | 43Kgs | 51Kgs |
| CPV/F 10-4 | 1,000Kgs | 4 & 1m/Min | Two | 29Kgs | 44Kgs | 52Kgs |
| CPV 10-8 | 1,000Kgs | 8m/Min | Single | 58Kgs | 77Kgs | 84Kgs |
| CPV/F 10-8 | 1,000Kgs | 8 & 2m/Min | Single | 59Kgs | 78Kgs | 85Kgs |
| CPV 20-4 | 2,000Kgs | 4 m/Min | Two | 63Kgs | 82Kgs | 89Kgs |
| CPV/F 20-4 | 2,000Kgs | 4 & 1m/Min | Two | 64Kgs | 83Kgs | 90Kgs |
| CPV/F 25-8 | 2,500Kgs | 8 & 2m/Min | Single | 85Kgs | 147Kgs | 161Kgs |
| CPV/F 50-4 | 5,000Kgs | 4 & 1m/Min | Two | 98Kgs | 160Kgs | 174Kgs |
The Yale CPV F Electric Chain Hoist 1000kg is provided fully tested and is in good working order. It comes with operating instructions and the relevant conformity certificate.
Please note: In accordance with national and international occupational safety and health regulations, hoisting equipment must be inspected at least annually by a qualified professional. Adverse working conditions may require more frequent inspections for your 1-ton electric hoist.
For annual servicing of this product or any similar equipment, please contact our Sales Team at ULS on sales@ulslifting.com or 01384 986 026.
Yale is one of the most popular brands in the material handling industry, trusted for applications ranging from offshore oil platforms to pulp and paper production.
Renowned for its broad product range, the Yale brand represents top quality and performance. Often included in complete overhead lifting systems, Yale products are used across hundreds of industries worldwide. In addition to its premier line of wire rope hoists, Yale also offers electric chain hoists, manual hoists and lever tools, all under the same trusted name.
FAQ's about the 1000Kg Yale CPV F 400v Electric Chain Hoist
Why Choose a Yale CPV Chain Hoist?
What is the maximum lifting capacity of this Yale CPV F hoist?
What power supply does the 1000kg Yale CPV F hoist require?
Are there different speed options available for the Yale 1000kg hoist?
Is the Yale 1-ton electric hoist suitable for outdoor use?
What is the warranty period for the 1 tonne Yale CPV F Electric Chain Hoist?
How often should my hoist be inspected?
